Маленький экскаватор XCMG тонны XE35E
- Категория: Excavators >>>
- Поставщик: XCMG,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11900.40 $* | 12495.20 $* |
| Aug-19-2025 | 11800.32 $* | 12390.25 $* |
| Jul-19-2025 | 9900.22 $* | 10395.78 $* |
| Jun-19-2025 | 11600.8 $* | 12180.90 $* |
| May-19-2025 | 10100.6 $* | 10605.99 $* |
| Apr-19-2025 | 11400.74 $* | 11970.52 $* |
| Mar-19-2025 | 11300.99 $* | 11865.65 $* |
| Feb-19-2025 | 11200.97 $* | 11760.22 $* |
| Jan-19-2025 | 11100.20 $* | 11655.44 $* |
Характеристики
Products Description

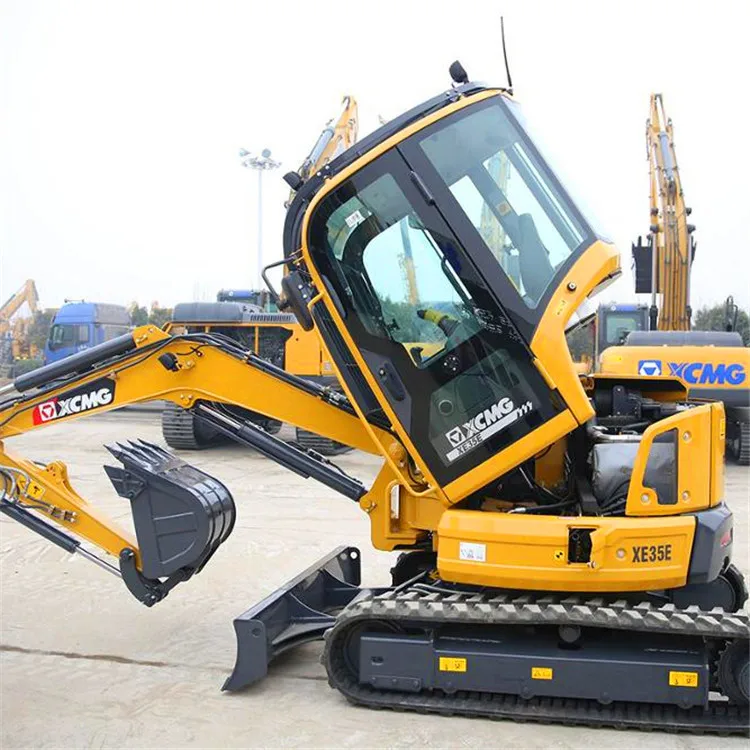

XCMG 3.5ton Small Excavator XE35E cheap-mini-excavator.
1. Engine that meets Euro V emission standards is highly reliable, environmentally friendly, and have lower fuel consumption. 2.
Compact and Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly. 3. When
the travel system retracts, the length between two crawlers is only 990mm, which has better trafficability. 4. Key electrical
elements are arranged in new type electrical box, which makes daily maintenance more convenient.
Compact and Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly. 3. When
the travel system retracts, the length between two crawlers is only 990mm, which has better trafficability. 4. Key electrical
elements are arranged in new type electrical box, which makes daily maintenance more convenient.
Specification
Item | Unit | Parameters | ||
Model | Operating weight | Kg | 4200 | |
Bucket capacity | m³ | 0.12 | ||

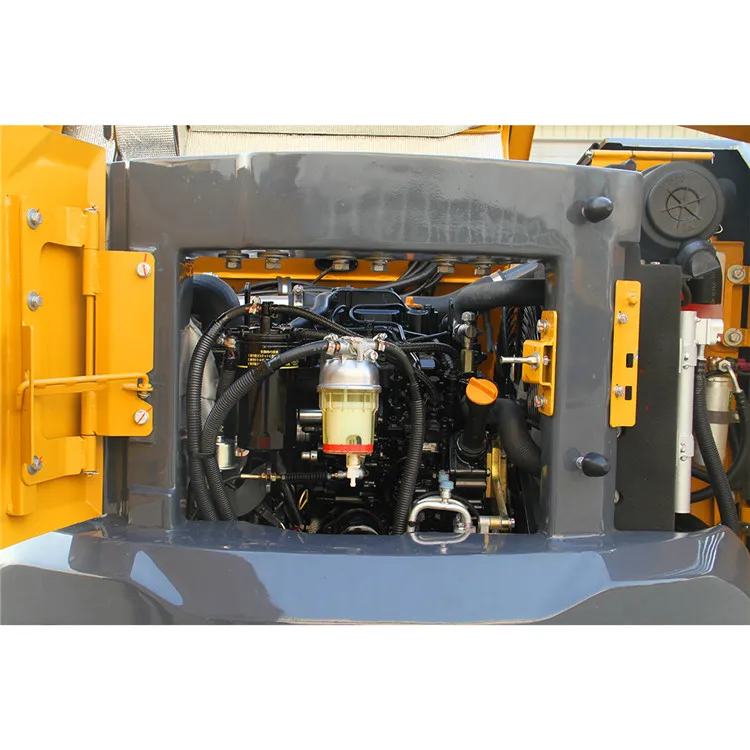

Engine | Model | - | Yanmar 3TNV88F | |
No. of cylinders | - | 3 | ||
Rated power | kw/rpm | 18.2/2200 | ||
Maximum torque/speed | N.m | 85.3-94.2/1320 | ||
Displacement | L | 1.642 | ||
Main performance | Travel speed (H/L) | km/h | 3.6/2.2 | |
Swing speed | r/min | 9 | ||
Gradeability | ° | ≤30 | ||
Ground pressure | kPa | 36.6 | ||
Bucket digging force | kN | 28.6 | ||
Arm digging force | kN | 20.3 | ||
Maximum tractive force | kN | 31.6 | ||
Hydraulic system | Rated flow of main pump | L/min | 108 | |
Main safety valve pressure | Mpa | 23 | ||
Travel system pressure | Mpa | 27.5 | ||
Swing system pressure | Mpa | 16.7 | ||
Pilot system pressure | Mpa | 3.9 | ||
Oil capacity | Fuel tank capacity | L | 40 | |
Hydraulic tank capacity | L | 45 | ||
Engine oil capacity | L | 7 | ||
Appearance size | A Overall length | mm | 4960 | |
B Overall width | mm | 1740 | ||
C Overall height | mm | 2535 | ||
D Width of platform | mm | 587 | ||
E Minimum tail swing radius | mm | 870 | ||
F Track shoe width | mm | 300 | ||
G Wheel base of crawler | mm | 1721 | ||
H Track gauge | mm | 1440 | ||
J Minimum ground clearance | mm | 297 | ||
Dozer blade(width/height) | mm | 1740/358 | ||
Working range | A Maximum digging height | mm | 5000 | |
B Maximum dumping height | mm | 3600 | ||
C Maximum digging depth | mm | 3060 | ||
D Maximum vertical wall digging depth | mm | 2260 | ||
E Maximum digging radius | mm | 5300 | ||
F Minimum swing radius | mm | 2170 | ||
Maximum dozer lifting height | mm | 305 | ||
Maximum dozer cutting depth | mm | 360 | ||
Standard | Length of boom | mm | 2560 | |
Length of arm | mm | 1350 | ||

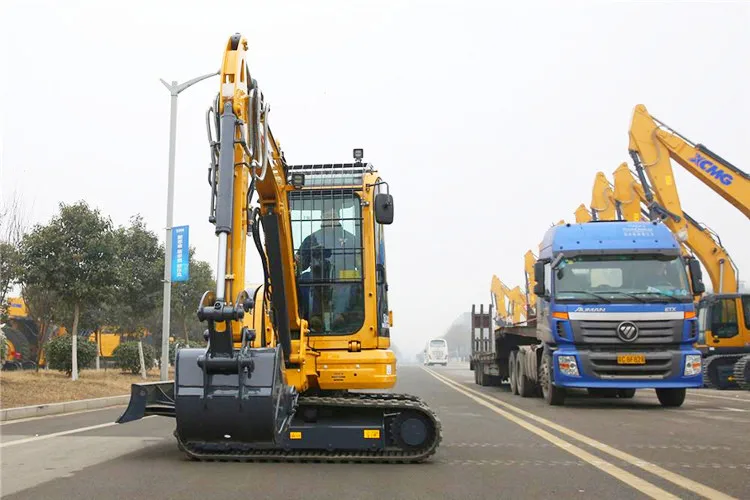

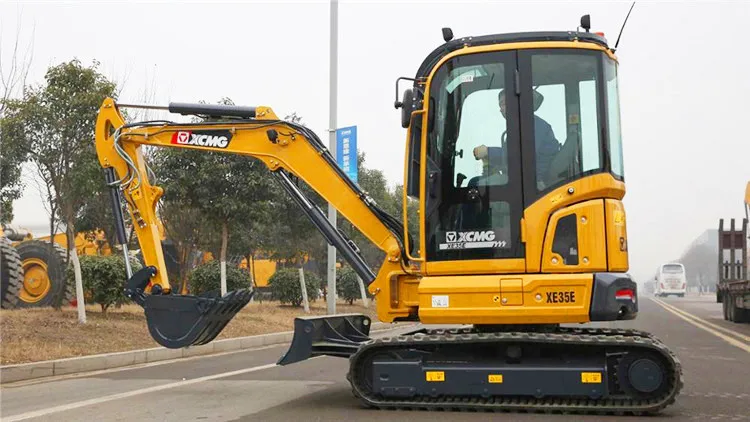

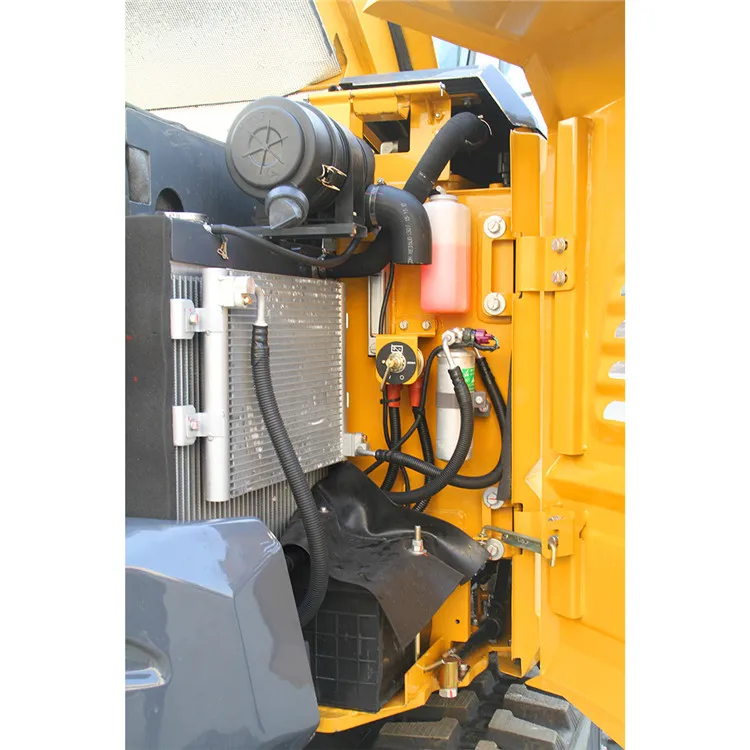

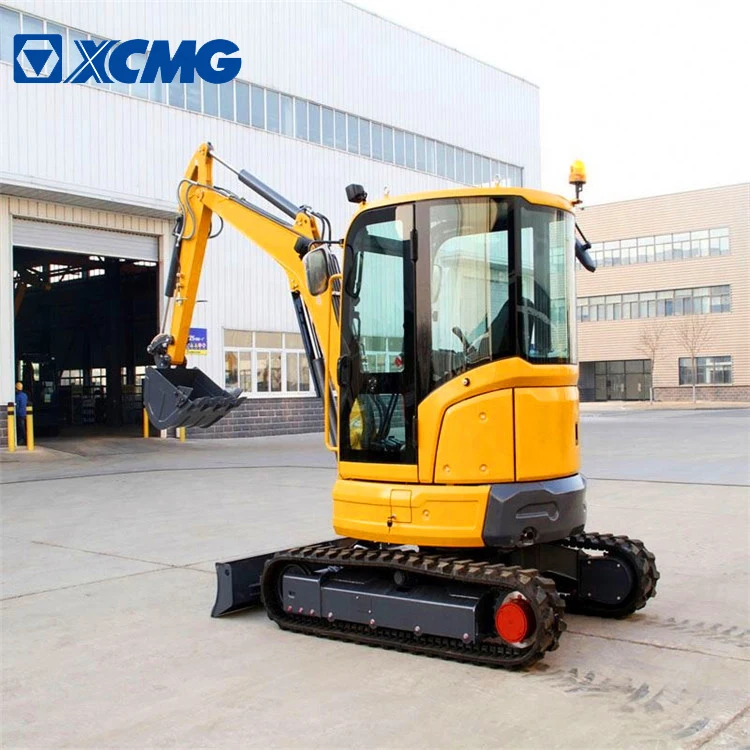

Product Show
