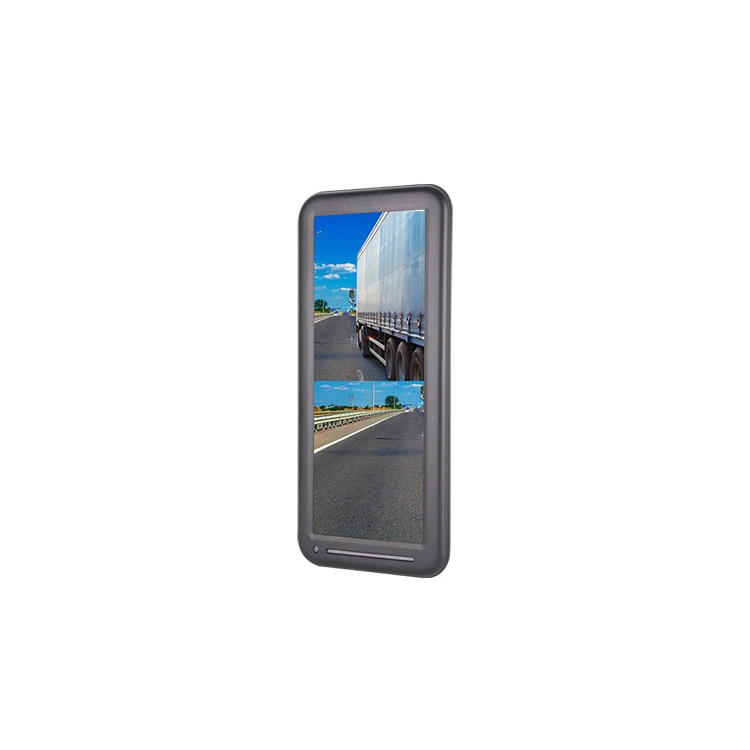

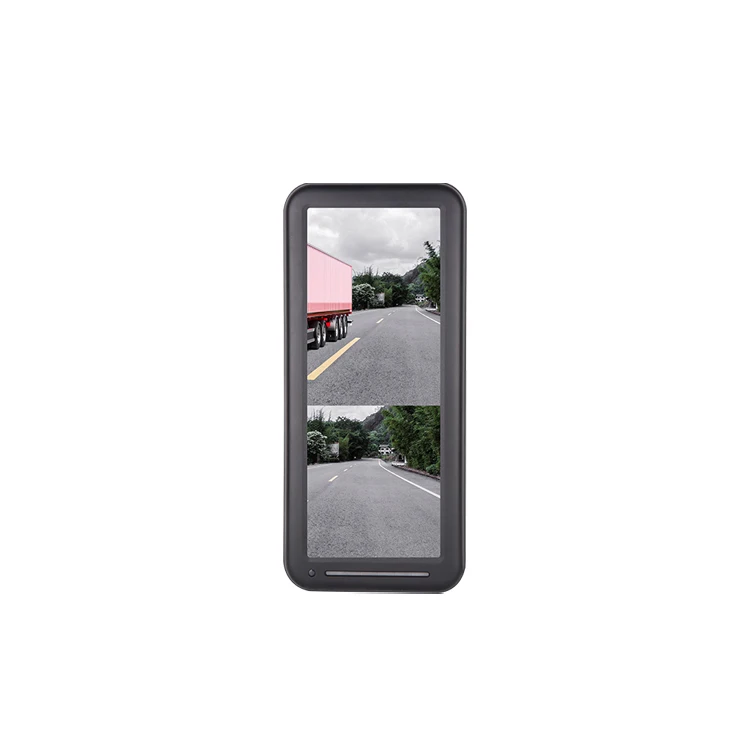

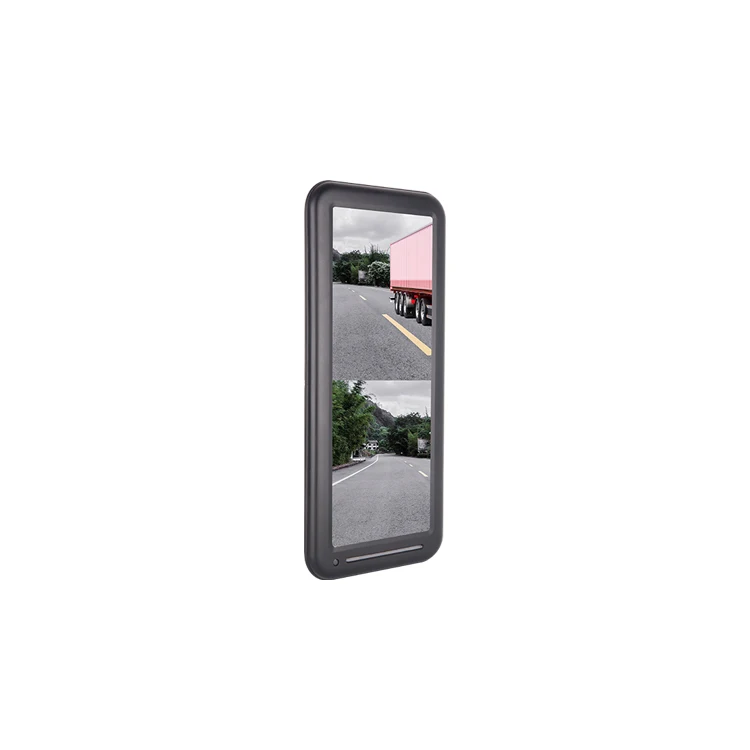

New Design 12.3 Inch Digital LCD Monitor And Camera For Car System



Screen Size		12.3"/8:3
Resolution		1920 RGB (H) x 720(V)
TV System		PAL/NTSC
Product name		12.3 inch car rearview mirror monitor
Contrast		1100:1
Active Area		292.032(W) × 109.512(H) mm
Viewing Angle		L/R/U/D 85°/85°/85°/85°
Image Settings		Brightness,Color,Contrast
Video Format		AHD
Video Channel		Two channel video input(Max. 720P / 30fps)
Reversing delay		0-10s
Power Supply		12/24V,DC/<20W
Operating Temperature		-20℃ to +70℃
Storage Temperature		-25℃ to +75℃



1,Use car-grade original 12.3-inch, 1920*720 HD display

2, Adopting unique image processing technology, the time for outputting the image when the power is on does not exceed 4 seconds; AHD image delay does not exceed 100ms,

3,Support 2 channels of 1080P/720P signal mixed input, PAL/NTSC system automatic recognition.

4,The remote control adjusts the OSD menu.

5,Support brightness detection and automatic dimming function.

6,Support custom ignition LOGO

7,Support 2 channel trigger lines, trigger switch full screen display

8,Support up to 2 channels of 1080P/30fps simultaneous video recording, up to 128G TF card, this function is optional.

9,Support video playback, pause, fast forward, fast backward and other operations

10,Support the blind spot video detection function, this function is optional. (The area on the left or right side of the vehicle where there is a vehicle or pedestrian approaching the vehicle body within a certain distance when passing through the blind zone, the image on the display screen will automatically show a red background prompt, or a yellow warning light will flash.)

11,Independently set and adjust auxiliary lines, which can be adjusted according to the width of the vehicle (post-development function)

12,9.The working power supply range is 12~24V, with short circuit protection function of power supply

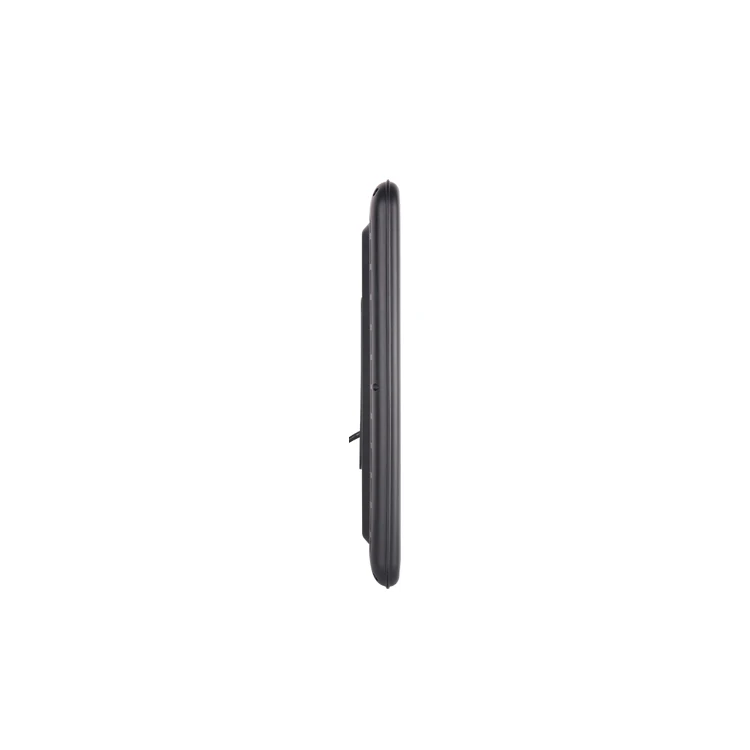

13,Bracket can adjustable angle
