Py124  high temperature melt pressure sensor transducer transmitter

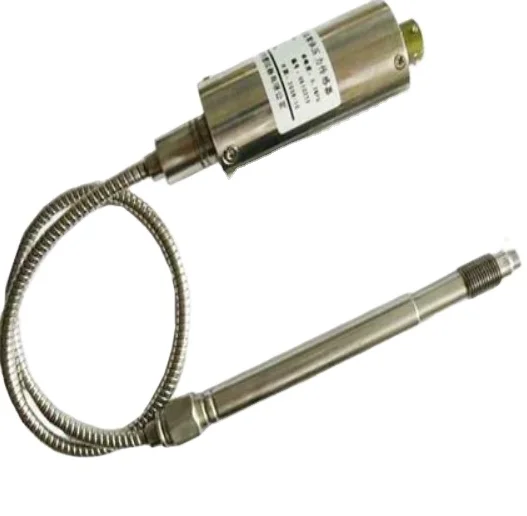

Py124 high temperature melt pressure sensor has rigid rod and hose isolation. The diaphragm isolation structure has good stability and precision when the medium temperature is below 450C. It is applied to the pressure measurement and control of high temperature fluid / gas medium in rubber, plastic, chemical fiber polyester nylon, polyester, steam and other mechanical equipment.







The product is also known as: steam pressure sensor, high temperature glue pressure sensor, high temperature plastic pressure sensor, high temperature polyester pressure sensor, high temperature gas pressure sensor, high temperature melt pressure sensor, etc.





Pressure type	gauge pressure
Range:	1MPa: 5mA: 35MPa: 50MPa: 70MPa: 100MPa
Output:	2.0m V / V (5-wire system, 4-wire bridge output, another 80% calibration)
Comprehensive accuracy:	0.5%
Insulation resistance:	> 1000m Ω / 100VDC
Medium temperature:	- 20 ~ 450 ° C



Product description



High temperature flame pressure sensor, high temperature flame pressure sensor parameters, for imported high temperature flame pressure sensor







1 - Product Overview and features:



A. The pressure sensing chip of imported resistance strain gauge is adopted



B, flat diaphragm design, dedicated to melt pressure measurement.



C. The selected chip technology has zero, full scale compensation and temperature compensation



D. High precision and high stability amplifier IC sensor has 80% self calibration function, full sealing structure, impact resistance, fatigue resistance and high reliability









A. Pressure measurement of high temperature melt in rubber equipment, plastic equipment, chemical fiber polyester nylon equipment and polyester equipment



B. Measurement and control of high temperature steam



C. High temperature boiler pressure measurement



D. Pressure measurement of high temperature paste and high temperature paint







3. Main product parameters



Measured medium: gas, melt, liquid and vapor (weak corrosivity)





Ambient temperature:



Storage temperature



relative humidity



Sealing grade: | P6



Overload capacity: 150%



FS response time: ≤ 10ms



stability



Vibration effect 5% FS / year (mechanical vibration frequency 2000Hz)



Electrical connection: five core standard aviation connector; standard wiring 8m; pressure connection: m14x1m20x1.5: m22x1nf; other thread connection materials: 304 / 316L stainless steel
