Высокое качество еды мука порошок Вибрационный экран ситом из нержавеющей
- Категория: Vibrating Screen >>>
- Поставщик: Xinxiang,Dahan,Vibrating,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3439.31 $* | 3611.29 $* |
| Aug-18-2025 | 3410.49 $* | 3581.18 $* |
| Jul-18-2025 | 2861.60 $* | 3004.96 $* |
| Jun-18-2025 | 3352.14 $* | 3520.3 $* |
| May-18-2025 | 2919.82 $* | 3065.26 $* |
| Apr-18-2025 | 3295.31 $* | 3460.29 $* |
| Mar-18-2025 | 3266.67 $* | 3429.5 $* |
| Feb-18-2025 | 3237.23 $* | 3399.40 $* |
| Jan-18-2025 | 3208.27 $* | 3368.33 $* |
Характеристики
Product Description
Name | High Quality Food Flour Powder Vibrating Screen Sieve Machine | |||
HS CODE | 847982 | |||
It is proundly created for handling fine materials. It can efficiently screen foreign matters, filter impurities, and grade materials to ensure high quality products. Each machine can achieve six levels of sieving with more precision. | ||||
Usage | sifing, grading, filtering | |||
Application | powder, flour, granule, bulk solids, liquid | |||
Optional Materials | Carbon Steel, Stainless Steel 304/316 | |||
Optional Layers | 1~5 layers | |||
Diameter range | 400mm~2000mm | |||
Mesh range | 2~500mesh | |||
Customized Machine | all parts can be customized | |||
Delivery time | 7-10 days | |||
Keyword | Vibrating Sieve Shaker |

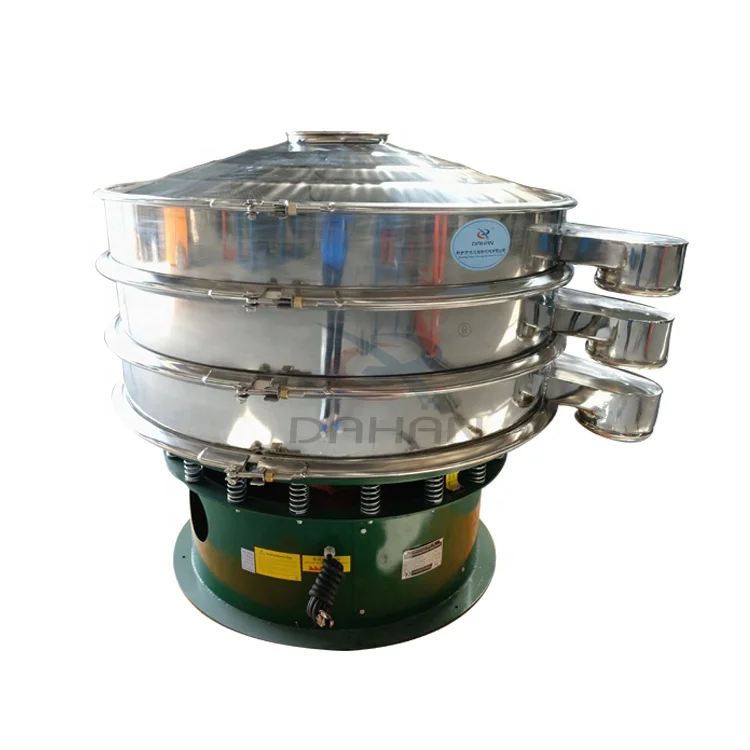

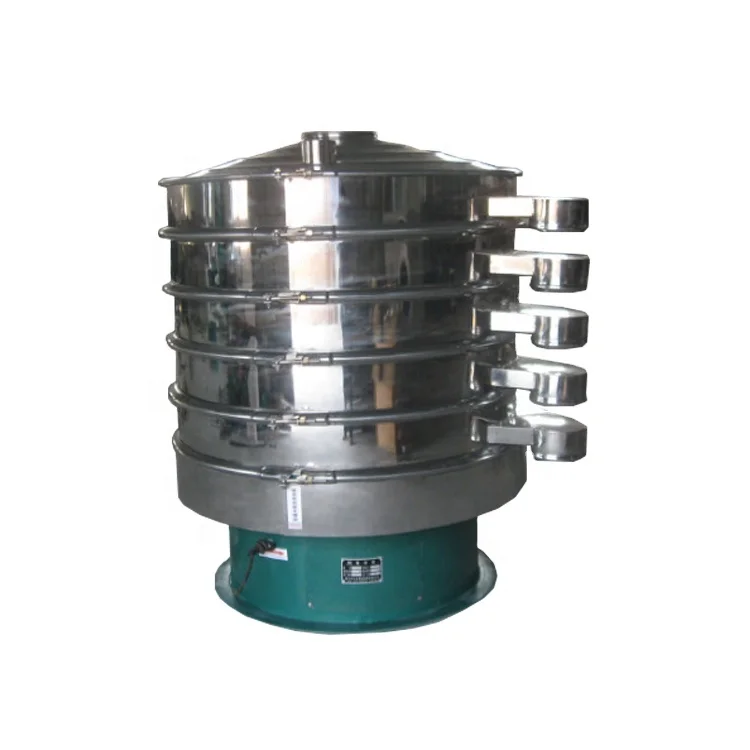

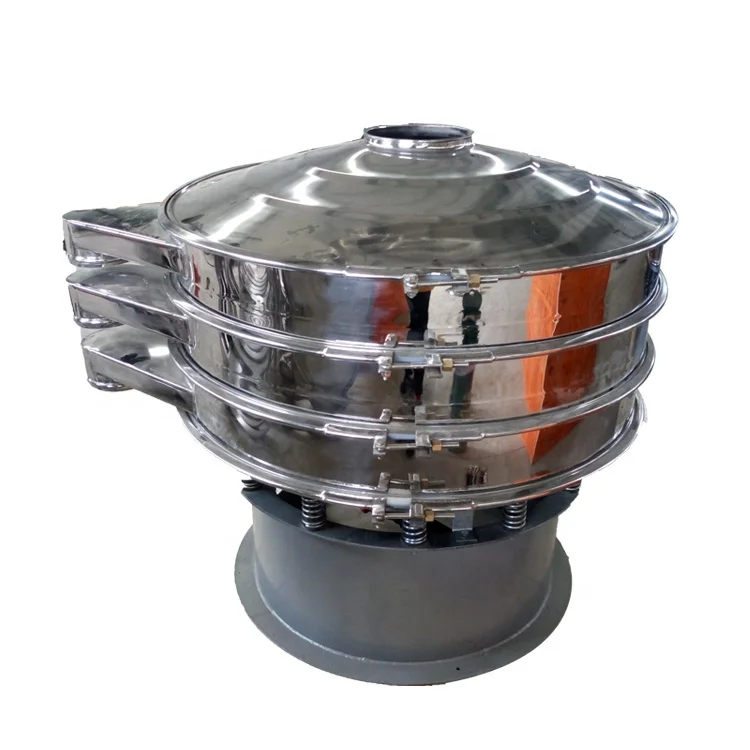

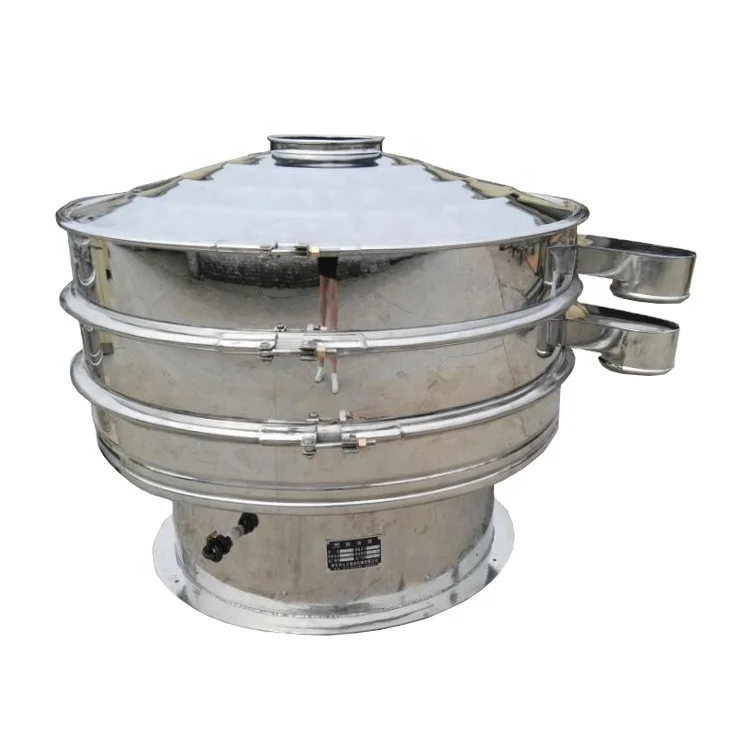

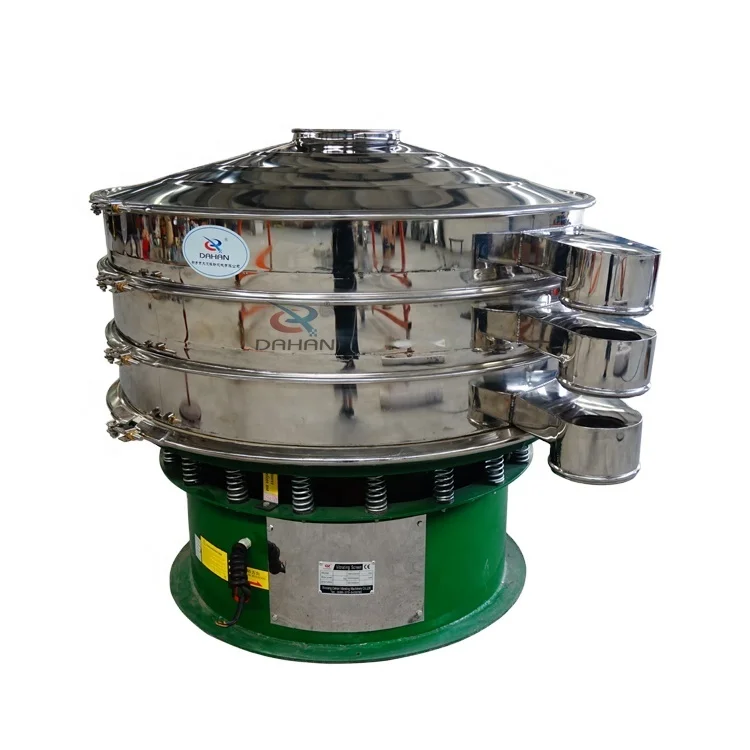

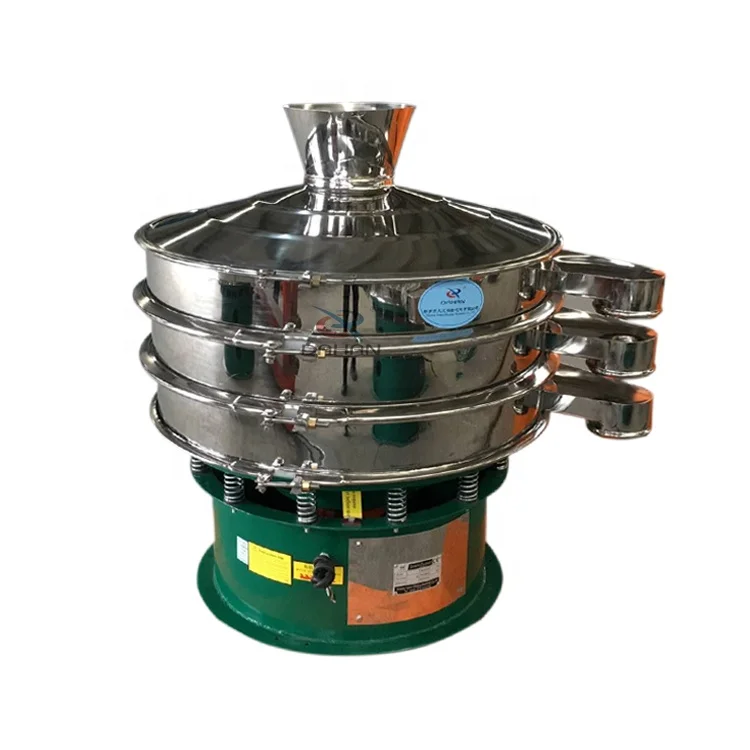

High Quality Food Flour Powder Vibrating Screen Sieve Machine
High Quality Food Flour Powder Vibrating Screen Sieve Machine is designed as a high-precision screening machinery.high quality wood chips,baggage screening machine is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400 mm to 2000 mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.
Model | DH-1200-2S |
Layers | 2 deck with 3 outlets |
Diameter | 1000 mm |
Powder | 1.1 KW |
Mesh hole | 2-500 mesh(More than 200 mesh,can use ultrasonic system ) |
Capacity | 100-500 kg |
Detailed Images
Machine Parts
Name: Sieve
Brand: Dahan
Original: Cnina
Diameter:400mm,600mm,800mm,1000mm,1200mm,1500mm,1800mm,2000mm.
Main Features
Name: Spring
Brand: Dahan
Original: China
Name: Vibrating motor
Brand: Dahan
Original: China
Brand: Dahan
Original: China
Main Features
Name: Clamp ring
Brand: Dahan
Original: China
Specification
Model | Diameter (mm) | Feeding Size (mm) | Frequency (RPM) | Layers | Power(kw) |
DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 |
DH-600 | 600 | 0.25 | |||
DH-800 | 800 | 0.55 | |||
DH-1000 | 1000 | 0.75 | |||
DH-1200 | 1200 | 1.1 | |||
DH-1500 | 1500 | 1.5 | |||
DH-1800 | 1800 | 2.2 |
Advantage Of Vibrating Screen
1. High efficiency, delicate design and durability, any powder, mucus can be screened.
2. Easy to change, easy to operate and easy to clean.
3. The mesh is not blocked, the powder is not flying, and can be screened to 500 meshes
or 0.028 mm.
4. The impurities and coarse materials can be discharged automatically and connected to
the operation.
5. Unique grid design, long-term use of screen, fast net change, only 3-5 minutes.
6. Small size, saving space and moving conveniently.
7. The screen can reach up to five layers.
2. Easy to change, easy to operate and easy to clean.
3. The mesh is not blocked, the powder is not flying, and can be screened to 500 meshes
or 0.028 mm.
4. The impurities and coarse materials can be discharged automatically and connected to
the operation.
5. Unique grid design, long-term use of screen, fast net change, only 3-5 minutes.
6. Small size, saving space and moving conveniently.
7. The screen can reach up to five layers.
Application
Chemical industry:resin,coating,drug industry,cosmetic,oil,Herbal powder,ect.
The food industry:sugar,gourmet powder,salt,fruit juice,starch,milk powder,food,soyabean milk,egg powder,rice, soy,fish meal,pineapple juice,etc.Metals,metallurgical
The food industry:sugar,gourmet powder,salt,fruit juice,starch,milk powder,food,soyabean milk,egg powder,rice, soy,fish meal,pineapple juice,etc.Metals,metallurgical
Mining:aluminte powder,lead powder,copper powder,ore,allor powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.
Related Products
Packing & Delivery
Package | ||
Size | According to product size | |
Weight | 50-1200Kg | |
We offer free, Professional, fumigation-free,and standards wooden case according to product size,and 1 set/case. If you have special equipment please just inform us. | ||
We usually use international well-known logistics companies, according to your shipping address. If you have a designated forwarder company, please let us know. | ||
Company Profile
The Xinxiang Dahan vibrating machinery co.,Ltd. is specialized in the vibrating screen equipment,
vibration machinery series products manufacturer,from the design and production to sales provide a complete assembly line service,committed to solve all kinds of sieving problem,after years of development process of the introduction of foreign advanced technology to improve the original screen,and upgrades,for customer screening requirements in terms ally developed into a professional manufacturing enterprise in the industry of xinxiang vibrating screen.
FAQ
Pls provide the following information for us.
1. material name_____,the density_____(kg/m3), water content_____(%).
2. the necessary capacity _____kg/h you required3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel, the other parts is carbon steel.
4. the dimension _____of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many _____ layers you need??
7. Pls inform the voltage&frequency_____ in your city.
