Main features
A .Save labor
Change traditional structure to plat work structure, well formed, light weight saving labor;
B. Save time
Connecting tube adopt bell like mouth, more convenient for connecting, will save 50% of installation;
C. Save space
New type of thin-wall design, can install back by wall and save space
D. Mute refrigerating technology
Fans of unit are designed in big angle, pit impressing and other mute technology;
Hermetic structure compressor ,safe and low noisy
E. Anti corrosive shell
Use anti corrosive galvanized sheet steel which experienced strict salt spray test ,with additional
spray coating ,it makes condensing unit can suitable for bad weather environment;
F. A variety of compressor selection
According the customer request, can use Copeland, Danfoss, Dongwei compressor which is reliable
high efficient and low noise and little vibration;
G. Easy for installation and maintain
The condensing unit equipped with check valve in inlet and outlet; new cabinet design with easy access
panels on both in electrical side and refrigeration pipeline side.
Range of application
Refrigeration industry,cold-room project,Agricultural,food,restaurants,chemical industry
Model | Horse Power | Displacement | Max.Oper.Current | Receiver | Air Flow | Fan |
HP | m³/h | A | L | m³/h | n° | |
HGZ200 | 2 | 5.92 | 6.48 | 2 | 4235 | 1 |
HGZ250 | 2.5 | 6.8 | 6.58 | 2 | 5580 | 1 |
HGZ300 | 3 | 8.6 | 8.58 | 2 | 5580 | 1 |
HGZ350 | 3.5 | 9.9 | 10.58 | 3 | 5580 | 1 |
HGZ200S | 2 | 5.92 | 6.45 | 2 | 4235 | 1 |
HGZ250S | 2.5 | 6.8 | 6.45 | 2 | 5580 | 1 |
HGZ300S | 3 | 8.6 | 8.45 | 2 | 5580 | 1 |
HGZ350S | 3.5 | 9.9 | 10.45 | 3 | 5580 | 1 |
HGZ400S | 4 | 11.68 | 11.45 | 3 | 7620 | 1 |
HGZ500S | 5 | 14.5 | 13.34 | 3 | 7620 | 2 |
HGZ600S | 6 | 17.2 | 16.95 | 6 | 7620 | 2 |
HGZ700S | 7 | 18.8 | 18.70 | 6 | 11160 | 2 |
HGZ800S | 8 | 22.1 | 24.70 | 14 | 11160 | 2 |
HGZ900S | 9 | 25.7 | 26.20 | 14 | 11160 | 2 |
HGZ1000S | 10 | 28.8 | 28.90 | 14 | 15240 | 2 |
HGZ1200S | 12 | 33.2 | 33.00 | 14 | 15240 | 2 |
HGZ1300S | 13 | 35.6 | 33.00 | 14 | 15240 | 2 |
HGZ1500S | 15 | 42.1 | 40.90 | 18 | 22320 | 4 |

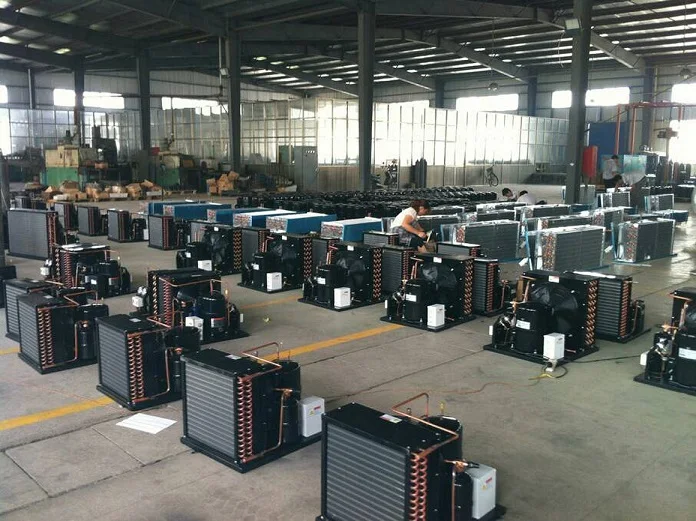

Compressor assembly line
Automatic high-speed fin press production line
CNC Shearing machine
Packing Details : 1-4 PCS/pallet
Delivery Details : 15-30 days after order
Our company always put the quality of the first. Provide every customer with quality services.
A: We have been in this field for 10 years and our factory located in Dongtai Jiangsu. About 3 hours drive to Shanghai.
A: Hermetic Compressor Condensing Unit Air cooler Condenser Mono block
A: Yes, we could offer the sample,but customers need to pay for it.
A: T/T, L/C, Western Union; 30% T/T in advance, 70% before delivery.
Q: Packaging & Shipping ?
pallet, wooden case or with outer carton, or as customers' specific requirements.
