Характеристики
Product Description
Measurement parameters | ||||||
Parameters name | 2 in 1 : Ultrasonic wind speed and wind direction | |||||
Parameters | Measure range | Resolution | Accurancy | |||
Wind speed | 0-40m/s | 0.01m/s | ±0.5+2% FS | |||
Wind direction | 0-359° | 1° | ±3° | |||
* Other customizable parameters | Air temperature, humidity, pressure, noise PM2.5/PM10/CO2 | |||||
Technical parameter | ||||||
Stability | Less than 1% during the life of the sensor | |||||
Response time | Less than 10 seconds | |||||
Working current | DC12V≤60ma (HCD6815) -DC12V≤180ma | |||||
Power consumption | DC12V≤0.72W (HCD6815); DC12V≤2.16W | |||||
Output | RS485, MODBUS communication protocol | |||||
Housing material | ABS engineering plastics anti UV | |||||
Working environment | Temperature -30 ～ 70 ℃, working humidity: 0-100% | |||||
Storage conditions | -40 ~ 60 ℃ | |||||
Standard cable length | 2 meters | |||||
The farthest lead length | RS485 1000 meters | |||||
Protection level | IP65 | |||||
Wireless transmission | ||||||
Wireless transmission | LORA / LORAWAN, GPRS, 4G,WIFI | |||||
Mounting Accessories | ||||||
Stand pole | 1.5 meters, 2 meters ,3 meters higth, the other higth can be customize | |||||
Equiment case | Stainless steel waterproof | |||||
Ground cage | Can supply the matched ground cage to burried in the ground | |||||
Lightning rod | Optional(Used in thunderstorm places) | |||||
LED display screen | Optional | |||||
7 inch touch screen | Optional | |||||
Surveillance cameras | Optional | |||||
Solar power system | ||||||
Solar panels | Power can be customized | |||||
Solar Controller | Can provide matched controller | |||||
Mounting brackets | Can provide the matched bracket | |||||
Free cloud server and software | ||||||
Cloud server | If buy our wireless modules, send free | |||||
Free software | See real time data and download the history data in excel | |||||
Detailed Images

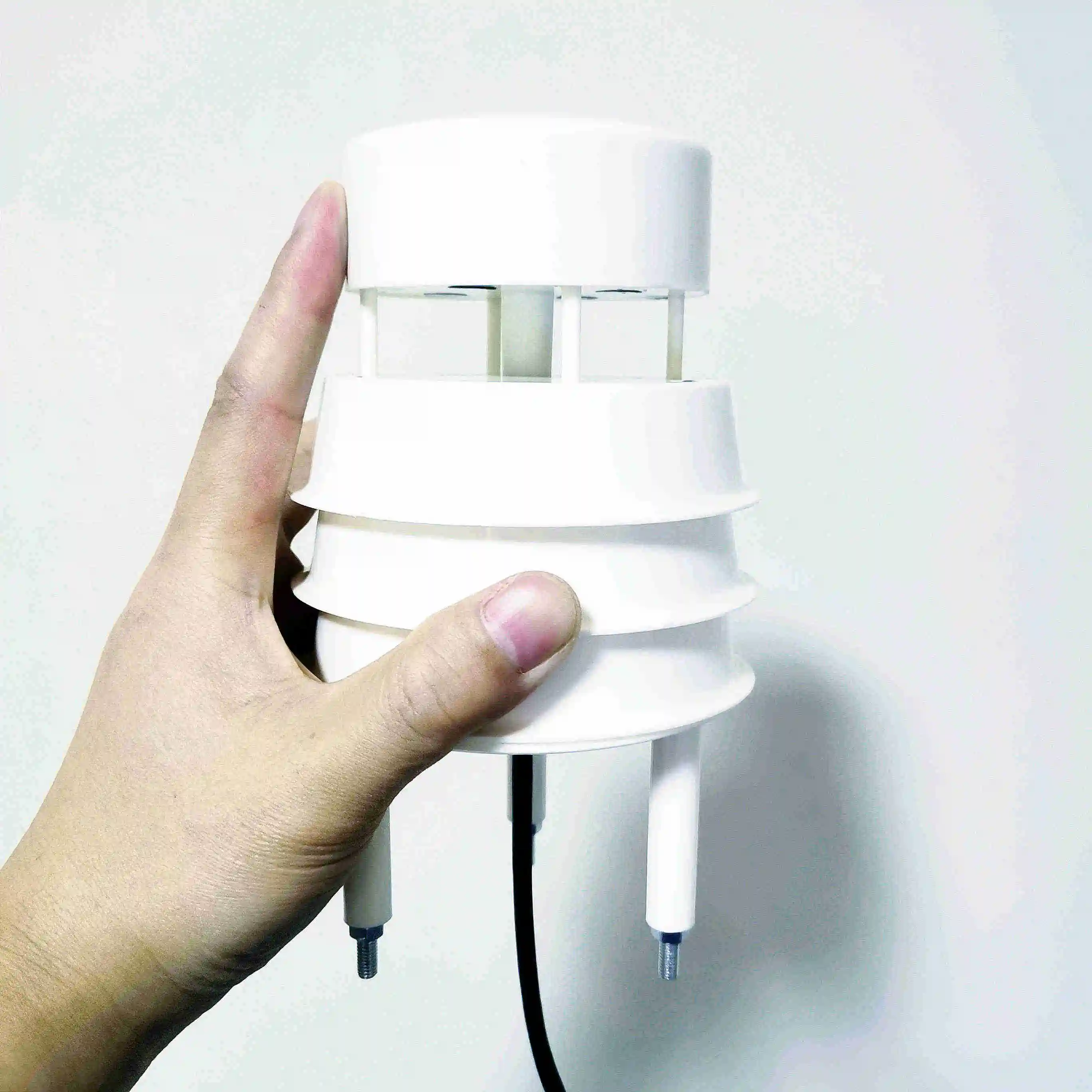

Ultrasonic wind speed and direction integrated sensor
1. Lightweight
2. High precision ultrasonic
3.360 degree measurement
4. Rugged
5. No maintenance
6. No calibration required
7. No moving parts, no damage
Can be applied to various occasions where wind speed and direction need to be measured
2. Zero wind speed work
3. No angle limit
4. 360 degree omni-directional
5. Wind speed and wind direction data can be obtained at the same time
Acoustic phase compensation technology,high precise
Using random error recognition technology
Other weather parameters can be integrated and customized
Can be applied to various harsh environments

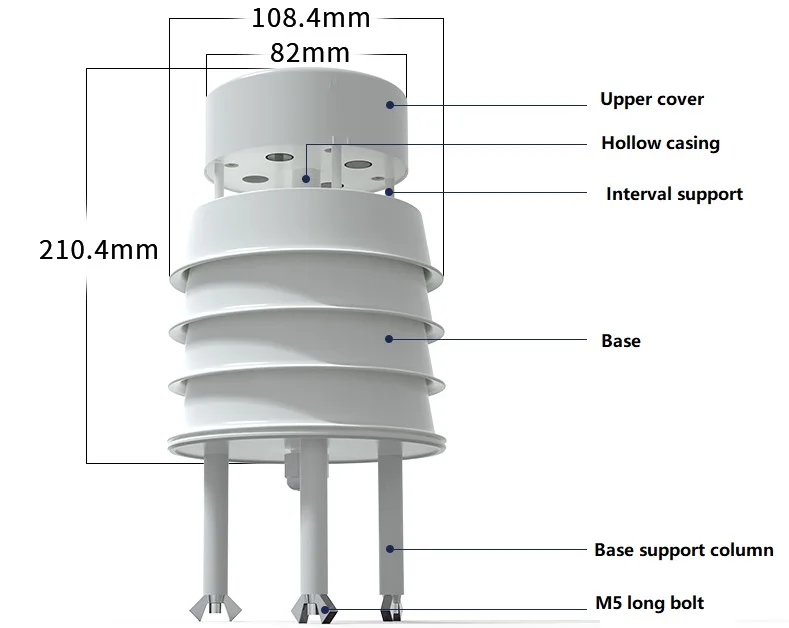

Product size
Product installation method-stand pole install
Advantages detailes

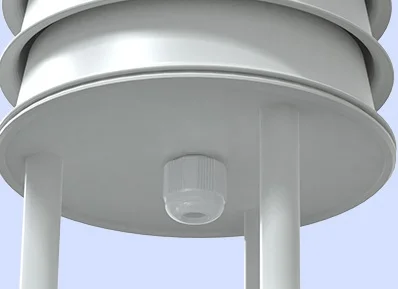

Waterproof connector
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this compact weather station?
A: It is easy for installation and has robust & integrated structure, , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be intergrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessaries, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module.
Q: Can we have the screen and the data logger?
A: Yes, we can match the screen type and data logger which you can see the data in the screen or download the data from the U disk to your PC end in excel or test file.
Q: Can you supply the software to see the real time data and download the history data?
A: We can supply the wireless transmission module including the 4G,WIFI,GPRS , if you use our wireless modules, we can supply the free server and free software which you can see the realtime data and download the history data in the software directly.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this compact weather station?
A: It is easy for installation and has robust & integrated structure, , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be intergrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessaries, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module.
Q: Can we have the screen and the data logger?
A: Yes, we can match the screen type and data logger which you can see the data in the screen or download the data from the U disk to your PC end in excel or test file.
Q: Can you supply the software to see the real time data and download the history data?
A: We can supply the wireless transmission module including the 4G,WIFI,GPRS , if you use our wireless modules, we can supply the free server and free software which you can see the realtime data and download the history data in the software directly.
Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
