Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Низкая цена Чистая медь проводник креативный объем chainflex пвх гибкий морской контрольный
- Категория: Control Cables >>>
- Поставщик: Zhejiang,Token,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.89 $* | 0.57 $* |
| Aug-20-2025 | 0.2 $* | 0.91 $* |
| Jul-20-2025 | 0.26 $* | 0.20 $* |
| Jun-20-2025 | 0.77 $* | 0.78 $* |
| May-20-2025 | 0.69 $* | 0.1 $* |
| Apr-20-2025 | 0.49 $* | 0.48 $* |
| Mar-20-2025 | 0.9 $* | 0.84 $* |
| Feb-20-2025 | 0.96 $* | 0.19 $* |
| Jan-20-2025 | 0.36 $* | 0.63 $* |
Характеристики

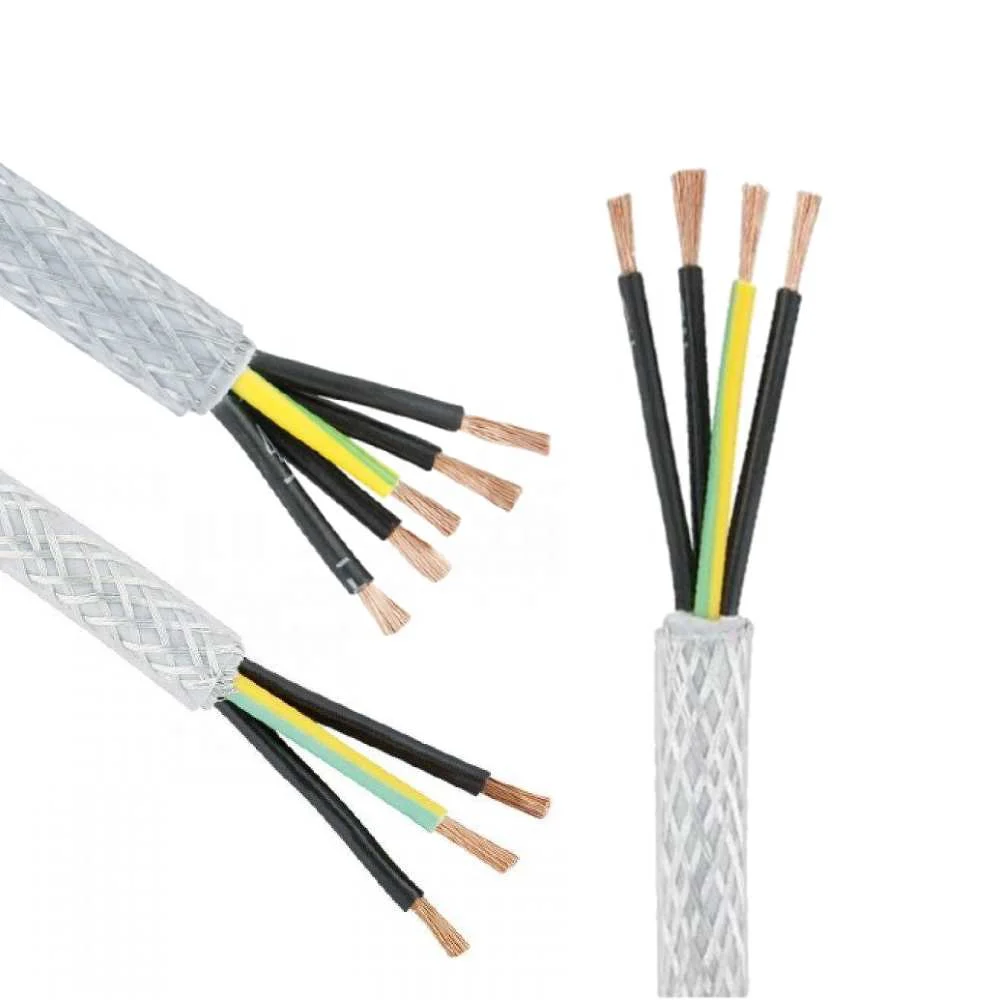

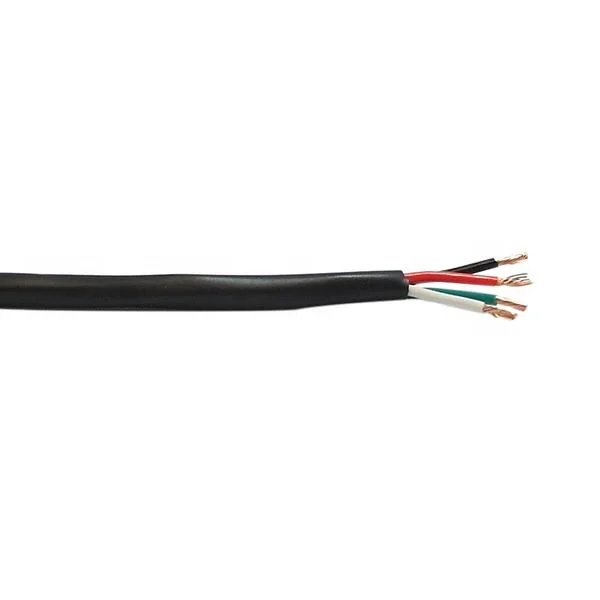

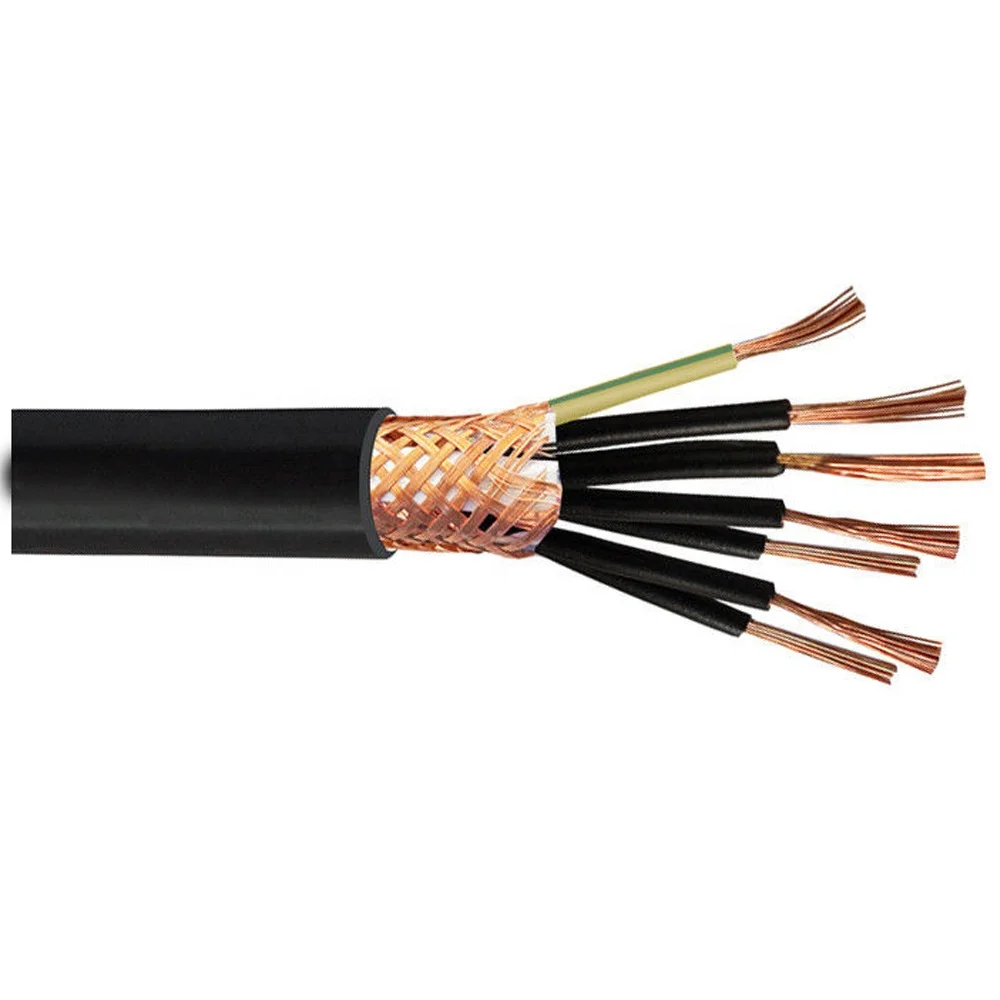

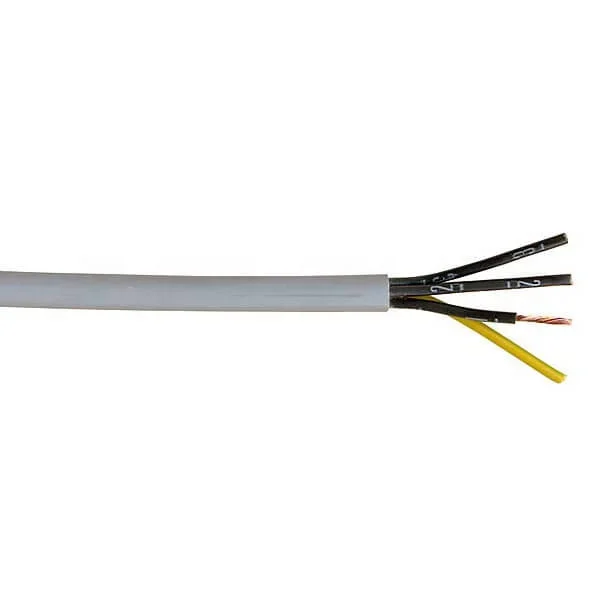

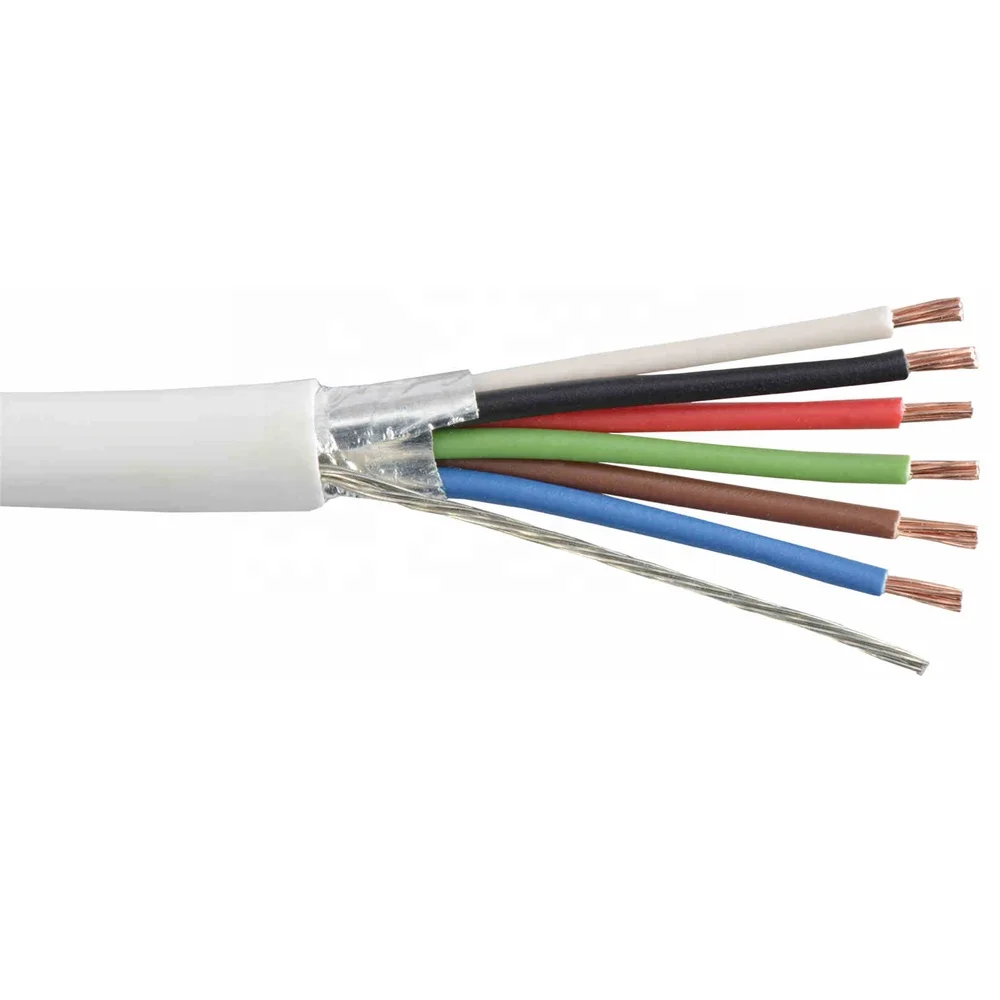

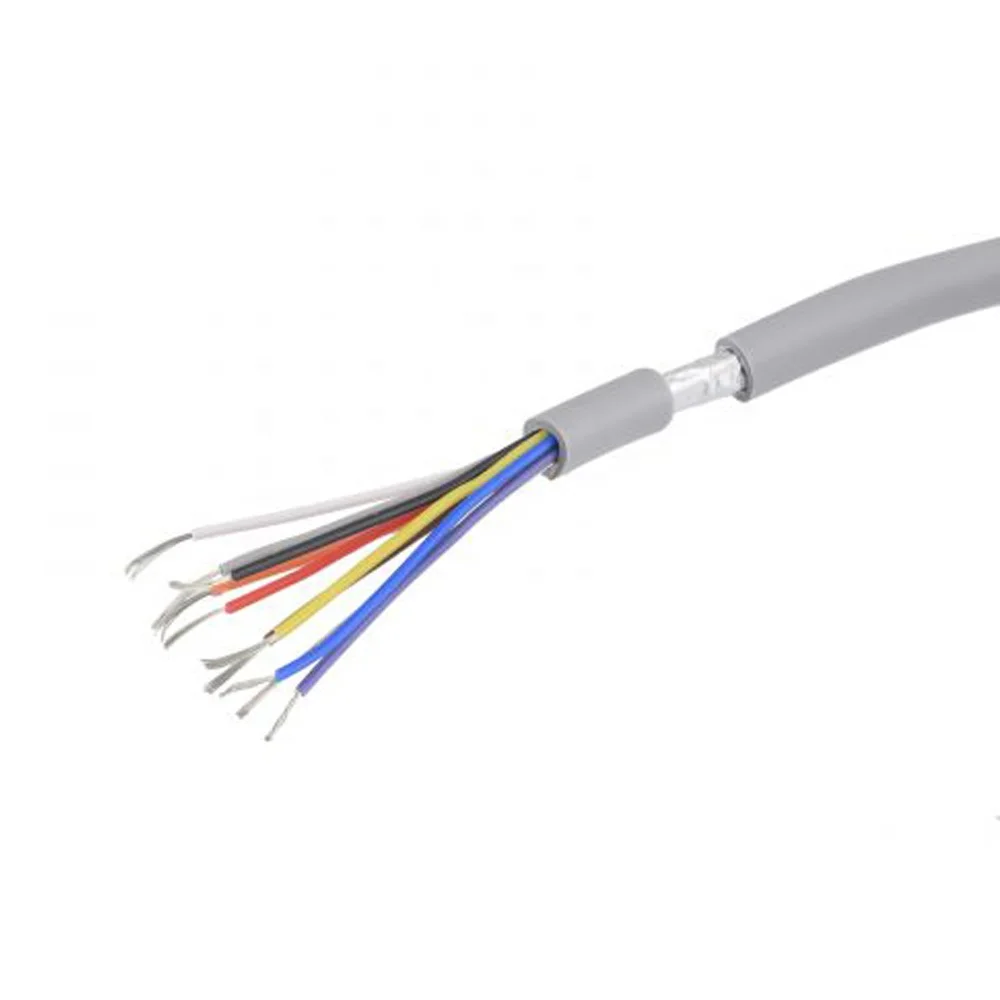

High Quality Fire Resistance Insulated Copper Electrical Power Cable Manufacturers
Product Description
1.Voltage Uo/U 300/500V 450/750V
2.Long-time working temperature should be lower than 70°C, should not be lower than 0°C.
3.When there is any short-cireuit occurs (lasting time less than 5s), the maximum tmperature of the cable will not exceed 160℃.
4.Core color: Red, black, blue, white, green, yellow, brown;
5.Construction: Flexible annealed copper conductor, PVC insulated and PVC sheathed;
Suitable for extremely harsh industrial environment and corrosive coolant and lubricating oil occasions. forced movements in dry, moist and wet rooms but not in open air, as cable in the control and regulation technology, tool and machinery, in computer systems, as well as signal line in the electronic.
| Core No. x nom cross-sectional area(mm²) | Insulation Nom thickness(mm) | Steel tape thickness(mm) | Copper tape thickness(mm) | Nom thickness of sheath (mm) | Average outer diameter(mm) MIN | Average outer diameter(mm) MIX | |||||||
| KVV | KVV22 | KVVP2 | KVV | KVV22 | KVVP2 | KVV | KVV22 | KVVP2 | KVV | KVV22 | KVVP2 | ||
| 4x2.5 | 0.8 | / | 2x0.2(0.3) | 0.05-0.15 | 1.2 | 1.5 | 1.5 | 10 | 13 | 11 | 12 | 17 | 14 |
| 5x2.5 | 0.8 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 11.5 | 14 | 12 | 14 | 18 | 15 |
| 7x1.5 | 0.7 | / | 2x0.2(0.3) | 0.05-0.15 | 1.2 | 1.5 | 1.5 | 10 | 13.5 | 11.5 | 12.5 | 17.5 | 14 |
| 7x2.5 | 0.8 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 12.5 | 15 | 13 | 15 | 19 | 16 |
| 8x1.5 | 0.7 | / | 2x0.2(0.3) | 0.05-0.15 | 1.2 | 1.5 | 1.5 | 12 | 14.5 | 12.5 | 14.5 | 18.5 | 15.5 |
| 8x2.5 | 0.8 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 14 | 16.5 | 14.5 | 16.5 | 21 | 17.5 |
| 10x1.5 | 0.7 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 13.5 | 16 | 14 | 16 | 20.5 | 17 |
| 10x2.5 | 0.8 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.7 | 15.5 | 18.5 | 16.5 | 18.5 | 23 | 19.5 |
| 12x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 12 | 14.5 | 12.5 | 14.5 | 19 | 15.5 |
| 12x1.5 | 0.7 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 14 | 16.5 | 14.5 | 16.5 | 20.5 | 17.5 |
| 14x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 12.5 | 15 | 13.5 | 15 | 19 | 16 |
| 14x1.5 | 0.7 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.5 | 14.5 | 17.5 | 15 | 17 | 22 | 18 |
| 16x0.75 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 12.5 | 15 | 13 | 15 | 19.5 | 16 |
| 16x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 13 | 16 | 14 | 15.5 | 20 | 16.5 |
| 19x0.75 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.5 | 1.5 | 13 | 15.5 | 14 | 15.5 | 20 | 16.5 |
| 19x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.5 | 14 | 17 | 14.5 | 16.5 | 21.5 | 17.5 |
| 24x0.75 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.5 | 15 | 18 | 16 | 18 | 22.5 | 19 |
| 24x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.7 | 16 | 19 | 17 | 19 | 23.5 | 20.5 |
| 27x0.75 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.7 | 15.5 | 18.5 | 16 | 18 | 23 | 19 |
| 27x1.0 | 0.6 | / | 2x0.2(0.3) | 0.05-0.15 | 1.5 | 1.7 | 1.7 | 16.5 | 19.5 | 17.5 | 19 | 24 | 20.5 |
Company Information
TKG China is a manufacture of electric cable, power cable, electric wire, and LED light, the company is located in Tongyuan town, Haiyan city. Managing standardization and running on human resource,production model and business process helps TKG China get high speed growth. our company focus on the R&D and production of wire and cable for different local buyers trying best to make perfect products for customer needs.T.K.G China also obtained CE, VDE, SAA, TIR, SON CAP, CCC, ROHS and other related quality certifications, meantime passed ISO9001 quality system certification.
TKG China has been the best choice for over 2000 customers in 35 countries.TKG China always believes that our life lies on quality, while our growth comes with customer satisfaction.
Packaging & Shipping
Film, Seal, wood reel, Pull carton, standard export carton, Bag, all kinds of package can be choosed.
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacturer of cables and wires for more than 7 years.
Q: How long is your delivery time?
A: Generally, it is about 10-20 days. It is according to quantity.
Q: Do you provide samples? Is it free or not?
A: Yes, we could offer the sample for free charge
Q: How could I pay them?
A: L/C, Western Union and T/T are preferred as your convenient.
All kinds of electrical cables and wires are offered, please kindly contact us at all times.
