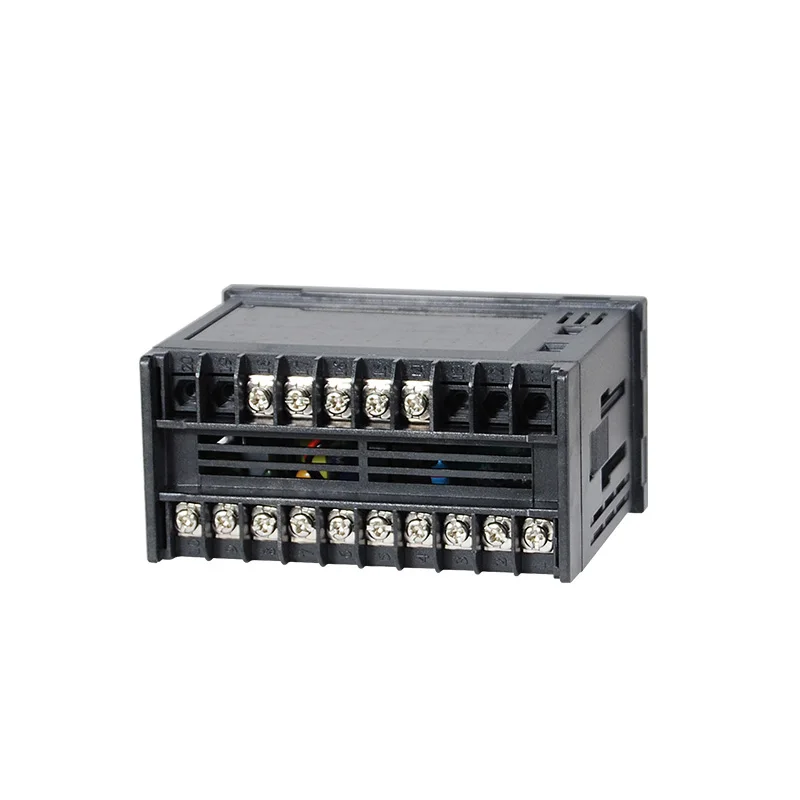

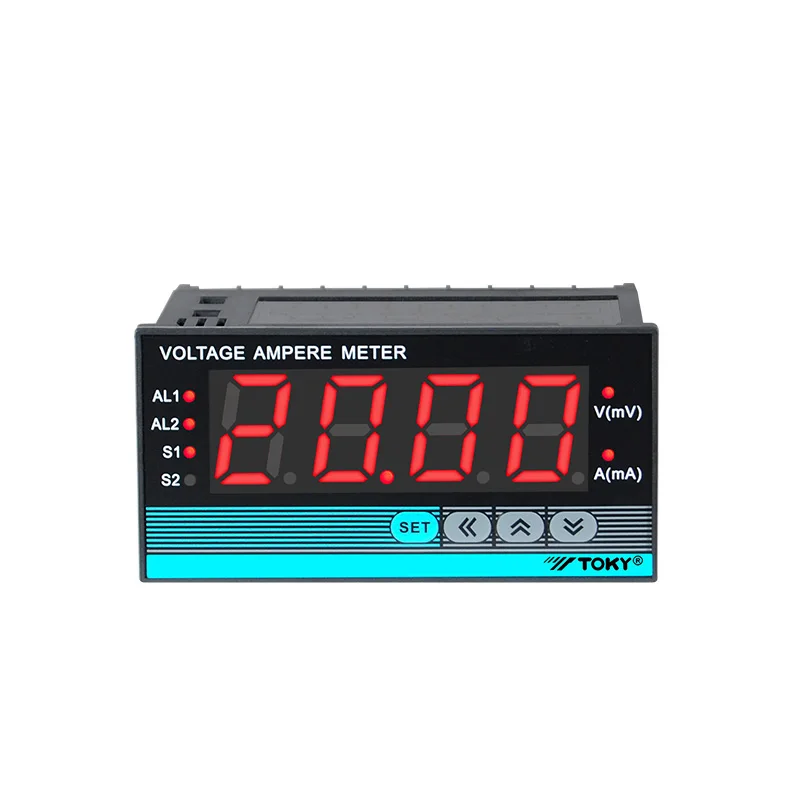

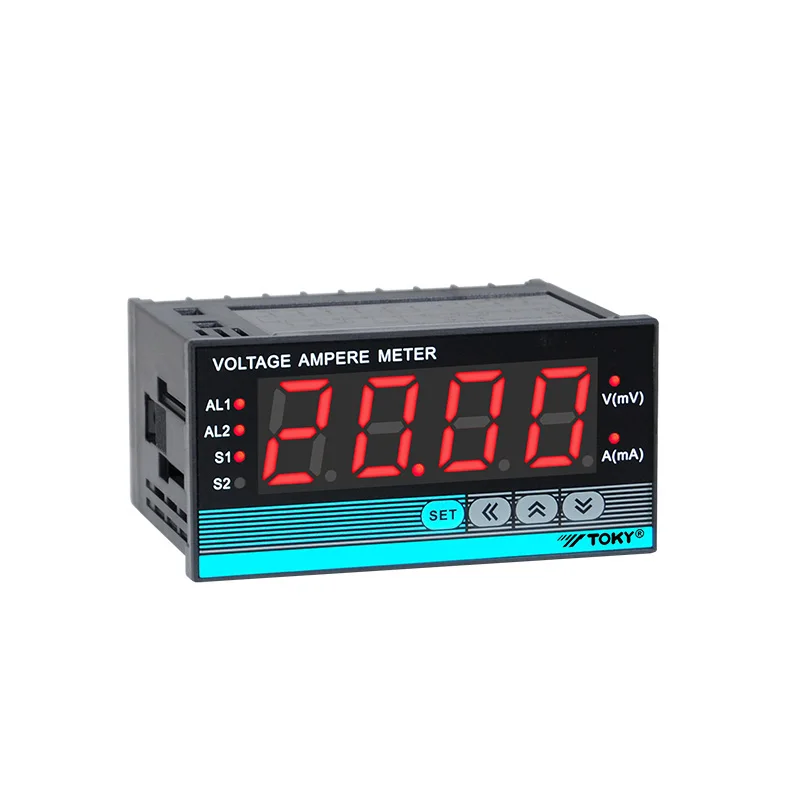

2021 New Style Voltmeter Ammetr Display 3 P Voltmeter Digital Dc Voltmeter
Product Description
| Model | Alarm | Analog | RS485 | DI input | Input range | Code |
| DL8-IRC18V600 | 2 loops | 4~20mA | Yes | Yes | IN1:6V,IN2:60V,IN3:600V | B0490DL01 |
| DL8-IRC18V200 | 2 loops | 4~20mA | Yes | Yes | IN1:2V,IN2:20V,IN3:200V | B0490DL01 |
| DL8-IRC18V100 | 2 loops | 4~20mA | Yes | Yes | IN1:1V,IN2:10V,IN3:100V | B0490DL01 |
| DL8-IRC18A2 | 2 loops | 4~20mA | Yes | Yes | IN1:2A,IN2:0.2A,IN3:0.02A | B0490DL01 |
| DL8-IRC18AACT | 2 loops | 4~20mA | Yes | Yes | IN1:5A(AC) | B0490DL01 |
| DL8-IRC18DACT | 2 loops | 4~20mA | Yes | Yes | IN1:75mV(DC) | B0490DL01 |
| DL8-RC18V600 | 2 loops | No | Yes | Yes | IN1:6V,IN2:60V,IN3:600V | B0410DL01 |
| DL8-RC18V200 | 2 loops | No | Yes | Yes | IN1:2V,IN2:20V,IN3:200V | B0410DL01 |
| DL8-RC18V100 | 2 loops | No | Yes | Yes | IN1:1V,IN2:10V,IN3:100V | B0410DL01 |
| DL8-RC18A2 | 2 loops | No | Yes | Yes | IN1:2A,IN2:0.2A,IN3:0.02A | B0410DL01 |
| DL8-RC18AACT | 2 loops | No | Yes | Yes | IN1:5A(AC) | B0410DL01 |
| DL8-RC18DACT | 2 loops | No | Yes | Yes | IN1:75mV(DC) | B0410DL01 |
| DL8-IRC10V600 | 2 loops | 4~20mA | No | No | IN1:6V,IN2:60V,IN3:600V | B0370DL01 |
| DL8-IRC10V200 | 2 loops | 4~20mA | No | No | IN1:2V,IN2:20V,IN3:200V | B0370DL01 |
| DL8-IRC10V100 | 2 loops | 4~20mA | No | No | IN1:1V,IN2:10V,IN3:100V | B0370DL01 |
| DL8-IRC10A2 | 2 loops | 4~20mA | No | No | IN1:2A,IN2:0.2A,IN3:0.02A | B0370DL01 |
| DL8-IRC10AACT | 2 loops | 4~20mA | No | No | IN1:5A(AC) | B0370DL01 |
| DL8-IRC10DACT | 2 loops | 4~20mA | No | No | IN1:75mV(DC) | B0370DL01 |
| DL8-RC10V600 | 2 loops | No | No | No | IN1:6V,IN2:60V,IN3:600V | B0280DL01 |
| DL8-RC10V200 | 2 loops | No | No | No | IN1:2V,IN2:20V,IN3:200V | B0280DL01 |
| DL8-RC10V100 | 2 loops | No | No | No | IN1:1V,IN2:10V,IN3:100V | B0280DL01 |
| DL8-RC10A2 | 2 loops | No | No | No | IN1:2A,IN2:0.2A,IN3:0.02A | B0280DL01 |
| DL8-RC10AACT | 2 loops | No | No | No | IN1:5A(AC) | B0280DL01 |
| DL8-RC10DACT | 2 loops | No | No | No | IN1:75mV(DC) | B0280DL01 |
| DL8-IV600 | No | 4~20mA | No | No | IN1:6V,IN2:60V,IN3:600V | B0300DL01 |
| DL8-IV200 | No | 4~20mA | No | No | IN1:2V,IN2:20V,IN3:200V | B0300DL01 |
| DL8-IV100 | No | 4~20mA | No | No | IN1:1V,IN2:10V,IN3:100V | B0300DL01 |
| DL8-IA2 | No | 4~20mA | No | No | IN1:2A,IN2:0.2A,IN3:0.02A | B0300DL01 |
| DL8-IAACT | No | 4~20mA | No | No | IN1:5A(AC) | B0300DL01 |
| DL8-IDACT | No | 4~20mA | No | No | IN1:75mV(DC) | B0300DL01 |
| DL8-V600 | No | No | No | No | IN1:6V,IN2:60V,IN3:600V | B0215DL01 |
| DL8-V200 | No | No | No | No | IN1:2V,IN2:20V,IN3:200V | B0215DL01 |
| DL8-V100 | No | No | No | No | IN1:1V,IN2:10V,IN3:100V | B0215DL01 |
| DL8-A2 | No | No | No | No | IN1:2A,IN2:0.2A,IN3:0.02A | B0215DL01 |
| DL8-DACT | No | No | No | No | IN1:75mV(DC) | B0215DL01 |
| Power supply | 100~240V AC/DC(85-265V) |
| Measurement accuracy | (>2000)±0.5%F.S±3digits @ 25±3℃ Measuring temperature drift < 500PPM |
| Resolution | Minimum unit display value of default range or 12bits |
| AC Frequency | AC measuring frequency range:45~400Hz measuring accuracy range: 50~100Hz |
| Relay capacity | AC 250V /1A rated load life > 100000 times |
| Power consumption | < 6VA |
| Environment | In door, temperature: 0~50℃ no condensation, humidity: <85%RH,altitude<2000m |
| Storage environment | -10~60℃, no condensation |
| Switching input | No power dry contact input Signal voltage≤DC 24V |
| Current output | DC 4~20mA Load<500Ω Temperature drift 300PPM |
| Communication | RS485 port Modbus-RTU procotol, can be connected up to max 30 units. |
| Insulation resistance | Input, output, power VS meter cover >20MΩ |
| ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
| Pulse train anti-interference | IEC/EN61000-4-4 ±2KV perf.Criteria B |
| Surge immunity | IEC/EN61000-4-5 ±2KV perf.Criteria B |
Voltage drop & short interruption immunity | IEC/EN61000-4-29 0%~70% perf.Criteria B |
Isolation withstand voltage | Signal input, output, power: 2000VAC 1min |
| Weight | About 400g |
| Cover material | The shell and panel frame PC/ABS (Flame Class UL94V-0) |
| Panel material | PET(F150/F200) |
| Power failure memory | 10 years, times of writing: 1 million times |
| Panel Protection level | IP65 (IEC60529) |
| Safety Standard | IEC61010-1 Overvoltage category Ⅱ,pollution level 2,levelⅡ(Enhanced insulation) |
