Датчик уровня жидкости PY201S 0-5 В высокоточный датчик в баках 4-20 мА передатчик бензинового и дизельного

Описание и отзывы

Трекер стоимости

Характеристики

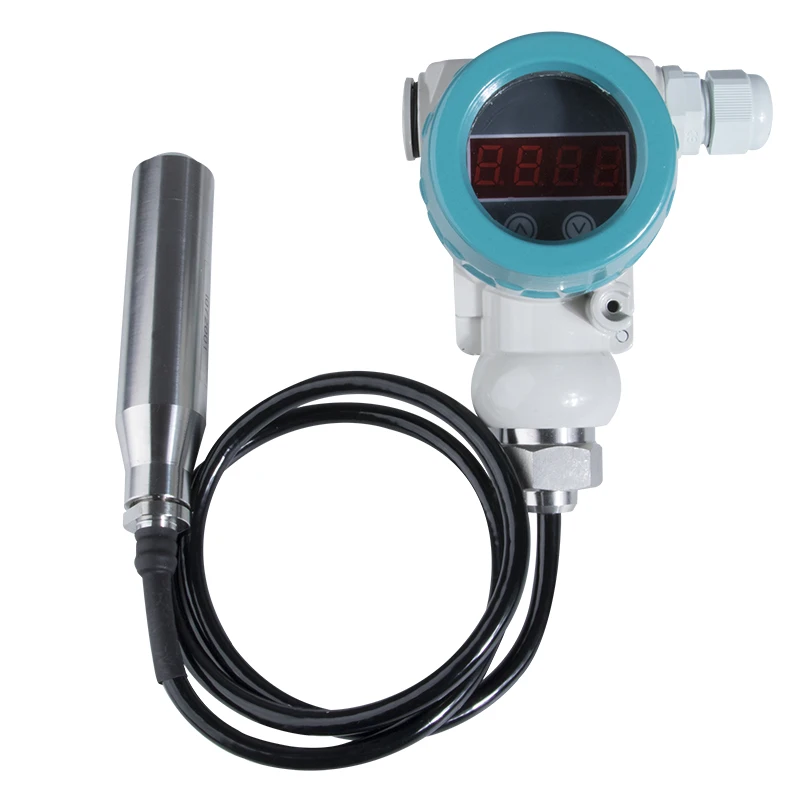

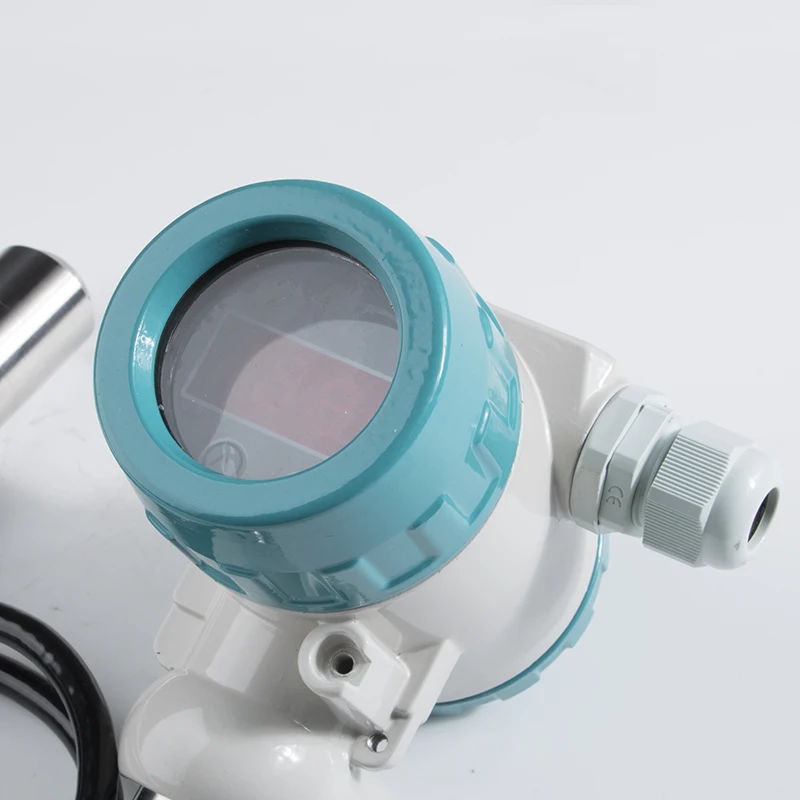

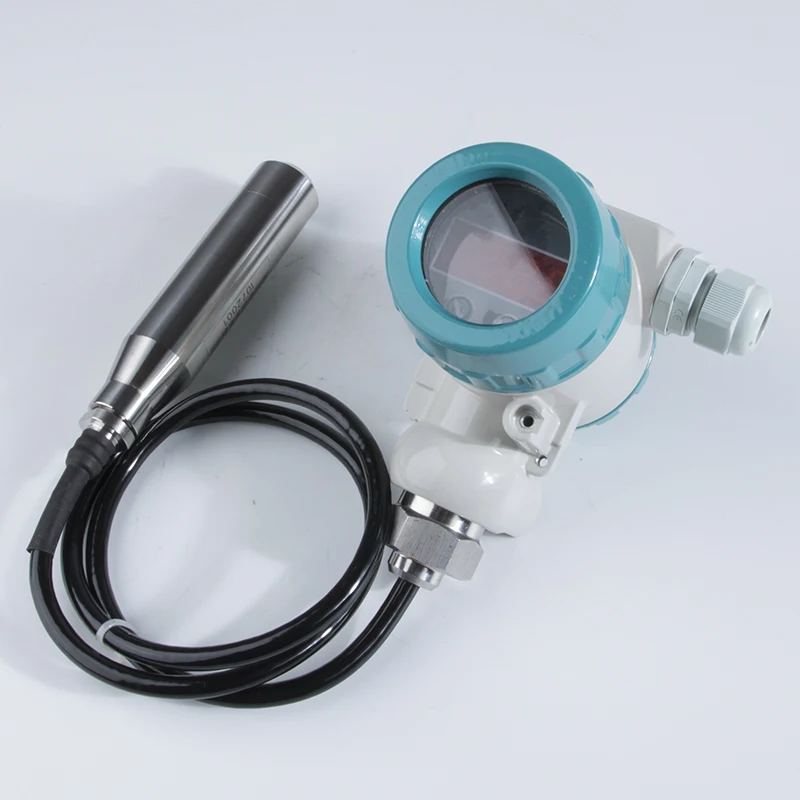

level transmitter with display

This product is widely used in measuring and controlling water level in water tank, water tank, water tower, reservoir and deep well, etc., to convert water level height signal into 4-20mA, 0-5VDC, 0-10VDC analog signal. The inlet pressure sensing core is sealed inside the stainless steel. The front protective cap protects the sensor diaphragm and enables the liquid to contact the diaphragm smoothly. The underwater special gas conducting cable and the shell are sealed and connected with a special sealing structure.The air duct is connected to the outside in the inside of the cable. Adopting advanced SMT technology, it is equipped with high-precision and high-stability amplifier integrated circuit with zero point, full range compensation and temperature compensation. The liquid level pressure of the measured medium is converted into standard electrical signals such as 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC and 0.5 ~ 4.5VDC, which can be transmitted remotely and can be used for measuring water level of 500 meters at most.



Application	Liquid level and water level
Range	0 ~ 0.2 ~ 500m can be customized according to the needs
Accuracy	grade 0.5 (default) grade 0.3 (customized)
Limit overload	200%
Response time	5ms (up to 90%FS)
Medium temperature	-20 ~ 60℃ (temperature compensation -40 ~ 70℃)
Power supply voltage	DC24V[15-36VDC] (default), 12VDC power supply needs to be customized
Output signal	4-20mA, 0-5V, 1-5V, 0-10V, RS485, RS232, Wireless short distance (within 2000m) network transmission, GPRS wireless transmission.
Stability	±0.2%FS/ year
Sealing level	IP68
Process connection	put into the liquid under test

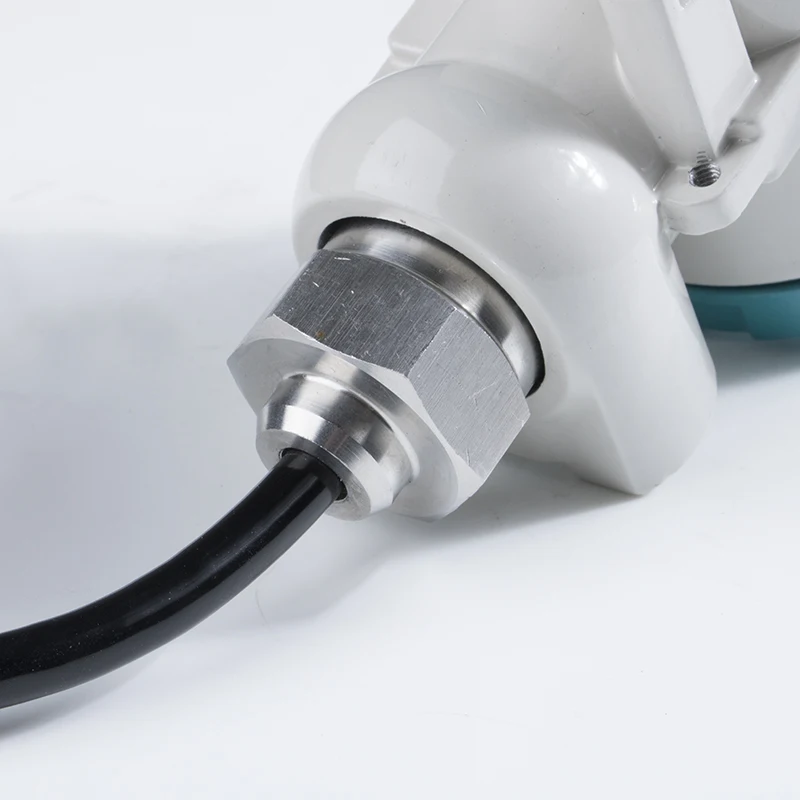

Electrical interface	the tight line waterproof nut is connected with the five-core gas conducting cable
