Датчик давления I2C для медицинского

Feature

       · I2C Interface

 · Absolute Type

        · Power supply: 2.5V~5.5V

        · Current consumption: <5uA

        · Static Current: <200nA (25°C)

        · Temp. Compensated: 0°C~60℃

        · Pressure Accuracy: ±0.3kPa@25°C

        · Temperature Accuracy: ±1.0°C

            Applications

· Altimeter,meteorological station,navigate

· Portable and fixed air barometers

· Industrial equipment

· Pneumatic control system

· Vacuum system

Introduction

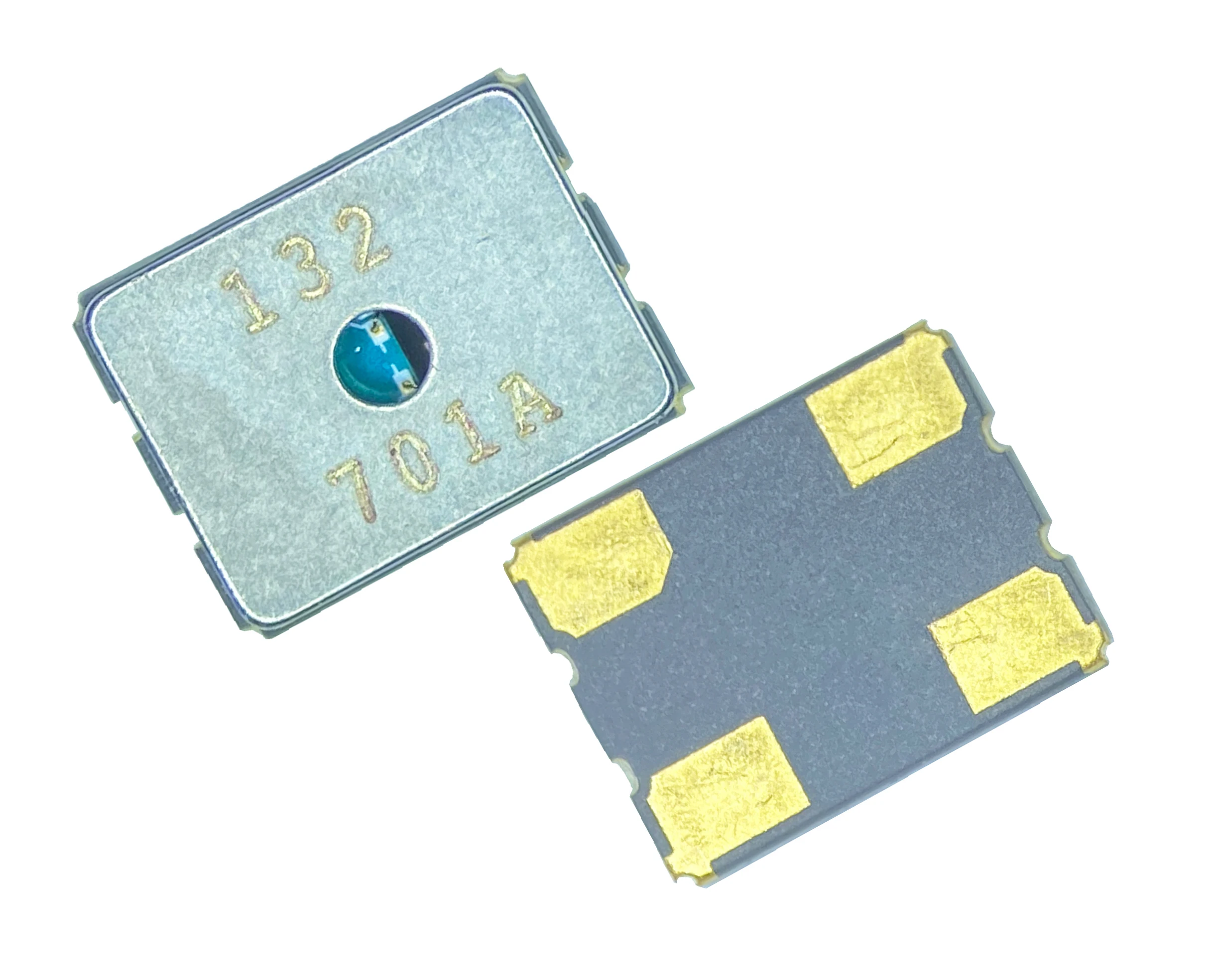

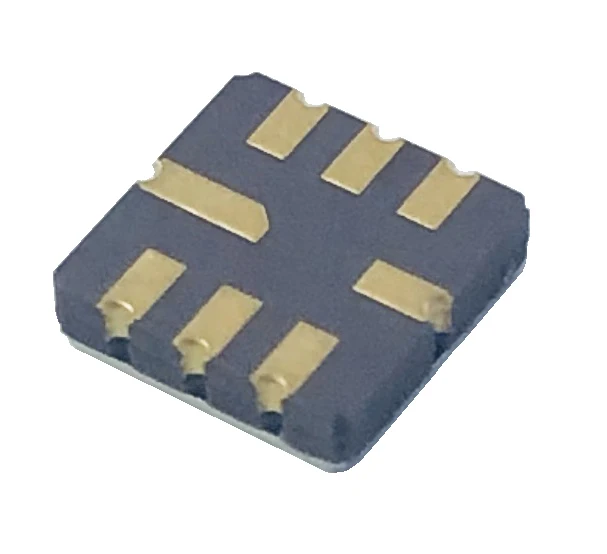

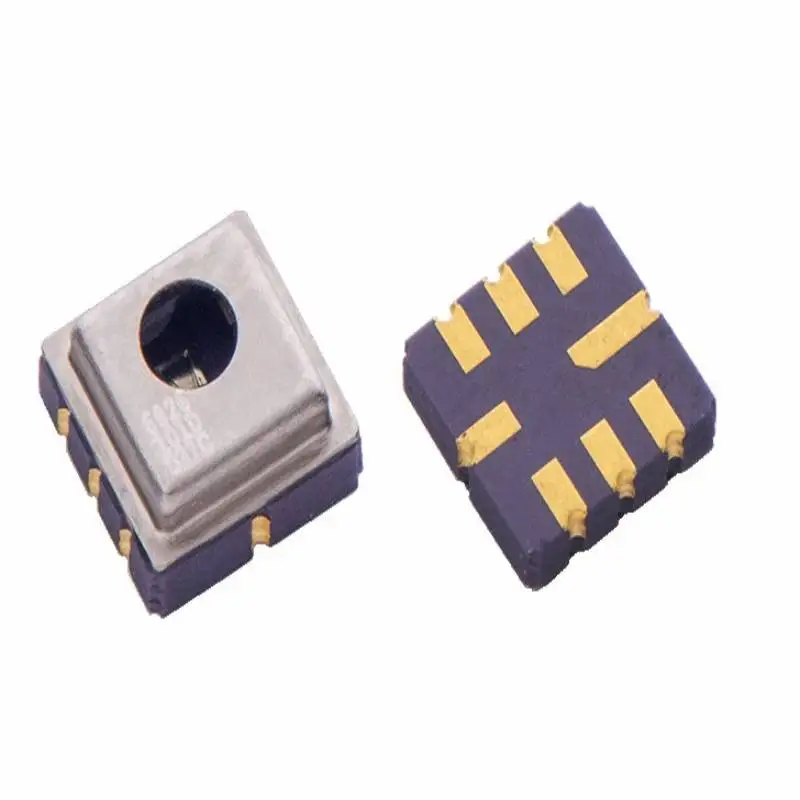

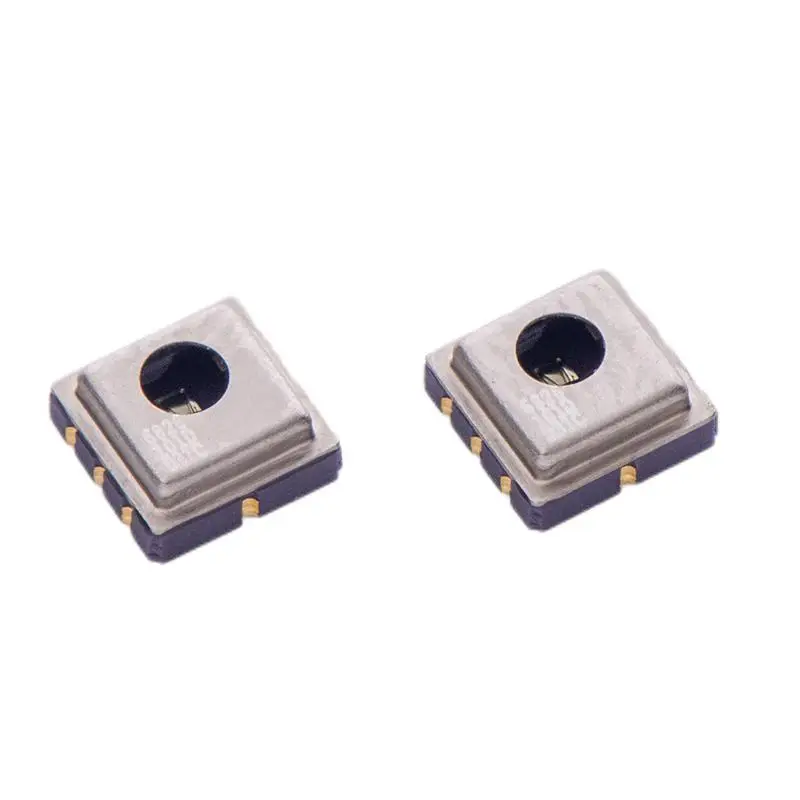

The XGZP6826D is a miniaturized Digital Barometric Air Pressure Sensor with a high accuracy and a low current consumption. The XGZP6826D is both a pressure and a temperature sensor. The XGZP6826D‘s internal signal processor converts the output from the pressure and temperature sensor elements to 24-bit results. Each pressure sensor has been calibrated individually and contains calibration coefficients. The coefficients are used in the application to convert the measurement results to true pressure and temperature values. Sensor measurements and calibration coefficients are available through the serial I2C interface.

BLOCK DIAGRAM

         Performance Parameter



Item	Data	Unit
Accuracy	±2	%Span
Response Time	2.5ms@OSR_P=1024X	Ms
SDA/SCL pull up resistor	2.2	Kohm
ESD HBM	4000	V
TCO(Temp. Coefficient of Offset)	±0.03	%FS/℃
TCS(Temp. Coefficient of Span)	±0.03	%FS/℃
Long Term Stability(1year)	±0.5	%Span
Over Pressure	2X	Rated
Compensation Temp.	0 ~ 60	℃
Media Temp.	-10~85	℃
Storage Temp.	-40~150	℃

       Electrical Characteristics



Dimension&Electric Definition (Unit:mm)



Notes:

1.Implement ESD protection during whole soldering and assembly process.

2.Overload voltage(max.6.5Vdc) or current(max.5mA) may burn the ASIC and cause the sensor fail throughly.

3.More detalis about soldering and storage etc., refer to Overall notes.



Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI)





Order Guide



Electrical specification of the I2C interface pins
