Пневматическая резка металла Nc Гидравлическая машина для резки и гибки Свинг луча Спецификация прайс-лист
- Категория: Стригальная машинка >>>
- Поставщик: Dalian,J&Y,Heavy,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 871437.50 $* | 888866.21 $* |
| Jul-17-2025 | 706756.20 $* | 720891.44 $* |
| Jun-17-2025 | 857714.62 $* | 874868.85 $* |
| May-17-2025 | 850852.15 $* | 867869.93 $* |
| Apr-17-2025 | 679309.49 $* | 692895.72 $* |
| Mar-17-2025 | 837129.9 $* | 853872.44 $* |
| Feb-17-2025 | 830267.38 $* | 846872.52 $* |
| Jan-17-2025 | 823405.87 $* | 839873.3 $* |
Характеристики
cutting 6mm thick 6m length hydraulic angle iron shear metal
Streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
The machine by CE certification and ISO quality system certification.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
The machine by CE certification and ISO quality system certification.

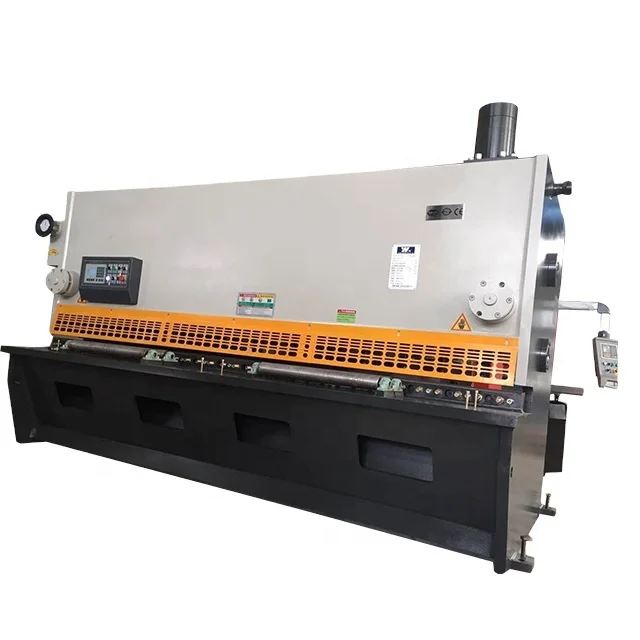

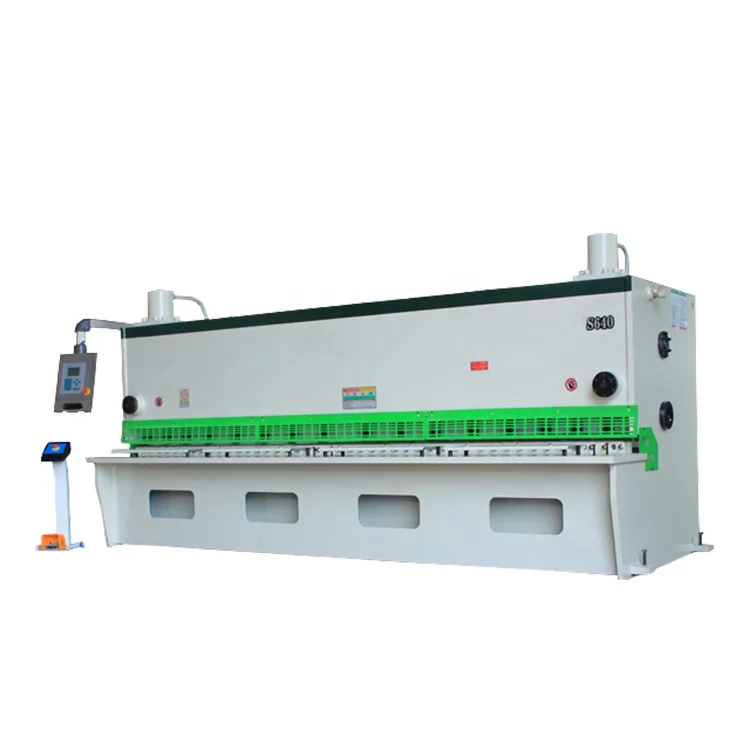

QC11Y Series Hydraulic shearing machine
QC12Y Series Hydraulic shearing machine
![]()
Hydraulic shearing machine Features
Hydraulic shearing machine Features
1.Entire welded frame, tempering.(our feature)

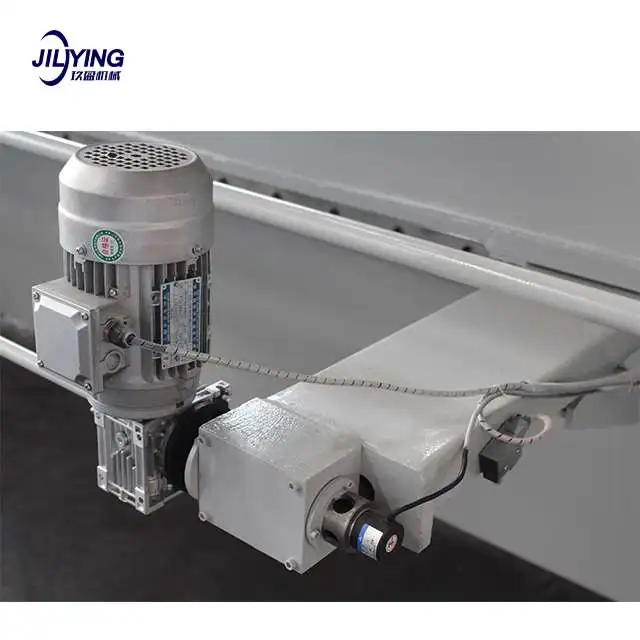

2.Digital display,back gauge size & shear times
3.Balde clearance indicated,easy for adjusting
4.Cartridge type hydraulic system,impove the reliability and security for Hydraulic shearing machine running.
2.Digital display,back gauge size & shear times
3.Balde clearance indicated,easy for adjusting
4.Cartridge type hydraulic system,impove the reliability and security for Hydraulic shearing machine running.
The working conditions and environments used are:
1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz± 1, three-phase
2. Ambient temperature: 0℃-45℃
3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%
The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.
1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz± 1, three-phase
2. Ambient temperature: 0℃-45℃
3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%
The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.
QC11Y Series Hydraulic shearing machine
![]()
![]()
QC12Y Series Hydraulic shearing machine
![]()
![]()
- Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.The famouse brand for Motor ,Gear pump ,Hydraulic system,Ball screw and line guide ,Sealing rings ect.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.The famouse brand for Motor ,Gear pump ,Hydraulic system,Ball screw and line guide ,Sealing rings ect.
Company Information
Type | Cutting length | Travel times | Stopper adjust range | Power |
4x2500 | 2500mm | 28 Min-1 | 20-500mm | 4.0kw |
6x3200 | 3200mm | 14 Min-1 | 20-600mm | 7.5kw |
8x6000 | 6000mm | 8 Min-1 | 20-600mm | 11kw |
10x4000 | 4000mm | 6 Min-1 | 20-600mm | 11kw |
12x5000 | 5000mm | 10 Min-1 | 20-800mm | 30kw |
16x3200 | 3200mm | 6 Min-1 | 20-800mm | 22kw |
20x4000 | 4000mm | 6 Min-1 | 20-1000mm | 30kw |
25x3200 | 3200mm | 6 Min-1 | 20-1000mm | 37kw |
30x3200 | 3200mm | 4 Min-1 | 20-1000mm | 37kw |
For the steel guillotine shear,besides the above model,we accept customized accordingly.pls advise the plate length and
thickness,we will design the steel guillotine shear for you.
we use the famouse brand for Hydraulic shearing machine configurations,smoothly cutting effect,good quality and high performance.
thickness,we will design the steel guillotine shear for you.
we use the famouse brand for Hydraulic shearing machine configurations,smoothly cutting effect,good quality and high performance.
No. | Item | Quantity | Brand |
1 | Motor | 1Set | Siemens China |
2 | Gear pump | 1Set | Sunny USA |
3 | Casting connector | 1Set | Cast CO Italy |
4 | Main electric parts | 1Set | Siemens China |
5 | Hydraulic system | 1Set | Rexroth Germany |
6 | Sealing rings | 1Set | Valqua CO Japan |
7 | Blade | 1Set | Jinshan China |
8 | Ball screw and line guide | 1Set | Hiwin TaiwanChina |
9 | E21 CNC System | 1Set | ESTUN China |
Products Recommended
Company Profile
![]()
![]()
![]()
![]()
Company Information
Dalian J&Y Machinery Equipment Co., Ltd. was established in 2012.
We are an enterprise specializing in the development and sales of CNC machine tools and automatic welding equipment. Our main products are shearing and folding machines, bending machines, bending machines, punching and shearing machines, presses, hydraulic presses, cutting machines, sealing machines, welding equipment, polishing equipment and so on.
Dalian J&Y Machinery Equipment Co., Ltd. covers an area of 66,600 square meters with a total investment of more than 150 million yuan. There are more than 120 employees, including 30 professional and technical personnel and 10 personnel with intermediate and senior titles. The company has excellent equipment, strong technical force, advanced manufacturing technology,complete testing methods and perfect quality system. There are more than 150 main equipments, 5 automated and semi-automated production lines, with an annual production capacity of 50,000 sets.
We adhere to the principle of "customers are the first priority" and continue to pursue innovation and development. We also strive to develop high-tech products to meet the needs of customers in different industries. Our goal is to become the most competitive enterprise in the field of providing automation products and cutting and welding equipment industry services. In short, join us and create a better future together, because J&Y can become your most reliable business partner!
Our Certificate
![]()
Contact Us
Contacts: David Liu
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: Liu@weldcnc.com
Mob/Whatsapp: +86 133 9411 0095
Packaging & Shipping
![]()
FAQ
Q1.What is our main product ?
A1: Our company is a professional sheet metal processing machinery by JIUYING.HEAVY MACHINE CO.,LTD. in 1988. Concentrate on four column press machine, embossing door press machine, bending machine, shearing machine, cnc plasma cutting machine, rolling machine, punching machine, hydraulic ironworker, welding equipment.
All these machine will be solved for the tank, pan, trolley, ect.
Q2.When can I get the price ?
A2:We usually offer the quotation within 8hours, For urgent offer, please contact with us for special.
Q3.What is the Trade Term?
A3: We accept Ex-work factory , FOB Dalian, CNF or CIF, as your requirement.
Q4.How long is our Production leading time?
A4: It depends on type of equipment.
We often deliver the goods within 35days.
Q5.What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.
Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Q7. What are your terms of packing?
A7: Packing: export worthy package suitable for container transportation.
Wooden case, iron pallet, plastic film ect.
Q8. Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery.
Q9: Where is your factory located?
A9: Our factory is located in Dalian, Liaoning province.
Q10: What is your warranty?
A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.
Q11: Can you arrange thirty party pre-shipment inspection?
A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.
Q12:Can we do our OEM logo?
A12:Yes, for the products with drawing supplied by you, we of course apply your logo
A1: Our company is a professional sheet metal processing machinery by JIUYING.HEAVY MACHINE CO.,LTD. in 1988. Concentrate on four column press machine, embossing door press machine, bending machine, shearing machine, cnc plasma cutting machine, rolling machine, punching machine, hydraulic ironworker, welding equipment.
All these machine will be solved for the tank, pan, trolley, ect.
Q2.When can I get the price ?
A2:We usually offer the quotation within 8hours, For urgent offer, please contact with us for special.
Q3.What is the Trade Term?
A3: We accept Ex-work factory , FOB Dalian, CNF or CIF, as your requirement.
Q4.How long is our Production leading time?
A4: It depends on type of equipment.
We often deliver the goods within 35days.
Q5.What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.
Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Q7. What are your terms of packing?
A7: Packing: export worthy package suitable for container transportation.
Wooden case, iron pallet, plastic film ect.
Q8. Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery.
Q9: Where is your factory located?
A9: Our factory is located in Dalian, Liaoning province.
Q10: What is your warranty?
A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.
Q11: Can you arrange thirty party pre-shipment inspection?
A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.
Q12:Can we do our OEM logo?
A12:Yes, for the products with drawing supplied by you, we of course apply your logo
