Автоматическая машина для резки резиновых лент
US $1500-$4500
Машина для вулканизации резиновый пояс машина Горячей
- Категория: Другое оборудование для обработки резины >>>
- Поставщик: Qingdao,Antai,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4641.94 $* | 4873.30 $* |
| Aug-15-2025 | 4602.14 $* | 4832.38 $* |
| Jul-15-2025 | 3861.47 $* | 4054.29 $* |
| Jun-15-2025 | 4524.19 $* | 4750.57 $* |
| May-15-2025 | 3939.12 $* | 4136.48 $* |
| Apr-15-2025 | 4446.63 $* | 4668.82 $* |
| Mar-15-2025 | 4407.62 $* | 4627.73 $* |
| Feb-15-2025 | 4368.54 $* | 4586.62 $* |
| Jan-15-2025 | 4329.31 $* | 4545.79 $* |
Характеристики
Product Description
Product Description

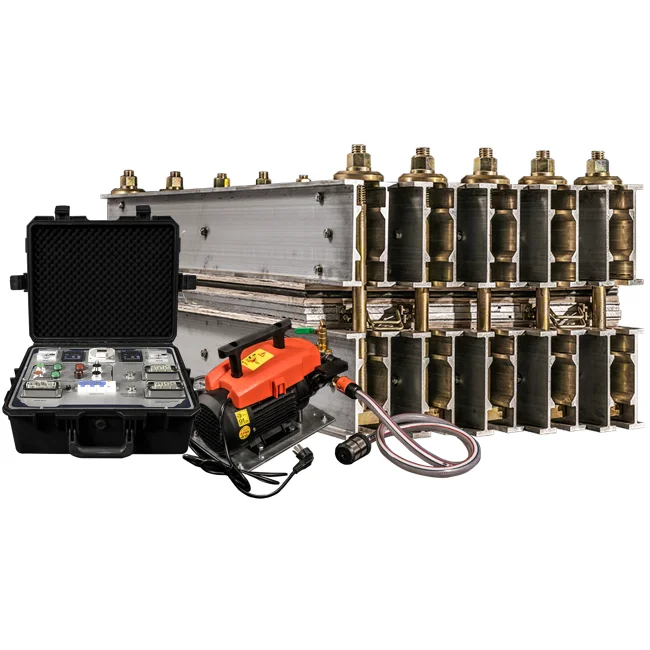

Conveyor belt hot splicing machine
Conveyor belt hot splicing machine, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
Feature
High pressure water pump, adopted three cylinder plunger pump driven by single-phase machine, with the characteristics of compact
structure, small volume, reliable, maintenance fridendly, etc......
Sturdy heating plate with hydraulic pressure system ensures temperature uniformity, high pressure can reach Max. 2.0 MPa (20 bars or 290 psi);Heating plate including air or water cooling.
Cross Beam: lightweight & high strength aluminum alloy;Tensioning bolts will increase the safety level.
THEMAX conveyor belt vulcanizing press just take no more than 20 mins cooling time to 60ºC, more efficenicy.
Electronic control box is easy to operate and will make sure the vulcanizing temperature.
Equiped with electric pump will shorten working time.
Equiped with electric pump will shorten working time.
Parameters
form
| Model | Belt width(mm) | Power(kw) | Dimensions | Weight(kg) | Single most important |
| (L*W*H mm) | |||||
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
