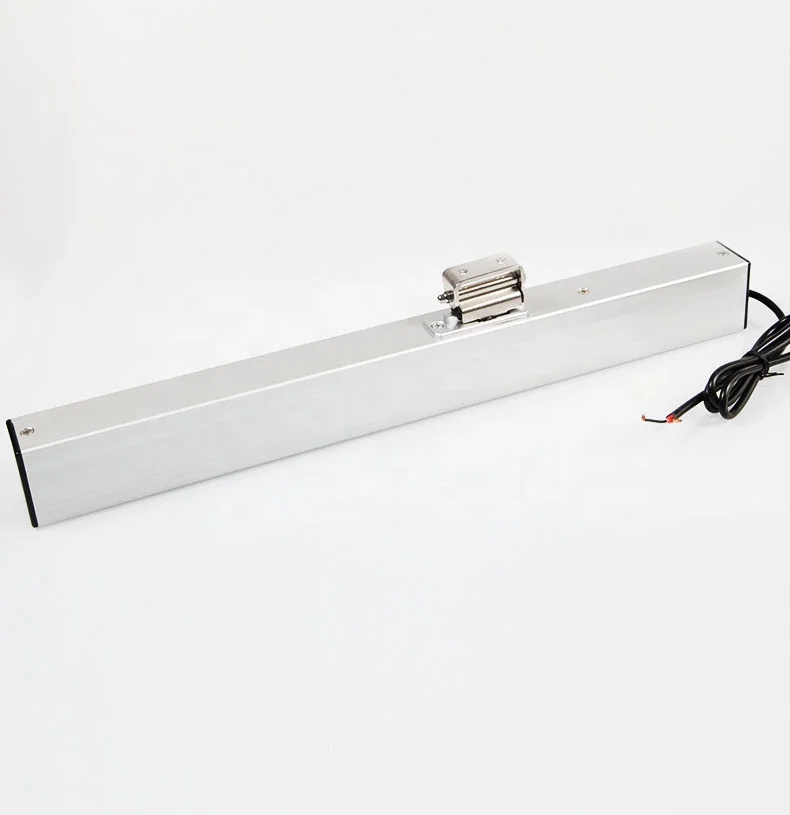

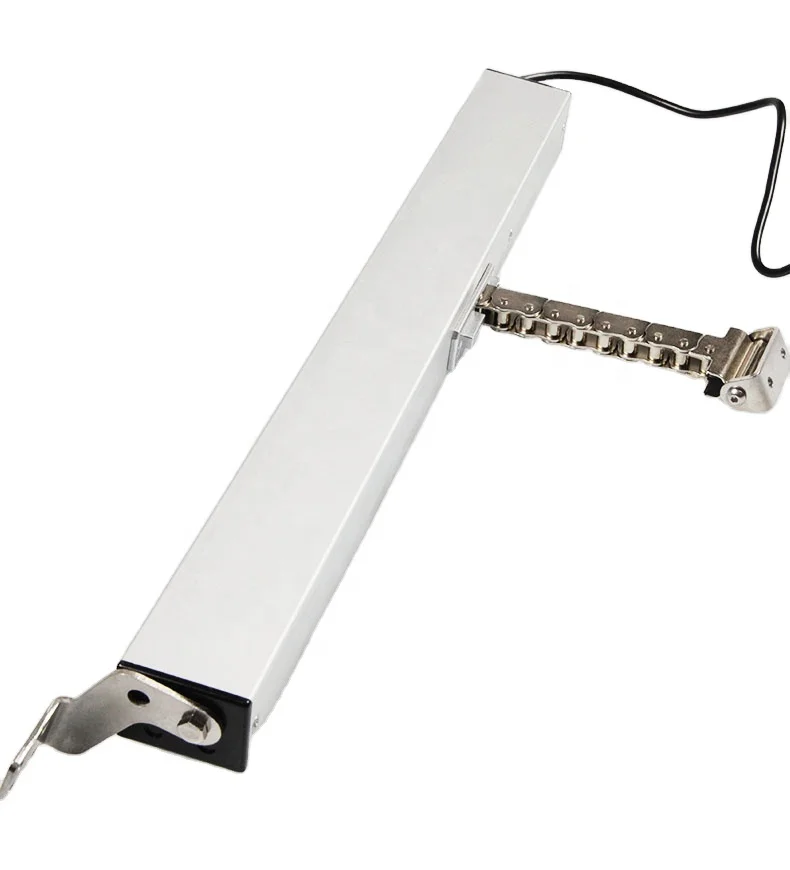

Ultra-quiet Design Electric Chain Motor APP Control Automatic Sliding Window Opener



Specification Parameters

Thrust and pull	400N	Locking Force	2000N
The speed of movement	10-15mm/s	Stroke distance	100-1000mm(Can be customized)
Lifetime	more than 30000 times	Rated voltage	DC 24V
Rated current	1.2A	Rated power	28.8
Window width	0.5m-1.5m	Protection class	IP32





Dimension Drawing



Product Feature

1.Intelligent protection, high-quality materials, Stroke distance can be customized according to customer needs.
2.High quality design life load open and close over 30000 times,low noise when turned on.The locking force is 2000N, which is safe and reliable.
3.12 installation methods, suitable for various window installations
4.Remote control (indoor up to 50m or more), manual button, computer centralized control, mobile phone remote, automatically open or close alternative or multiple windows.

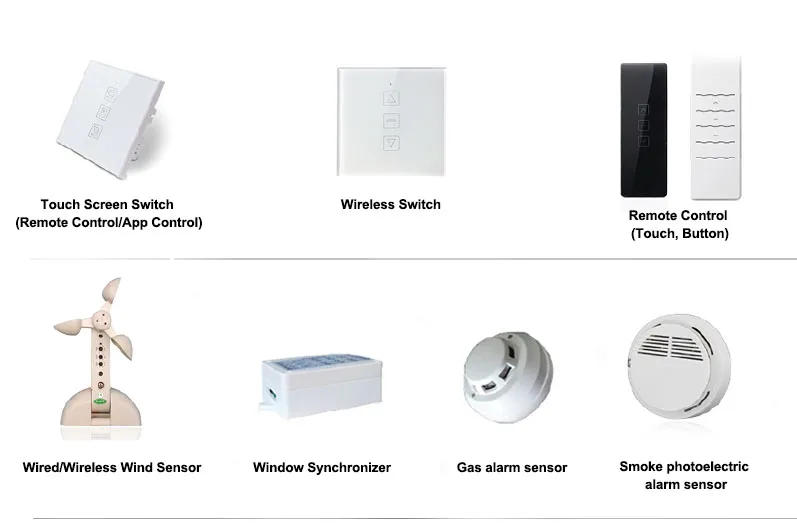

5.Expansion of smart devices such as human body sensors, wind and rain sensors, smoke alarms, thermostats, timers, etc.
6.Stroke distance can be customized according to customer needs.

Installation And Application



Window opening method





Tips:

1.Our automatic window opener is suitable for the all the above window types.
2.The automatic window opener must not be installed outside where would get wed in the rain.



Related Products

If you want related products to increase the function of the window opener, please contact us.

Why Choose Us

 1.  The world's leading swing door operator manufacturer in China. Daily production over 500 PCS

----------------------------------------------------------------------------------------------------------------------------------

 2.  The factory has three production base located in ZHEJIANG ,ANHUI,JIANGSU three province. The area cover 72,000 square meters.

---------------------------------------------------------------------------------------------------------------------------------

 3.  Over 14 years producing experience in swing door operator. Ripe production process.

---------------------------------------------------------------------------------------------------------------------------------

 4.   Impeccable testing system covered from raw material,components,semi-finished products.

---------------------------------------------------------------------------------------------------------------------------------

 5.   HAIDA has own national test laboratory (Intertek Satellite Lab) to make sure the growth of our company.

Workshop & Lab



Since the enterprise was founded, we constantlyimproved the enterprise infrastructure, introduced from abroad a number of advanced productionlines; This ensures our strong manufacture ability.Standardized setting of technological process keep every link in order;

Strict supervision and inspection system establishes firm foundation of high quality.
