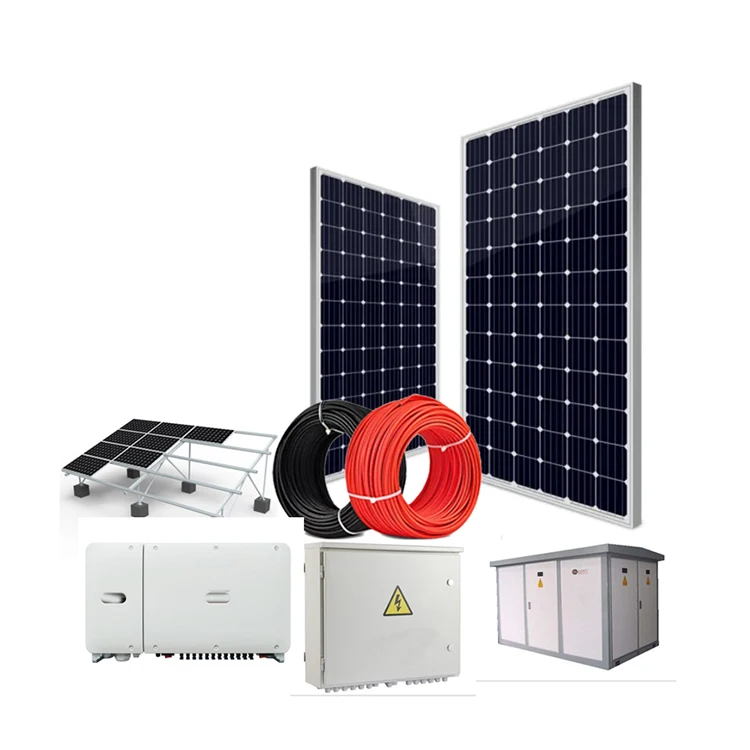

Полная солнечная система 12 кВт 15 16 18 20 на сетевой солнечной
- Категория: >>>
- Поставщик: Suzhou,Ronglian,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.48 $* | 0.1 $* |
| Aug-16-2025 | 0.81 $* | 0.56 $* |
| Jul-16-2025 | 0.15 $* | 0.69 $* |
| Jun-16-2025 | 0.88 $* | 0.40 $* |
| May-16-2025 | 0.80 $* | 0.35 $* |
| Apr-16-2025 | 0.38 $* | 0.46 $* |
| Mar-16-2025 | 0.71 $* | 0.3 $* |
| Feb-16-2025 | 0.75 $* | 0.31 $* |
| Jan-16-2025 | 0.98 $* | 0.93 $* |
Характеристики
Reading before place order for client
Batteries for as for client requirement choose (Lead Acid/Gel), the above for reference , For more information will design acooridng to client requirement。
Components | 12KW-ON | 15KW-ON | 16KW-ON | 18KW-ON | 20KW-ON |
Solar Panel | 30 Pcs | 36 Pcs | 38 Pcs | 55 Pcs | 48 Pcs |
On Grid Inverter | 12KW | 15KW | 16KW | 18KW | 20KW |
DC Combiner Box | 1 Piece | 1 Piece | 1 Piece | 1 Piece | 1 Piece |
PV Cable 4MM2 | 200 Meter | 300 Meter | 300 Meter | 400 Meter | 400 Meter |
Mounting Brackets | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
MC4 Connector | 30 Pieces | 40 Pieces | 40 Pieces | 50 Pieces | 50 Pieces |
Installation Tool | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
Mono Solar Panels
Peak Power Watts: 320W (RLS320M)
Module Efficiency(%):20.15
Module Dimensions:1684 × 1002 × 35mm(66.85×39.53×1.38 inches)
Junction Box:IP 67 rated
Solar Cells:Mono PERC 158.75×158.75mm
Frame:Silver / Black Anodized Aluminium Alloy
Weight:19.0KG
Module Efficiency(%):20.15
Module Dimensions:1684 × 1002 × 35mm(66.85×39.53×1.38 inches)
Junction Box:IP 67 rated
Solar Cells:Mono PERC 158.75×158.75mm
Frame:Silver / Black Anodized Aluminium Alloy
Weight:19.0KG
On Grid Inverter & Data Logging Stick
Max.DC Input Power: 12/15/16/18/20KW
Max. DCInput Voltage: 1100V
MPPT Voltage Range: 160-950V
Rated Grid Voltage: 12000-30000W
-Lightning protection & High precision leakage monitoring
-Low standby consumption,High efficiency, high yield
-APP Connection: All data at real time
-Quiet Operation & No noise pollution
-Remote Maintenance & Configuration
-Intelligent & Grid-friendly,Active response to grid dispatch
-High reliability, relay redundancy design
Max. DCInput Voltage: 1100V
MPPT Voltage Range: 160-950V
Rated Grid Voltage: 12000-30000W
-Lightning protection & High precision leakage monitoring
-Low standby consumption,High efficiency, high yield
-APP Connection: All data at real time
-Quiet Operation & No noise pollution
-Remote Maintenance & Configuration
-Intelligent & Grid-friendly,Active response to grid dispatch
-High reliability, relay redundancy design
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & 304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
GEL Battery（Lead Acid,lithium batteries）
Nominal Voltage(VDC): 12 V
Nominal Capacity(AH): 250
Nominal Capacity(AH): 250
Max Discharge Current: 30I10A(3min)
Max Charging Current: ≤0.25C10
Self-discharge （25℃）: ≤3%/month
Cover Material : ABS
Weight: 63.0Kg
Max Charging Current: ≤0.25C10
Self-discharge （25℃）: ≤3%/month
Cover Material : ABS
Weight: 63.0Kg
Recommended Using Temperature:15℃~25℃
(Remark only for off grid or hybrid system)
Main Disconnect Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
DC Cable & MC4 Connector & Y Branch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
