Сельское хозяйство водный центр поворотная дорожная катушка

Цена:*

Количество:

Product Description

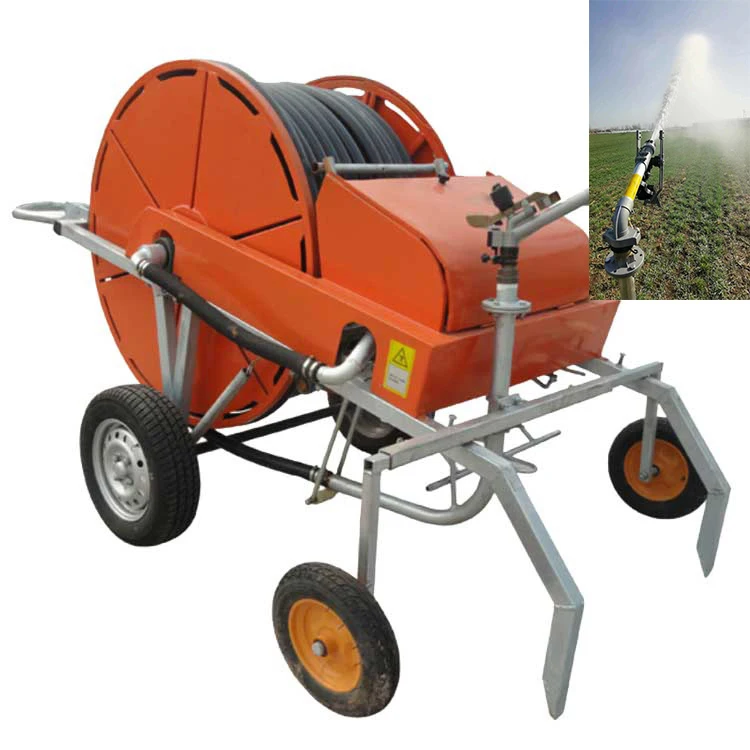

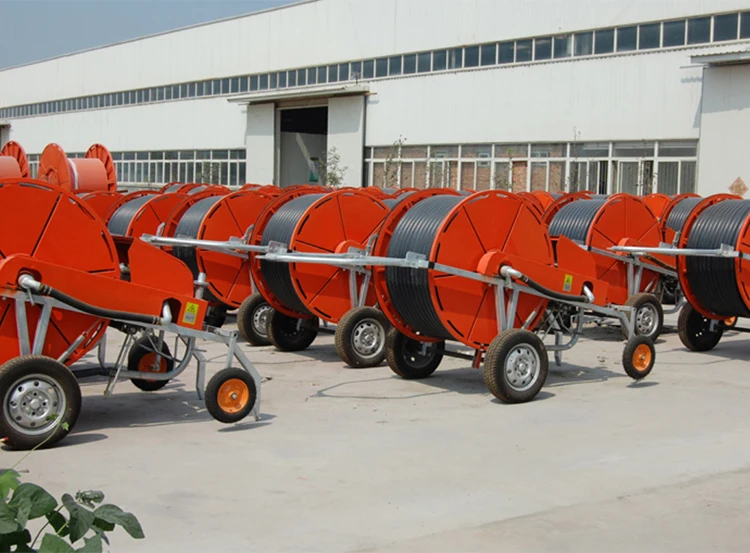

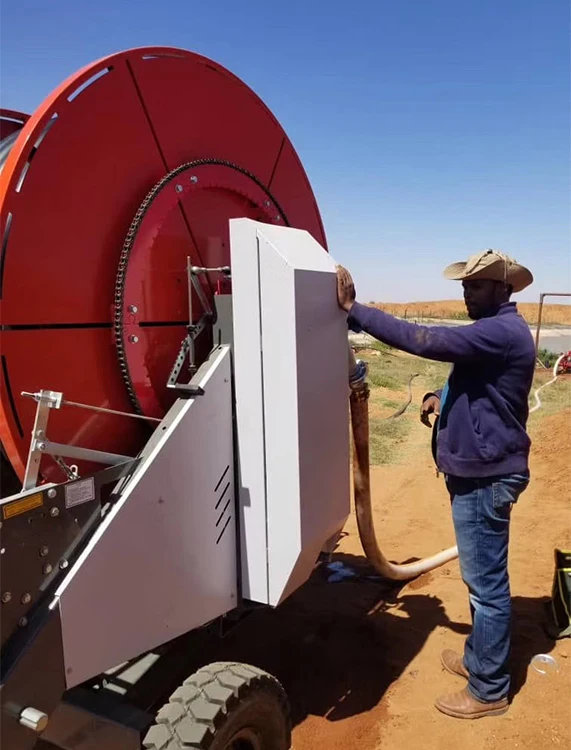

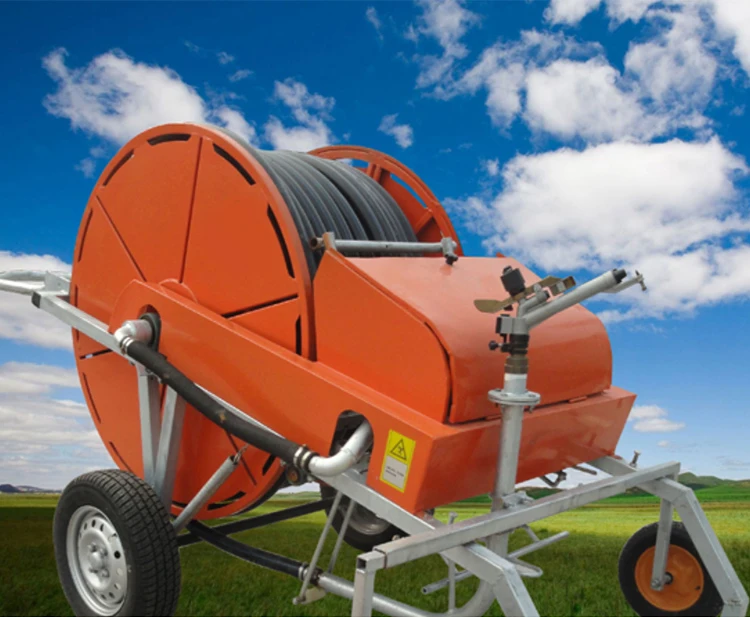

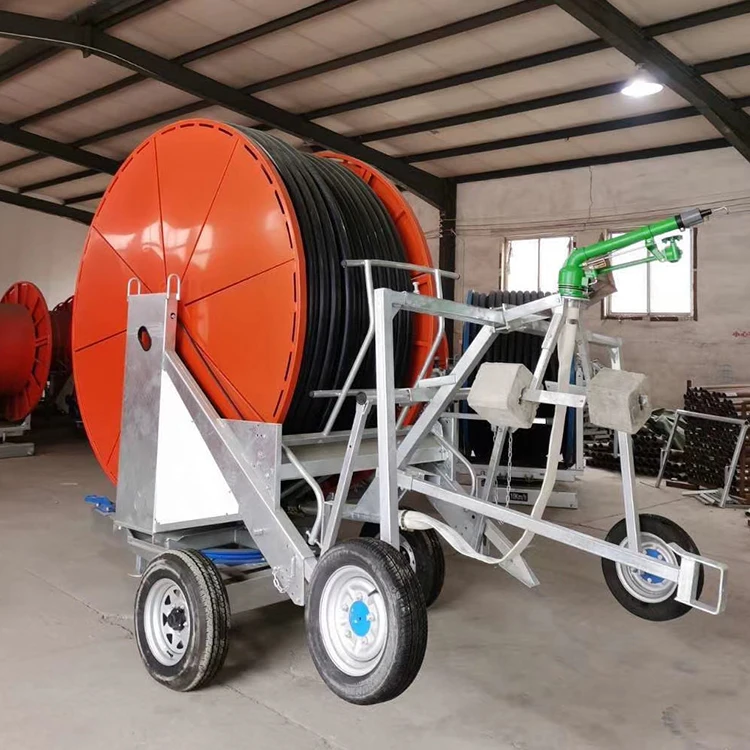

Pictures of the hose reel irrigation machine

.jpg

Description of irrigation machine

This hose reel irrigation machine is turbine-driven , automatic rewinding and ater saving irrigation equipment .

It can be used in different areas of water saving irrigation project .

This machine can use at least 15 years . PE pipe adopts anti-aging,corrosion imported raw material and qualification is in international leading

Main paramters of irrigation machine

Project/Model	VLTX32	VLTX40	VLTX50	VLTX65	VLTX75	VLTX90	VLTX110
PE pipe diameter(mm)	32	40	50	65	75	90	110
PE pipe length(m)	70-100	90-120	150-250	200-350	250-450	300-450	300-500
Nozzle pressure(MPa)	0.15-0.3	0.15-0.3	0.2-0.4	0.2-0.6	0.3-0.6	0.4-0.6	0.5-0.8
Nozzle diameter(mm)	6-10	8-12	9-16	14-18	16-22	20-26	24-32
Flow rate(m³/h)	3-6	5-9	5-19.7	11-31	13-38	17-52	45-106
range(m)	12-18	12-18	19-30	28-43	28-43	35-52	45-68
Sprayer width(m)	20-30	20-30	32-51	47-74	47-74	60-90	77-116
Combination uniformity coefficient(%)	≥85
Interlayer velocity difference(%)	<20
Precipitation(mm)	5-30	5-30	6-44	8-50	8-50	8-50	7.3-92
Nozzle car track(mm)	800	800	1000-1800	1300-2800	1300-2800	1300-2800	2000-3000
Nozzle height(mm)	300	500	600	1300	1300	1300	1300-1500
Car climbing(%)	20
Traction height(mm)	/	/	300	300-500	300-500	300-500	300-500
Ground clearance(mm)	200	200	300	300	300	300	300
Wheel tire rim Maximum width(mm)	840	1030	1580	2000	2000	2310	2400
