Notice:

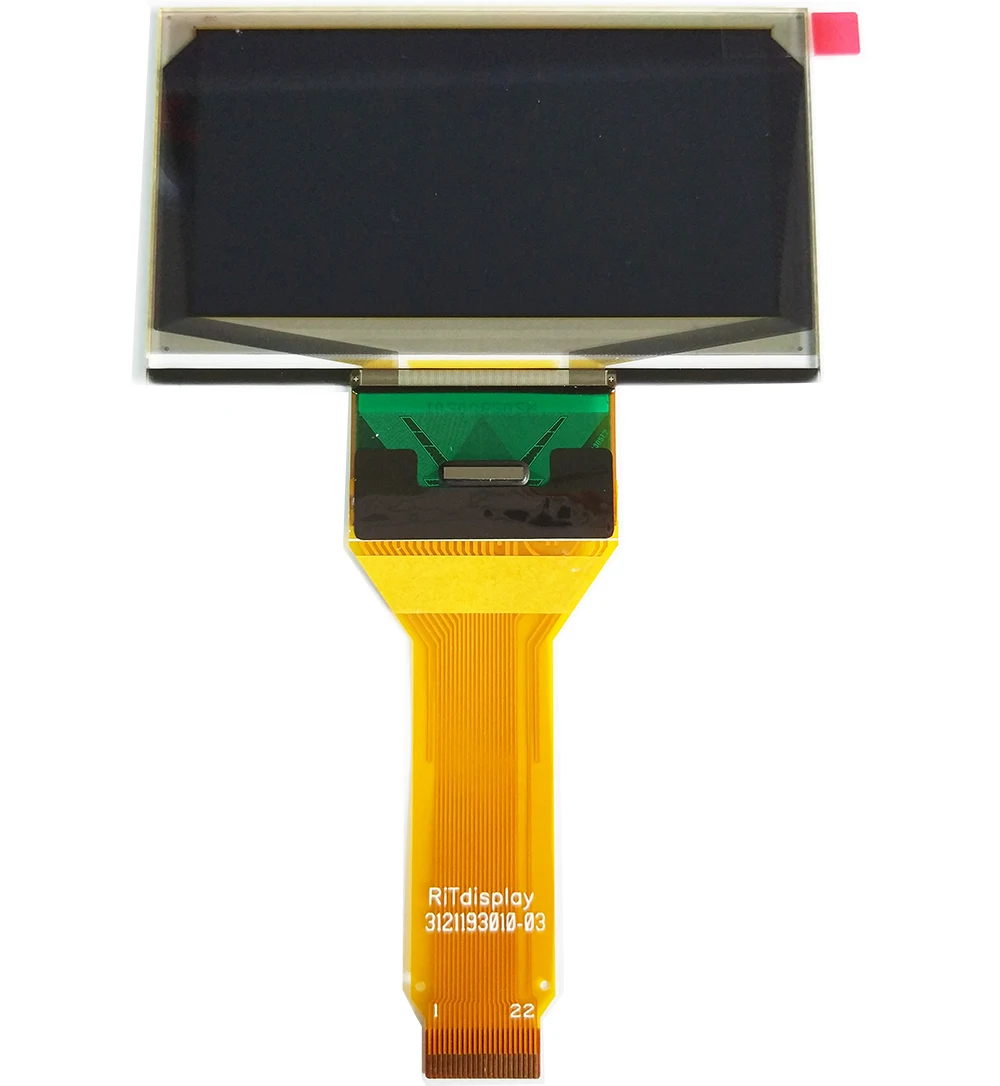

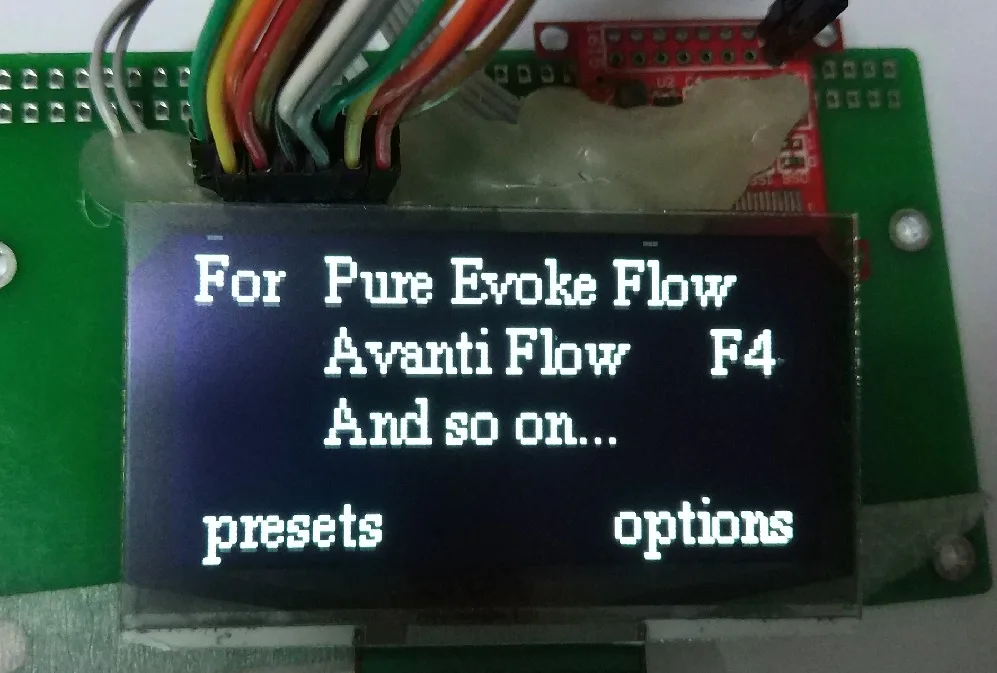

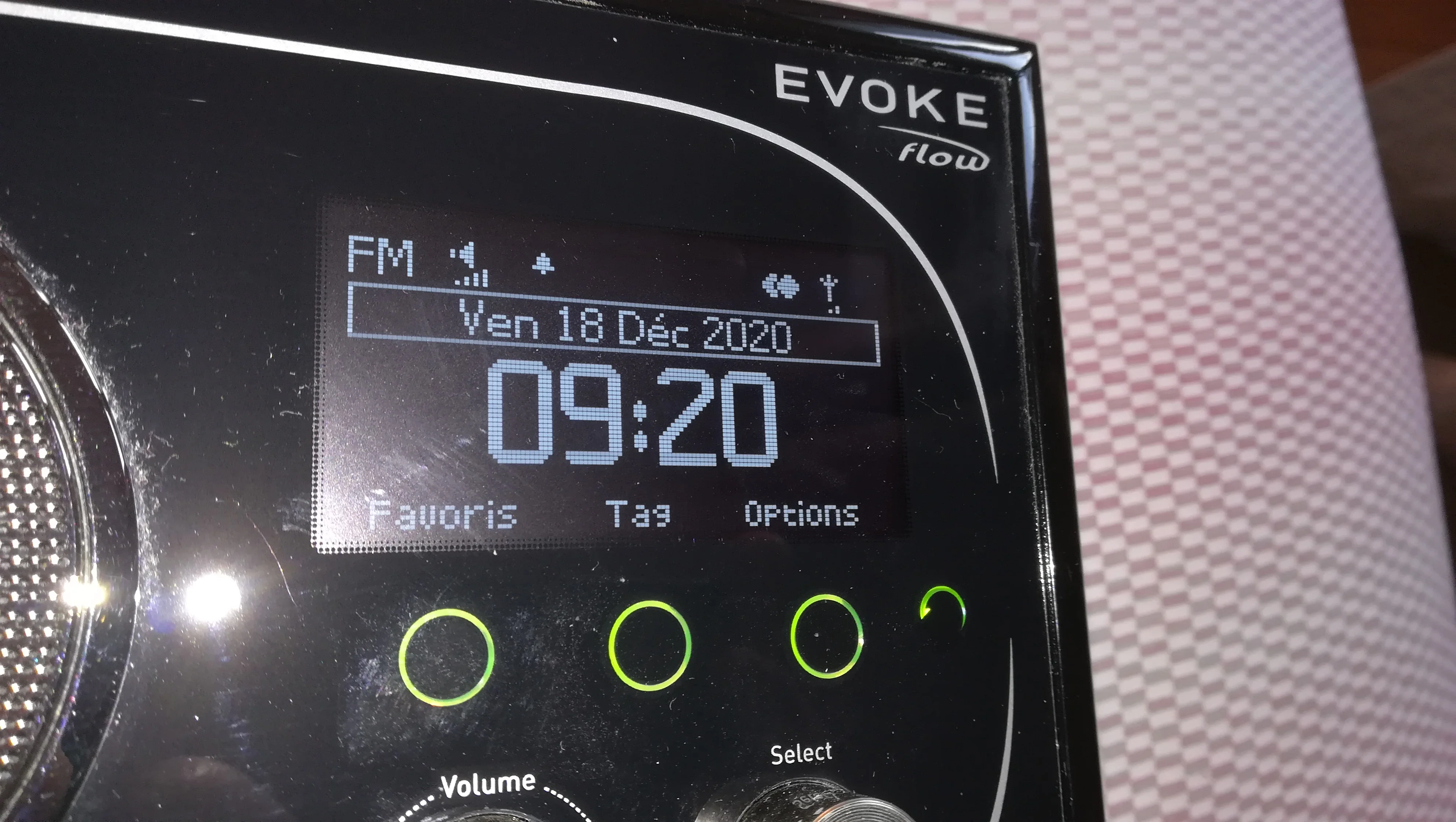

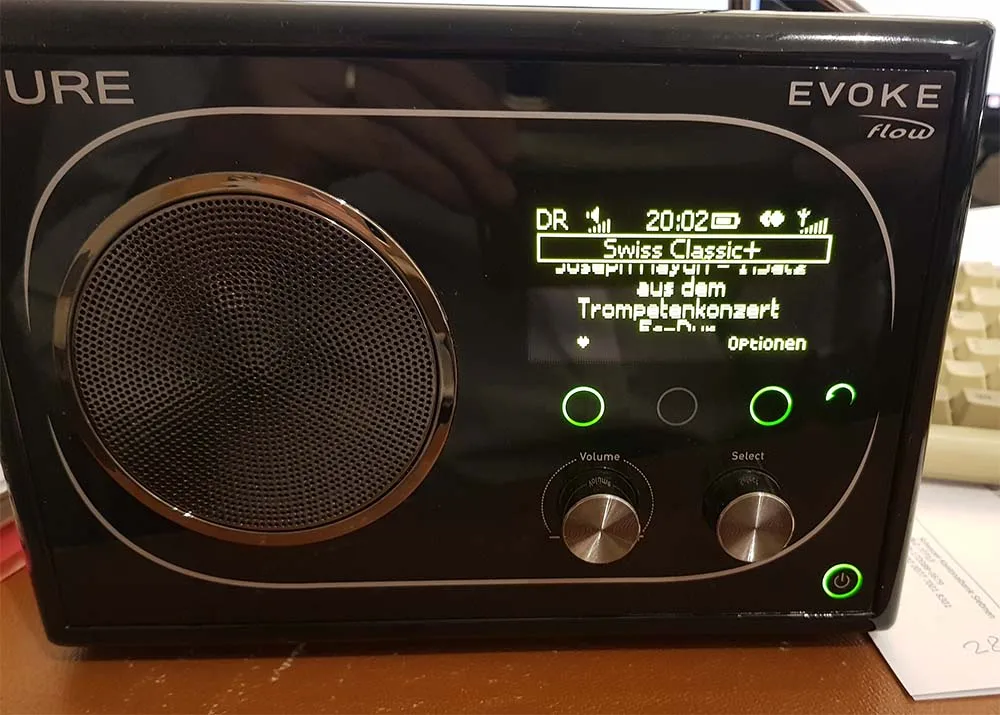

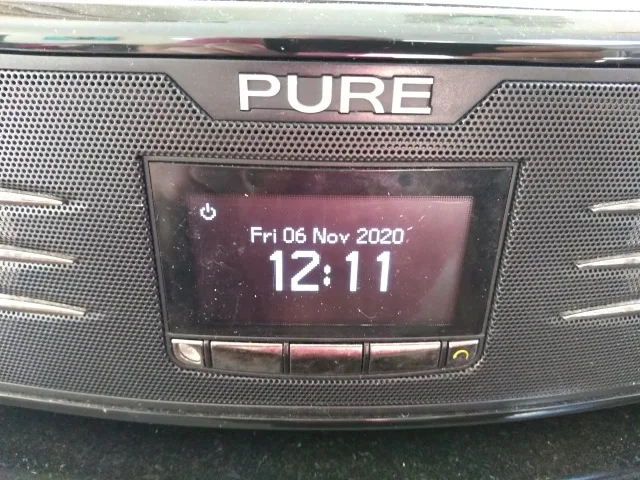

This display is used on PURE Evoke Flow / Avanti  Flow / F4 /Oasis Flow /Sirocco 550 series internet Radio.

This orginal display was not in production already.

It was discontinued and unfortunately factory will not produce it again.

Now, we developed a replacement with 100% brightness in stock.  Yellow and white are available.

If you need it, please place order directly!

Thanks!

 If you can not pay for it on Alibaba, you can make payment to our P-a-y-P-a-l account jackwanoled at gmail.com. And please send me your detailed address/post code/phone number, we will send package to you according to these information.

If your radio models is Pure Evoke 1S or Pure Evoke Marshall or Pure Evoke Mio or Pure Evoke D4, we have its display screen. Please click this link:

#

Thanks for your attention.

  If you can not pay for it on Alibaba, you can make payment to our P-a-y-P-a-l account jackwanoled at gmail.com. And please send me your detailed address/post code/phone number, we will send package to you according to these information.

 Thanks!

Product Description

 1. Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (white)
3) Drive Duty: 1/64 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 100 cd/m2

6) Dark Room Contrast: >2000:1

7) Operating Temp.: -40---85°C

2. Mechanical Specifications
1) Number of Pixels: 128 × 64

2) Panel Size: 73(W) x 41.86(H) x 1.82(T)(mm)
3) Active Area: 61.41(W) × 30.69(H) (mm)
4) Pixel Pitch: 0.48 × 0.48 (mm)
5) Pixel Size: 0.45 × 0.45 (mm)

6) Weight: 13(g)



3. Pin: 22pin





4. Driver: SSD1305



5. Interface: 8-bit 68XX/80XX Parallel, SPI, I2C



Application Circuit.







If you have any questions in application circuit,we will provide detailed technical support.





Our Advantages

1). Datasheets

We will provide detailed datasheets of screen/module/driver IC to you.

2). Source Code

We can provide whole source code (C51 or STM32) or initializaiton code to you.

3). Technical Support

We have experienced engineers and they will provide you comprehensive technical service.

4). Customizable

We provide customizable service. For example custom FPC, custom PCB, custom module and so on.

5). Solution

If you need a solution with some special function, tell us,we can meet your requirement.
