SKILT машина для нанесения этикеток на бутылки

2. Equipment composition

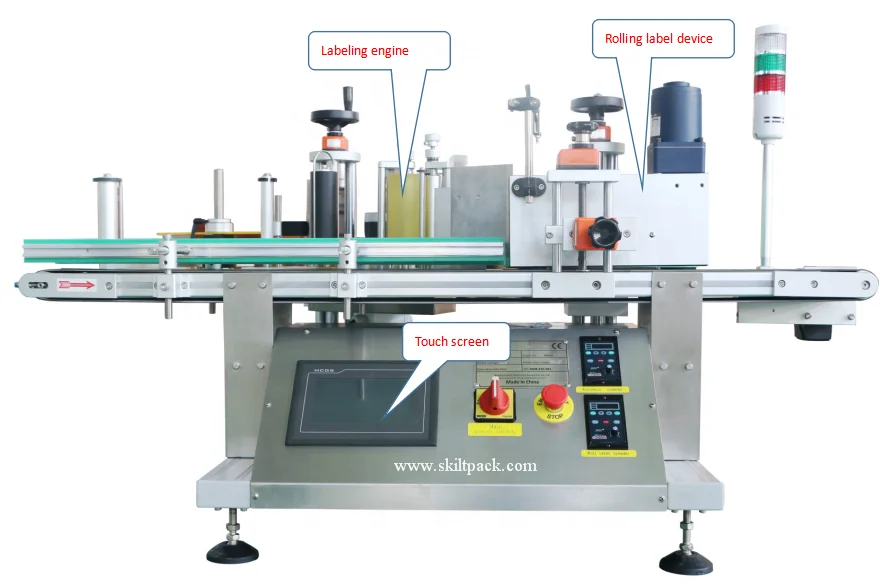

Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;

3. Equipment function characteristics

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

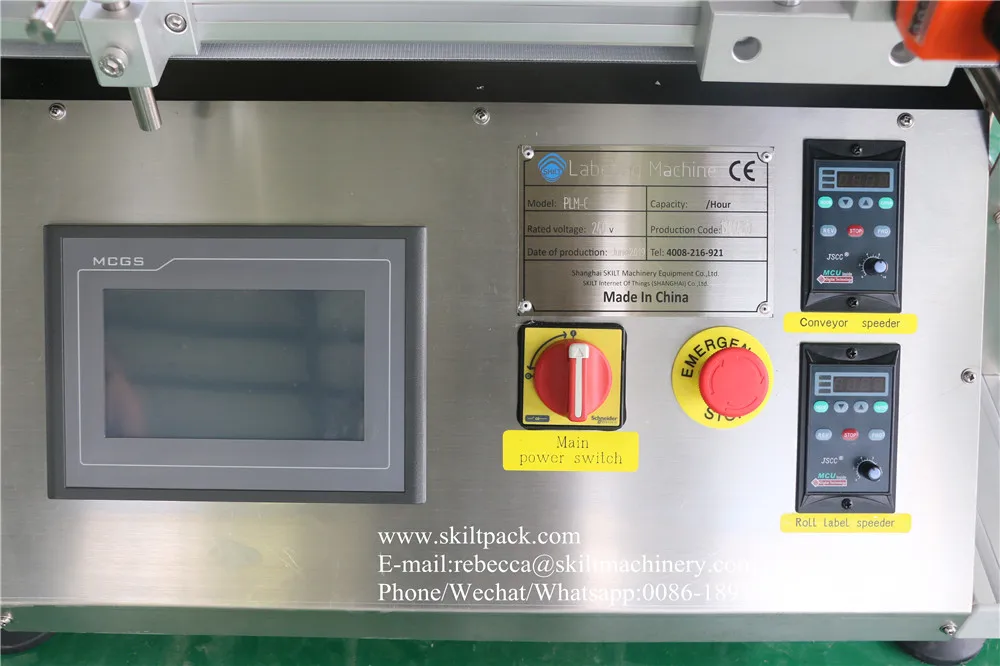

2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Labeling way : Use the servo send label system to send label on product surface.

8) Low voltage circuit all use the German Schneider brand.

4. Follow with some other kinds labeling machine for u ref :

Front & Back surface labeling

If your products need labeling on front and back two surface, pls Click on right picture, with machine detail information for ref;

Top surface labeling

If your products need labeling on front and back two surface, pls Click on right picture, with machine detail information for ref

Horizontal way labeling

Suit for smaller diameter products, such as ampoule ,tube ,vial ,pen, Lipstick, Injection and so on, pls Click on right picture, with machine detail information for ref

Technical Paramter

Model	PLM-C
Capacity (pcs/min)	20-160
Driving Mode	Step motor
Labeling accuracy	±1mm
Labeling Speed(m/min)	≤35
Label Specification	adhesive sticker, transparent or opaque
Suit bottle size	Can customized
Suit label size	Height 20-260mm Length 25-300mm
The inner diameter or label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Power	550w
Voltage	can customized, 110V/220V/380V
Machine size	1200x1000x780mm

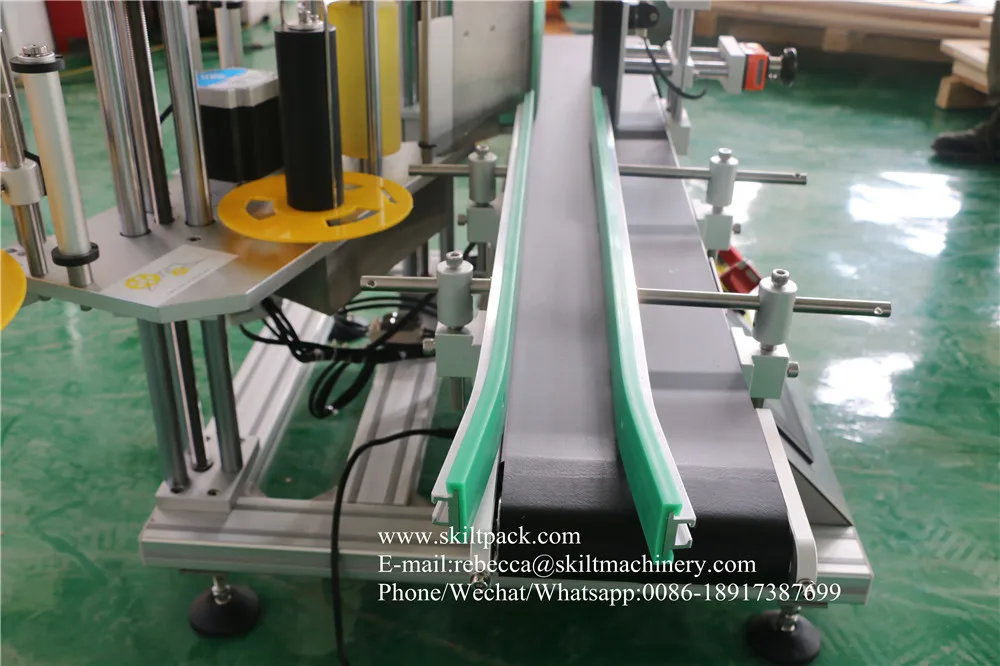

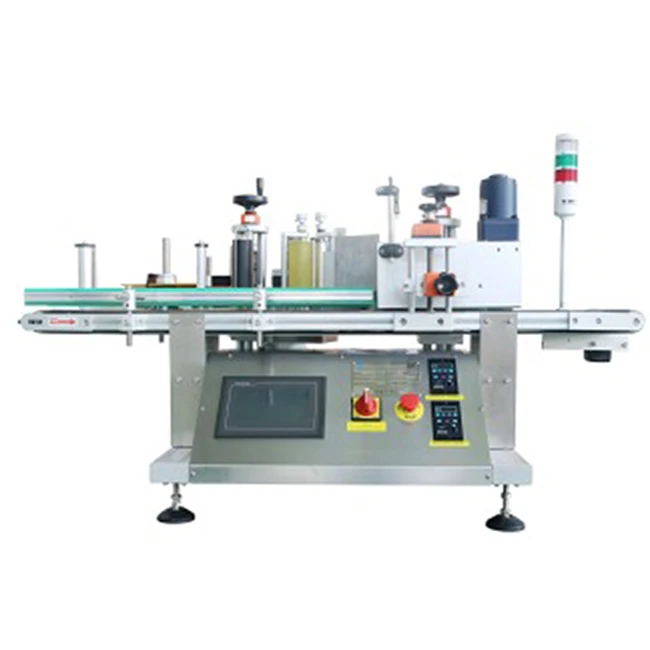

Detailed Images

Machine processing

SKILT Team

FAQ

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can not connect with production line, only operation alone.
