Лучший поставщик 2021 PV солнечная монтажная конструкция поддержка алюминиевой панели система опора кронштейн для крепления стойка-трекер
- Категория: Монтажная система на солнечной батарее >>>
- Поставщик: Xiamen Nacyc Energy Technology Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.78 $* | 5.10 $* |
| Aug-16-2025 | 5.11 $* | 5.89 $* |
| Jul-16-2025 | 4.1 $* | 4.30 $* |
| Jun-16-2025 | 5.8 $* | 5.43 $* |
| May-16-2025 | 4.87 $* | 4.17 $* |
| Apr-16-2025 | 5.32 $* | 5.65 $* |
| Mar-16-2025 | 5.71 $* | 5.32 $* |
| Feb-16-2025 | 4.93 $* | 4.91 $* |
| Jan-16-2025 | 4.33 $* | 4.33 $* |
Характеристики
Solar Panel Orientation :
Style 01 - Landscape
Style 02 - Portrait
Installation Instructions:
![]()
Step 1.Placing the Pre-assembled Tripod
Put the tripod on concrete block (refer to the size on the drawings).

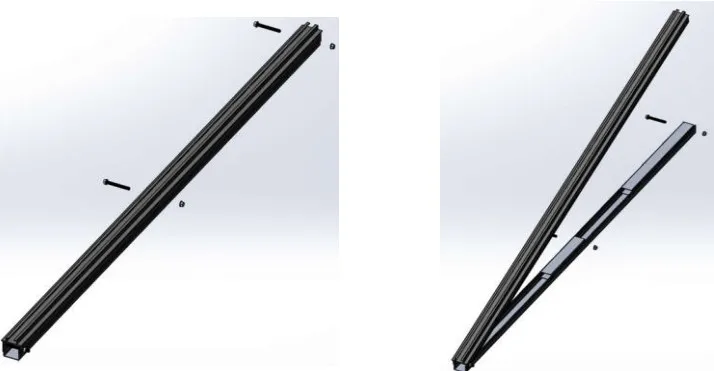

Step 2.Unfolding the Tripod
Loosen the screws in the support end
and the middle .
Pull up the rail
Pull up the rail
A set Tripod Bracket
Unfold the front suppport leg
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.![]()
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.

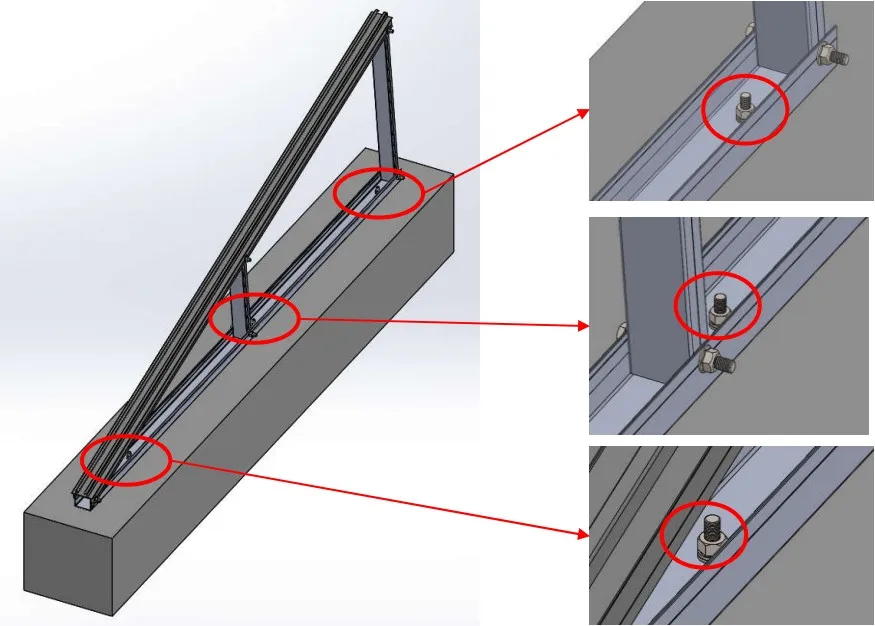

Step 3.Fixing the Tripod
Use three M8 expansion bolts to fix tripod on the concrete block.
![]()

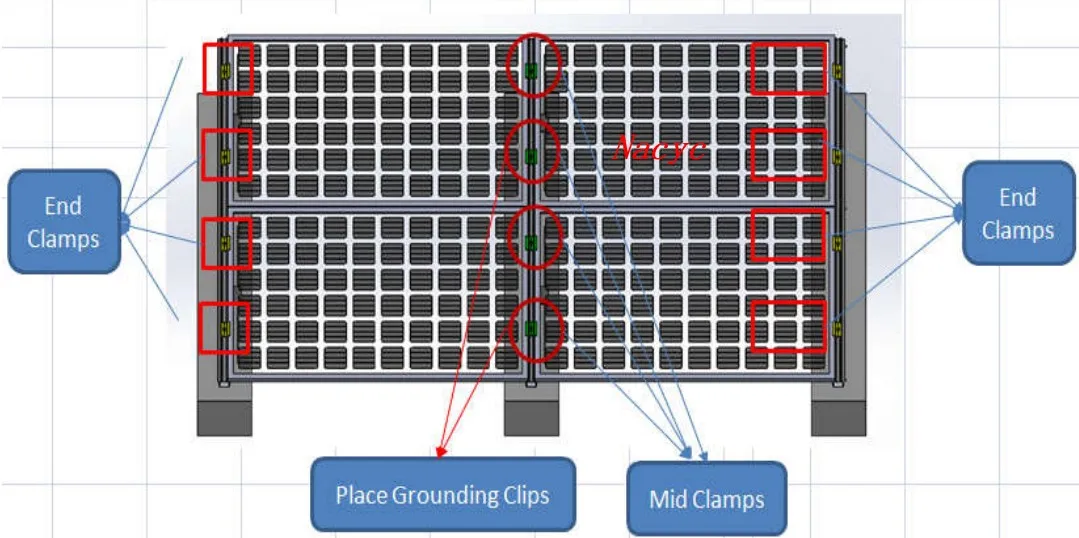

Step 4.Mounting the Modules and Clamps
Put end clamps and mid clamps at the 1/4 and 3/4 length of module
and put the grounding clips between modules.

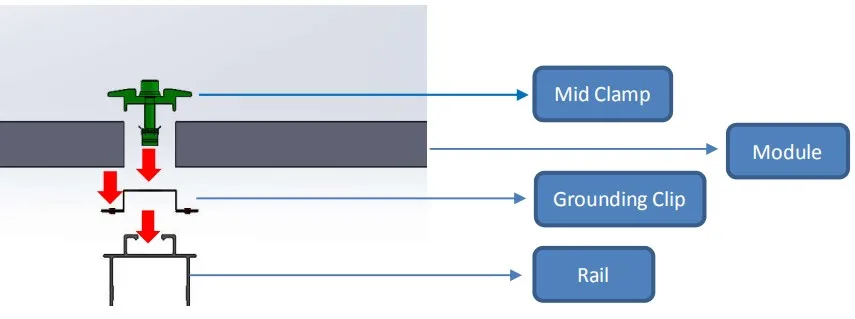

Tighten the mid clamps
(mid clamps are used between modules）
Install the end clamp
（use end clamp to fix the ends of arrays）
![]()
Step 5.Completed
The installation are finished when all steps completed.
![]()
![]()
![]()
Application :

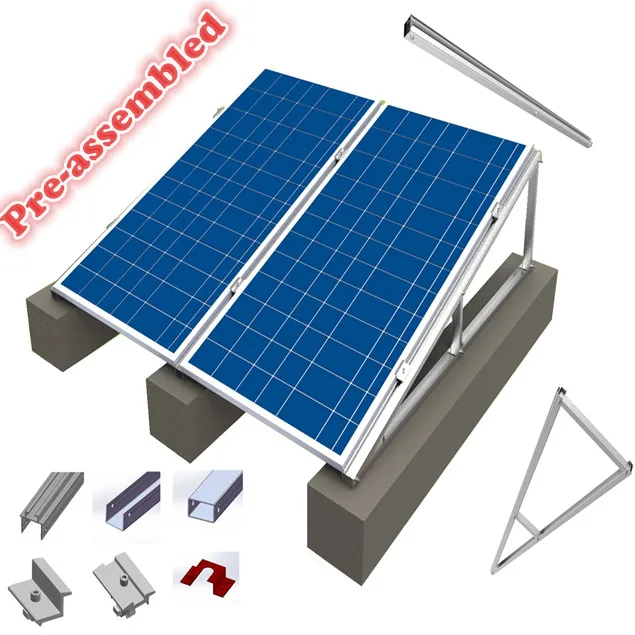

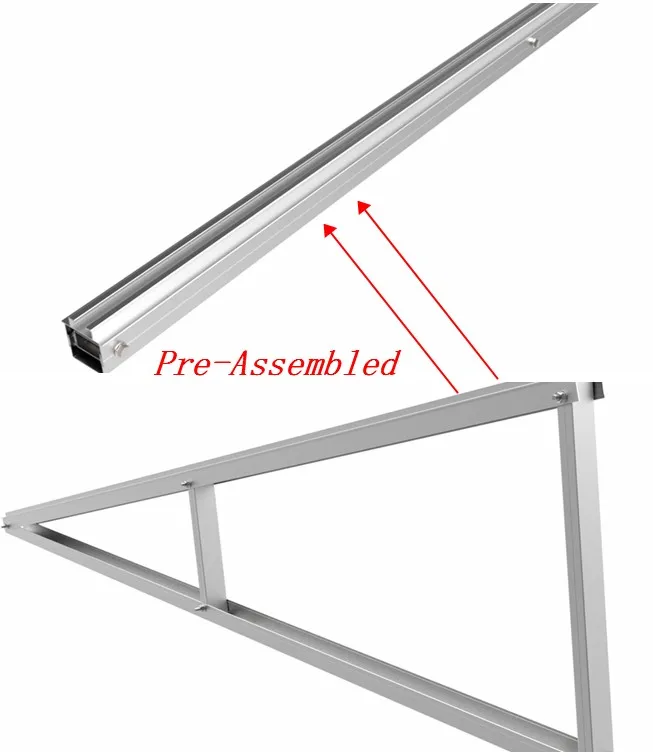

Solar Panel Bracket-Tripod (Pre-assembled )
Install on Ground (Concrete Block)
Install on Flat Roof (Drill the Bolts&Nuts)
