1

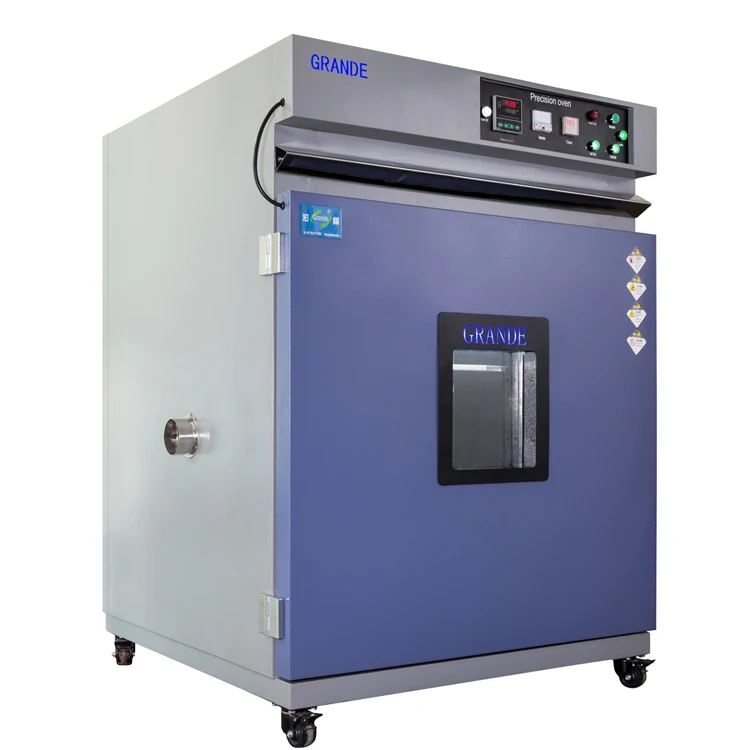

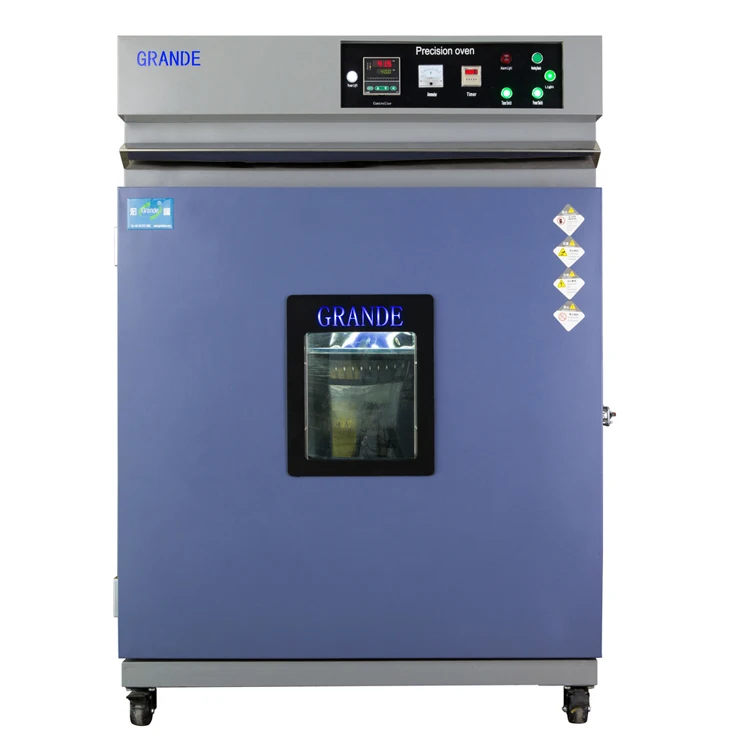

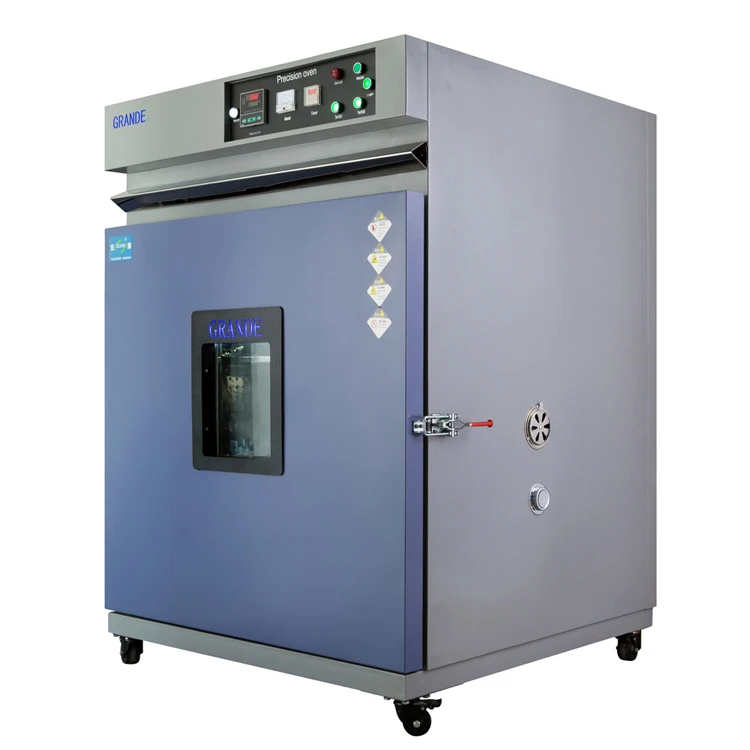

Precision Hot Air Oven



Introduction:

Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,

900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available

It is applicable to a variety of products, materials, components, electronics, automobiles, aviations, plastics, chemicals, foods, chemicals, etc.

Grande offers two types of standard models: the space-saving vertical ovens and the horizontal ovens. Both provide horizontal airflow for even exposure to all samples. Control constancy as low as ±0.1°C and uniformity as low as ±0.5°C ensures accurate operation. An exhaust damper is included to ventilate the oven and allow quick cool-down.

The standard controller offers two-step programming for simple heat-up or shut-down steps. An inexpensive upgrade allows creation of up to ten programs for full cycling applications. The large display is easy to use and read. Four levels of overheat protection are included for safety. A wide variety of options are also available.



Product Detail:

 GIO-1000 001.jpg

Specification:



Model No

GIO-072

GIO-270

GIO-480

GIO-720

GIO-1000

Inner chamber size(mm)W*H*D

450*400*400

600*900*500

800*1000*600

1200*1000*600

1000*1000*1000

Exterior chamber size(mm)W*H*D

900*1050*550

1100*1600*650

1200*1700*840

1750*1750*840

1750*1750*1550

Temperature range

Indoor temperature +10℃~200°C, 300°C, 500°C, 700°C,800°C,900°C,1000°C,

1200°C,Customization is available

Performance

Temperature fluctuation

±3

Temperature Uniformity

±0.1℃ AT 200℃;±1.5%AT300℃

Temperature resolution

0.1℃/1℃

Heating up time

500℃/30min

Material

Exterior chamber material

Stainless steel plate+ Power Coated

Inner chamber material

SUS#304 stainless steel plate

Insulation Material

PU& Fiberglass wool

System

circulation system

Sirocco fan

Heating system

SUS#304 stainless steel high-speed heater

Controller

Touch-screen controller or Omron E5AZ controller+ S.S.R.

Power Supply

AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz

Power(KW)

4

6

8

10

12

15

The technical information will be subjected to change without notice



Features:

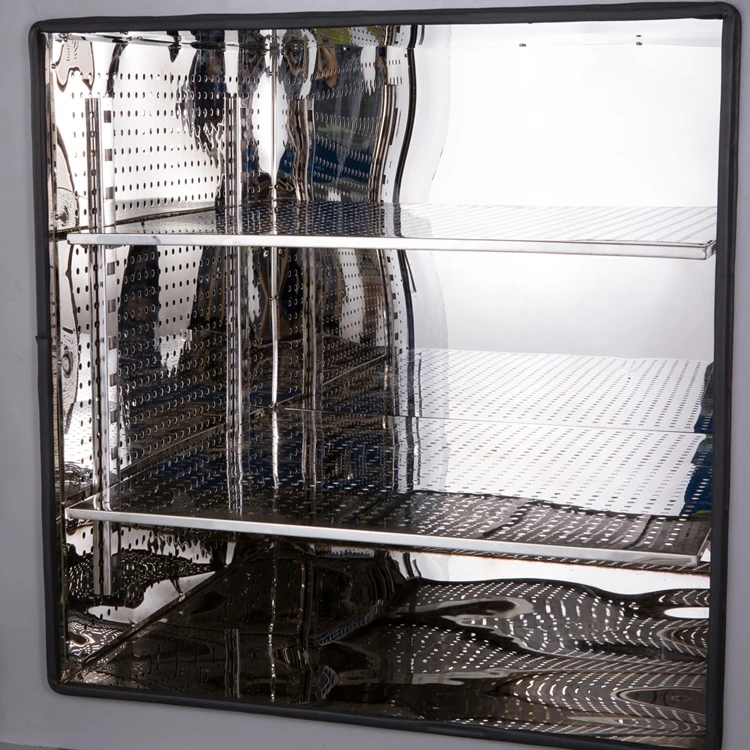

· Stainless steel interior

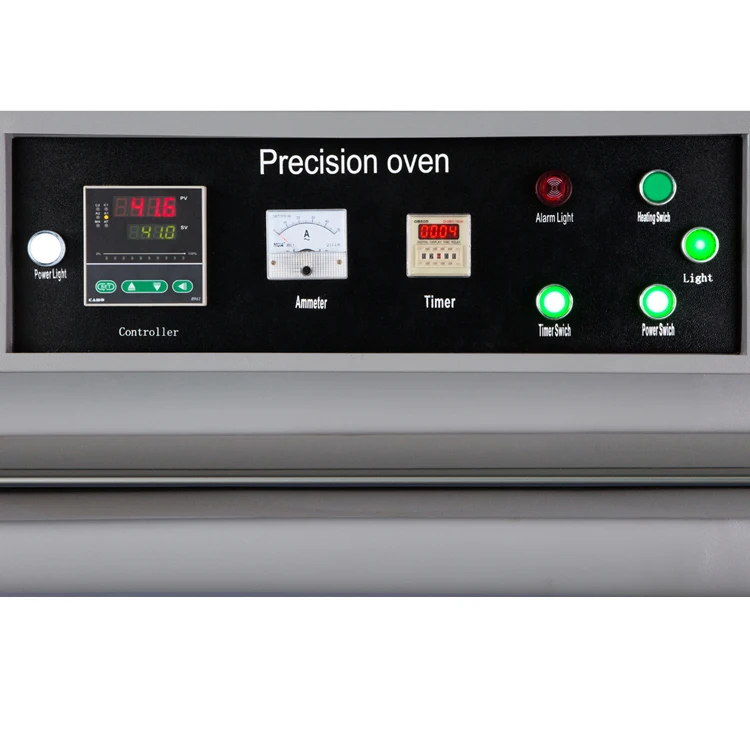

· Exclusive Grande controller with large LED display

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Visual and audible alarm with diagnostic fault code

· Specimen power supply control terminal: turns specimen off if chamber faults

· Four-tiered safety system for overheat conditions

· Two shelves included standard, rated for 40 lbs. or more

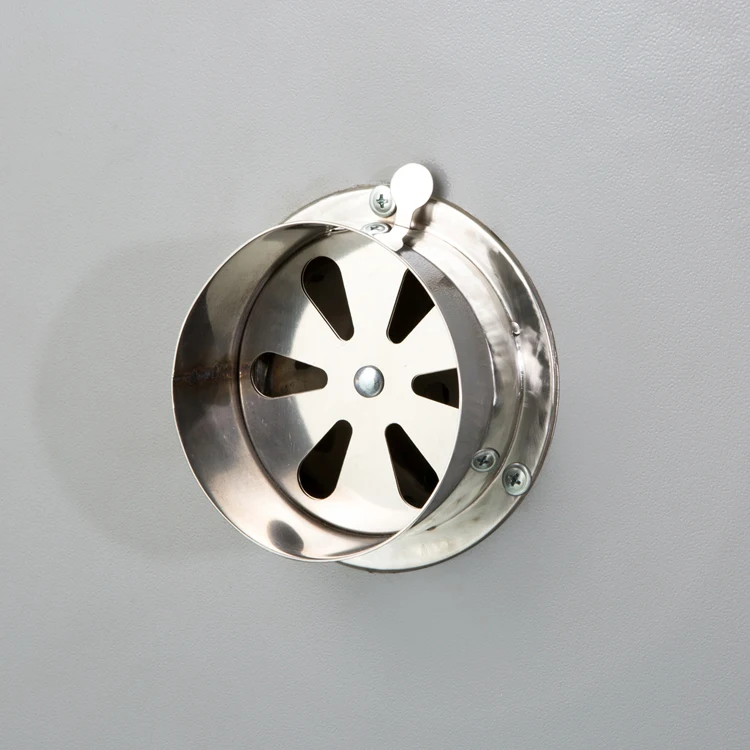

· Exhaust damper for ventilating oven and fast cool-down

· Large variety of models and optional features

See additional model variations available in the right-hand column

Model types:

· Horizontal-type: Controller and blower to the right of the chamber

· Vertical-type: Controller and blower at the top of the chamber (air distributed horizontally from back wall)

Optional accessories

USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.



.jpgDetail 01.jpgDetail 02.jpgDetail 03.jpgDetail 04.jpgDetail 05.jpgDetail 06.jpgDetail 07.jpg
