Яркий 140*100 мм промышленный нагревательный элемент сопротивление 240 в 2000 Вт керамический ленточный
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Bright,Electric,Heating,Appliance,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 19.24 $* | 20.73 $* |
| Aug-17-2025 | 19.91 $* | 20.85 $* |
| Jul-17-2025 | 16.46 $* | 17.14 $* |
| Jun-17-2025 | 19.74 $* | 20.37 $* |
| May-17-2025 | 16.12 $* | 17.64 $* |
| Apr-17-2025 | 18.72 $* | 19.82 $* |
| Mar-17-2025 | 18.49 $* | 19.74 $* |
| Feb-17-2025 | 18.46 $* | 19.57 $* |
| Jan-17-2025 | 18.87 $* | 19.74 $* |
Характеристики

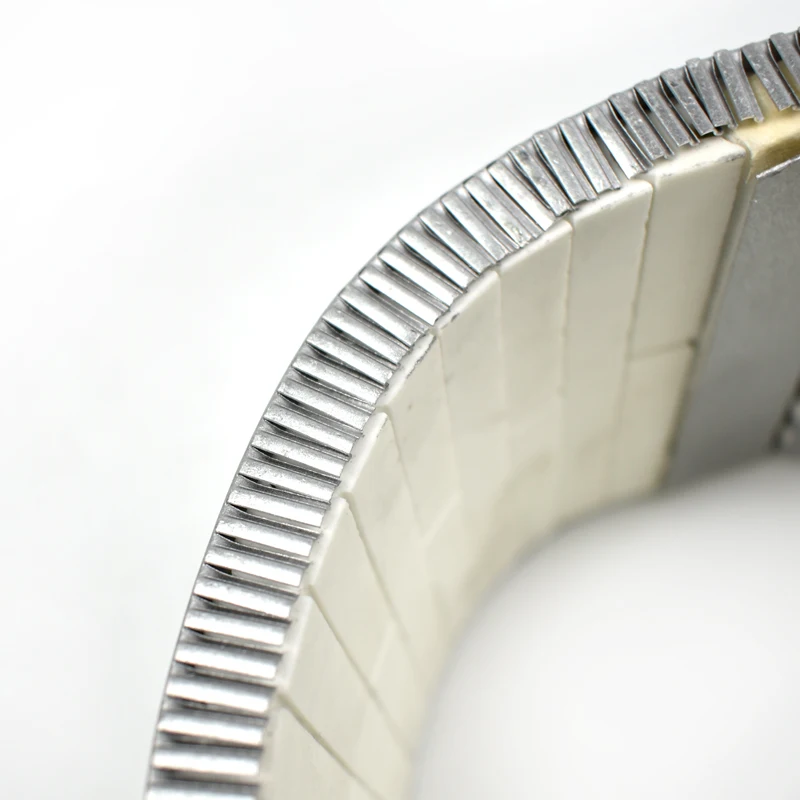

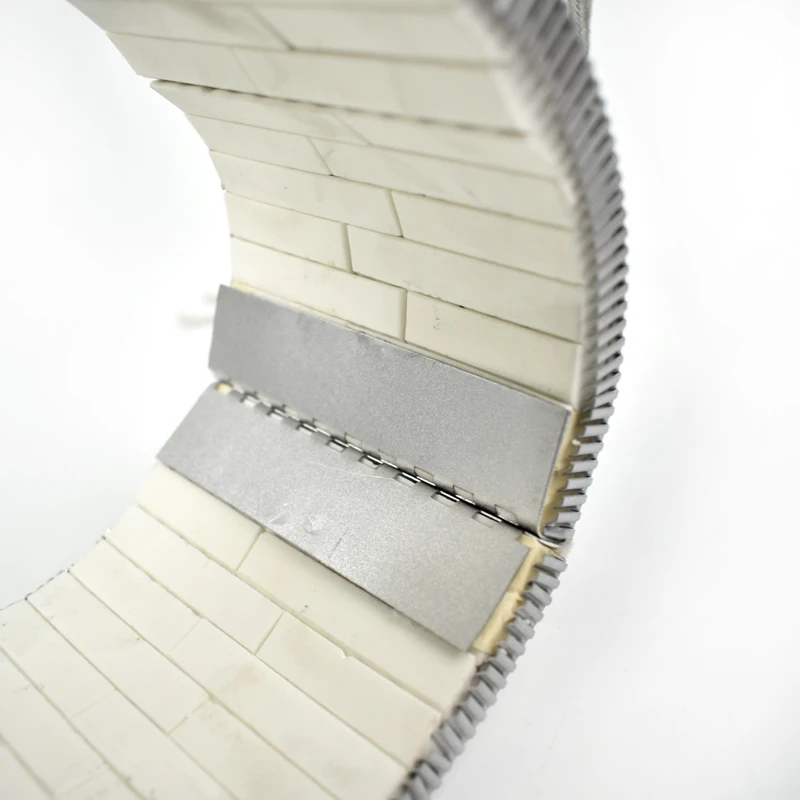

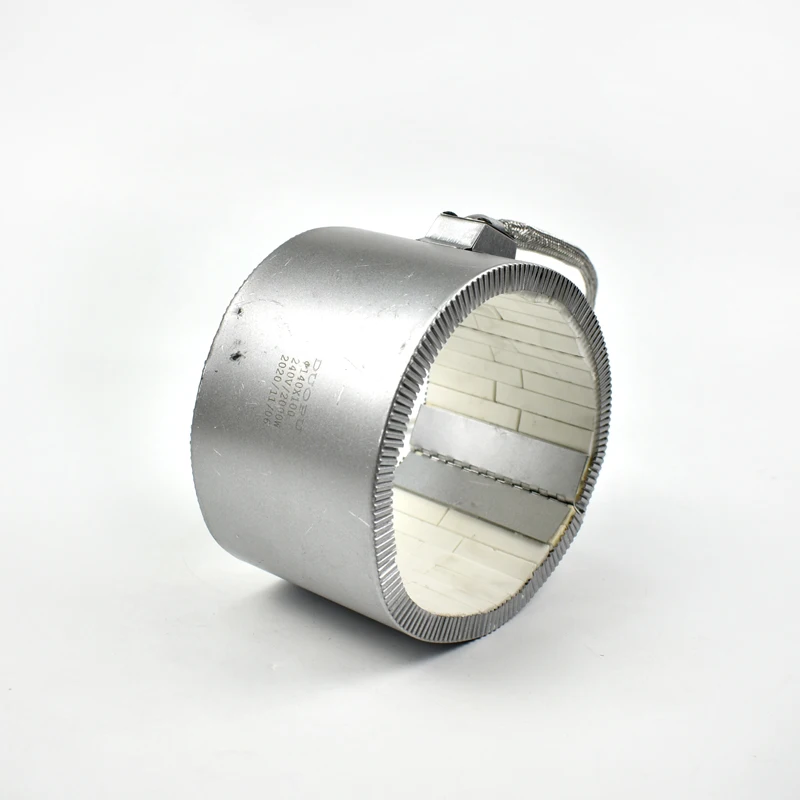

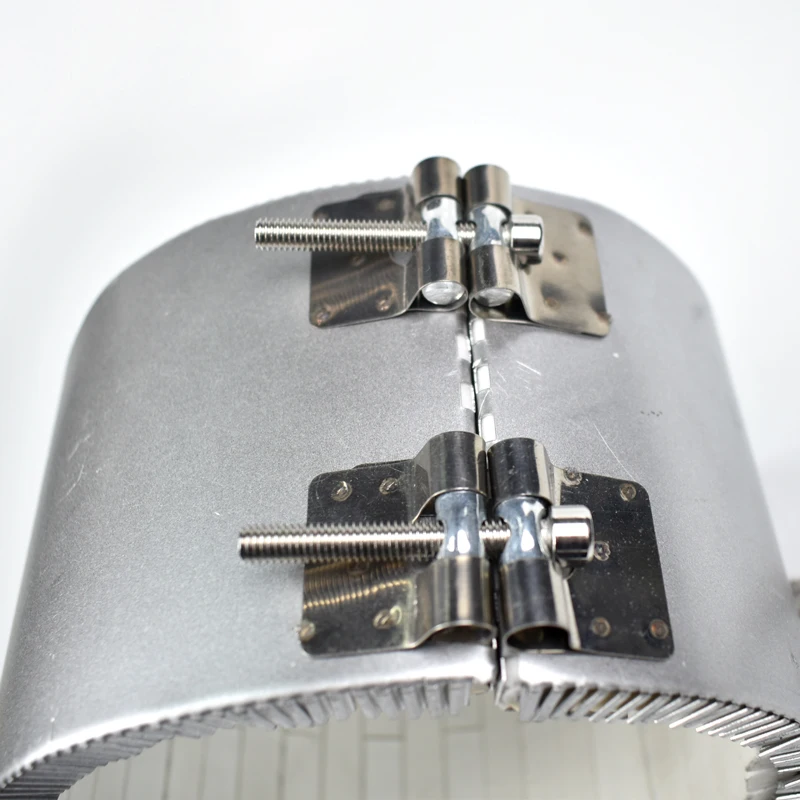

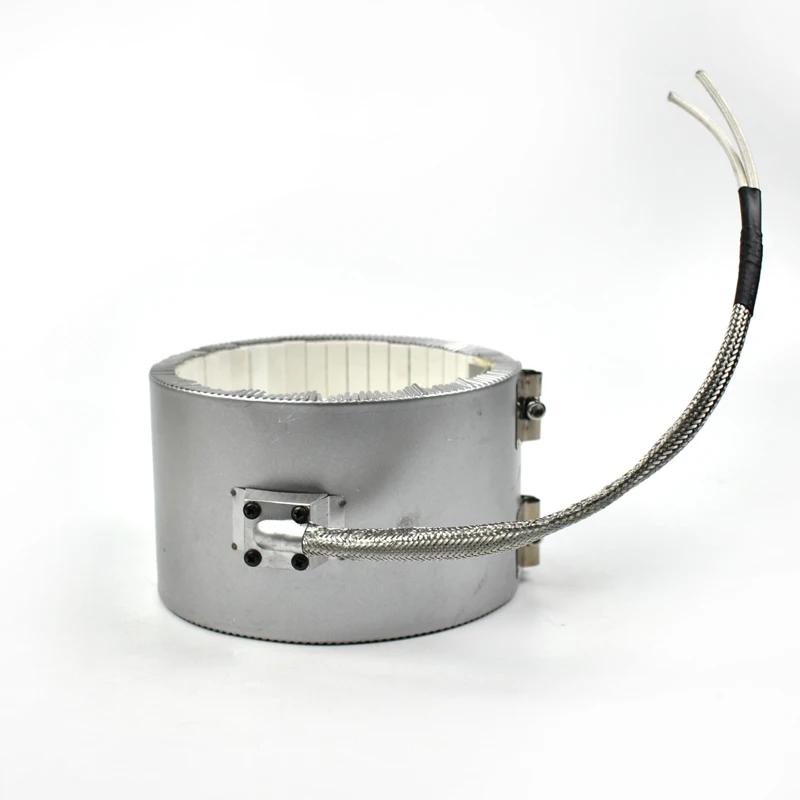

Industrial Ceramic Band Heater
Ceramic Band Heater
Interior diameter:140mm
Height: 100mm
Voltage: 240v
Power: 2000W
Height: 100mm
Voltage: 240v
Power: 2000W
Custom inquiry pls contact us
Products Description
Technical Parameters
Ambient Temperature | -20℃~+80℃ |
Elctrical Strength | Pass voltage 1500V/50HZ sinusoidal withstand test. lasted 1MM no breakdown phenomenon. |
Leakage Current | ＜5MA |
Cold Insulation resistance | ＜5Ω |
Temperature Level | Installed on the machine surface temperature up to 1200℃ without burning phenomenon. |
Input power | Customized, power deviation is +5%-10% |
Custon Options
Sheath Material | Stainless Steel cover for ceramic band heater |

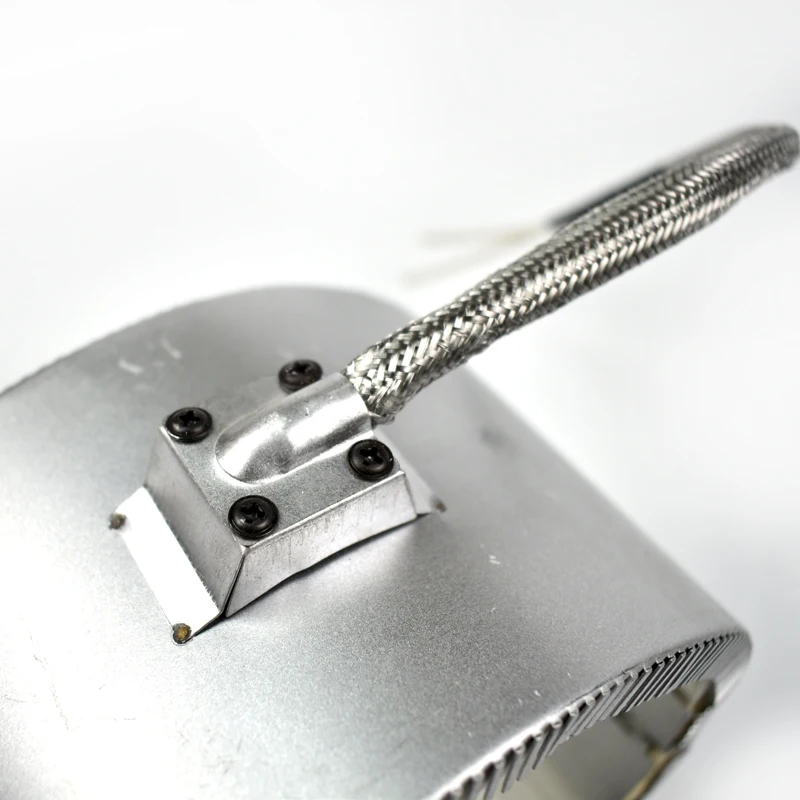

Connection Method | 1.Metal box 2.Screw post terminals 3. High Temperature Plug 4.High temperature cable/ 5.Ceramic block |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Heating Elements (coil) | Cr20Ni80 |
Lead Wire Terminals | 1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Features
1.Lower Operating Cost
2.Safe
3.Operator Comfort
4.Operator Comfort
2.Safe
3.Operator Comfort
4.Operator Comfort
5.Longer Heater Life
6.Higher Operating Temperatures
7.Flexible
8.Dual Heat Transfer
6.Higher Operating Temperatures
7.Flexible
8.Dual Heat Transfer
Applications of Ceramic band heaters
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
Packaging and Delivery
Packaging:
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery:
FCA shipping method. Generally most countries needs about 7-15 working days, detailed shipping time will be according to the address and other force majeure factors.
