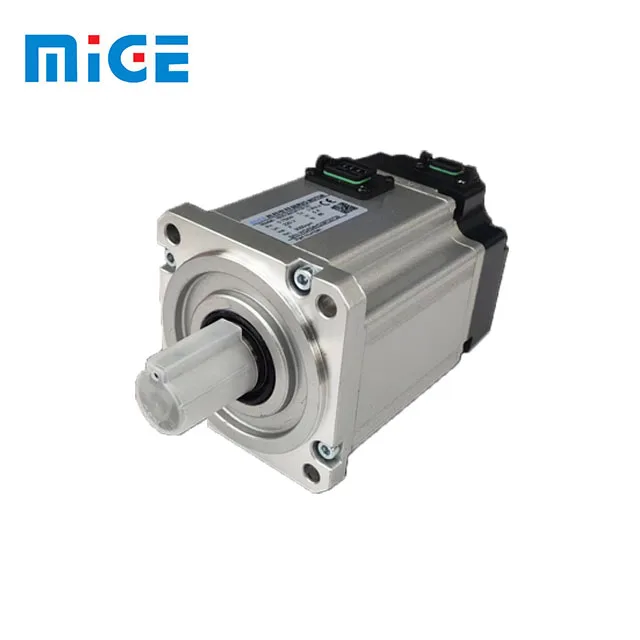

Новый дизайн 60 мм короткий размер 400 Вт 3000 об/мин серводвигатель переменного

Motor Model

60EST-M01330

Rated power   (KW)

0.4

Rated voltage (V)

220

Rated current (A)

3.3

Rated speed (rpm)

3000

Rated torque (N.m)

1.27

Peak torque (N.m)

3.82

Voltage constant (V/1000r/min)

23.1

Torque coefficient (N.m/A)

0.38

Rotor inertia (Kg.m2)

0.34*10-4

Line-line Resistance (Ω)

1.92

Line-line Inductance (mH)

8.5

Electrical time-constant (ms)

4.4

Weight (Kg)

1.5

Encoder line (PPR)

2500 P

Insulation class

Class F

Safety class

IP65

The operating

of Environmental Conditions

Temperature: -20℃ ~ +40 ℃

Humidity: Below 90%RH No dewing

Power connector

Signal

U

V

W

PE

Pin No.

2

3

4

1

Encoder connector

Signal

PE

5V

0V

A

B

Z

A-

B-

Z-

U

V

W

U-

V-

W-

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15
