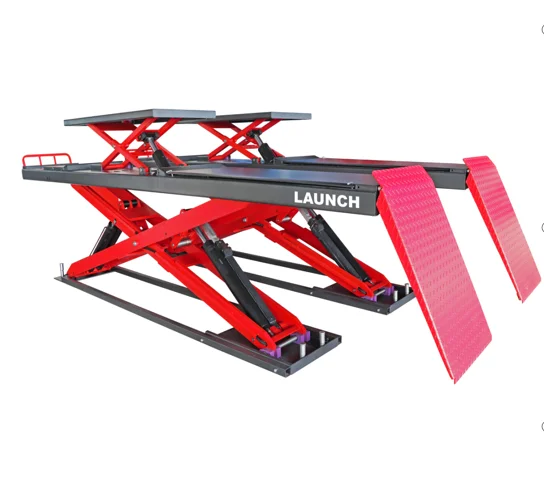

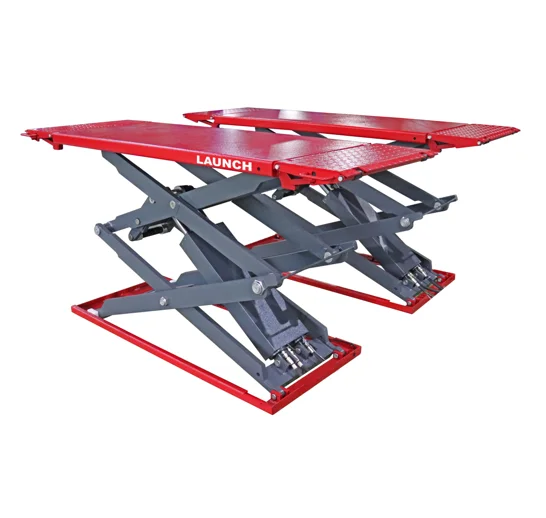

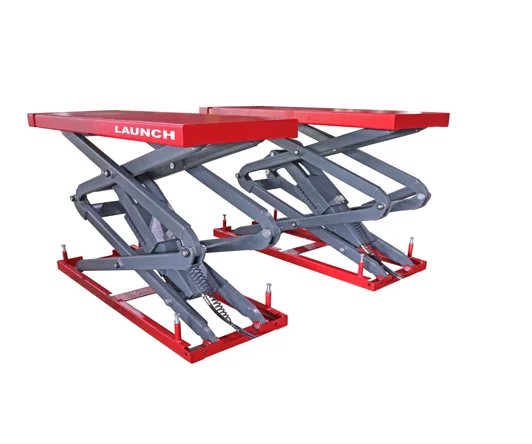

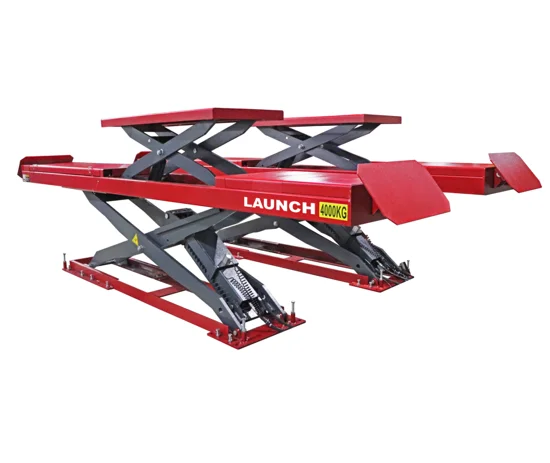

 Name:  LAUNCH For Sale  4 Tons Big  Inground Scissor Car Lift





Introduction-lifting frame part
1. Solid steel plate shear arm
2. 4500 main engine lifting platform
3. Mechanical tooth self-locking safety device
4. Composition of 8-cylinder hydraulic components
5. Base plate components



Machine use
The In ground big scissor hydraulic car lift can lift all kinds of cars with a weight of not more than 4000kg. It is suitable for four-wheel alignment maintenance, repair, tire disassembly and vehicle maintenance of automobile maintenance companies, especially suitable for basements or floors. No need to construct a pit.
Structural features:
-Using a hidden scissor super-book structure, no need to construct a pit, and occupy a small space
-Independent control box, low voltage control, good safety performance
-Hydraulic volume synchronous cylinder, the platform runs synchronously and smoothly
-Double safety device with hydraulic lock and mechanical tooth safety claw, safe and reliable
-With hydraulic failure and overload safety valve protection and anti-pipe explosion device, the machine will not fall quickly when the oil pipe bursts
-Using high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
-Adjustable position of front wheel corner plate and extended side slide plate to adapt to more models.



Electronic control part
1. Control cabinet box
2. Electrical components
3. Motor pump station assembly
4. Line control system



Specification:

Input Voltage: 110V/200V 60Hz or 220V/380V 50Hz
Rated Load: 4000kg
Lifting Height:1900mm
Lifting Time: ≤70s
Lowering Time: ≥20s
Dimension: 4500*2000*520mm
Power: 2.2kw
Weight: 1800kg
Working Noise:≤75dB
Max. Hydraulic Pressure:25MPa
Hydraulic Oil Type:#32 in winter, #46 in summer
