Цена:4 655 882,22 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 5540500.59 $* 5817525.0 $*
Aug-15-2025 5493941.86 $* 5768638.19 $*
Jul-15-2025 4609323.25 $* 4839789.99 $*
Jun-15-2025 5400823.86 $* 5670864.16 $*
May-15-2025 4702441.94 $* 4937563.80 $*
Apr-15-2025 5307705.46 $* 5573090.65 $*
Mar-15-2025 5261147.50 $* 5524204.83 $*
Feb-15-2025 5214588.49 $* 5475317.88 $*
Jan-15-2025 5168029.13 $* 5426430.51 $*

Характеристики

GZL-100 Model Dry Granulator



GZL-100 Model Dry Granulator

Includes:

1.Whole body stainless steel 304

2.Mesh Net

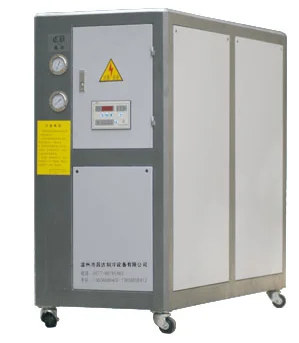

3.Water Chiller

Prepared by the buyer:

Material Barrel

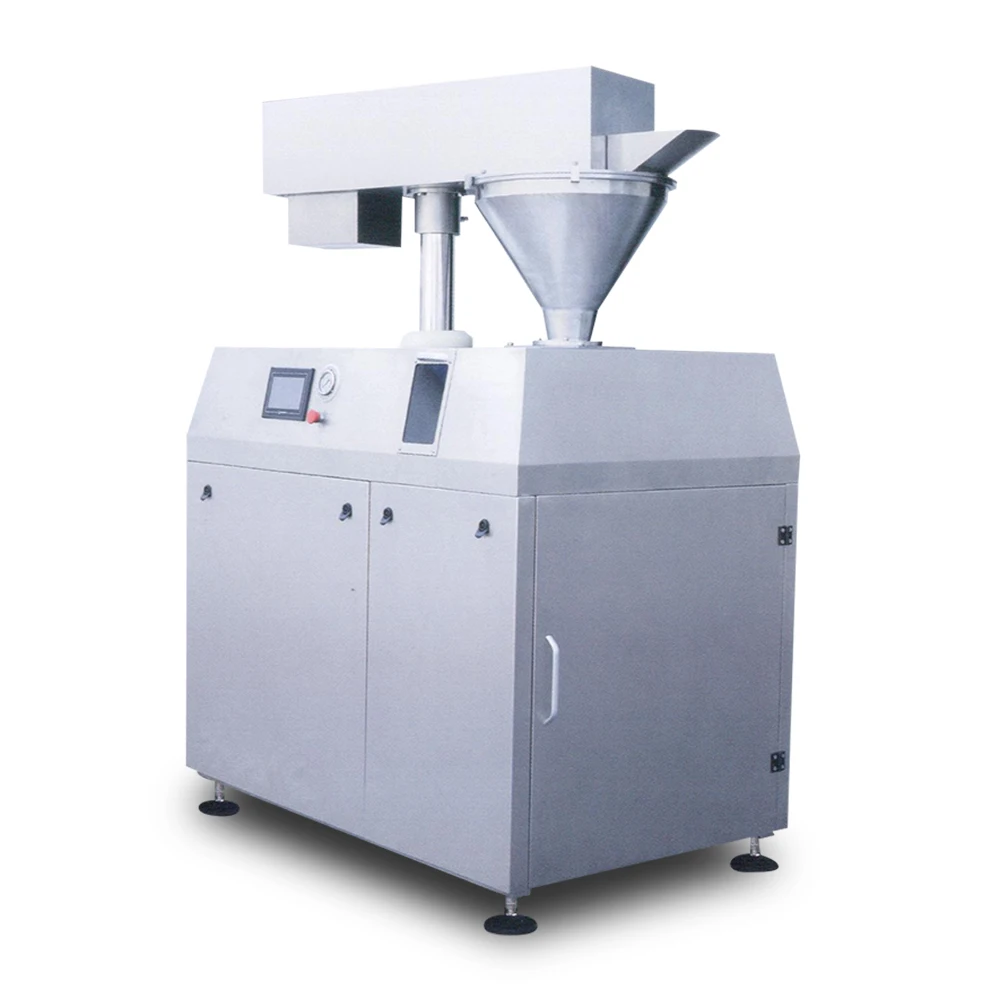

GZL-100 High Efficient Model Dry Powder GranulatorGZL-100 High Efficient Model Dry Powder Granulator



Description:

This machine use the residual water in raw material(water content 0.5~5%) to degas,press, granulate powder material into granules

This machine has reasonable structure, stable performance,easy for cleaning, and finished granules has good fluidity

Granules produced by this machine can be used for making tablet, electuary and filling capsule in pharmaceutical, foodstuff, chemical and other industry. Especially for materials that can‘t be granulated by wet granulating.it also can be used together with spray dryer, mixer and so on.





Main Technical Data:



Model No.

GZL-100

Capacity

30-100kg/h(According to the material features)

Roller size(Diameter*width)

200*90mm

Granule specification

0.4-2mm

Pressure

40-120KN

Screw Feeding Speed

10-40rpm

Roller Speed

7.4-23rpm

Screw Feeding Power

1.5kw

Roller Power

4kw

Granulation Power

0.75kw

Weight

1250KG

Dimension

1400×1000×2080mm







Electronic Parts:

Item

Name

Quantity

Brand

01

Inverter

1

Delta

02

Inverter

1

Delta

03

Touch Screen

1

Wenview

04

PLC

1

Siemens

05

Speed module

1

Siemens

06

Circuit breaker

1

CHNT

07

Single-pole circuit breaker

1

CHNT

08

Switch power

1

Delta

09

Relay

3

CHNT

10

Emergency switch

1

CHNT

11

Material feeding motor

1

Shanghai

12

Pressing motor

1

Shanghai

13

Hydraulic motor

1

Shanghai

14

Hydraulic gauge

1

Zhejiang

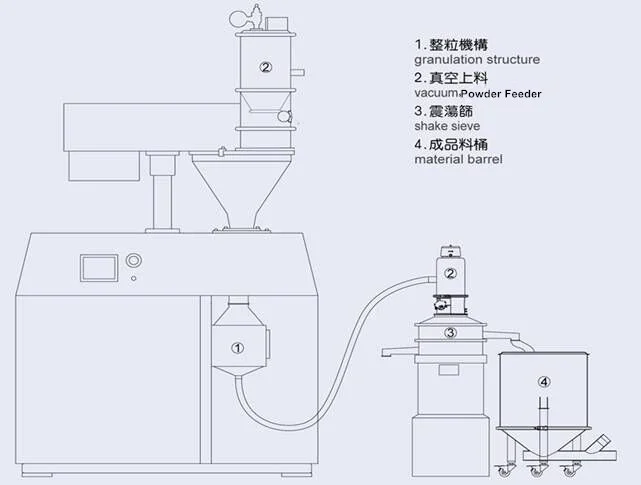

Production flow chart:



 GZL-100 High Efficient Model Dry Powder Granulator





Our Service:



Installation andafter sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.



Warranty Period:

There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.



AfterSalesService:

1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24 hours hot line for technical support.

3. We get 18 hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.
