Коаксиальный Переходник постоянного тока 50 ГГц 40 4 3-10 «мама» в адаптер 3-1

Коаксиальный Переходник постоянного тока 50 ГГц 40 4 3-10 «мама» в адаптер 3-1

Категория: Connector Accessories >>>
Поставщик: Shenzhen,ZD,Tech,Co.,Ltd.

Цена:3,50 $ - 4,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	4.9 $*	4.85 $*
Jul-19-2025	3.1 $*	3.22 $*
Jun-19-2025	4.87 $*	4.97 $*
May-19-2025	4.11 $*	4.36 $*
Apr-19-2025	3.80 $*	3.68 $*
Mar-19-2025	4.56 $*	4.46 $*
Feb-19-2025	4.43 $*	4.54 $*
Jan-19-2025	4.23 $*	4.29 $*

Характеристики

Communication Dc Female Connector 50ghz 40ghz Coaxial 4.3-10 female To 4.3-1.0 Adapter

Rf coaxial Mini Din 4.3-10 Female to Mini Din 4.3-10 female connector Adaptor

	TECHNICAL SPECIFICATION		ZD
	4310F-4310F-01		Rev:A/0
1.Figure
2.Product Description

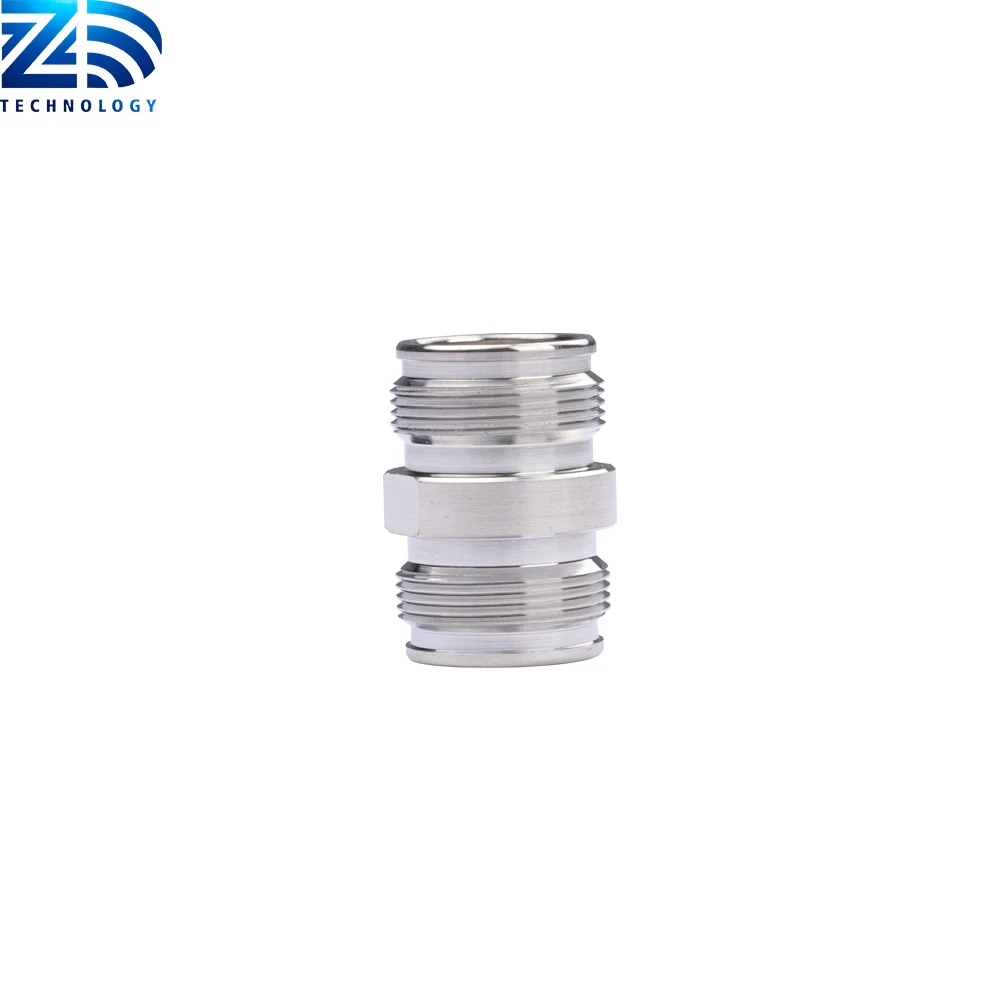

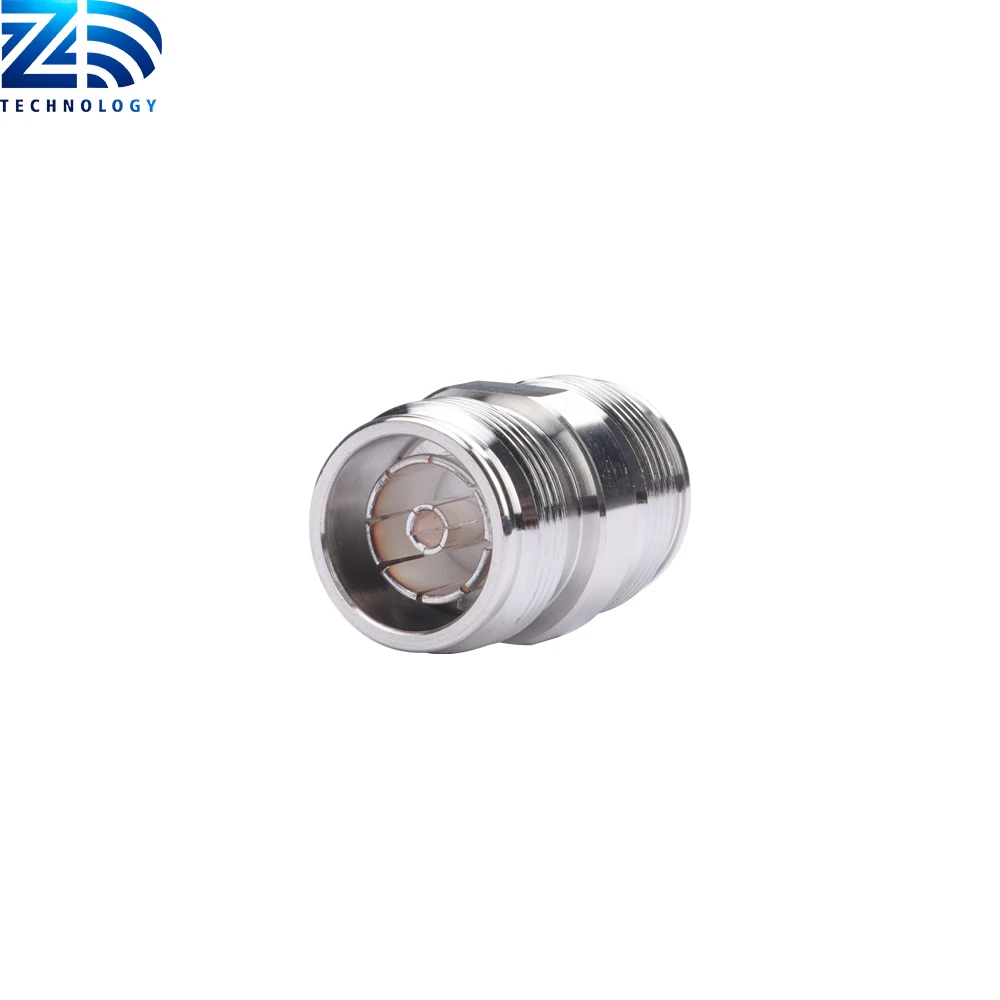

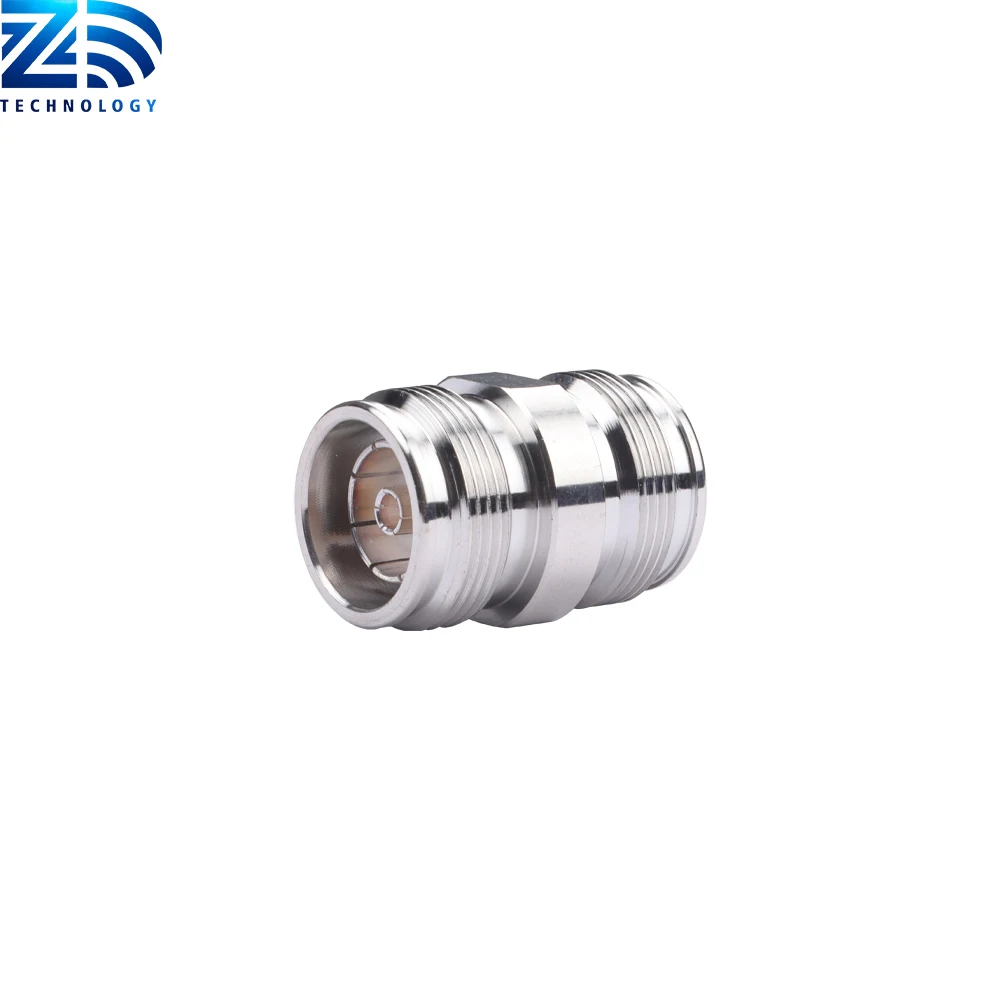

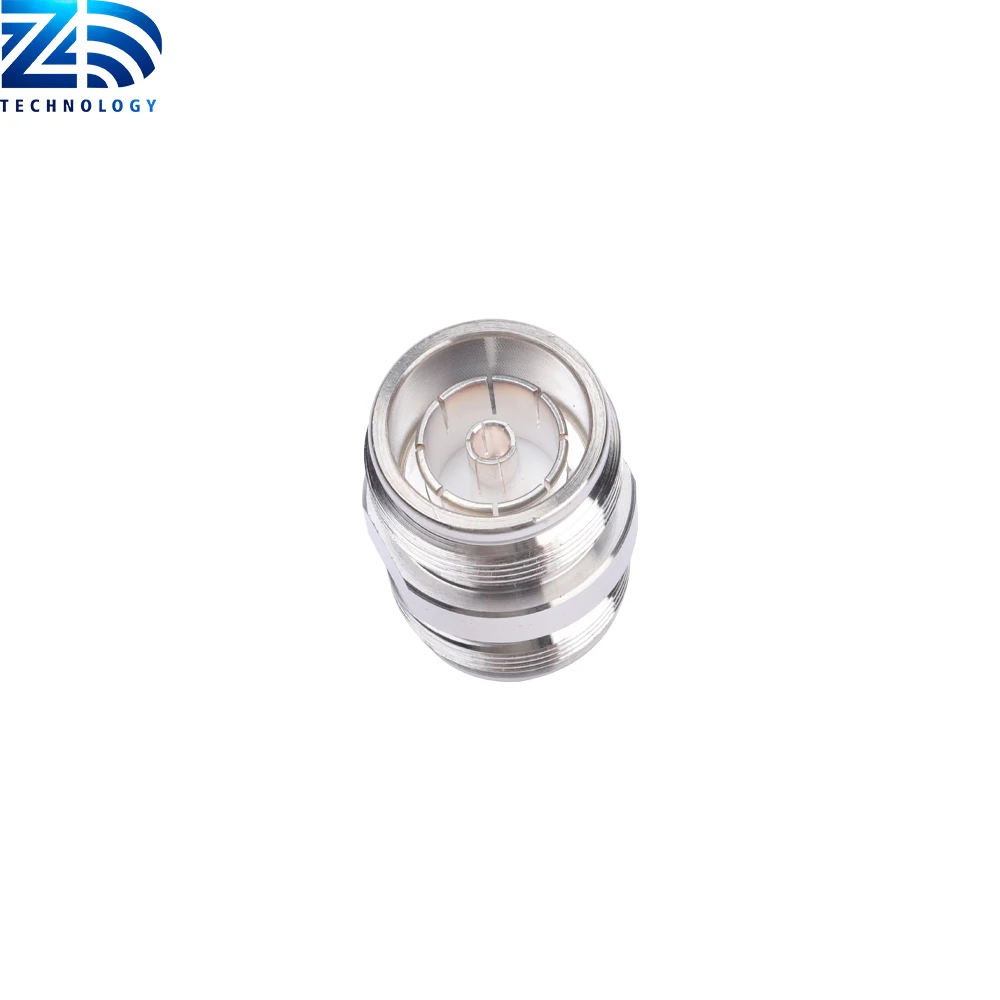

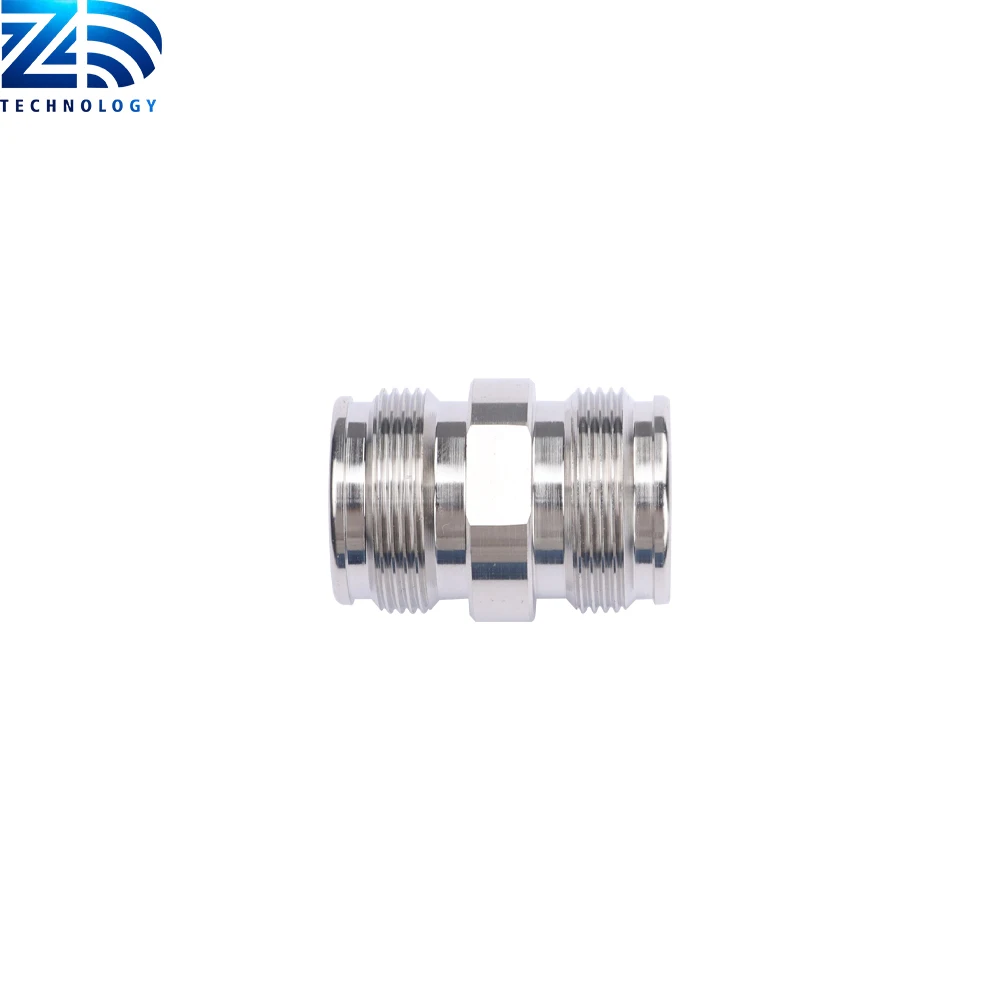

4310F-4310F 4.3-10 straight female to 4.3-10 straight FEmale adapter
3. Material and Plating
Center contact		Tin-bronze/ Silver Plated
Outer contact		Tin-bronze/ Silver Plated
Body		Brass/ Silver Plated
Dielectric		PTFE
Gasket		Silicon Rubber
Nut		Brass/ Nickel Plated
4. Electrical Characteristics
Characteristics Impedance		50 Ohm
Frequency Range		DC,6GHz
Insulation Resistance		≥10000 MΩ
Contact resistance		4.3-10 type		Mini Din type
Center contact		5 MΩ		≤0.4MΩ
Outer contact		≤1.O MΩ		≤0.2MΩ
Dielectric Strength		2500V rms
Working voltage		1400V rms
Insertion Loss		≤0.10dB@DC'3GHz
VSWR		≤1.10@DC'3.0GHz
PIM(2x43dBm)		≤-160dBc
5. EnviroNFental and Mechanical Specifications
Durability (matings)		≥500 cycles
Thermal Shock Test Method		MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method		MIL-STD-202, Meth. 204, Cond. B
Temperature Range		-65~+165℃
RoHS		Compliant

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.
