we are manufacturer and we have full range production line for LDPE Foam extruding, embossing skin,  covering tube,  assembling copper tube into PE foam insulation tube.

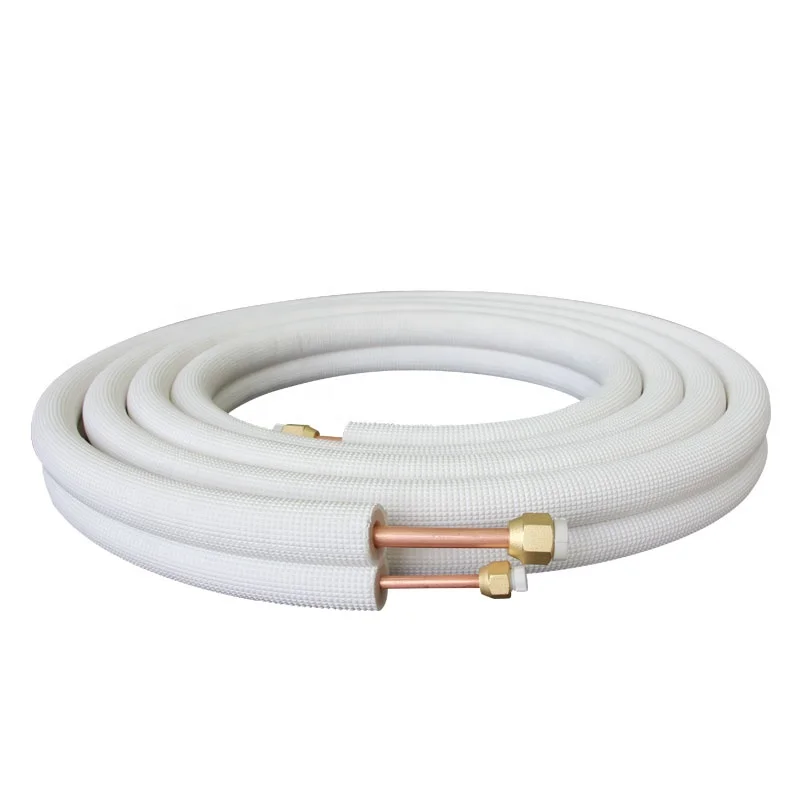

Air Conditioning parts 1/4 1/2 Insulated copper tube for air conditioner



 Insulated copper tube

 used for connecting the indoor and outdoor of air conditioners,  it is made of higher quality copper tube, Insulation tube and brass nuts, the length and wall thickness can follow client's specifications.

No.	Type of Air conditioners	Copper tube size	Size of Insulation tube	3M Length 3M	4M Length 4M	5M Length 5M	1M~30M Length 1-30M
1	1 HP	∅6.35+∅ 9.52	∅9+∅12	1HP×3M	1HP×4M	1HP×5M	1HP×1M~30M
2	1.5 HP	∅6.35+∅12.7	∅9+∅15	1.5HP×3M	1.5HP×5M	1.5HP×5M	1.5HP×1M~30M
3	3 HP	∅9.52+∅15.88	∅12+∅19	3HP×3M	3HP×4M	3HP×5M	3HP×1M~30M
4	4 HP	∅9.52+∅19.05	∅12+∅22	4HP×3M	4HP×4M	4HP×5M	4HP×1M~30M
5	5 HP	∅12.7+∅19.05	∅15+∅22	5HP×3M	5HP×4M	5HP×5M	5HP×1M~30M

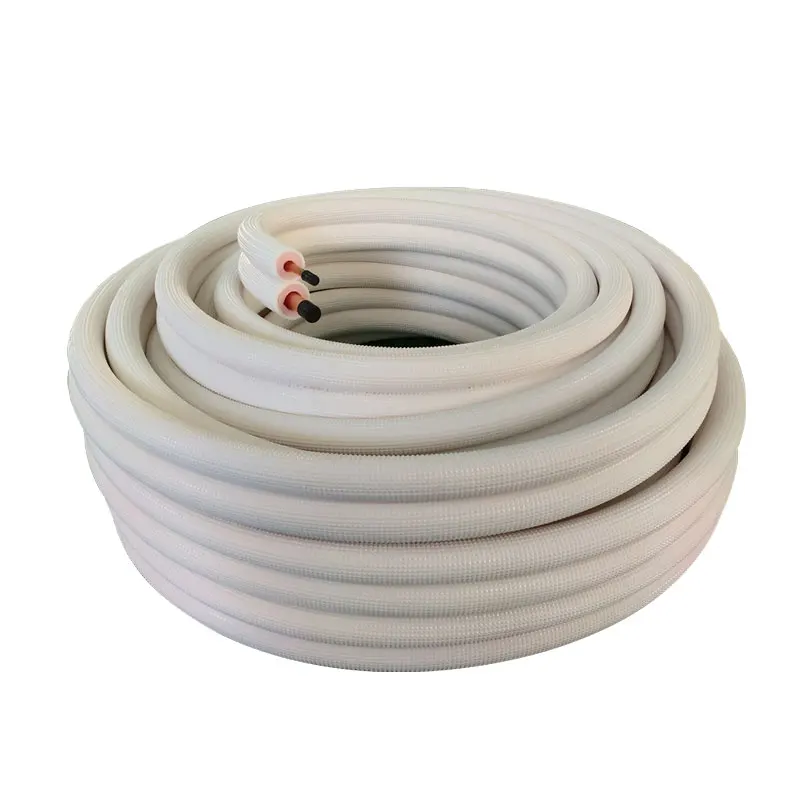

   In accordance with the market demand, we especially developed 30m length conecting tube (copper tube fixed with 2 layers embossed PE insulation sleeve tube), the connecting  tube has identification  marks for every 1 meter length, and can be easily cut to certain length as 3m, 5m, 6m, 10m, 15m, 20m, 30m according to the project needs, so, it is easy to use, high efficiency, less waste and widely used in air conditioning system for large-scale shopping malls and factories.
Connecting tube for air-condition  (with twin layers insulation Tube)



With years of research and development, we use the new welding technology to produce copper-aluminum connecting pipe, it's also suitable for air conditioning and refrigeration equipment pipe system.
