Гибкие соединения DDM Brand HVAC гибкий соединитель для труб из ПВХ роликогибочная машина с изоляционным
- Категория: Станок для резки канавок >>>
- Поставщик: DDM,(Shanghai),Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.71 $* | 0.7 $* |
| Aug-17-2025 | 0.52 $* | 0.50 $* |
| Jul-17-2025 | 0.86 $* | 0.43 $* |
| Jun-17-2025 | 0.64 $* | 0.25 $* |
| May-17-2025 | 0.36 $* | 0.89 $* |
| Apr-17-2025 | 0.14 $* | 0.90 $* |
| Mar-17-2025 | 0.2 $* | 0.80 $* |
| Feb-17-2025 | 0.40 $* | 0.19 $* |
| Jan-17-2025 | 0.43 $* | 0.85 $* |
Характеристики
Product Overview
DDM Brand HVAC flexible Joints Pvc flexible duct connector roll forming machine
Machine Features
AutoFlexible Duct Connector Roll Forming Line - it is composed of two decoiler,roll forming machine,Poly feeding system andAutomatic Recoiler.
The two lines for making the duct connector, Line A is for punching the hole, Line B is for connection the
cloth and the steel strip The machine use for make Canvas duct connector, Polyester Duct Connector, Fibreglass Duct Connector,flexible Duct Connector
cloth and the steel strip The machine use for make Canvas duct connector, Polyester Duct Connector, Fibreglass Duct Connector,flexible Duct Connector

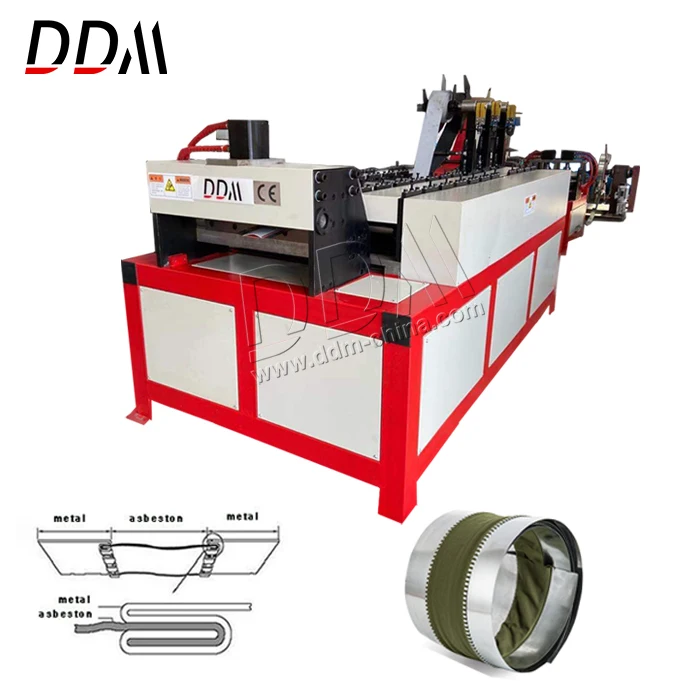

The over view of Auto Flexible Duct Connector Roll Forming Line

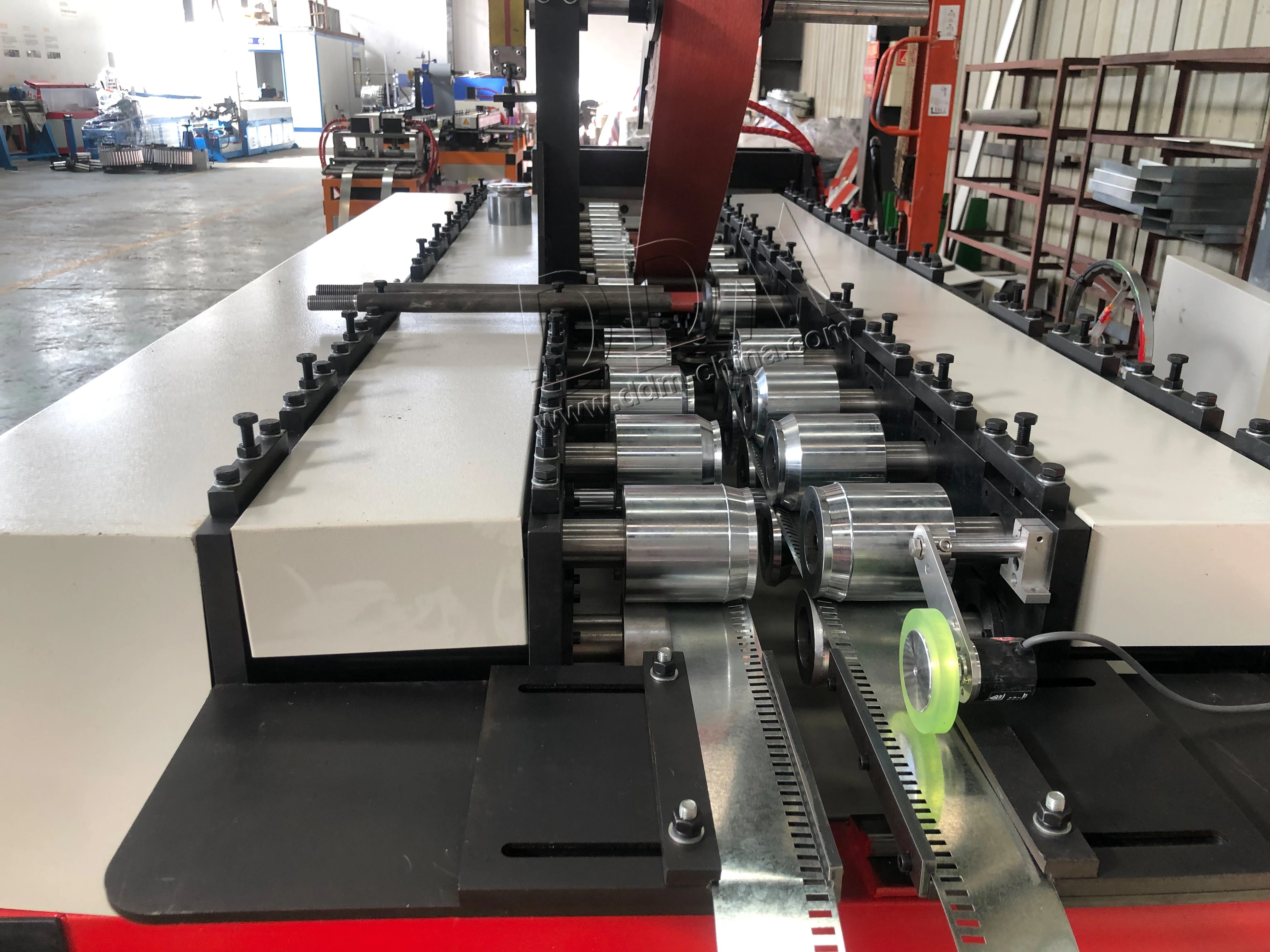

High quality ball bearing steel roller for Auto Flexible Duct Connector Roll Forming Line

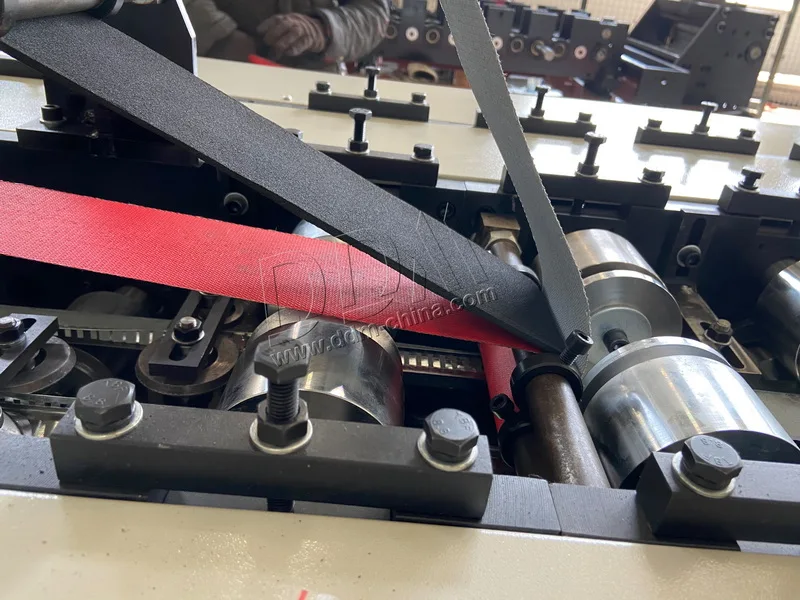

Special design for flexible duct connector with fibreglass insulation layer
Hydraulic punching system to make sure machine with fast speed and accuracy
imported electrical parts for our Auto Flexible Duct Connector Roll Forming Line
Perfect punching iron sheet made by Auto Flexible Duct Connector Roll Forming Line
The simple and easy operational controller box for our flexible duct connector
Machine Parameters
Item | Specification |
Model | DDM-500 |
Suitable Material | Stainless steel, Galvanized steel , Fireproof fabric. |
Motor power | 7.5+3+0.75 KW |
Forming speed | 1-10m/Min |
Max width (final products） | 140- 540mm |
Metal Sheet thickness | 0.4-0.8mm |
Shaft material | Cr12 steel, quench HRC58-62, Chrome plate |
Weight | 2500Kg |
Diemension | 3500 x 1200 x 1500mm |
Roller station | 12 Stations |
Packing & Delivery
Customer Photos
Company Profile
