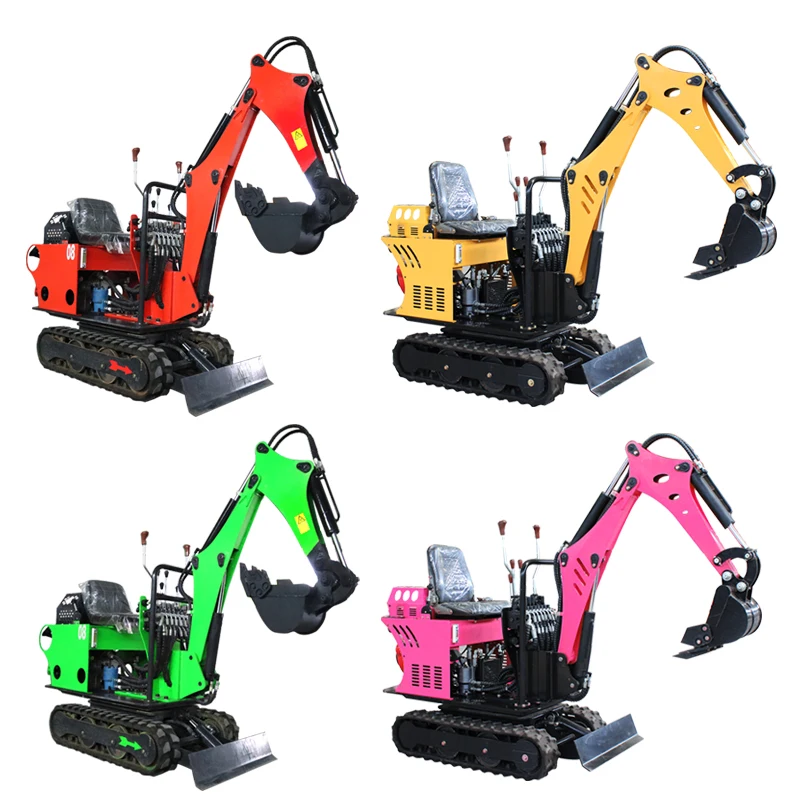

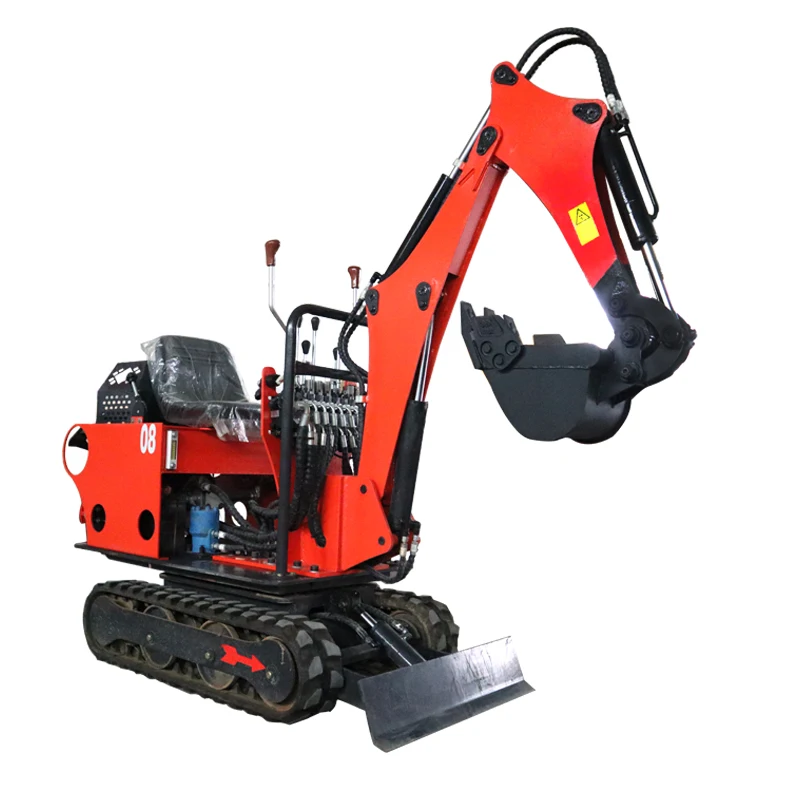

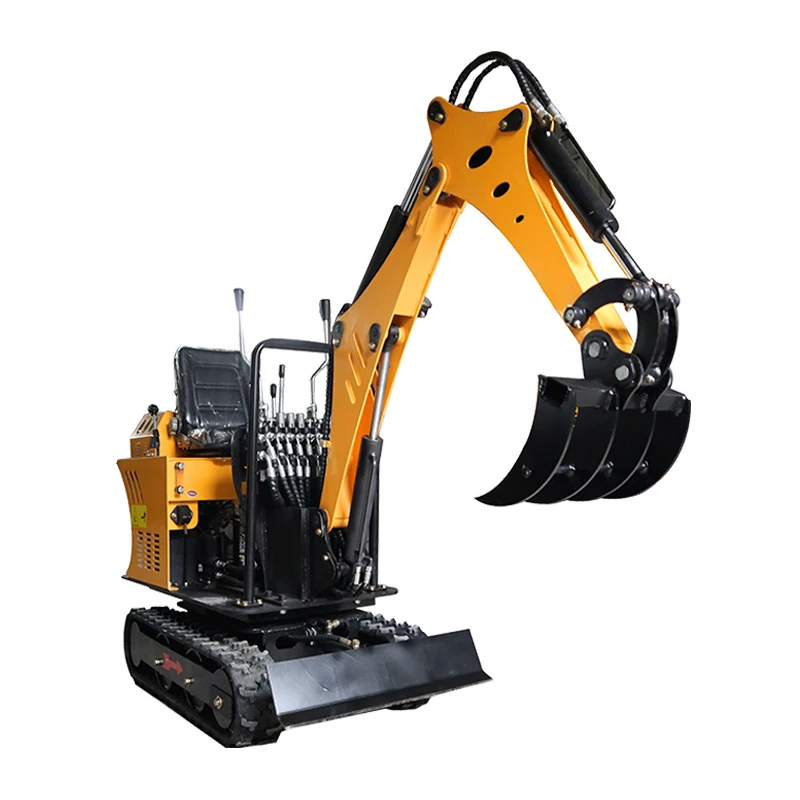

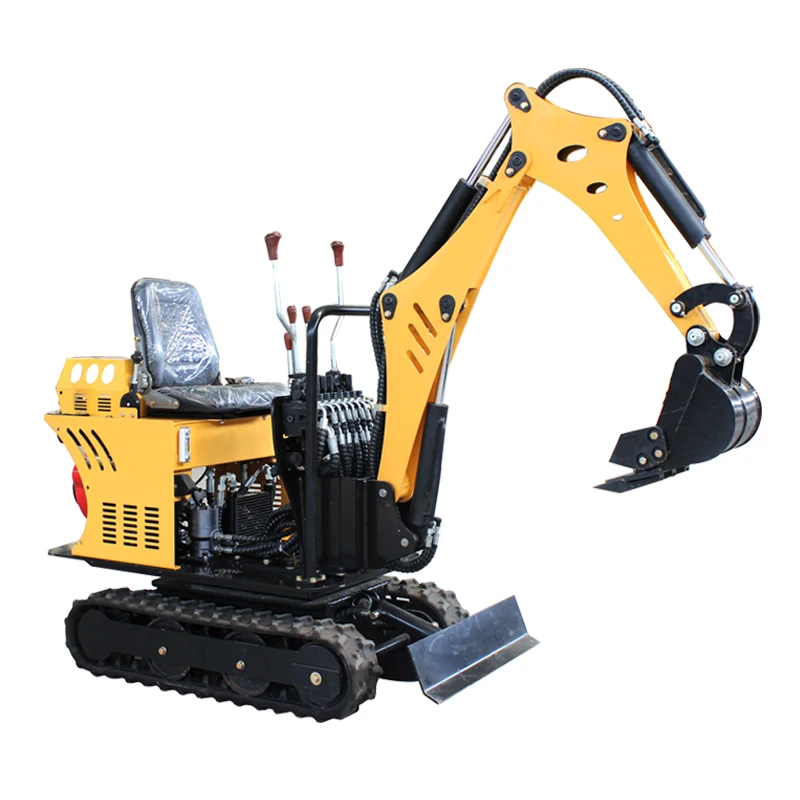

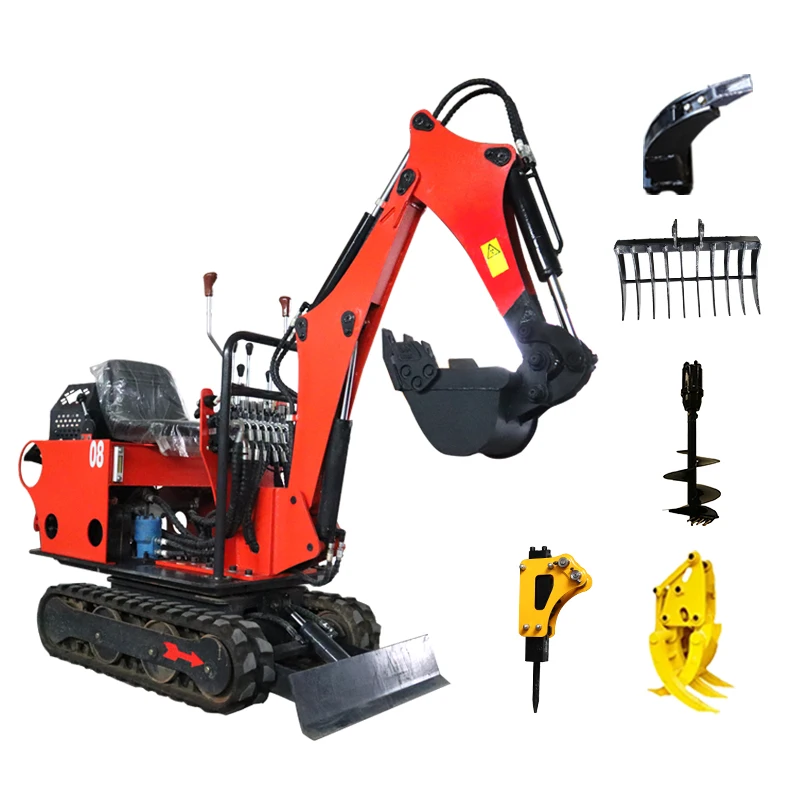

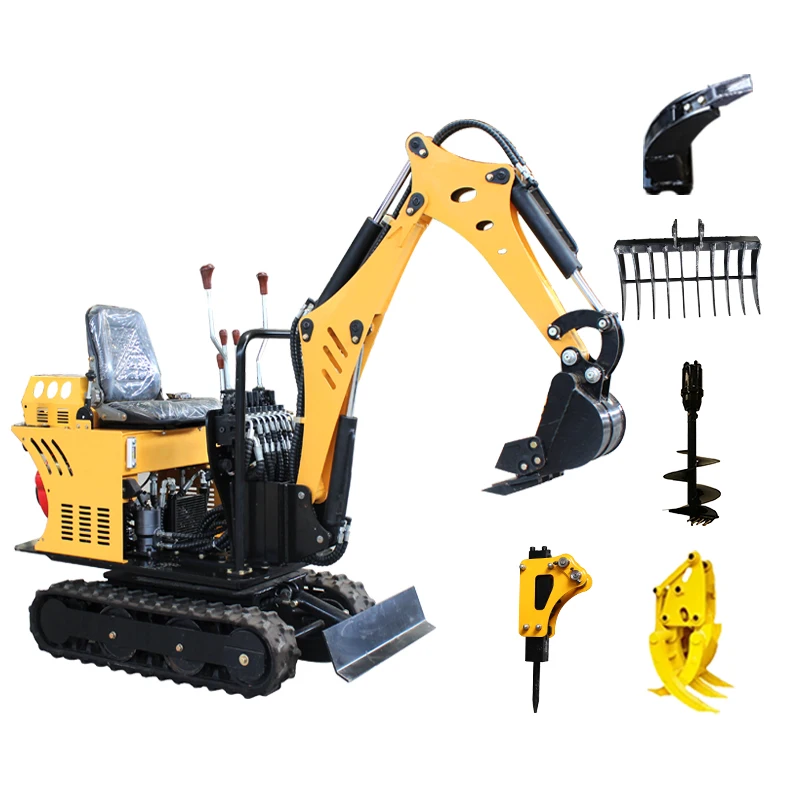

 YCW Series 0.6-3.5Ton Hydraulic Excavator Mini Excavator

High Quality 0.8ton 800kgs Small Mini Excavator Small Hydraulic Excavator  For Sale

Why Choose Us

EACHAN FACTORY OFFER YOU:

1.Factory Direct Price.

2.Nice Quality.

3.Quick Shipping Within 5days.

4.MOQ.1set OK,Small Order Welcome.

5.Online Payment.

6.OEM Supported.

7.24Hours After-sales Service.6.12Months Warranty.



Product Description

Model	YCW-08	YCW-10	YCW-13	YCW-15
Operating Weight	800 kg	1,000 kg	1,300 kg	1,500 kg
Rated Power	8.6 kw (11.7 hp)	7.5 kw (10.2 hp)	14.1 kw (19.2 hp)	14.1 kw (19.2 hp)
Engine	Koop 1-Cylinder	Changchai 1-Cylinder	Koop 2-Cylinder	Koop 2-Cylinder
Bucket Capacity	0.02 m³	0.025 m³	0.025 m³	0.035 m³
Max. Digging Depth	1200 mm	1400 mm	1400 mm	1600 mm

Model	YCW-17	YCW-18	YCW-18	YCW-20
Operating Weight	1,700 kg	1,800 kg	1,800 kg	2,000 kg
Rated Power	10 kw (13.6 hp)	22 kw (30 hp)	10 kw (13.6 hp)	18.1 kw (24.6 hp)
Engine	Laidong 3-Cylinder	Laidong 3-Cylinder	Yanmar 3-Cylinder	Laidong 3-Cylinder
Bucket Capacity	0.045m³	0.1 m³	0.045 m³	0.06 m³
Max. Digging Depth	2150 mm	1800 mm	2150 mm	2050 mm

Model	YCW-20	YCW-25	YCW-30	YCW-35
Operating Weight	2,000 kg	2,500 kg	3,000 kg	3,500 kg
Rated Power	10 kw (13.6 hp)	22.1 kw (30 hp)	22 kw (30 hp)	34 kw (46 hp)
Engine	Changchai 3-Cylinder	Changchai 3-Cylinder	Changchai 3-Cylinder	Changchai 4-Cylinder
Bucket Capacity	0.06 m³	0.06 m³	0.1 m³	0.26 m³
Max. Digging Depth	2250 mm	2500 mm	2500 mm	2545 mm

Product Features

 1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
