Горячая Распродажа 1500x3000 мм станок для резки металла с ЧПУ плазменный

Application:

Carbon steel, stainless steel, aluminum,copper, other non-ferrous metals.

Cutting Sample:

Features:

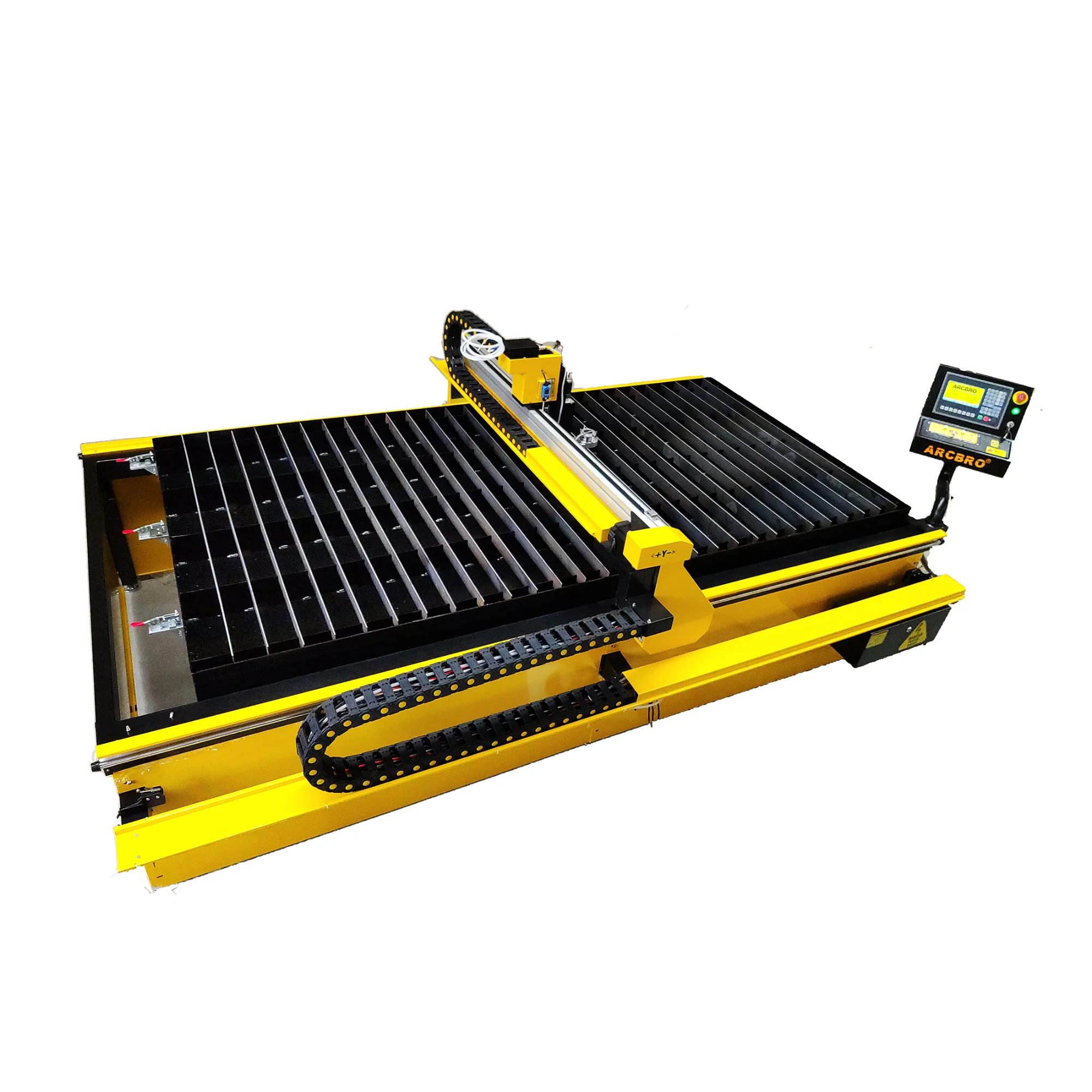

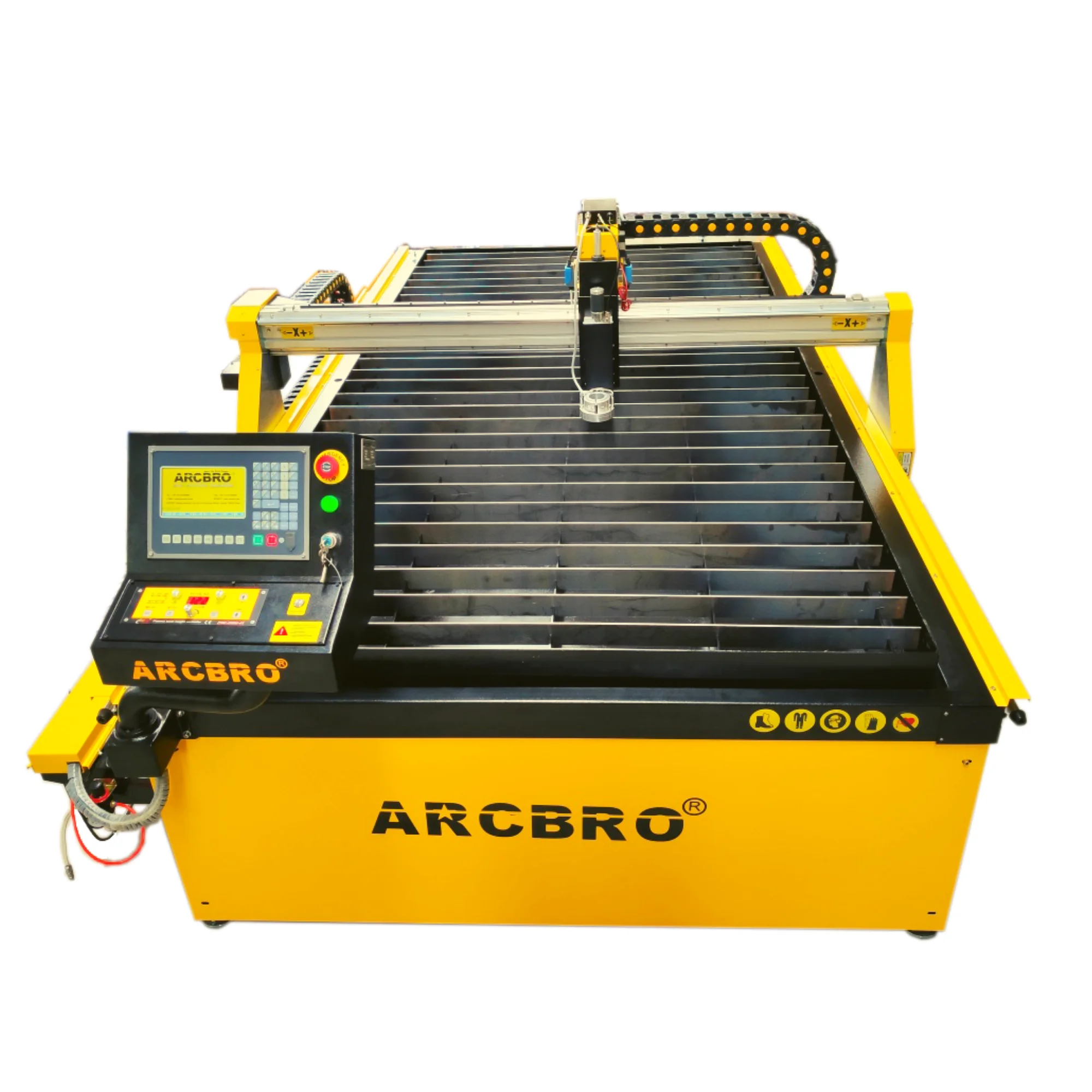

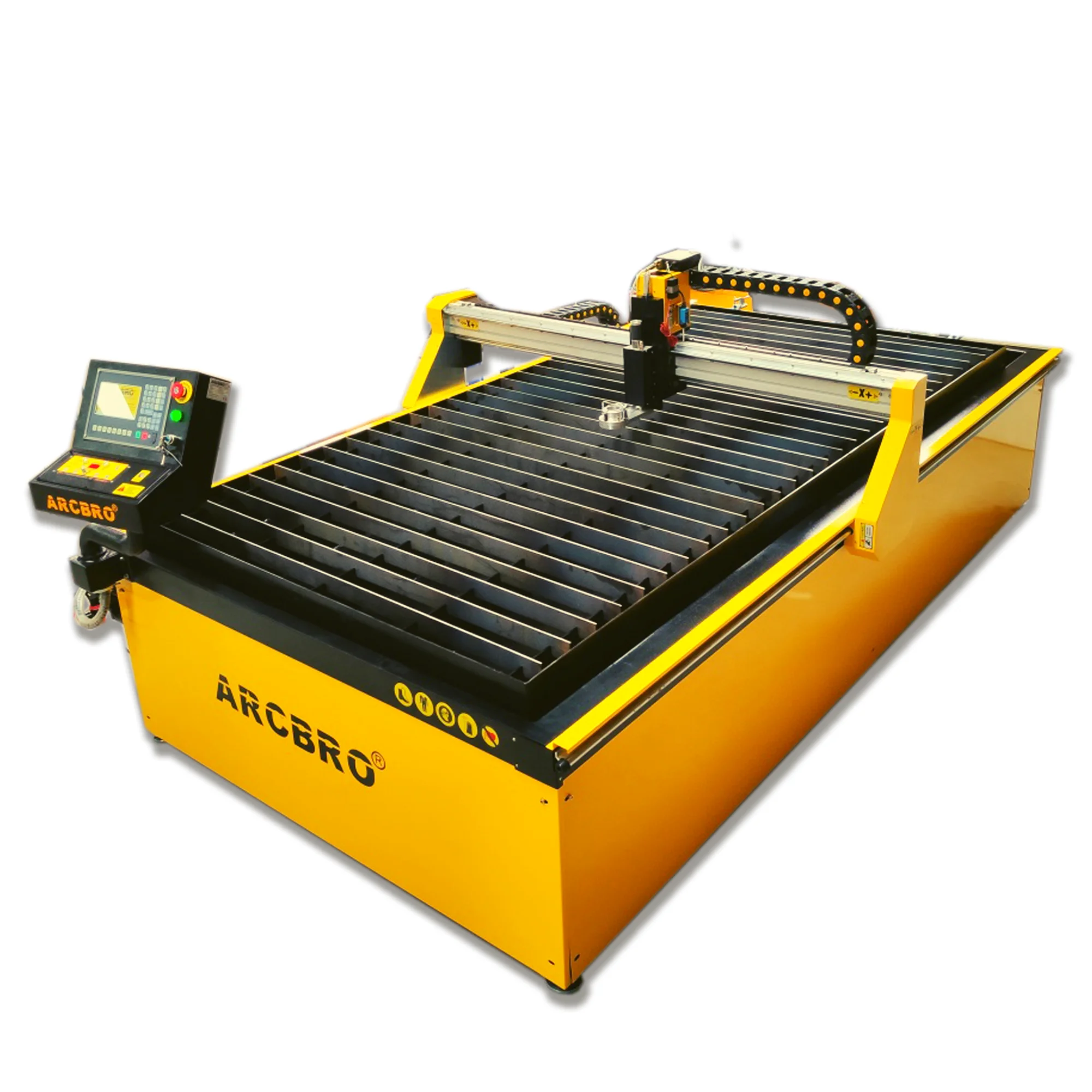

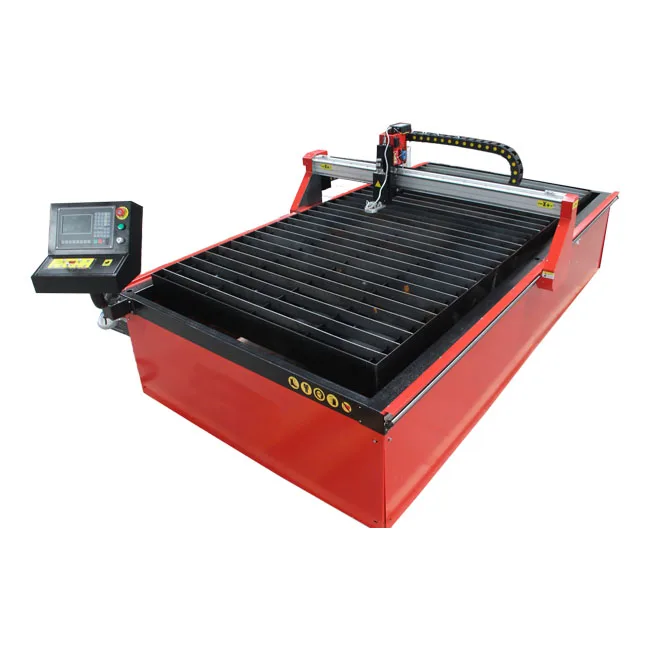

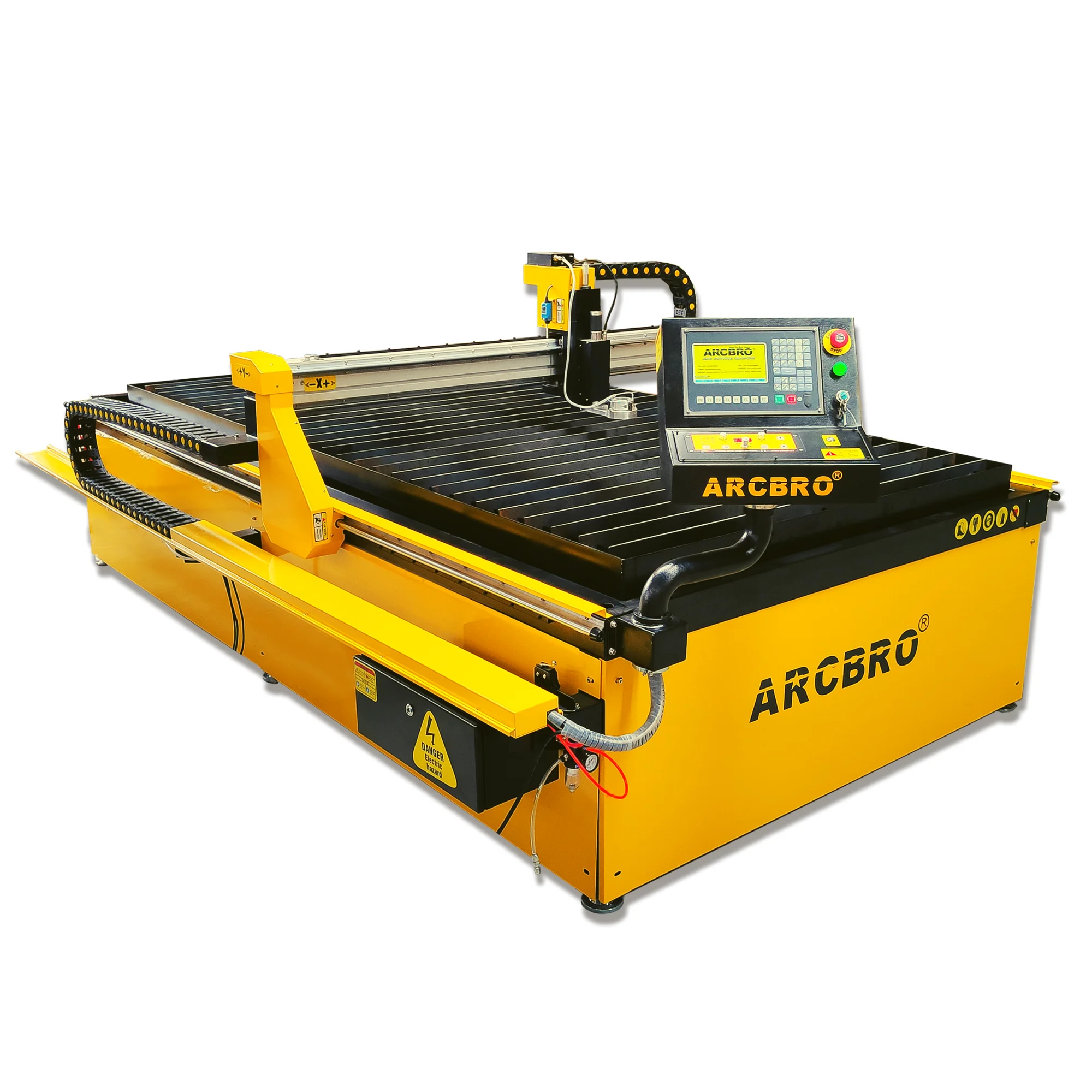

Stinger 1313/1530 are ARCBRO new Style table CNC cutting machines, they are special for much high performance with the air plasma power source. they can support 0.5mm to 30mm plate cutting with plasma mode, 30-200mm with flame mode, because the THC is duo model mix (air pressure+arc voltage sensor), the Stinger can do the thin and thick plate both.

1, Advancing and stable design driven by customer satisfaction

-Arcbro's patented belt drive design, effective vibration absorption during motion.
-V-wheel and flat wheel combined to avoid over-constrained.

-light structural design,with good rigidity structure, light deadweight.

-Duo model mix THC(air pressure+arc voltage sensor)

-The separation of the load-bearing table and the machine completely eliminate the consume of load on the machine while greatly reducing transportation costs more than 1/3!

2, From 0.5 to 200mm, all thicknesses can be cut!
Three cutting modes for different thicknesses
one-button switching on the control panel
· Pneumatic height adjustment mode plasma cutting thin plate
· Arc voltage high mode plasma cutting medium thin plate
· Capacitor height adjustment mode flame cutting thick plate (optional)

3, Complete plug and play! Suitable for workshop!

-Stinger 1313(1300*1300mm cutting size) has a small footprint and can rapidly profile aluminum, stainless steel, and mild steel plates with ease. Very suitable for workshop.
-The pulley can be assembled according to your needs and can be moved by single person.
-The independent electrical box is easy to check, and the cooling fan can effectively reduce the temperature generated by the operation of the electrical device.
-Complete plug and play! Stinger 1313/1530 are shipped fully assembled. The setup process has been streamlined making the process smooth and enabling you to start putting the machine to work right away. You are required to provide an on-site supply of air, power and water.

4,Convenient and fast operation

-Famous Italy Libellula software

Libellula is a well-known brand for 30 years, and always the best cutting software for sheet metal processing. It is installed on our standalone, multilingual operating system.

It structured to become the best CAD/CAM application for the programming of the cutting machines of any type.Shops with multiple operators will find that the highly nesting software is easy to operate, yet powerful enough to handle your most demanding cuts.

5, No Dust!

We provide customers with two types of high-efficiency dust-removing load-bearing tables.

Option 1: water table. Absorbs metal residues through water, effectively reducing dust.
Option 2: Air dusting table. the load-bearing table and dust collector are connected through an additional down-flow system to achieve a perfect dust removal effect.

Whether you use it in home engineering or metal art, it will protect your room environment and give you the most comfortable cutting experience!

Costomization:

We have professional CNC instructors to help you analyze and sort out your cutting needs, and provide you with the most reasonable solution!

- Cutting size: 1300mm*1300mm / 1500*3000mm

- Cutting mode: Plasma mode / Plasma + Flame mode

- Color, logo, packing: If you order more than three sets, we will provide you with customized logo, color and packaging services for free.

Parameters:

Packaging & Shipping



Payment:

Company Information

OUR FACTORY

Certifications

FAQ

1. Are you the manufacture?
Yes, we are. We are specializing in the plasma cutting area near 10 years. We have mature product lines. If you want to come andvisit, we absolutely welcome and we are willing to arrange the travel for you.



2. How to ensure transportation on time?
The customer can place an order in Alibaba, this is a third party and it will provide supervise and protect for buyer. If seller didn’t deliver the product in time, buyer can apply for a refund through the Ali platform to avoid losses.



3. How about payment terms?

The payment terms are optional, customer can choose at your convenience. [T/T, Alibaba Secure Payment, Western Union, Paypal, L/C]

4. How can i find a most suitable cutting machine?
We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for anytechnology problems.

5. How about after-service?
Our warranty period is 18 months. If there is a problem with your machine during this period, we can provide the parts for free tosolve the problem. And customers who have reached a friendly transaction with us can enjoy lifelong technical support. If you needit, we can help you solve the problem through online communication, video and other means.

6. Is there any benefits for becoming a dealer?
Of course. If you have the strength and willingness to become our distributor, we will not only adjust the price. Secondly, we canprovide you with customized machines according to the sales habits of the buyer's market. More importantly, technically, we willsend professional engineers to give you on-the-spot guidance, so that you become the most understanding of the machine.
