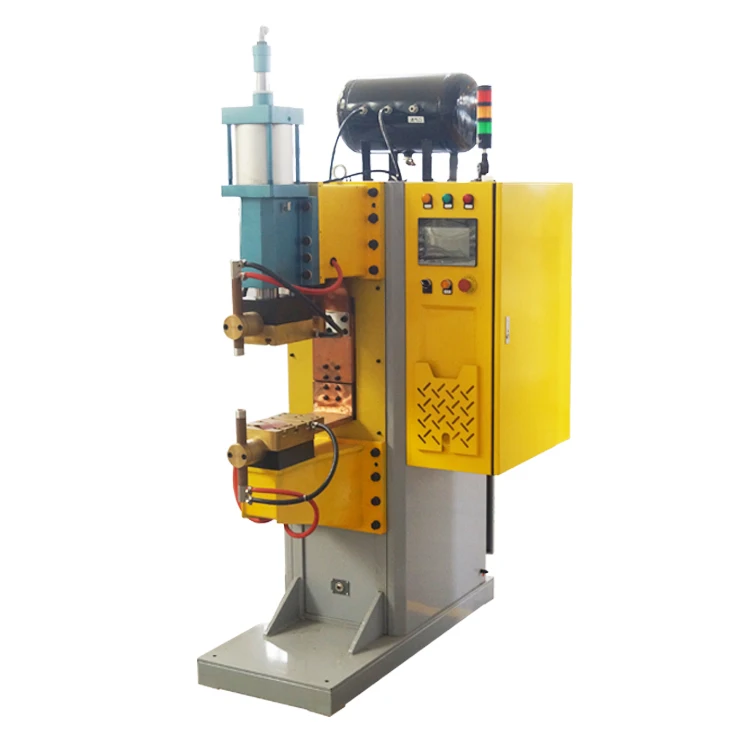

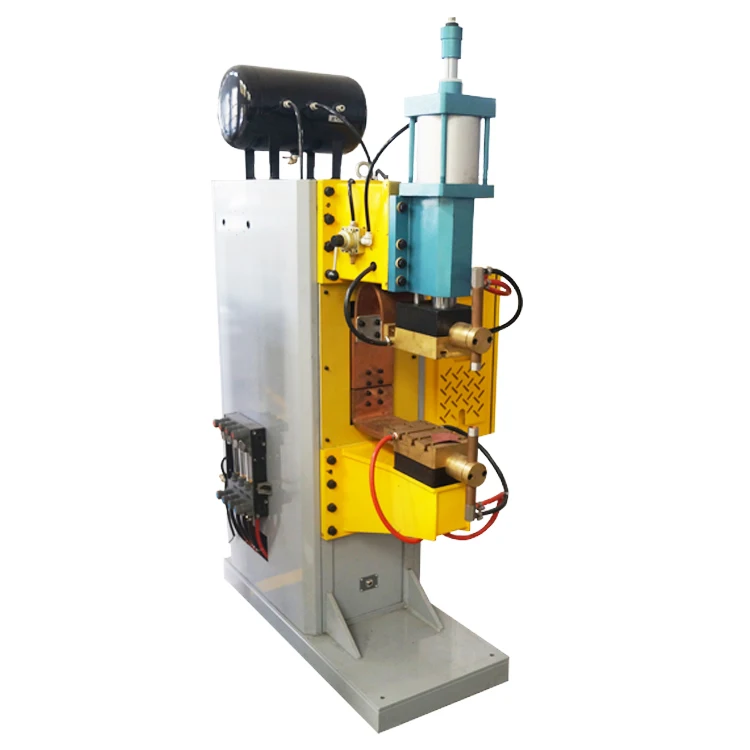

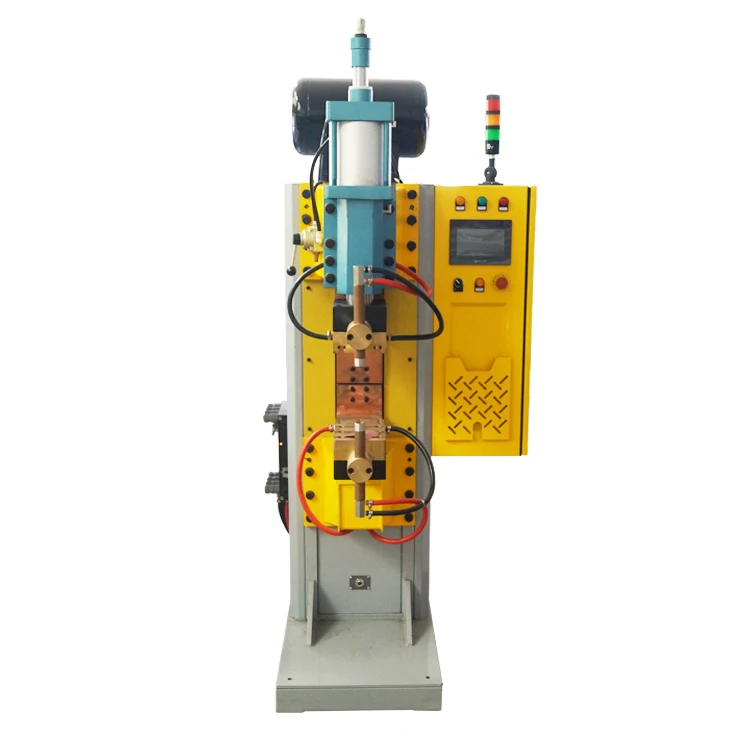

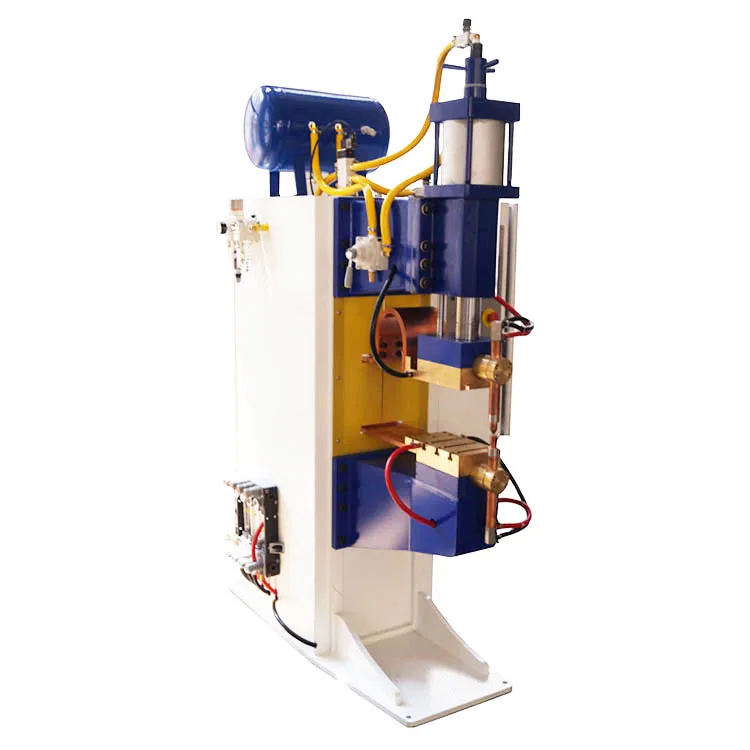

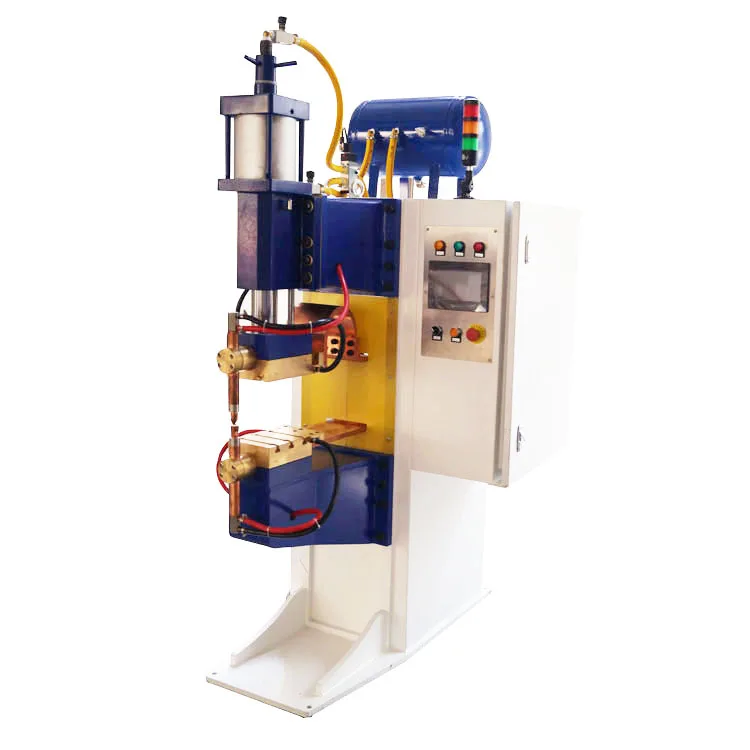

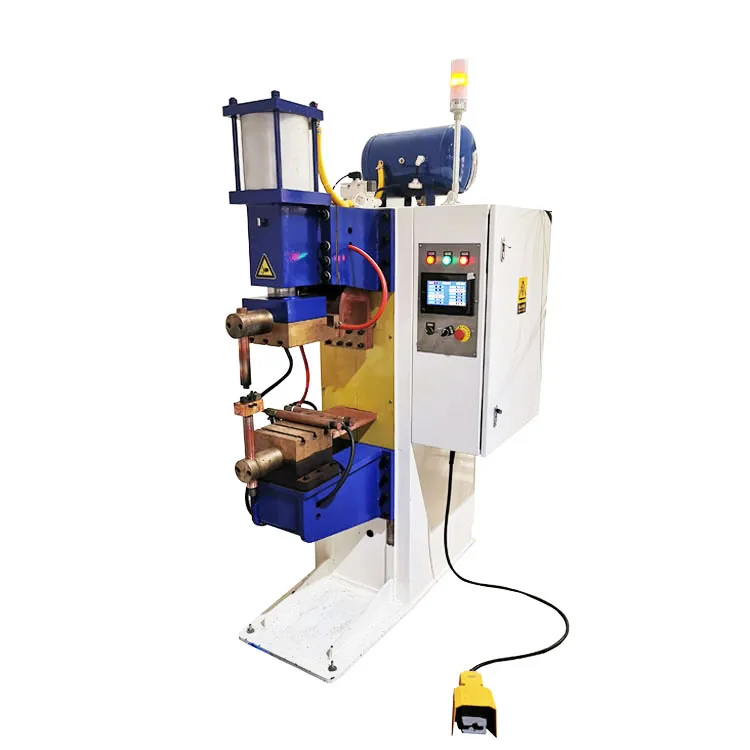

Stainless Steel Electrical Cabinet Spot Welding Machine



Feature

• The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure of wire.


• More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.


• Faster to set up current, the speed is 20folds quicker than traditional technic


• Process more reliable: the majority of the application of solder DC welding metal effect will be even better.


• Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.


• Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized steel sheet.etc.



Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water L\\mim
MD-40	40	50	≈11.6	≤120	7300	80	30

Appication

      Suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized steel sheet.etc.
