Характеристики

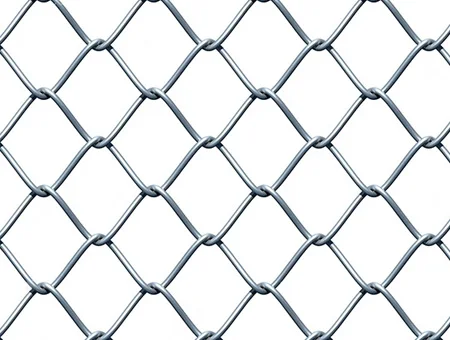

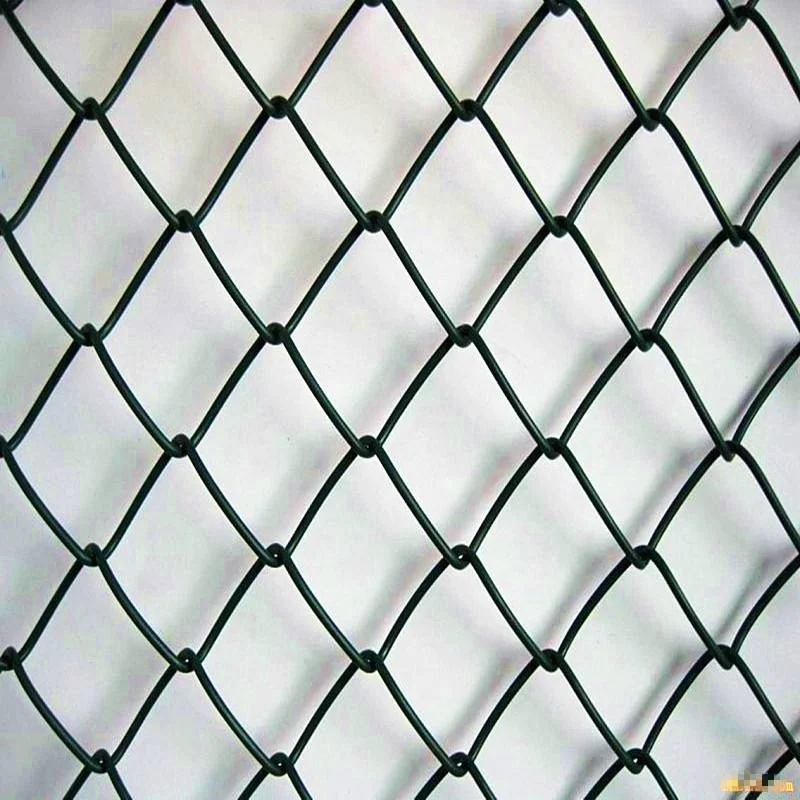

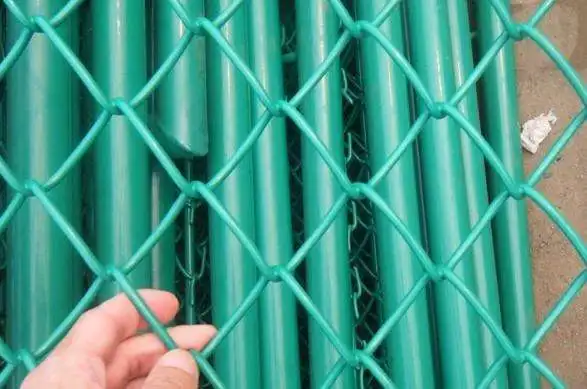

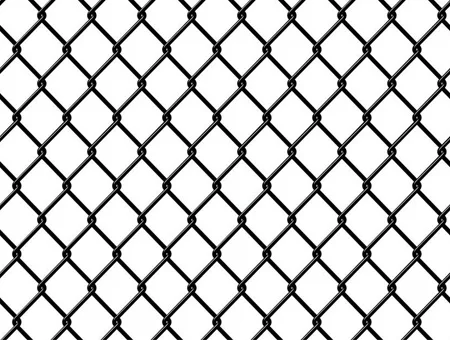

Type: Galvanized chain-link mesh for fencing in rolls

Applications:

· Construction of fences for agricultural or residential areas

· Construction of fences for industrial areas

· Construction of fences for solar parks

· Construction of fences NATO type

· Construction of fences for public areas, ports, airports, rubbish dump areas, electric power stations, etc

Quality of wire:

a) Common galvanized soft wire, zinc 50-110 gr/m2
B) Heavy galvanized wire, zinc 215-370 gr/m2

Thickness of wire: from 1.50 mm up to 5.00 mm

Packing:
In rolls with length from 0.5 up to 25 m and height (width) from 0.5 up to 6.0 m



PE (No)	THICKNESS OF WIRE (mm)	CELL TYPES & MESH WEIGHT IN kg/m2
		40 x 40	45 x 45	50 x 50	55 x 55	60 x 60	68 x 68	70 x 70
10	1.50	0.70	0.68	0.60	0.54	0.48	0.46	0.44
11	1.60	0.80	0.72	0.64	0.60	0.56	0.50	0.48
12	1.80	1.02	0.92	0.80	0.71	0.67	0.63	0.61
13	2.00	1.20	1.12	1.00	0.88	0.82	0.77	0.70
14	2.20	1.55	1.31	1.20	1.10	0.96	0.85	0.83
15	2.40	1.80	1.60	1.45	1.30	1.20	1.07	1.05
16	2.70	2.40	1.97	1.80	1.75	1.48	1.35	1.32
17	3.00	3.10	2.60	2.25	1.95	1.92	1.64	1.62
18	3.40	3.85	3.20	2.95	2.75	2.50	-	-
19	3.90	5.30	4.75	4.30	3.85	3.75	-	-
The weight per m2 of the above table is theoretical, with tolerance +/- 3%, depending on the exact wire diameter.
