A.Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

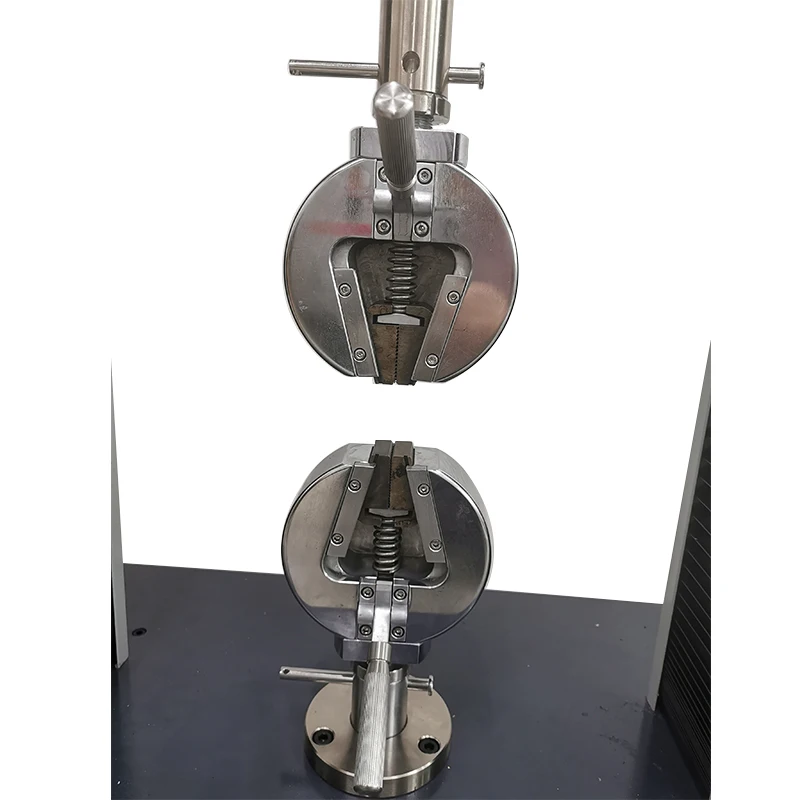

B.Different test with different grips:tensile, peel, tear, heat seal, adhesive, bend and open force.
C.Deformation under defined load: Test deformation under defined load of tested sample
D.Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
2.Standard: Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
3.General test Project:
Tensile stress, tensile strength, tearing strength, breaking elongation, fixed extension stress, constant stress elongation, constant stress value, tearing strength, arbitrary point force value, elongation at any point, pulling force, adhesion and peak value, pressure test, shear stripping force test, bending test, pulling force puncture test.
4.Technical characteristics:
3.1. Imported motor, low noise and precise control
3.2. Computer LCD display, Chinese menu, HP printer
3.3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
3.4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the measurement of the corresponding parameters of waterproof materials.
3.5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer for information sensing, with automatic reset, data memory, overload protection
3.6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and print statistical reports, including averages, standard deviations and coefficients of variation

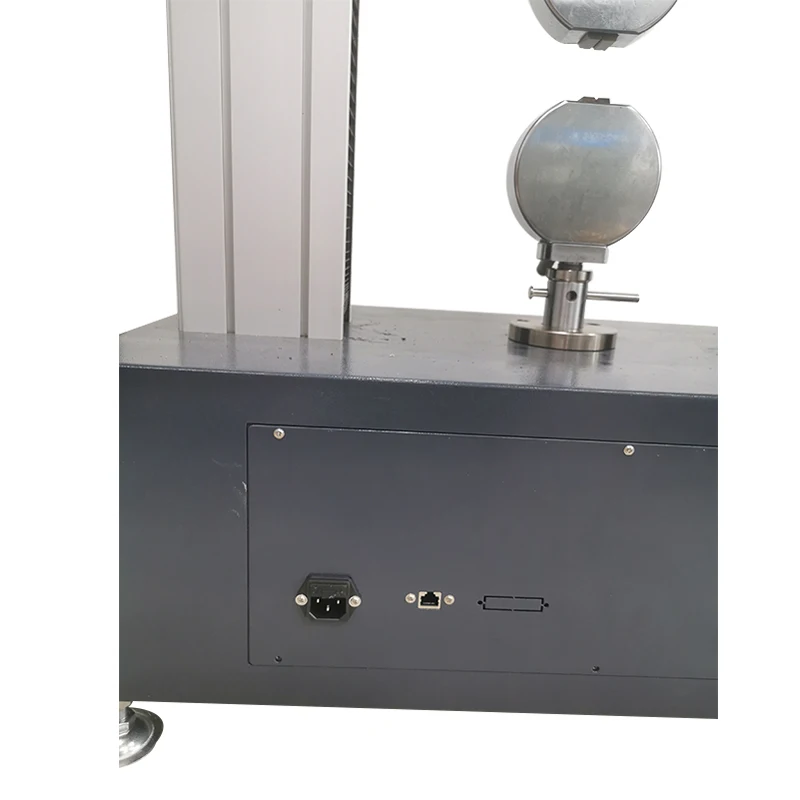

3.7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive report system
3.8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing the configuration of the instrument can be widely applicable to the measurement of other materials
Max load force
20KN
Level of accuracy
0.5
Test force measurement range
1%~100%FS
Test force indication allowable error limit
Within ± 5% of indicated value
Limit error of displacement indication
Within ± 1% of indicated value
Test force resolution
±1/300000
Deformation measurement range
Host power0.2%~100%FS
Deformation indication error
Within ±0.5% of the indicated value
Deformation resolution
1/200000 of maximum deformation/up to 1/300000
Displacement indication error
Within ±0.5% of the indicated value
Displacement resolution
0.001mm
Force control rate adjustment range
0.005~5%FS/s
Force control rate control accuracy
When the speed is less than 0.05%FS/s, it is within ±2% of the set value. When the speed is ≥0.05%FS/s, it is within ±0.5% of the set value.
Deformation rate adjustment range
0.005~5%FS/s
Deformation rate control accuracy
When the speed is less than 0.05%FS/s, it is within ±2% of the set value. When the speed is ≥0.05%FS/s, it is within ±0.5% of the set value.
Displacement rate adjustment range
0.001~500mm/min
Displacement rate control accuracy
When the speed is less than 0.5mm/min, it is within ±1% of the set value, and when the speed is ≥0.5mm/min, it is within ±0.2% of the set value
