КВт AC EV зарядное устройство настенное для электрического автомобиля домашнее электромобилей
- Категория: ЗУ для авто >>>
- Поставщик: Wenzhou,Bluesky,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 274.43 $* | 288.26 $* |
| Aug-16-2025 | 271.67 $* | 285.28 $* |
| Jul-16-2025 | 228.43 $* | 239.71 $* |
| Jun-16-2025 | 267.68 $* | 280.22 $* |
| May-16-2025 | 232.22 $* | 244.94 $* |
| Apr-16-2025 | 262.88 $* | 275.89 $* |
| Mar-16-2025 | 260.24 $* | 273.8 $* |
| Feb-16-2025 | 258.52 $* | 271.80 $* |
| Jan-16-2025 | 255.45 $* | 268.26 $* |
Характеристики
——Input & Output—— | ||||||
Input/Output Voltage | 230Vac±10% | Output current | 16A 1Phase | |||

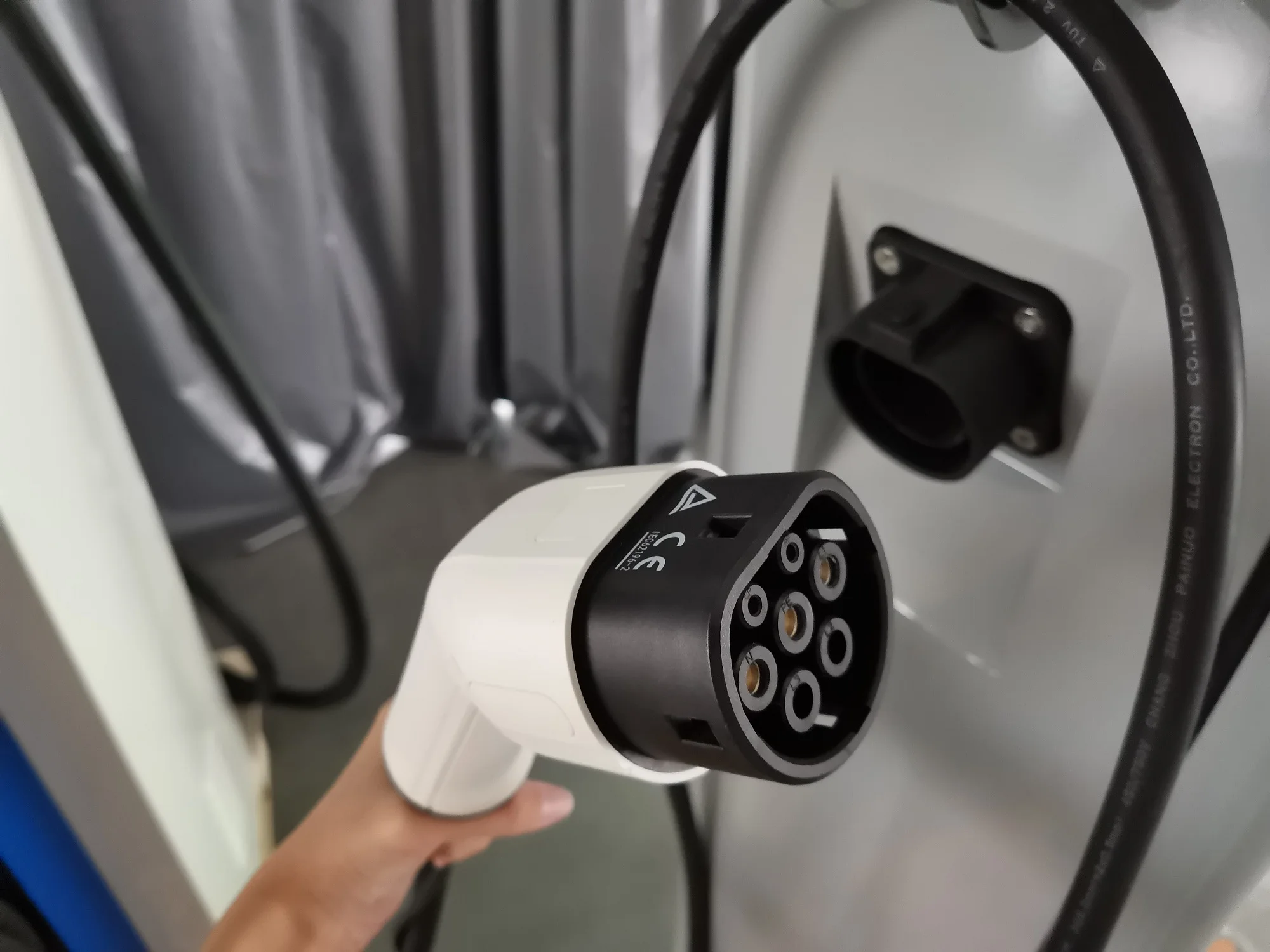

Input frequency | 55±10% | Charging gun type | IEC 62196-2 / SAE J1772 /GB/T20234.2 | |||
Rated power | 3.5 KW | Cable length | 4 meters | |||
Power Factor | >0.99 | Overall efficiency | 0.96 | |||
——Protection—— | ||||||
Overvoltage protection | yes | Undervoltage protection | yes | |||
Overload protection | yes | Short circuit protection | yes | |||
Earth leakage protection | yes | Over temperature protection | yes | |||
Lightning protection | yes | Overcurrent protection | yes | |||
——Function and Accessory—— | ||||||
Network connection | No | Visual Indication | LED Indicator light | |||
Communication Protocol | No | Push Button | Emergency Stop | |||
LCD Display | 2.4 inch screen | Language | English | |||
RCD | Type A | RFID | yes | |||
——Working environment—— | ||||||
Protection degree | IP55 | Maximum altitude | Up to 2000m | |||
Environment temperature | -20℃~+75℃ | Cooling | Natural air cooling | |||
Storage temperature | -40℃~+70℃ | Operating humidity | ≤95% non-comdensing | |||
Applicable Scene | Indoor/Outdoor | Acoustic noise | ＜55dB | |||
Standby power consumpiton | 5W | |||||
——Package—— | ||||||
Dimension (W/H/D) | 400*283*115 | Weight | 6kg | |||
Certificate | CE, TUV, ISO,IP55, IK10 | |||||
Note | ||
1 | Don ' t use the EVSE with an extension cord or adaptor. | |
2 | The EVSE is only for EV charging using. | |
3 | Don't step on, fold or knot the cable. | |
4 | Don't touch the EVSE contact surface with heat dirt or water. | |
5 | Don't drop the EVSE or place a heavy object on it. | |
6 | The PE terminal of the EVSE must be reliably grounded. | |
We have rich experiences in EV Charging field. Thanks to cooperation with many clients from different continents and countries, We have customized lots of products for many clients. Thus we know how to provide more suitable products and solutions according to different regions. We are totally ready to provide our customers with timely, effective and full of care service to help them solve most of the EV Charging issues.
We are cooperating with customers from Belgium, installed in the parking area outside their own factory not only to provide charging benefits for their employees, but also to provide a charging place for electric vehicles on the market.

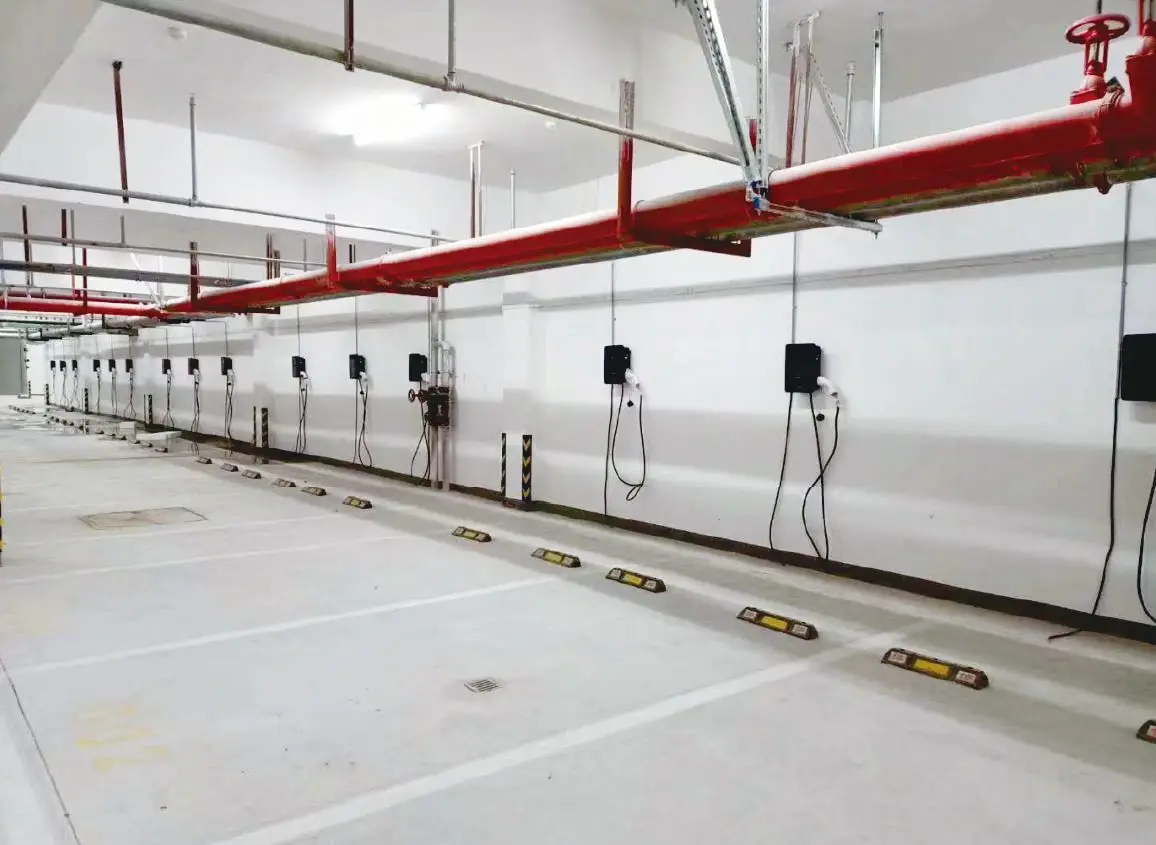

Cooperate with property companies in several smart communities. Install Ac charging stations in parking lots on the ground and underground. When the owner returns home at night the elec tric car can be charged. by the next morning the car will be fully charged.
The client is a new energy company, located in the bustling city center, mainly selling new energy electric vehicles. Our cooperation project is a 720KW charging stack, which allows customers to experience the charging function while also doing open charging opera tions.
We cooperate with a mall owner. the project is to build a DC charging station, which can attract more customers with electric vehicles to shop in the mall. And customers who own electric cars will not have low purchasing power.
Customers are owners of some compa-nies. Install AC EV charger to provide benefits for employees. This method has the effect of attracting and retaining talents. Research shows that people who buy electric cars are usually highly educated, making them the most ideal employees.
