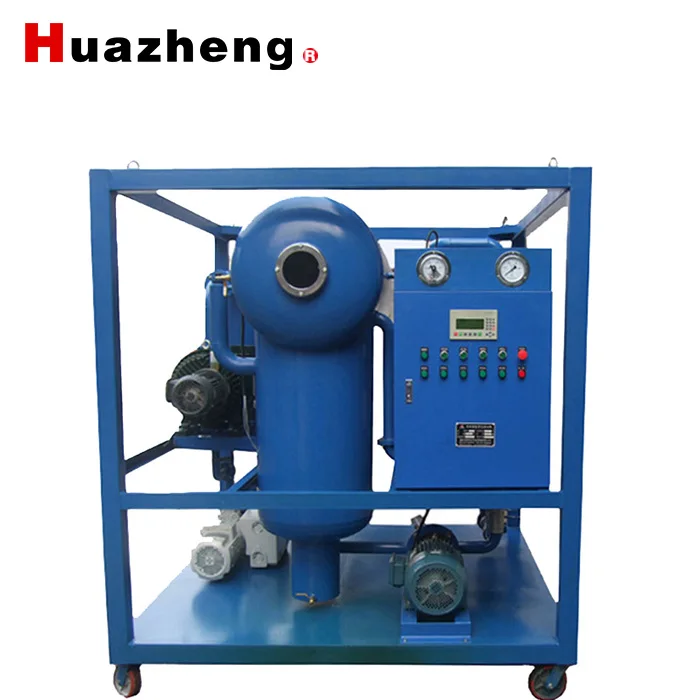

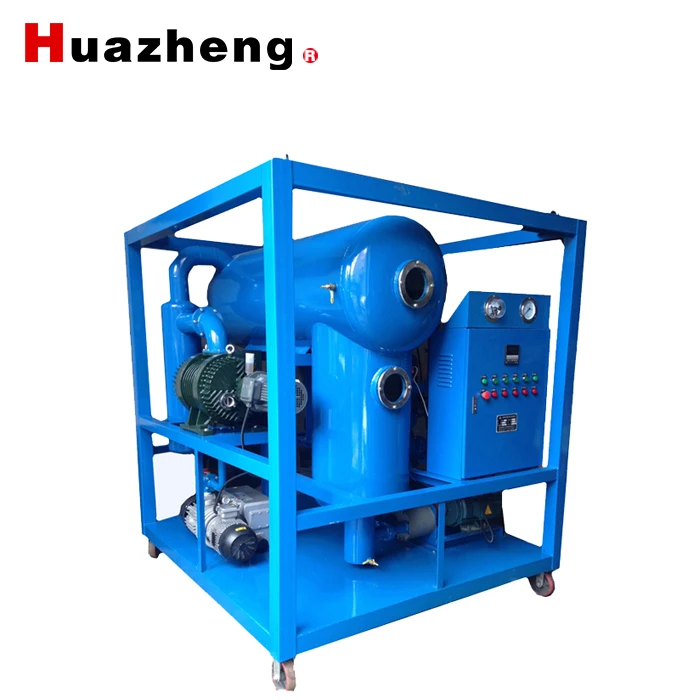

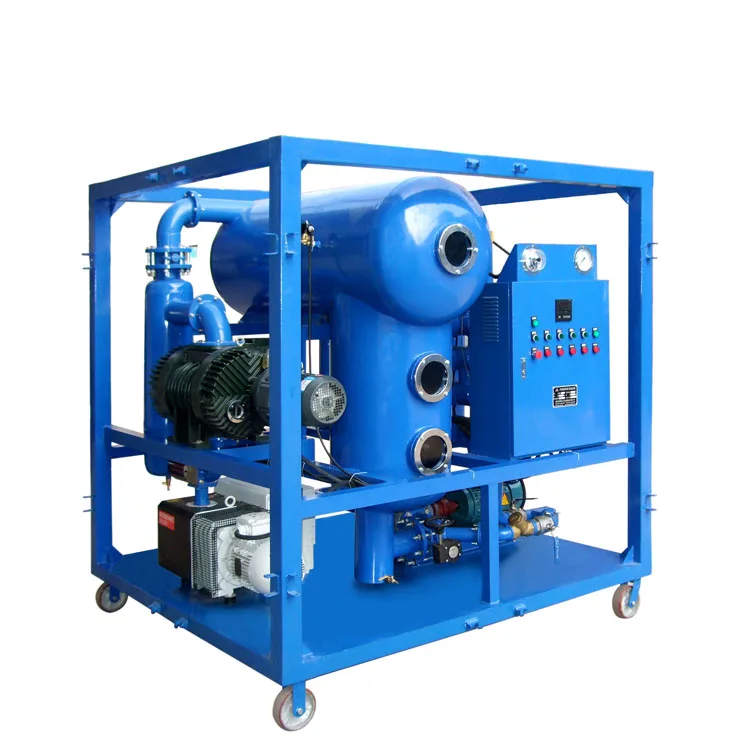

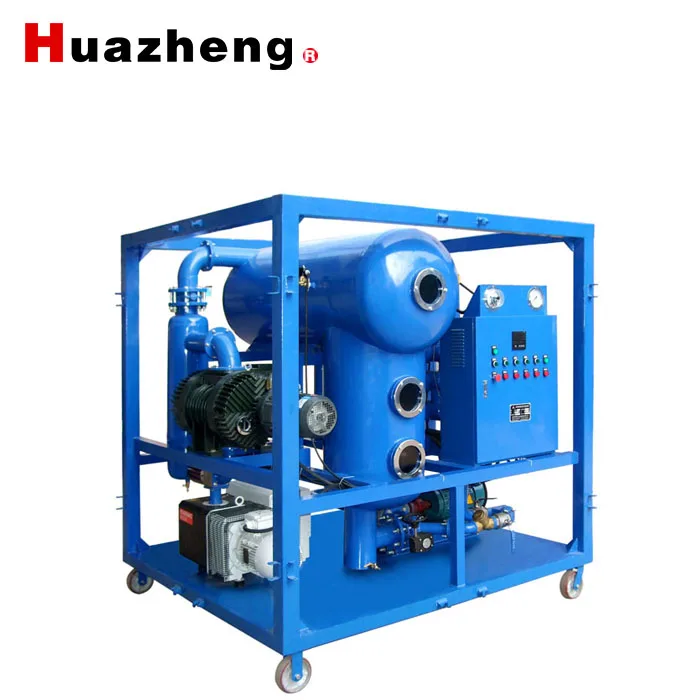

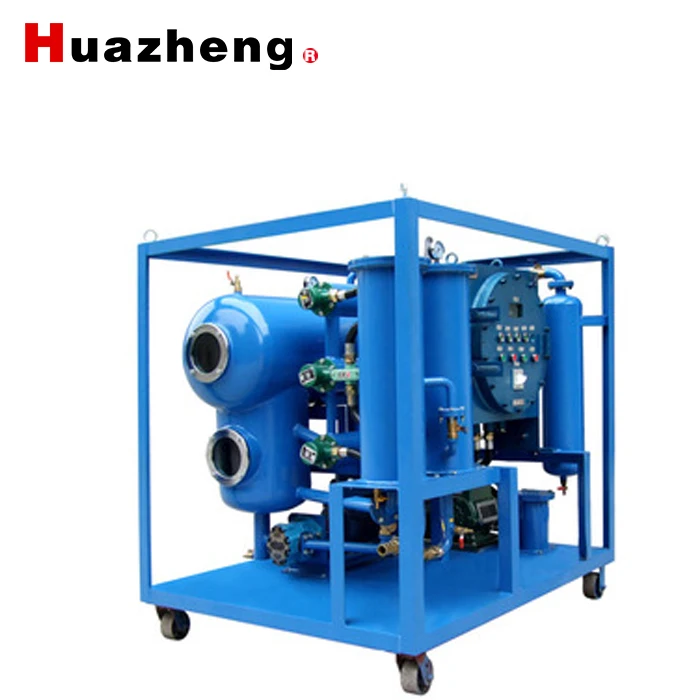

HuaZheng Electric insulating oil purification plant oil filter refining Machine Transformer Oil Regeneration Equipment









1.FUNCTION

The main function of DZL Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.



2.TECHNICAL FEATURES

l Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.

l Adoption of American fine filter element, fineness: 5μm, ß≥1000

l Low noise and long life of the oil transport system

l Adoption of American heating technique with the way of thermal radiation, constant temperature control.

l The use of float valve and photoelectric oil level control, eliminates supervision

l Adoption of French de-foaming technique to avoid oil leaking

l Controlled digitally and automatically by PLC

l Major electric apparatus are imported from America, so the controlling system safe and reliable

3.TECHNICAL SPECIFICATION



Product	Single	5	10	20	30	50	70	100	Proposed to use double stage to deal with 100L/min. capacity
	Double	5	10A	20A	30A	50A	70A	100A	150A	200A	250A	300A
Flow rate	L/min	5	10	20	30	50	70	100	150	200	250	300
Total power	KW	5	15	24	24	30	48	60	108	108	144	144
Pipe diameter	DN mm	25/16	25/16	32/25	32/25	44/32	44/32	50/44	50/44	50/44	65/50	65/50
Gross weight	KG	100	180	240	320	420	700	750	1500	1860	2100	2200
Overall dimension mm	Length	700	1200	1200	1300	1300	1600	1600	1600	1600	2000	2000
	Width	500	800	1000	1000	1000	1400	1400	1400	1400	1600	1600
	Height	800	1200	1400	1450	1500	1800	1800	1800	1800	2250	2250



4.TECHNICAL INDEX



Product	DZL-Single	DZL-Double
Breakdown Voltage(KV)	60	75
Moisture Content(PPM)	10	5
Gas Content	≤0.5%	≤0.1%
Filtering Fineness( m )	1-5	1-5
Vacuum Degree(PA)	400	50
Working Temperature℃	40---70
Max Outlet Pressure(MPA)	0.5
Working noise	60		60
Filtering efficiency	1-3times



5.OPTIONAL PARTS



Number	Name	Description
1	Metal roof	To prevent wind, rain and dust
2	Flow meter	To measure the flow volume of the oil
3	Molecule filter	To reduce acid value:MgKOH/g≤0.03
4	Controlling system	Full-automatic control
