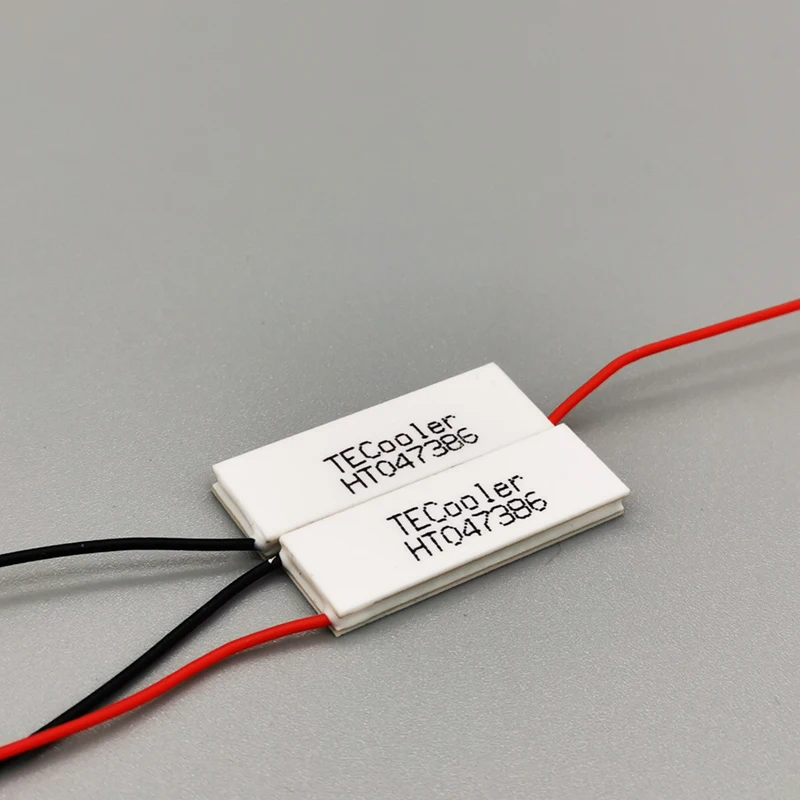

 tec thermoelectric cooler module peltier for beauty equipment



main used for:

Beauty equipments, medical instrument, water cooling, car cooling, car refrigerator, home use



Correct installation/assemble method
1.There is cooling face in one side of the peltier module,and the other side hot face, install cooling system,the planeness of the install surface can not over 0.03mm,the surface need to clean the dirty.
2.The module,cooling face and cooling system should contact with each other very well,the touch surface need cover with heat-conducting gel.
3.Locate the moudle, apply the force evenly, make sure not over-force,avoid crushing the moudle.
                                             Correct working condition
1.Use direct-current main,the voltage do not over the nomainal voltage.The power supply ripple under 10%.
2.The electric current can not over rated current.
3.Do not give a backward voltage suddenly when the modle is working(after 5 min can do this)
4.The humidity around the modle do not over 80%.

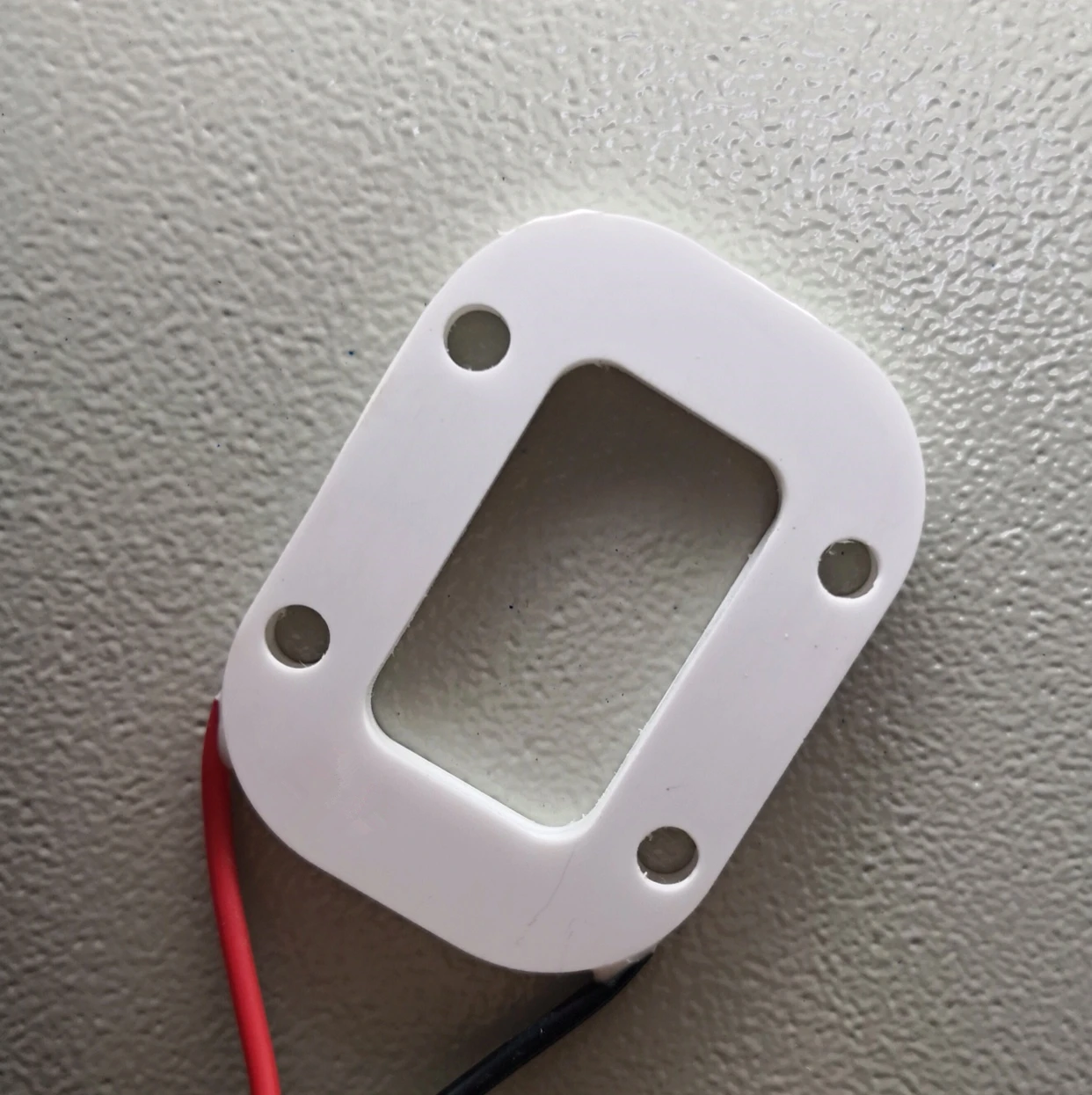

DC12V6A out 36*48  hole sizes 18*30

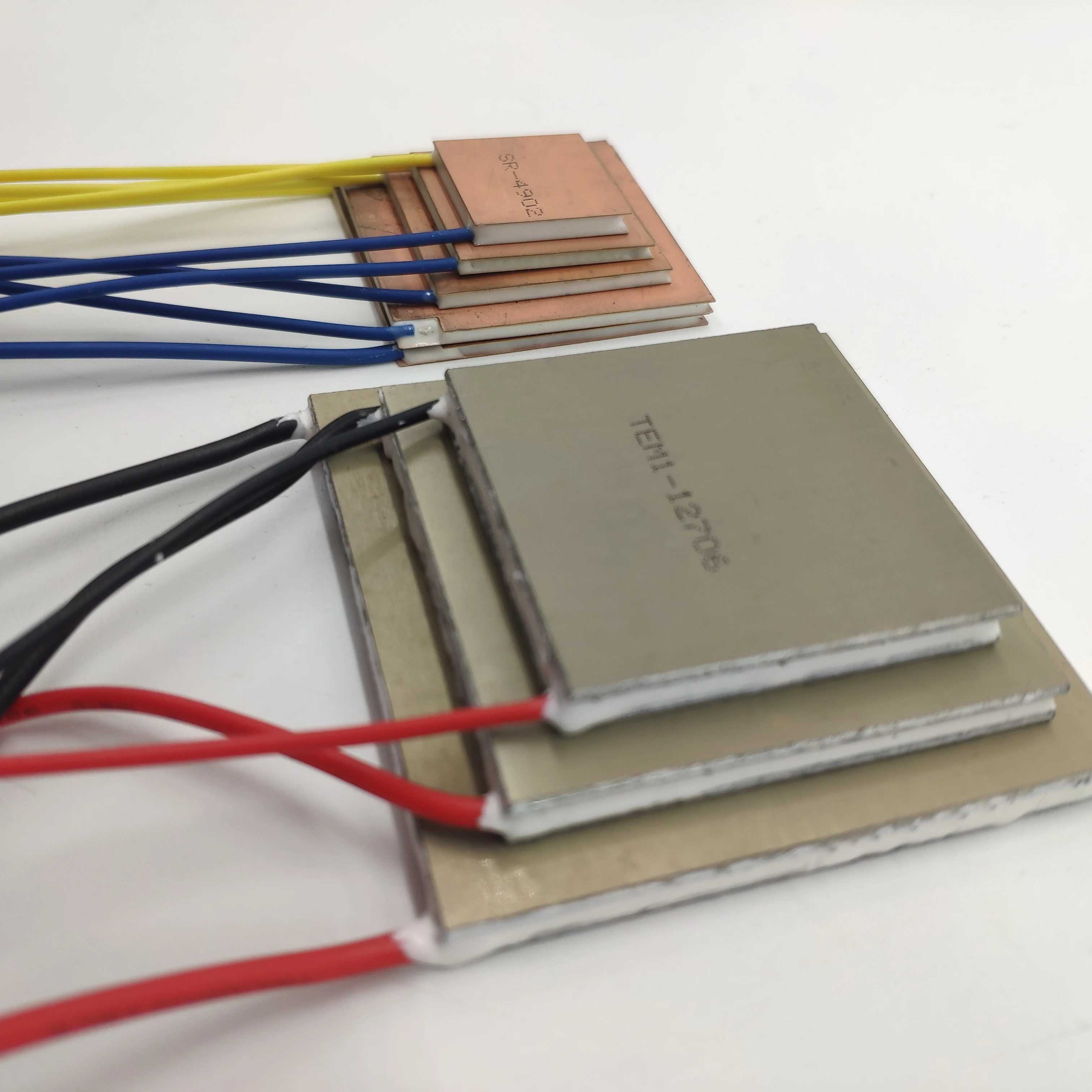

Many other models available !!!!!!!
