Умное быстрое зарядное устройство для электромобилей уровня 3 с интеллектуальной системой обмена питанием и поддержкой зарядки 2



  Product Details

Three charging ports CCS, CHAdeMO and AC are equipped to provide users with multiple charging options. The charger is for indoor/outdoor placement. The appearance of the charger is beautiful. It supports credit card, APP and other payment methods, and can be started and stopped remotely. It is suitable for charging electric vehicles in charging stations and bustling areas. The charger's protocol and man-machine function must meet the relevant requirements of IEC standards IEC 61851-1 and IEC 62196-24









  Features

• Support Charging 3 cars at same time.
• 60KW CHAdeMo + 60KW CCS + 22KW AC Type 2
• OCPP1.6 J , Support to update to OCPP2.0
• Built-in communications (4G; LAN; Wi-Fi)
• Multi-billing system for your option - Bank card, Credit Car and RFID system
• Dynamic remote power control via modbus TCP
• Fast-charge all ev in short time, 0 to 80% in less than 20min



  Datasheet

1	Rated voltage of the electric motor, V	200-500V/200-750V for option
2	Rated constant power of the charging system, kW	50KW-300KW
3	Rated power of the charging system by variable, kW	22-43
4	Support for charging standards	CCS, CHAdeMO 1.0, IEC 61851
5	Connectors of 3 types	Combo-2, JEVS G150, Mode3 Type2 (IEC-62196);
6	Simultaneous charging of electric vehicles	2
7	Charging cable length, not less, m	3.5
8	Installation condition	floor/Stationary
9	External protection degree not lower	IP54
10	Operating mode indication and control via LCD touch screen	Yes
11	erating temperature range, ºC	from -30º to + 50º
12	Protection against short-circuit currents and leakage currents, including DC
13	Modular design of power modules with the possibility of quick replacement
14	The presence of a three-phase AC meter at the input
15	Steel case, square with overall dimensions not less than (W * D * H mm) 850 * 750 * 1500, a single design for ease of maintenance and operation of cable glands.

  Charger connector

Suoppoert e-car and e-bus like:



CCS Plug:  BMW i3,VW e-golf&e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq&kona,Audi e-tron,

                  OPEL ampera e,Chevrolet bolt EV,Geely TX electric Taxi,Renualt new Zoe.



CHAdeMo: Nissan leaf&NV200, KIA soul.CITROEN C-Zero&Berlingo₃Peugeot iOn .

                   Mitsubishi i-Mev&outlander,Geely TX electric Taxi,Zero Motorcycles,Tesla Model S(need adapter)



GB/T:  BYD,BAIC,Chery,Geely,Aion S,MG,XiaoPeng,JAC,Zotype etc.

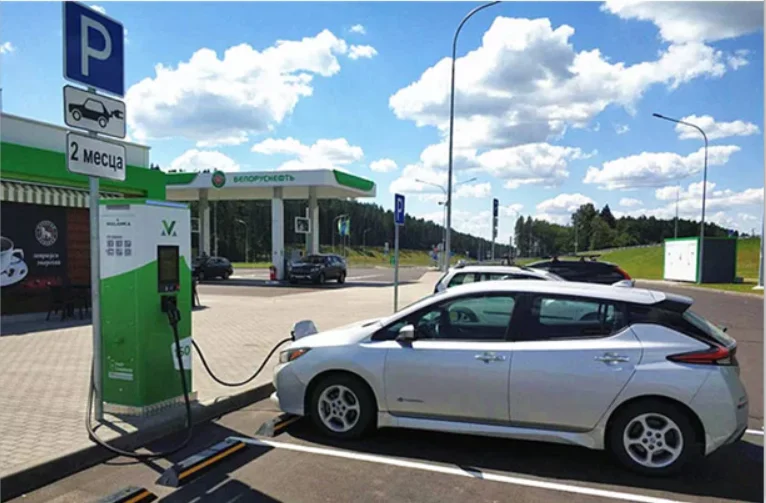

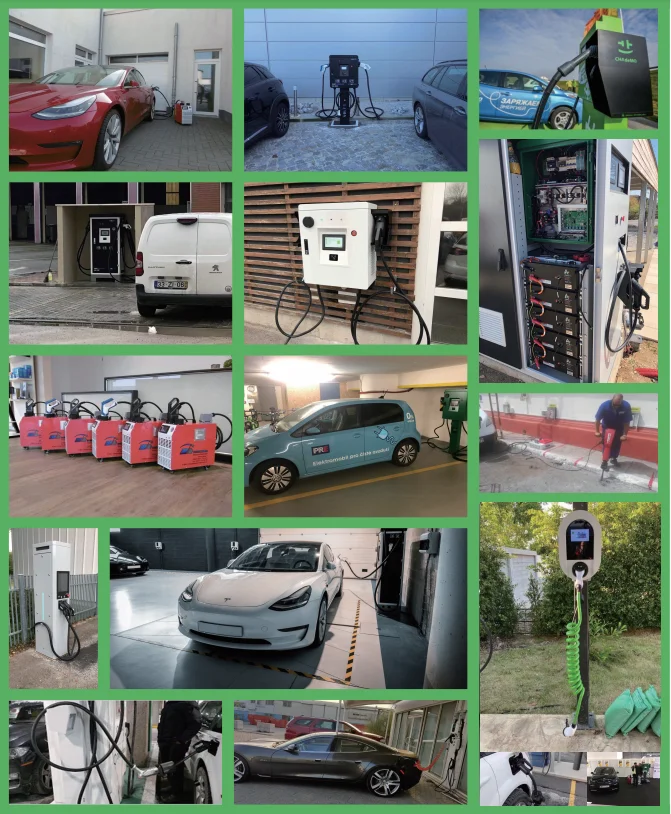

 EV Charger Cases

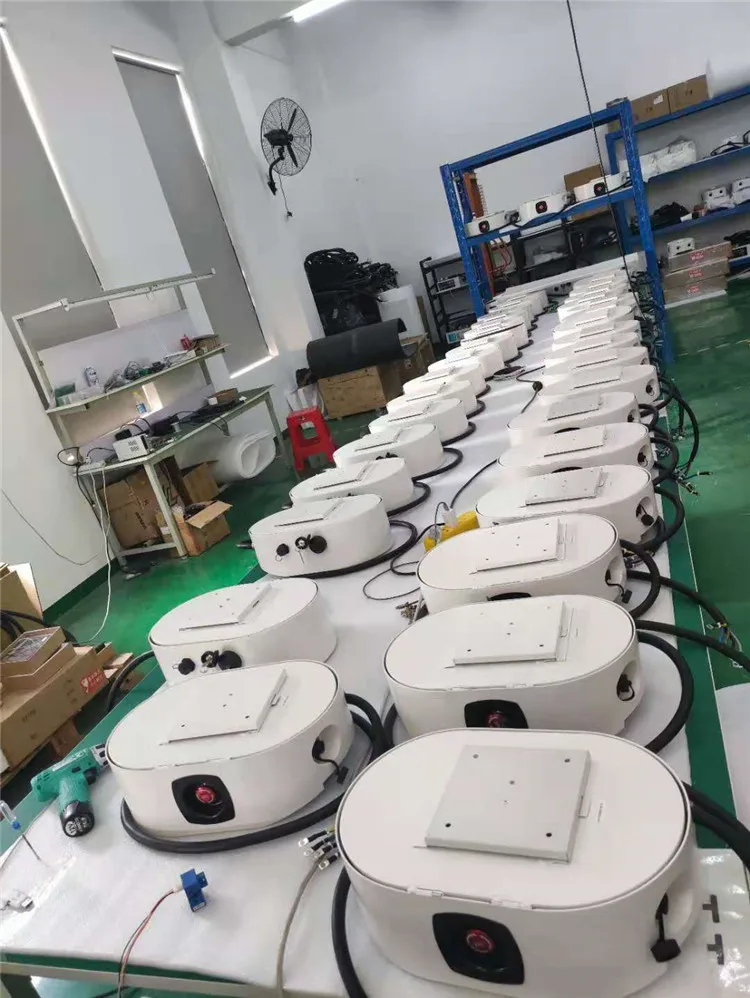

Production





FACTORY SUPPLY

Guangzhou Electway Technology Co.,Ltd was founded on March 20th,2012.It is located in Huangpu District,Guangzhou.Since its establishment,our company has been focusing on R&D,production,sales and other services of hardware&software products of power electronics in the field of new energy.At present,our company's main products are:a variety of domestic and international standard electric vehicle AC and DC charging station(stationary&wall-mounted),mobile off-board DC charger,portable DC charger,all series of AC charging EVSE,charging connectors,off-grid electric vehicle discharge device V2H,charging power module and its peripheral products.Our company invest great efforts on the development of technology and the accumulation of hight-quality talents.We have a professional R&D team of more than 10 people.We pay highly attention to the accumulatiion and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents,and registered the trademark"ELECTWAY".Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea,and have gained a hign reputation in the industry.



 FAQ



Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet.

Even we also have charger support the Ethernet, 3G,4G function.



Q: How about the quality and warranty about the charger?

 All of our chargers are CE certificated, and you can find the CE mark on our chargers.

We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.



 NOTE:

1- OEM customer is welcome...

2-Any requirement please contact us to talk about the details.

3-We will reply you for your inquiry in 24 hours.

4-If you have any questions about the charger, please contact us.

5-The above for reference only, final price decide by the charger KW, please contact us to get the quote.
