10dbi 2 4G 5 8G Белый цилиндрический водонепроницаемый разъем N Наружная всенаправленная волоконно-стеклянная
- Категория: Коммуникационная антенна >>>
- Поставщик: Shenzhen,Xinhonlai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.15 $* | 0.13 $* |
| Aug-18-2025 | 0.66 $* | 0.46 $* |
| Jul-18-2025 | 0.25 $* | 0.21 $* |
| Jun-18-2025 | 0.51 $* | 0.62 $* |
| May-18-2025 | 0.75 $* | 0.41 $* |
| Apr-18-2025 | 0.51 $* | 0.26 $* |
| Mar-18-2025 | 0.28 $* | 0.17 $* |
| Feb-18-2025 | 0.12 $* | 0.32 $* |
| Jan-18-2025 | 0.1 $* | 0.97 $* |
Характеристики
PROMOTION
Product Description
Item | 2.4G 5.8G Antenna For Communications | |
Place of Origin | Shenzhen,Guangdong,China | |
Frequency Range | 2400~2500 MHz/5800mhz | |
Tape Width | 100MHz | |
Gain | 10±0.3 DBI | |
V.S.W.R | ≤1.5 | |
Polarization Type | vertica polarization | |
Radiation Direction | completely | |
Input Impendence | 50Ω | |
Half Power Corner | H 360°/E 17° | |
Max Input Power | 20W | |
Mechanical Specifications | ||
Antenna Size | Φ75×650mm | |
Antenna Cover Material | PVC | |
Connect Type | 2*N-K | |
Mechanically adjustable inclination | 0～15° | |
Operating Temperature | -20℃～+85℃ | |
Storing Temperature | -40℃～+85℃ | |

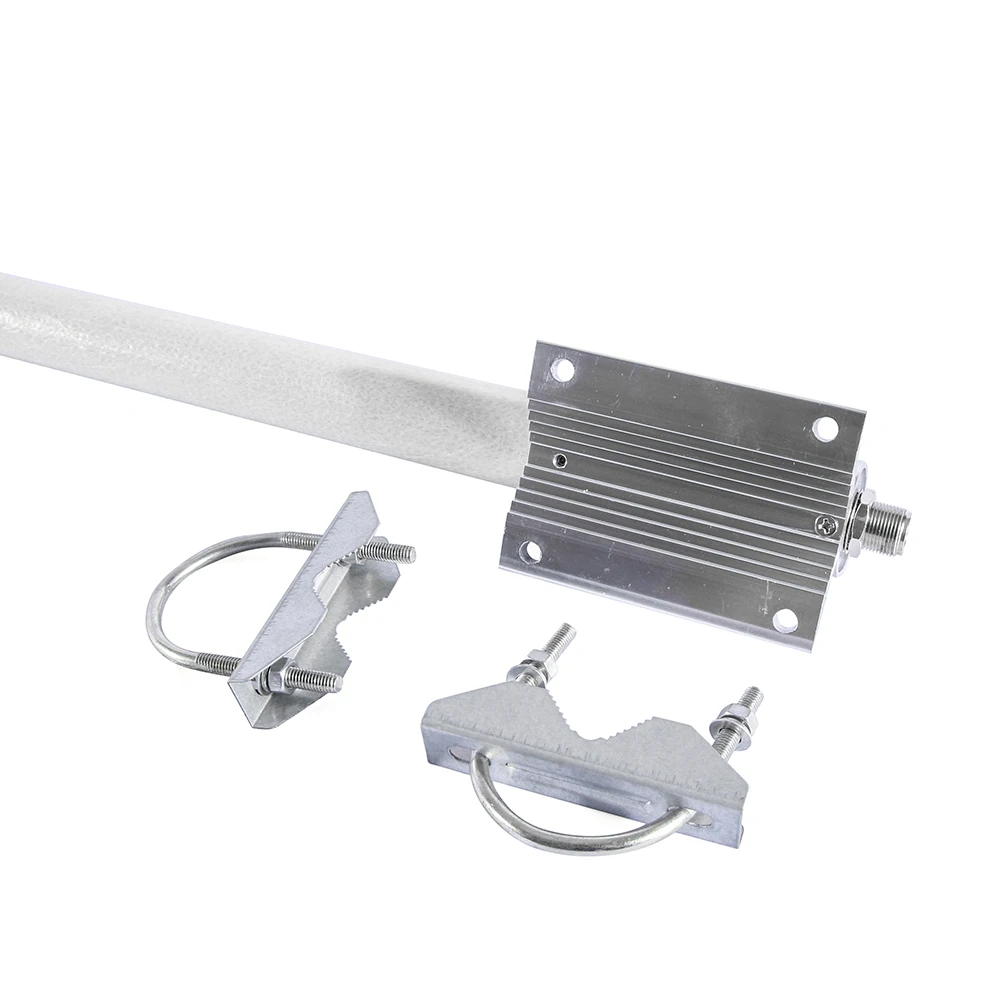

Mounting | L bracket installation | |
Pole | ф50-ф90mm | |
Weight | 1900g | |
Packing & Delivery
Single carton 72*13.5*12.5CM，
Carton size：73.5*30*74CM，10pcs/ctn,19kgs
Carton size：73.5*30*74CM，10pcs/ctn,19kgs
Can delivery by DHL,Fedex,UPS,TNT etc.

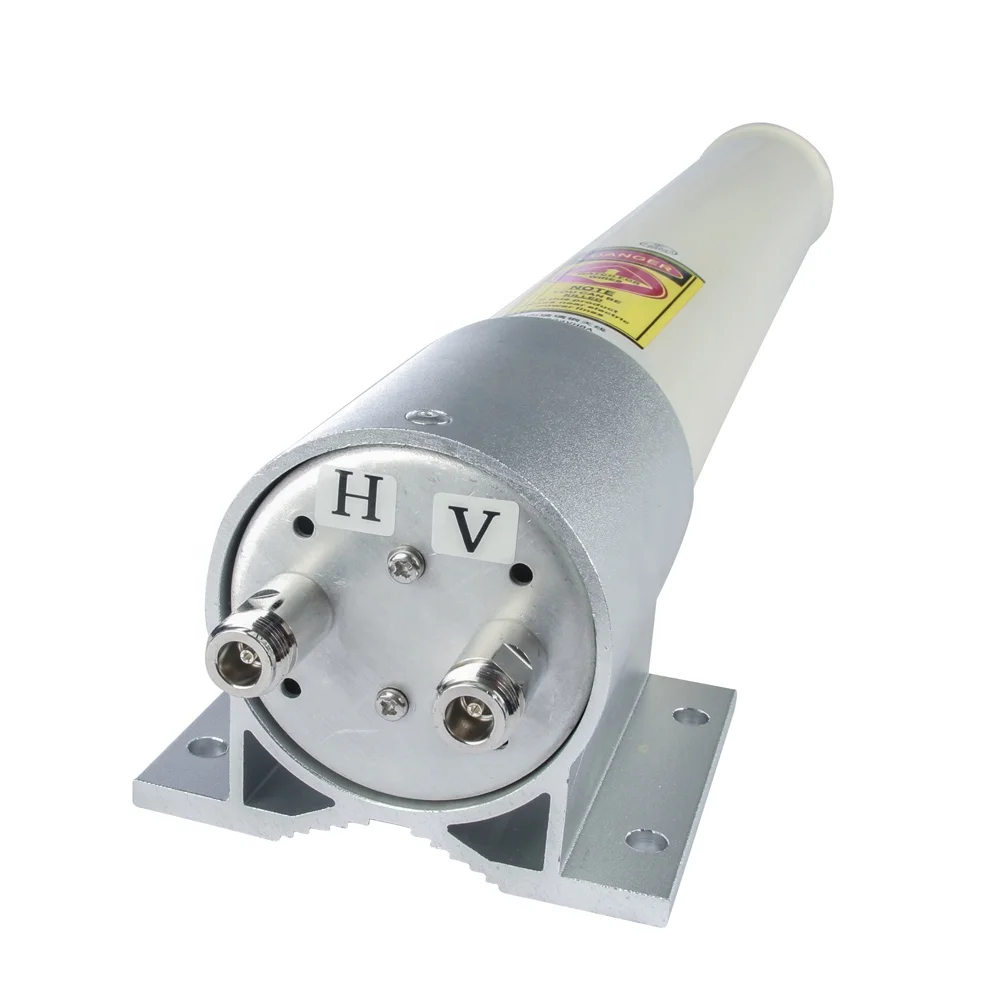

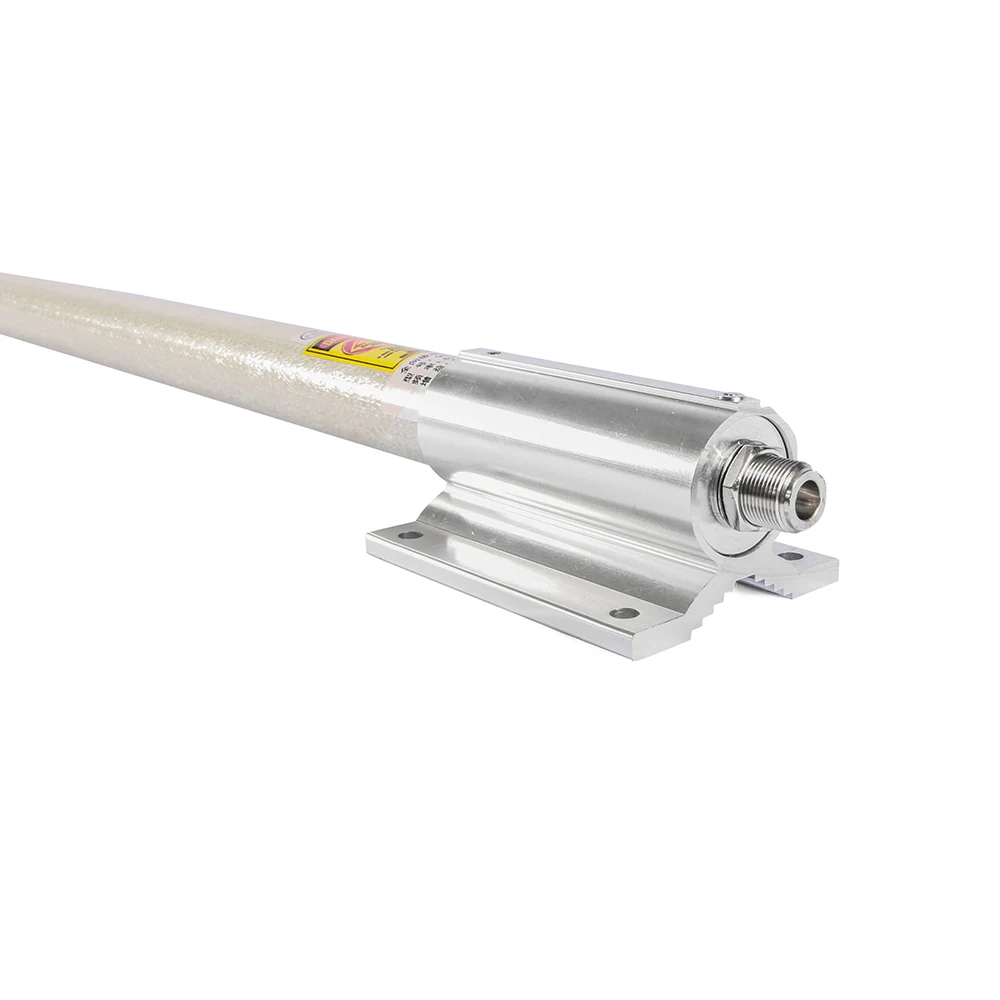

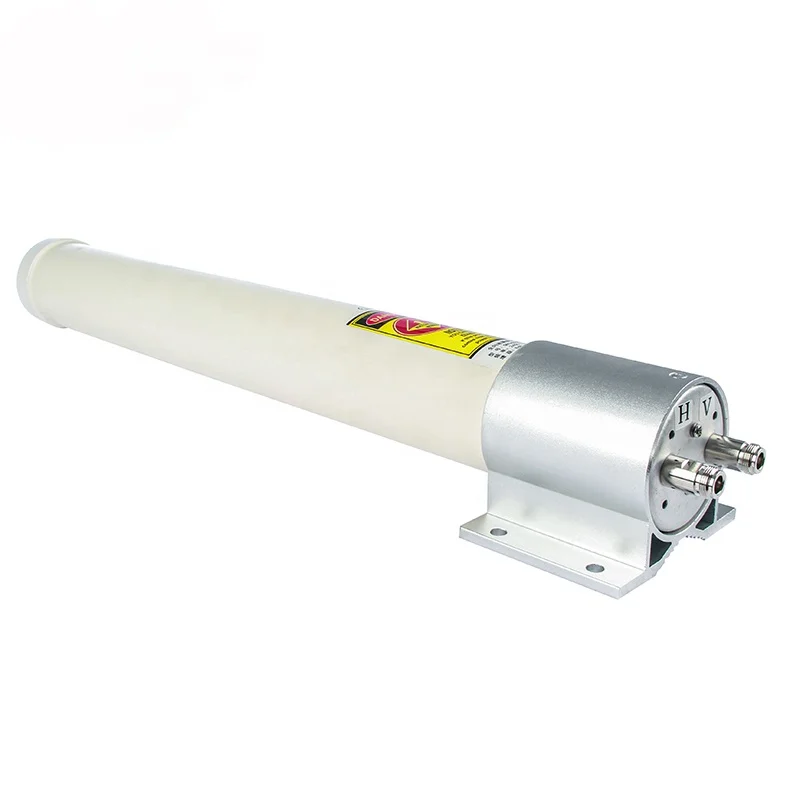

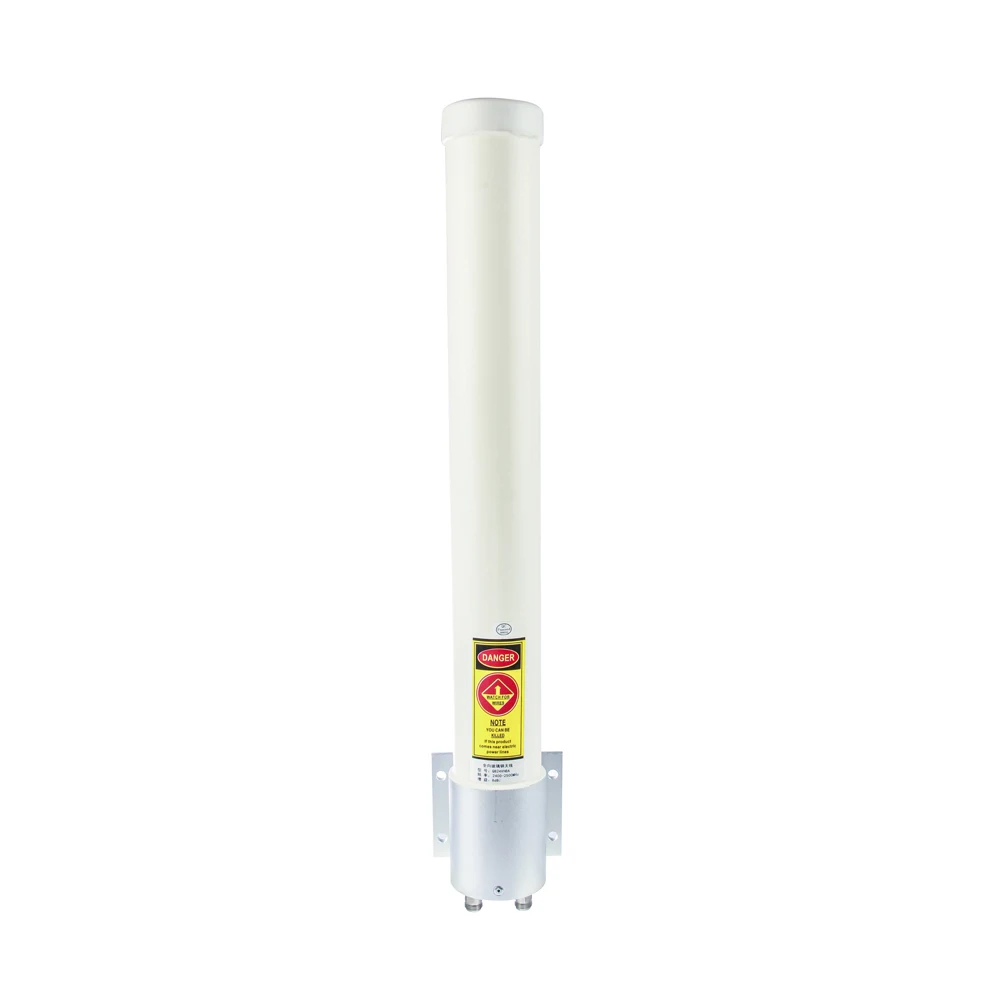

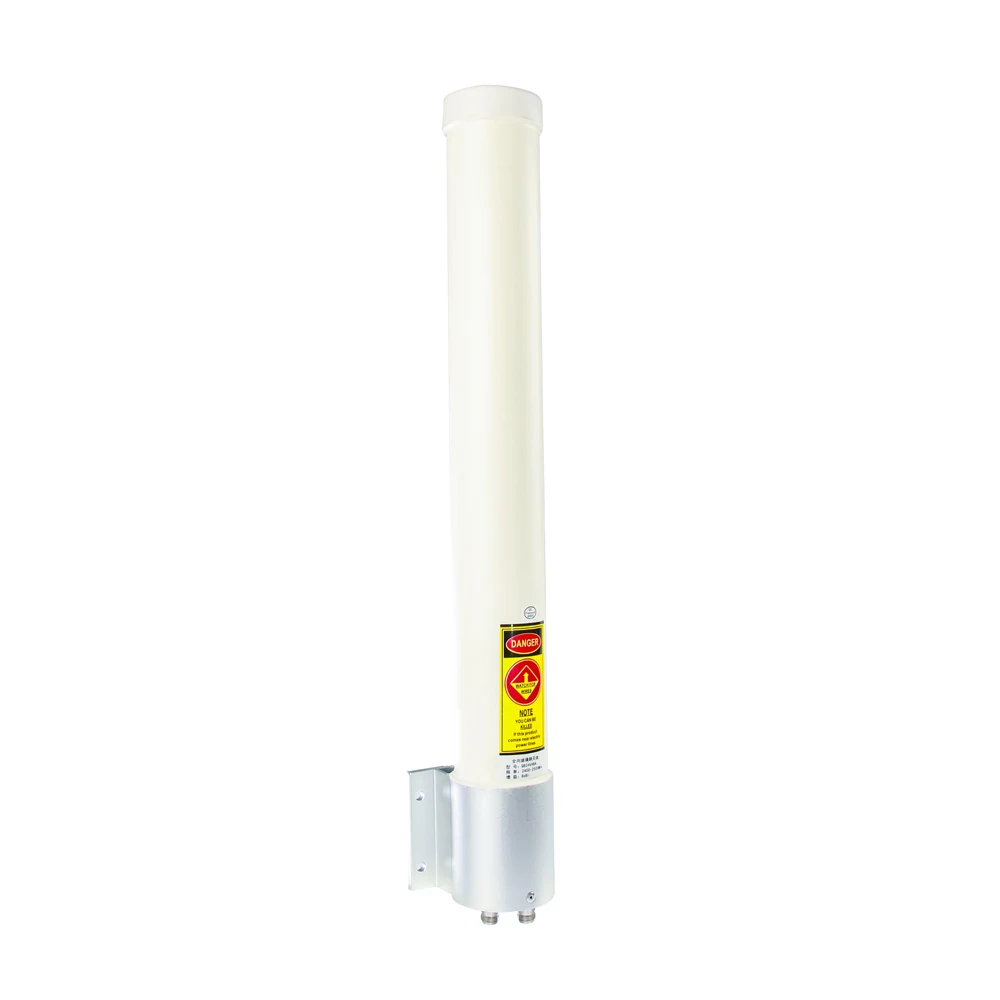

10dbi 2.4G 5.8G white cylinder waterproof 2 N connectors outdoor omni fiber-glass antenna
Click Here Back to Homepage<<<
Company Profile
Shenzhen Xinhonlai Technology Co.,Ltd ,is a National High-tech Enterprises, founded in 2015,belong to Yetnorson Group ,Focusing on all kinds of antenna with high quality and competitive price. The factory cover an area of 5000 square meters, has more than 200 employees and 20 R&D engineers .Our Main products including 5G Antenna ,5G Cable,4G Antenna,3G Antenna, RF Cable ,Car antenna ,TV Antenna and Connector and so on. OEM and ODM are welcome .
We have most advanced equipment includes: Microwave Anechoic Chamber, Frequency Analyzers, Network Analyzers, Digital TV tester, Large horizontal injection molding machines, &large vertical injection molding machines, CNC lathes, Automatic assembly line and so on. Our company has 36 product patent & 8 trademark ,also obtained many certifications, including ISO9001 quality system certification, ISO14001 environmental management system certification, FCC, CE and so on. We have a professional sales team, and our overseas cooperative customers include Tesla ,LG , Samsung and more than 1,000 others. We always pursue the spirit of innovation and excellence, and let Xinhonlai antenna to conduct the world, answer all direction.
Our excellent sales team are online 24hours,please contact us ! Thank you very much !
Professional equipment
Our team
certificate
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna. Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi,Frequency:315Mhz,433Mhz868Mhz,900Mhz,915Mhz1575.42mhz,2.4G,5.8G,RFID, WIFI, GPS, GSM,3G,4G,Outlook: Wall mount, Ceiling mount,Yagi,LPDA,Rubber,Patch,Panel,Magnetic.
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.
Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount
antenna, then we would charge you, and the shipping cost is paid by your side.
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount
antenna, then we would charge you, and the shipping cost is paid by your side.
