KEHE Evaporative Cooling Pad Production Line Cooling Pad Making Machine
Product Description
Description
General view of cooling pad production line. The production line covers an area of 200cbm.
Above is all the machines and process for cooling pads production .
This production line need total 5 workers and 1 group leader who control all production line.
The final output capacity of cooling pads is 60cbm per day with 24 hours, one tons paper can output 54/46cbm cooling pads.
This production line need total 5 workers and 1 group leader who control all production line.
The final output capacity of cooling pads is 60cbm per day with 24 hours, one tons paper can output 54/46cbm cooling pads.
item | value |
Applicable Industries | Cooling pad salers |
After Warranty Service | Video technical support, Online support |
Product Type | Cooling pad making machine |
Processing Type | Cutting Machine |
Voltage | 380V |
Power | 55Kw |
Dimension(L*W*H) | 200CBM |
Weight | 45TONS |
Certification | ce |
Production Capacity | 60cbm/days/24hours |
Core Components | Resin machine, Cutting machine, Corrugated paper forming machine, Gluing machine with lifter, Oven machine with press machine, Sawing machine, Electrical machine, Control box |
Name | Corrugated Paper Making Machine |
Product type | Paper Core Machine |
Processing type | Pulp Molding Machine |
Model | 5090/5060/7090 |
Production Capacity | 60cbm/24hours |
Control system | Control System |
Machine for | Cooling Pad Making Machine |
Raw material | Kraft Paper, Resin, Glue |
Total components | 8 machines |
Detailed Images

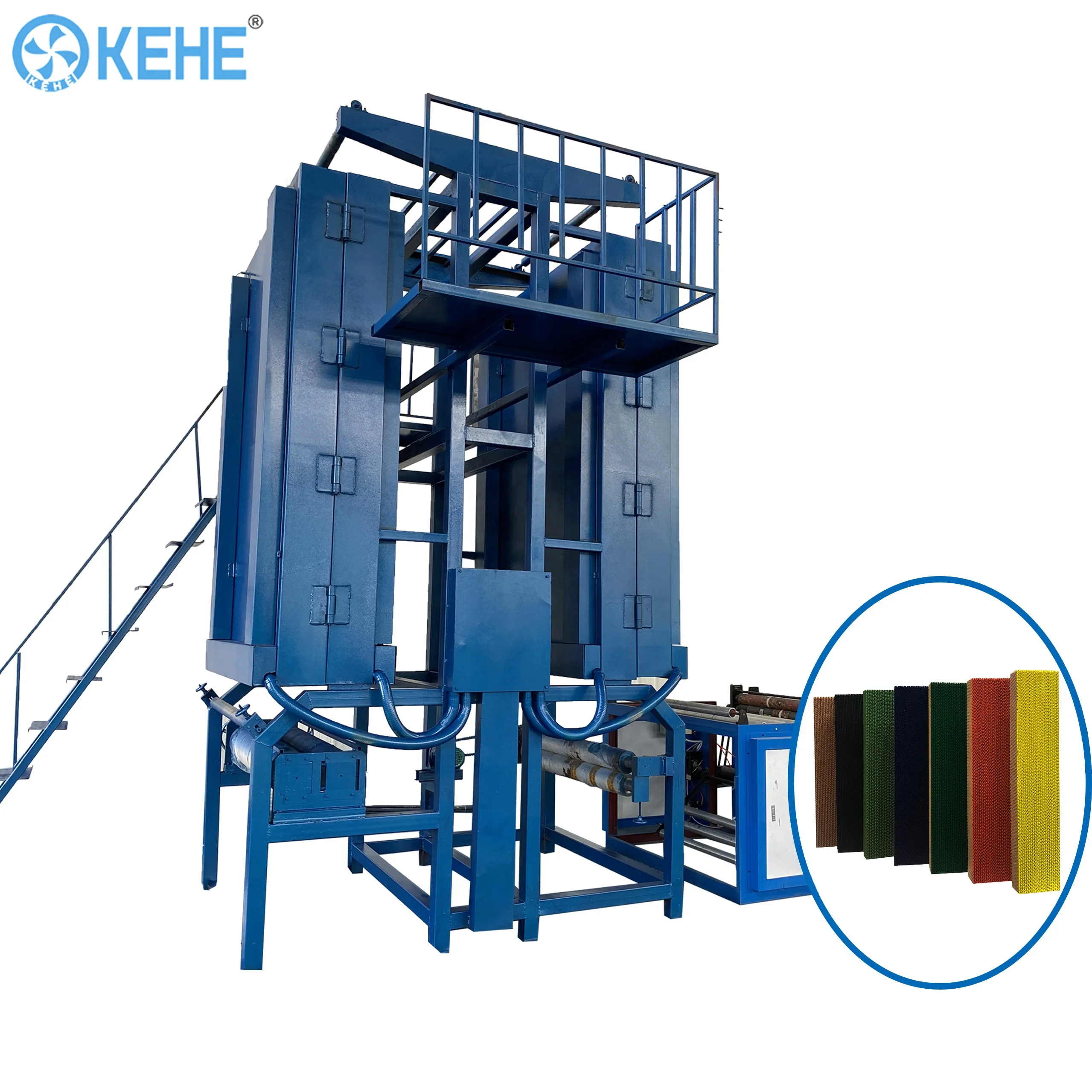

1.Resin Machine (156Kw, 380V,50Hz
)
- the first step machine to pour glue, and drying.
- used red glue,per cbm need 8kgs red glue.

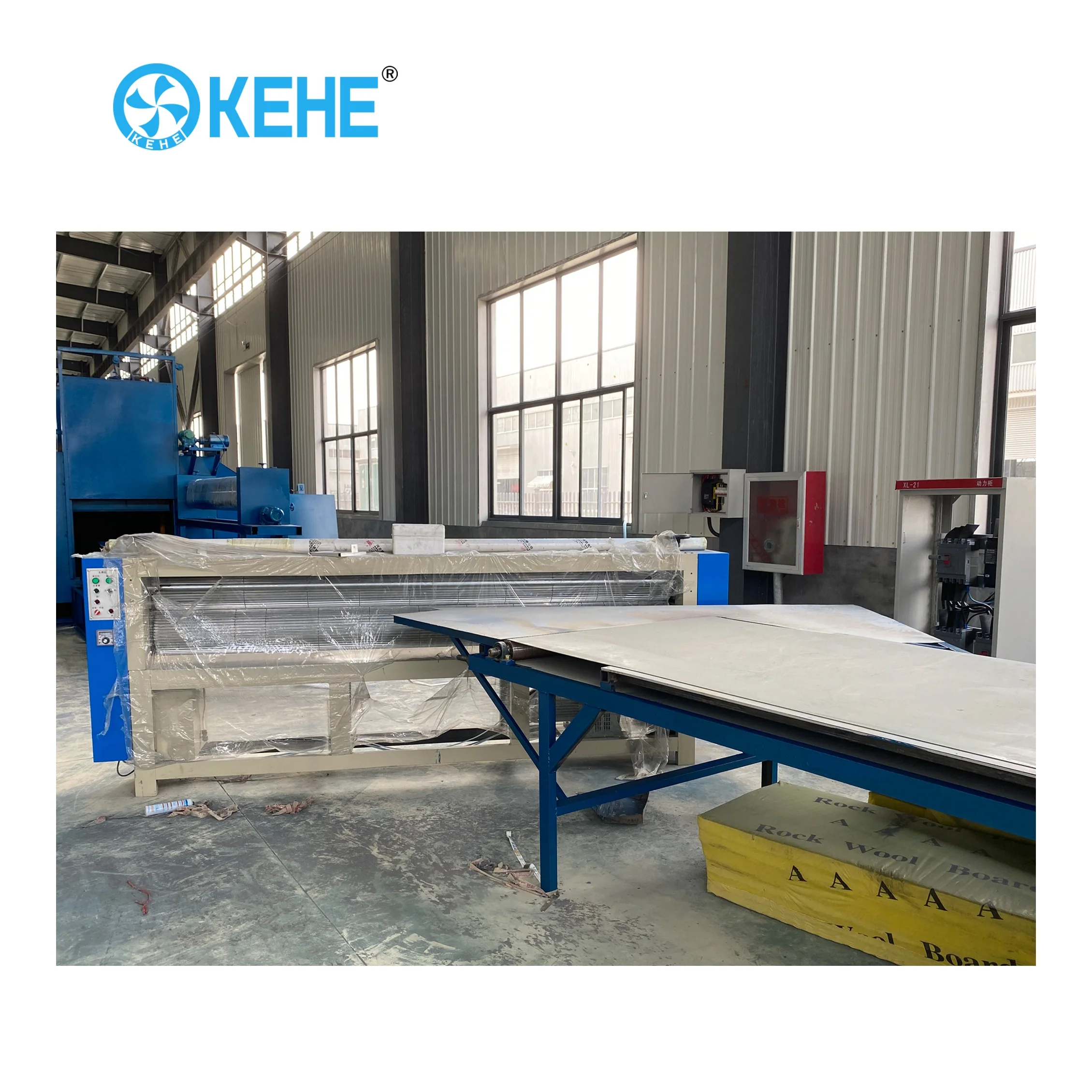

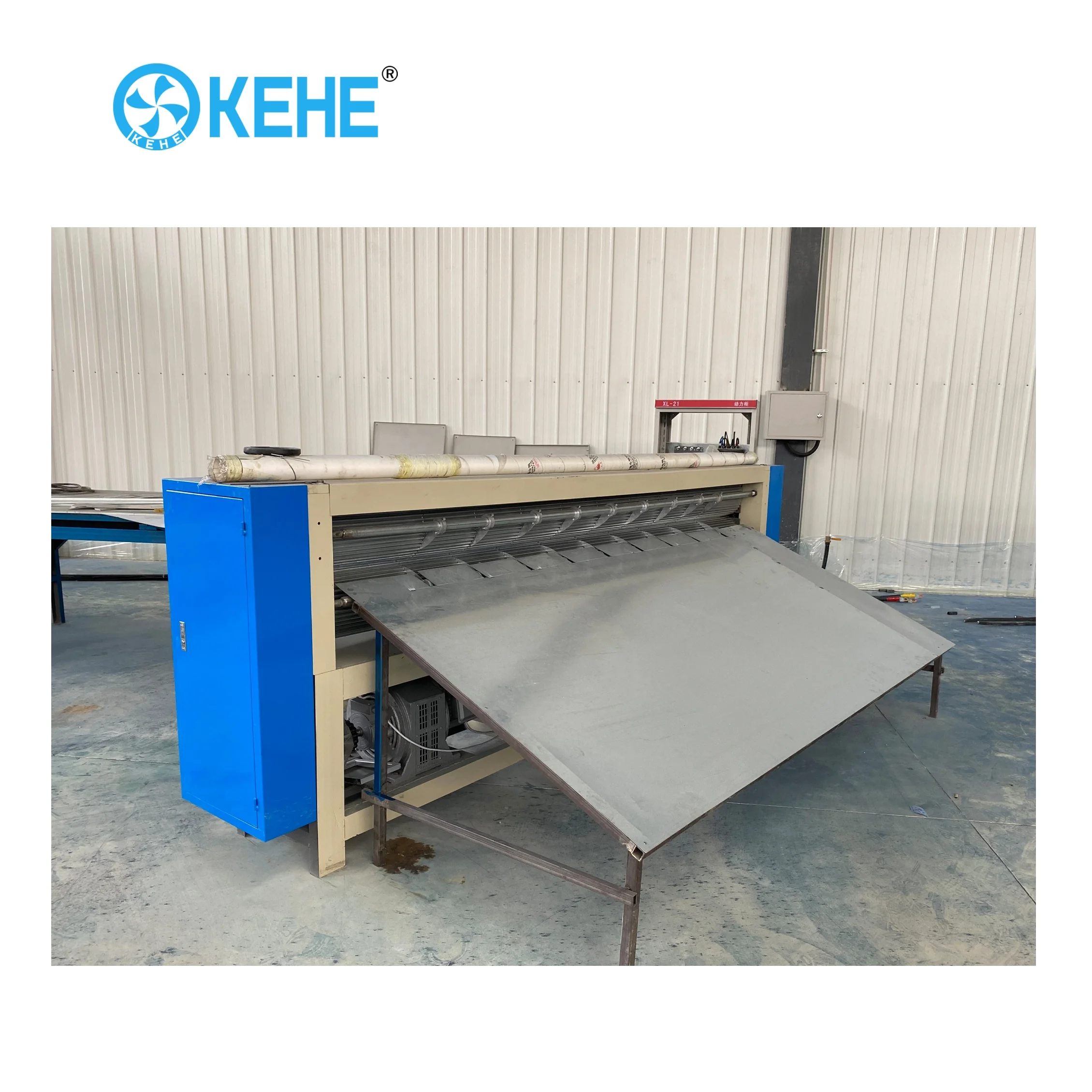

- the second step: to cut the paper.the paper width is about
1100/740mm
-automatictly cut after setting, could count how many picese of paper
numbers
-the third step: make the resined paper into corrugated shape
-then the paper width is about 1060/700mm.
-7090, 7060, 5090 model, different size, controller by this step.
- the fourth step : put the corrugating paper on white glue
- used white gule,per cbm need 10kgs white glue.
-the fifth step:the machine heat and dry the corrugated paper to make it solidifying.

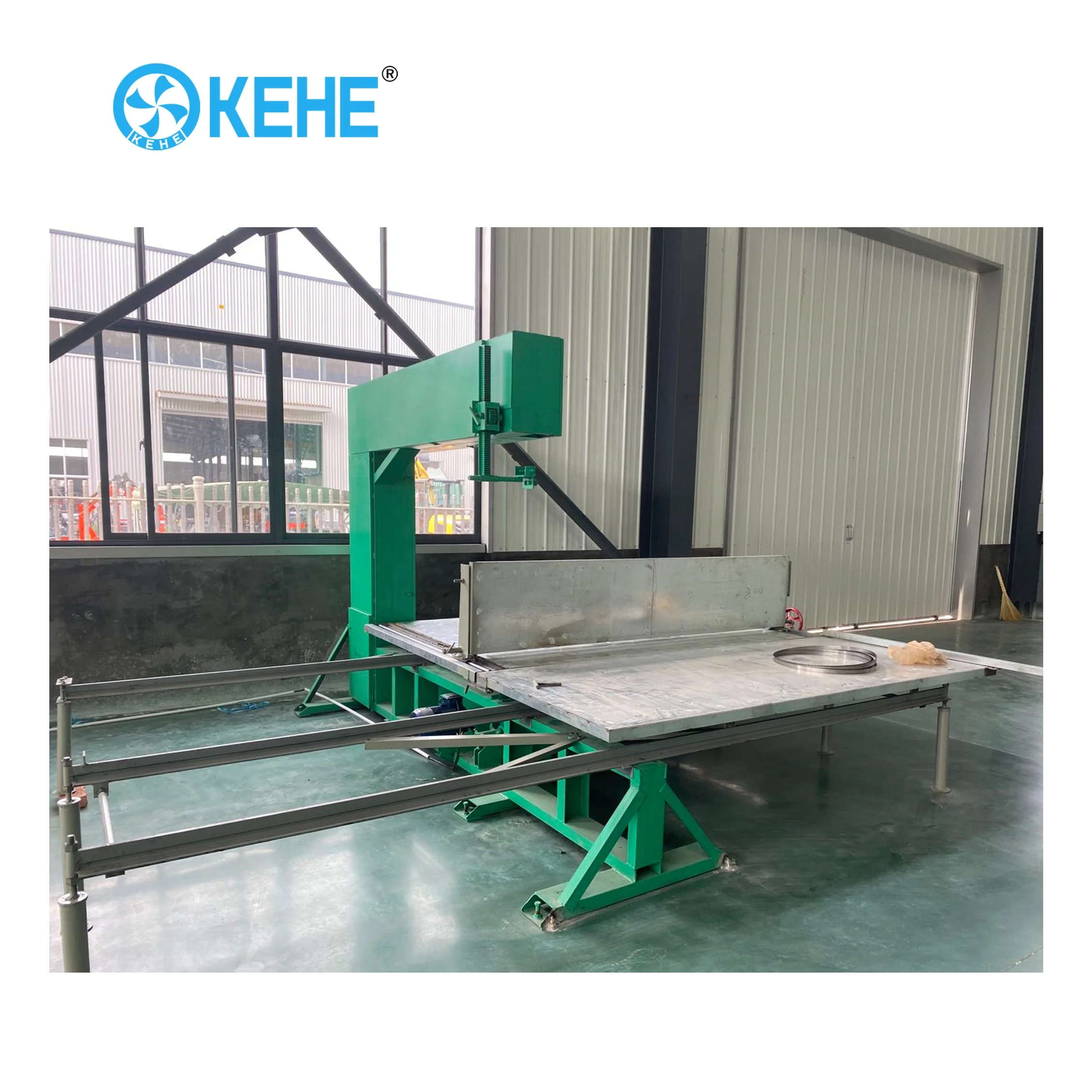

-the fifty step, cutting cooling pads block into required size.
-starndard size: 2000*600*150/100 1800*600*150/100
1500*600*150*100
7.Electrical Cabinet
8.Control Box
