Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Умный датчик температуры pt100
- Категория: Temperature Instruments >>>
- Поставщик: Baoji,Xingyuteng,Measure,And,Control,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 9.25 $* | 9.33 $* |
| Jul-20-2025 | 7.69 $* | 7.31 $* |
| Jun-20-2025 | 9.35 $* | 9.84 $* |
| May-20-2025 | 9.54 $* | 9.39 $* |
| Apr-20-2025 | 7.27 $* | 7.48 $* |
| Mar-20-2025 | 9.30 $* | 9.63 $* |
| Feb-20-2025 | 8.10 $* | 8.2 $* |
| Jan-20-2025 | 8.24 $* | 8.17 $* |
Характеристики
Product Description

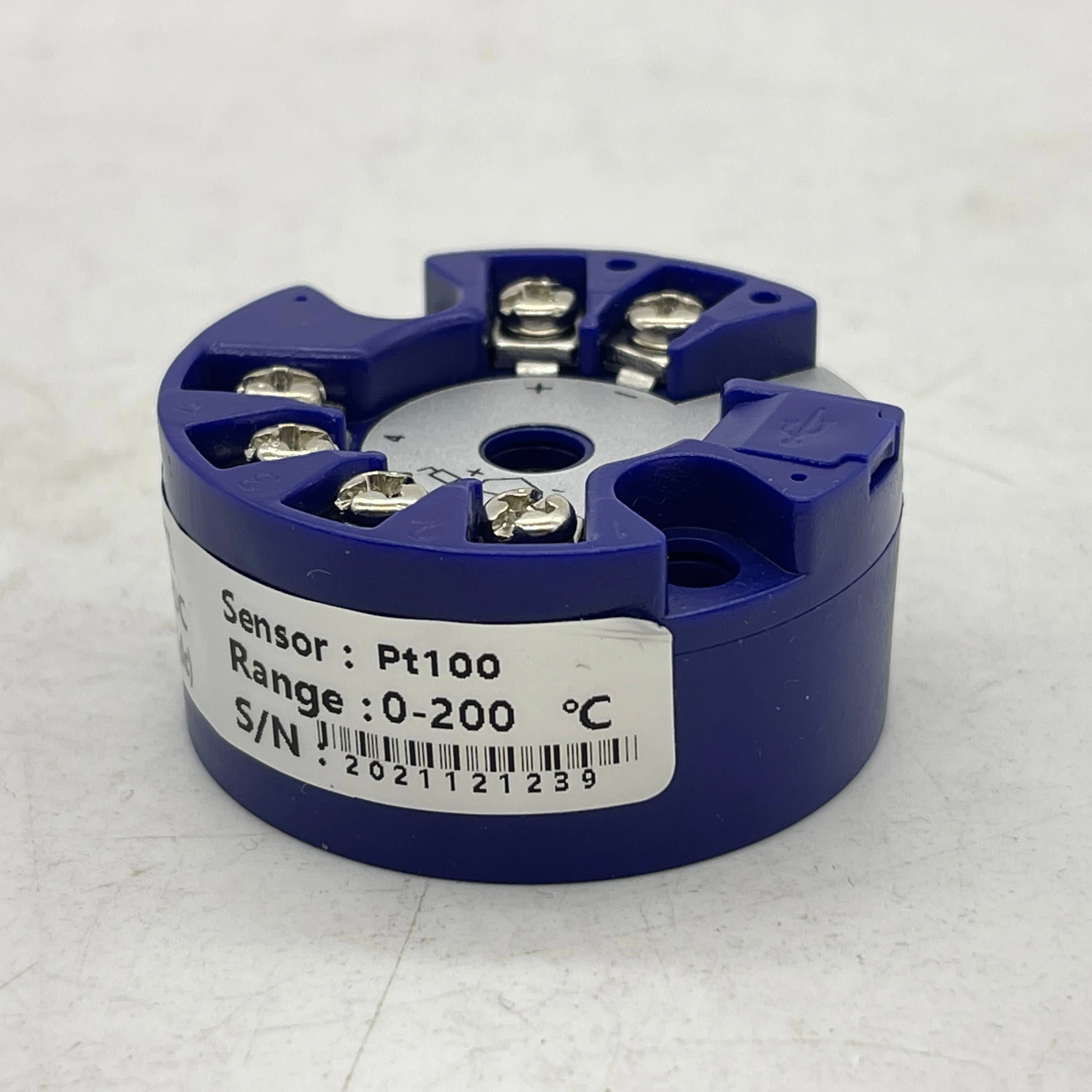

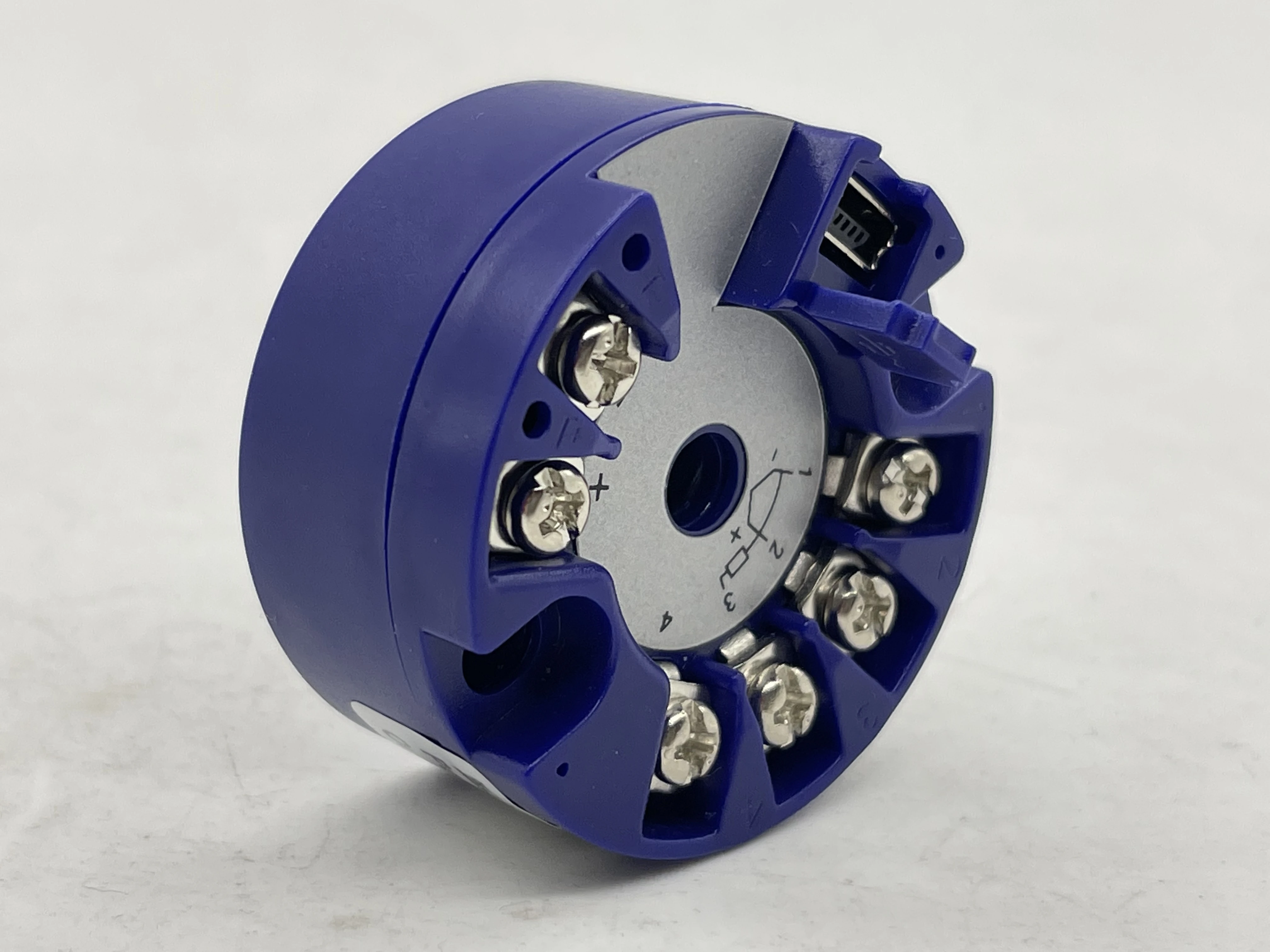

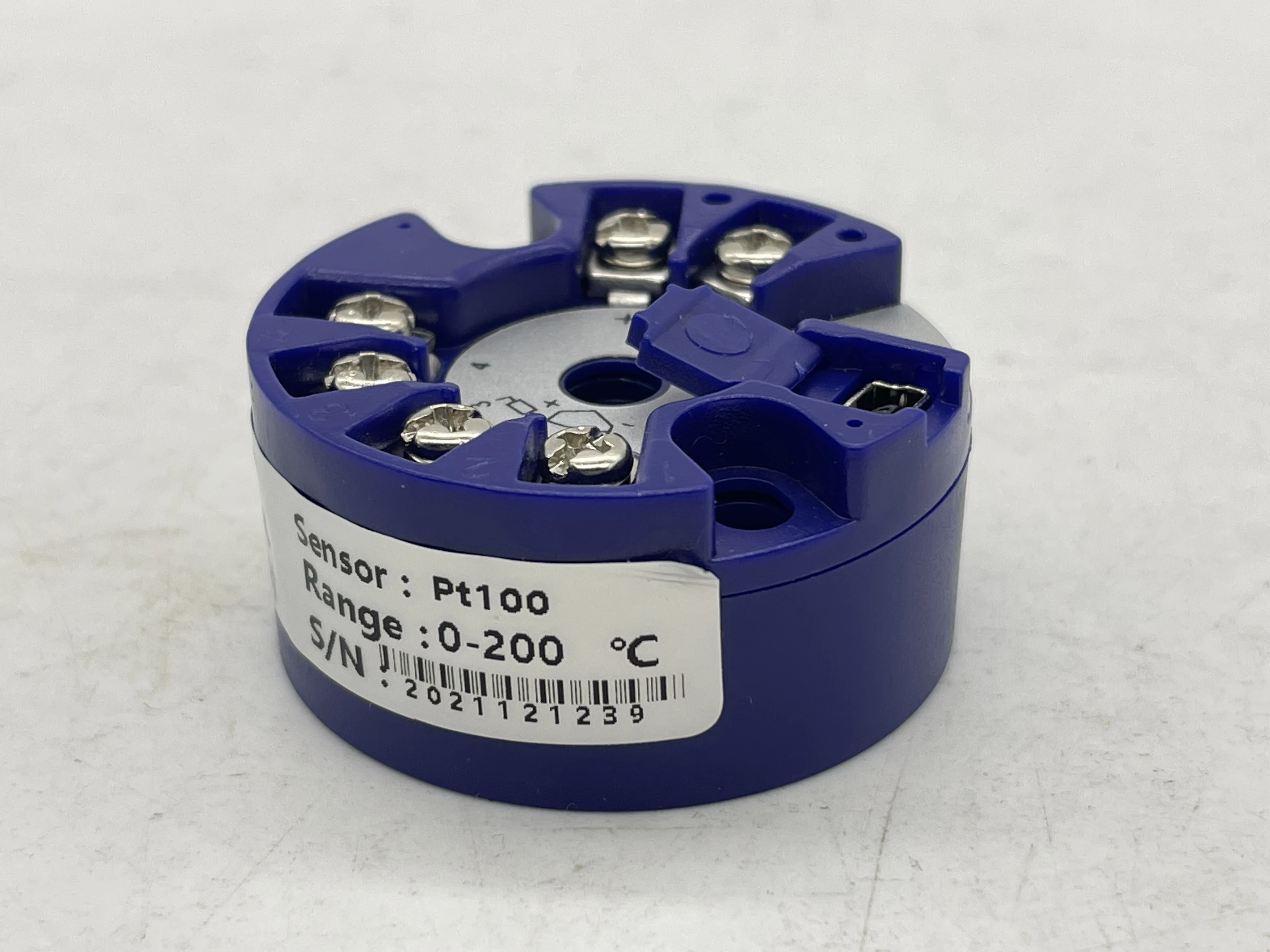

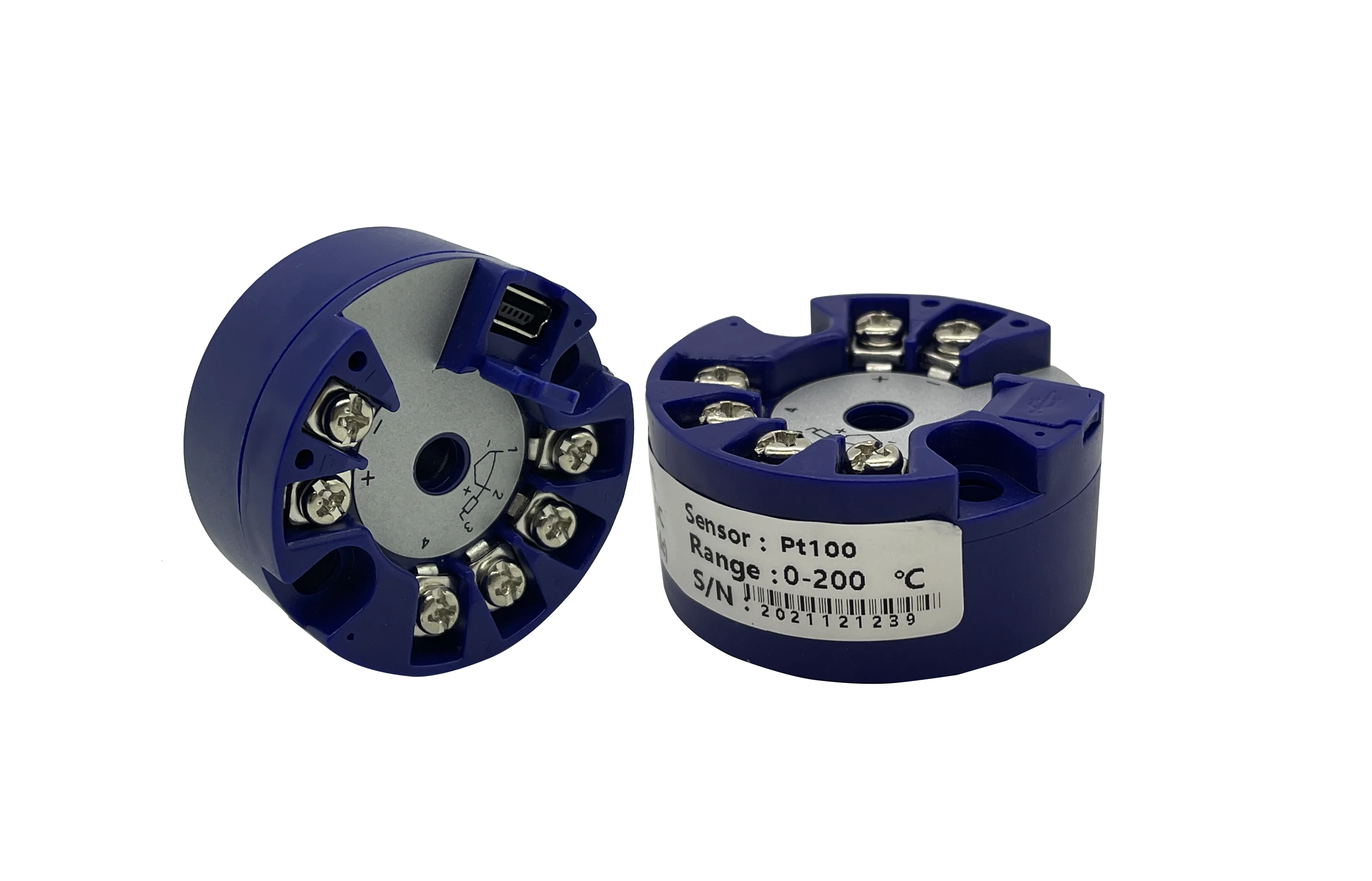

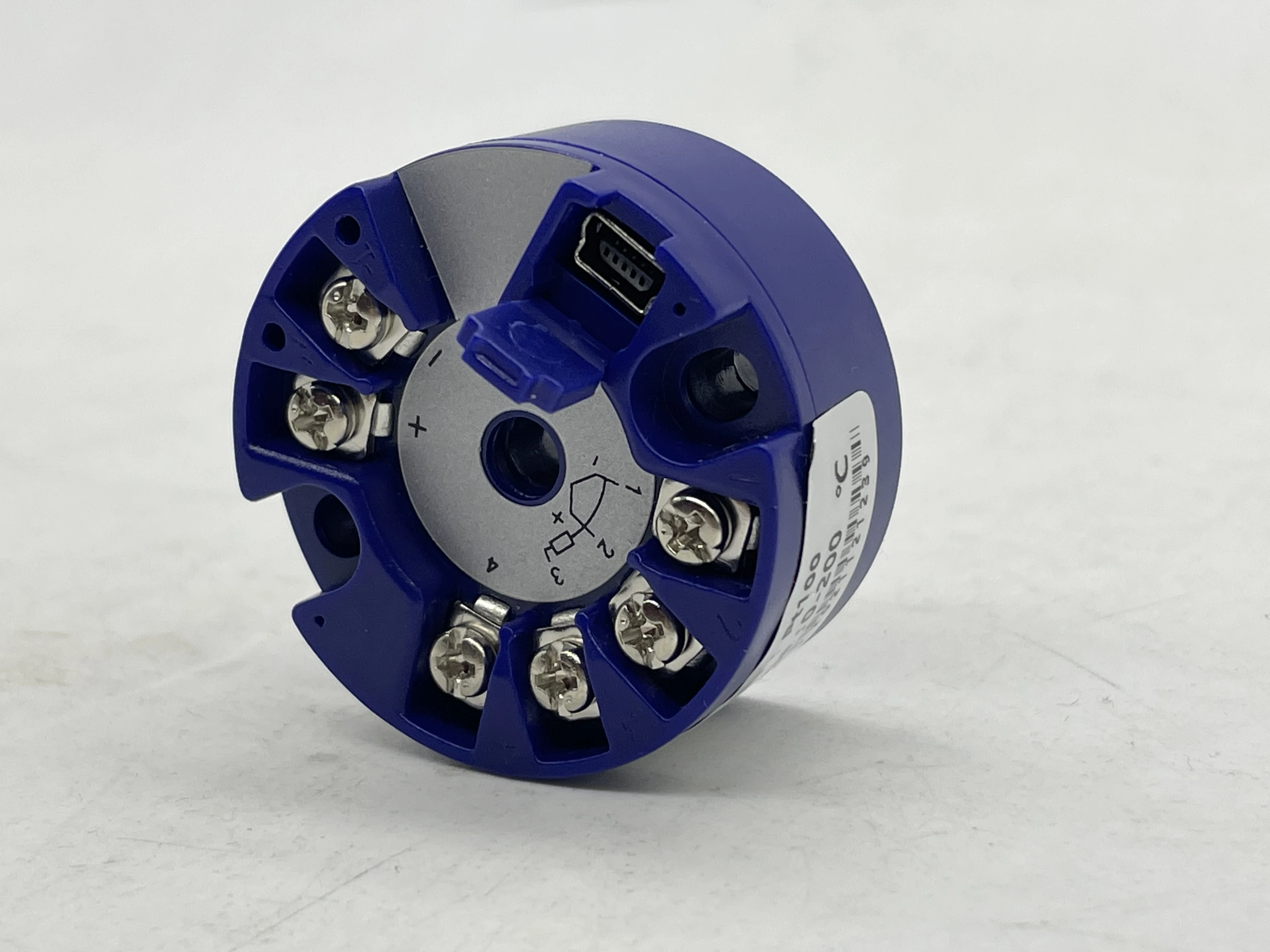

Universal head mounted type temperature transmitter
The intelligent temperature transmitter (round card) is used for the input of thermal resistance (RTD) and thermocouple (TC) signals and the output of 2-wire 4-20ma analog system. It is installed inside the sensor
Specification
Enter | ||
input signal | Thermal resistance (RTD), thermocouple (TC) | |
Cold junction compensation range | -20～60℃ | |
Compensation accuracy | ±1℃ | |
Output | ||
output signal | 4～20mA/Hart | |
Load Resistance | RL≤(Ue-12)/0.021 | |
Upper and Lower limit overflow alarm output current | IH=21mA、IL=3.8mA | |
Power supply | ||
Supply voltage | DC12～40V | |
Other parameters | ||
Temperature drift | 0.02%FS/℃ | |
Response time | 1s reaches 90% of final value | |
Working temperature | -40～80℃ | |
Stored temperature | -40～100℃ | |
Shock resistance | 4g/2～150Hz | |
installation angle | Unlimited | |
Installation area | b-type top box mounting | |
Electromagnetic | Meet the requirements of gb / t18268 industrial equipment | |
Company Profile
Certifications
CNEX CERTIFICATE: Explosion-Proof Certificate
IAF: Management System Certification
FAQ
Shockproof Packing
Plastic foam and plastic bag
Outer Packing
Carton
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
