Type tc cable 600v sunlight resistant PVC jacket ul 1277 listed

Type tc cable with ul listed thhn cts pe UL1277 PVC jacket

APPLICATIONS

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations

SPECIFICATIONS

Type TC Control Cable meets or exceeds the applicable requirements of the following standards and

specifications:

• ASTM - (All applicable standards)
• UL 1277 Electrical Power and Control Tray Cables
• NFPA 70 (NEC)
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2

CONSTRUCTION

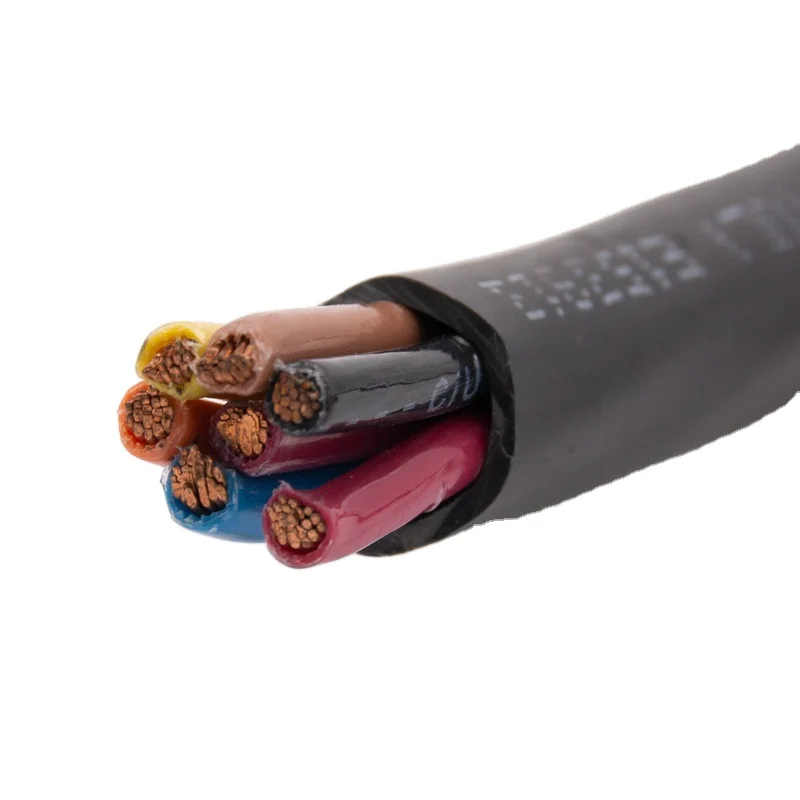

Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG .Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.
