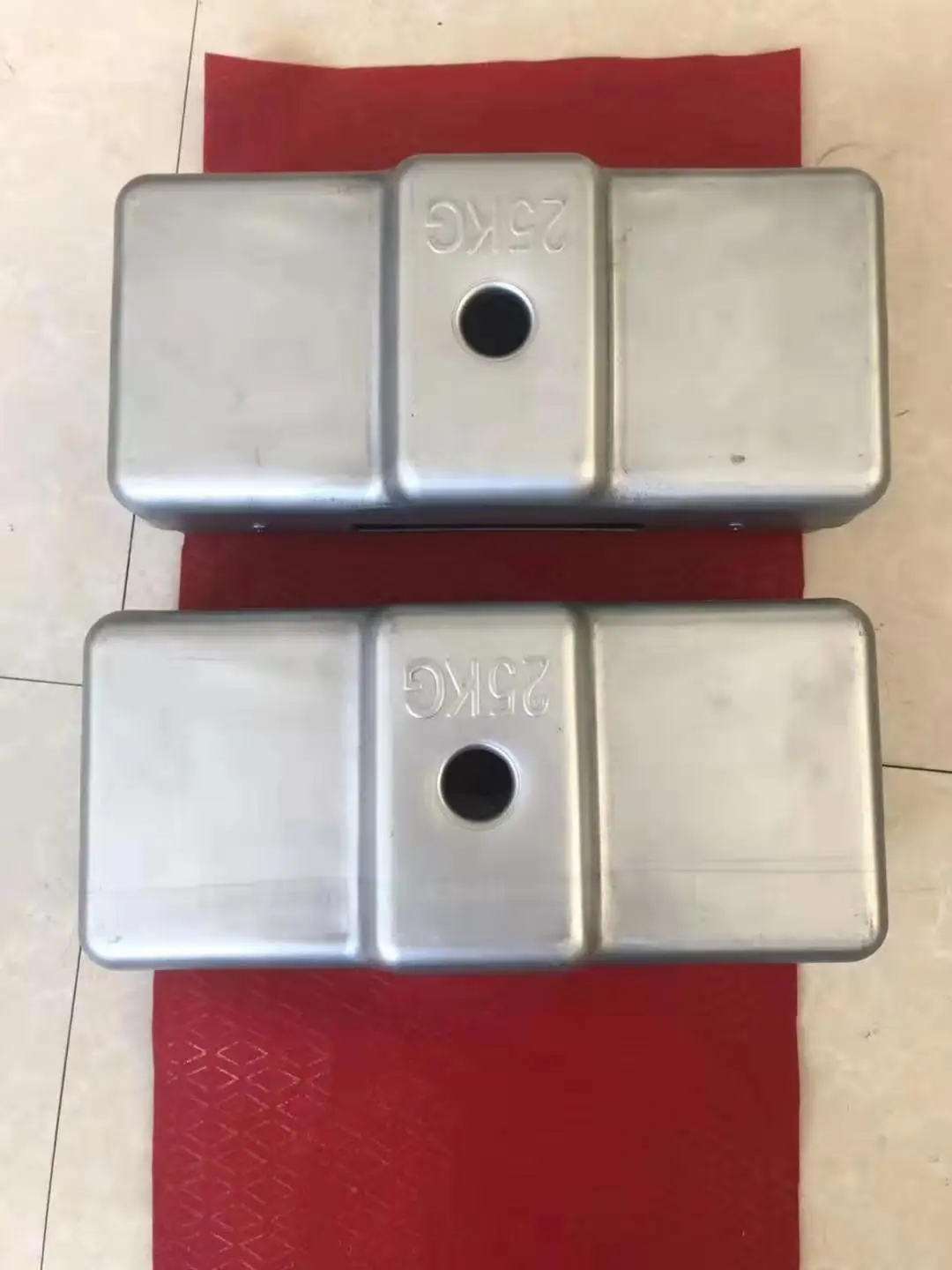

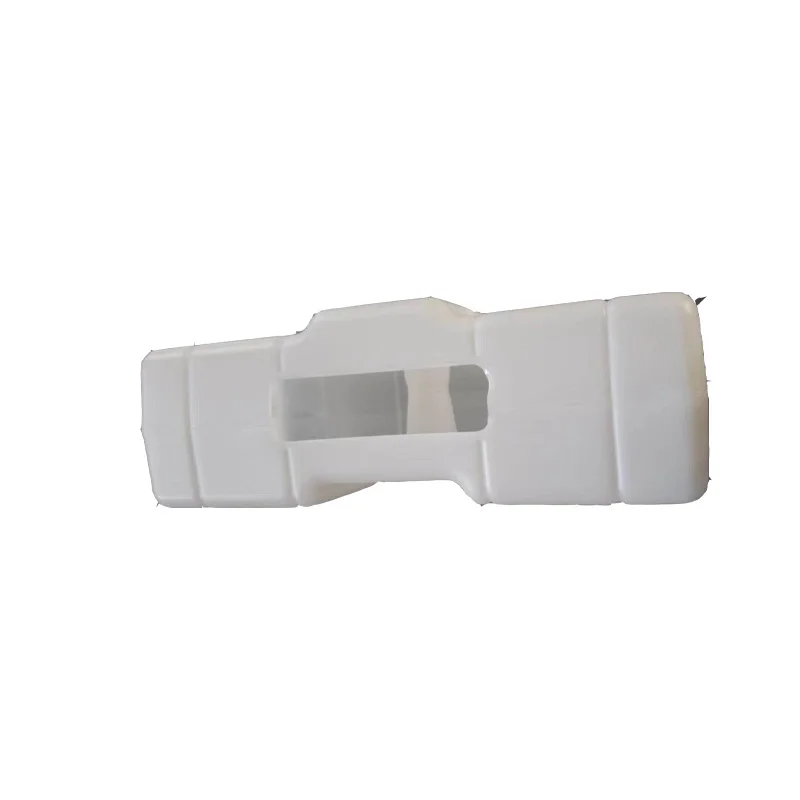

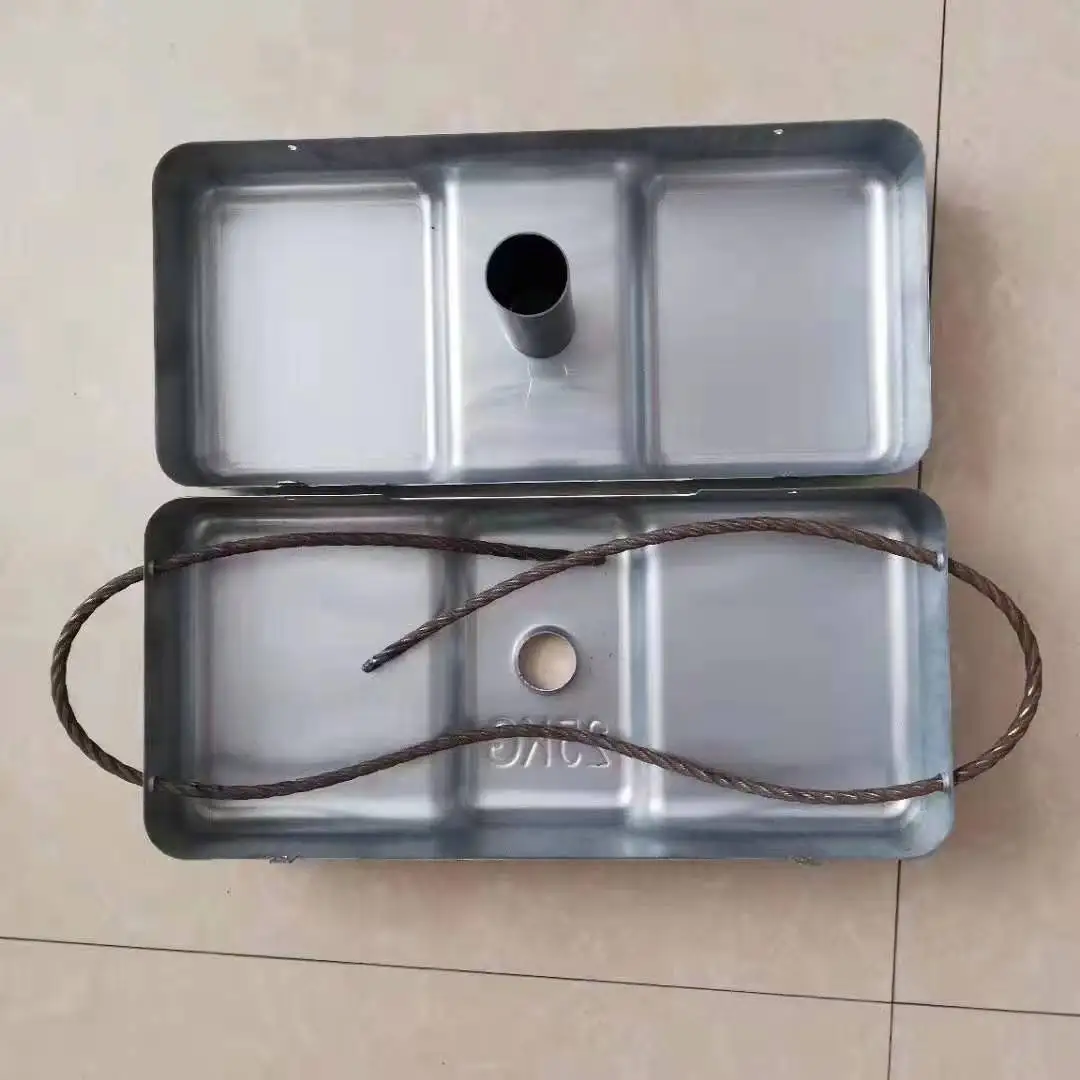

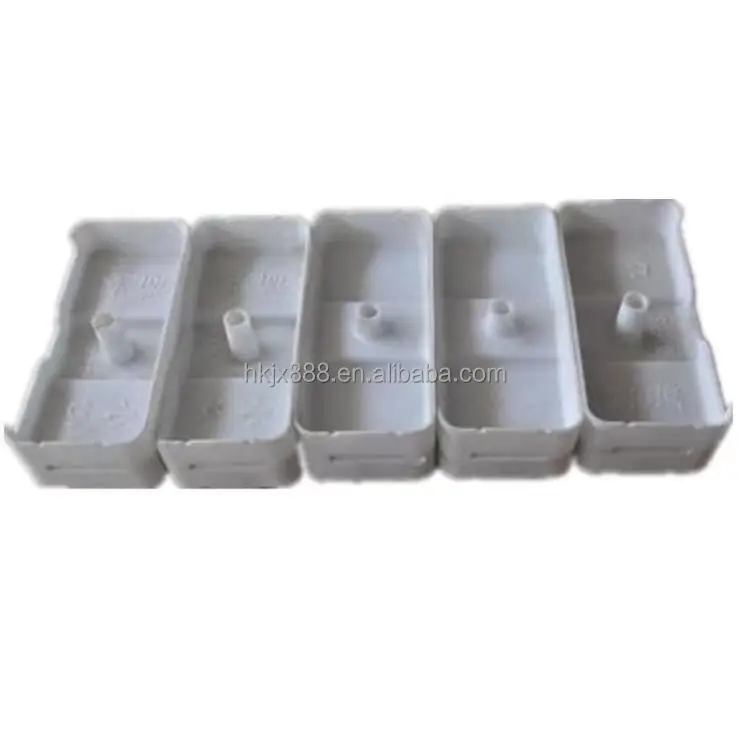

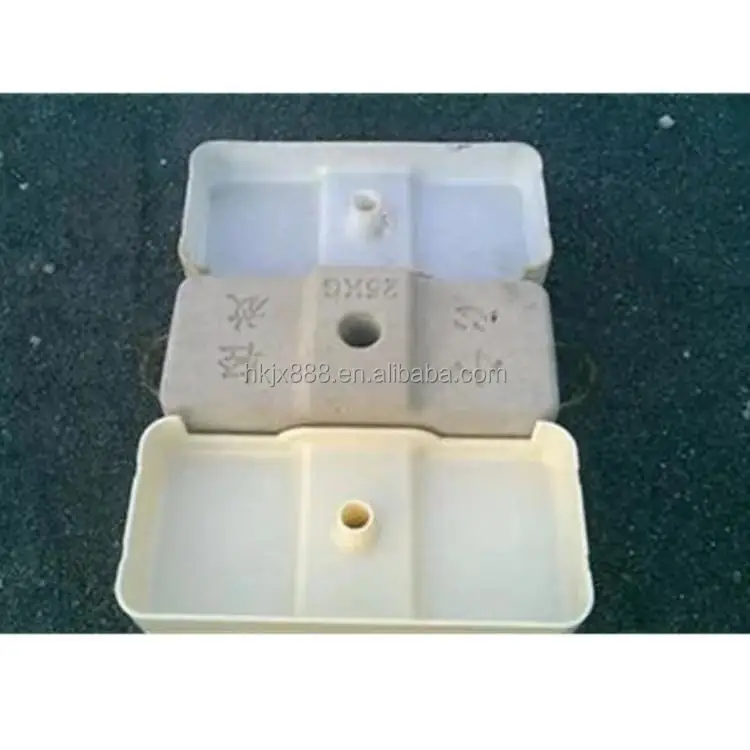

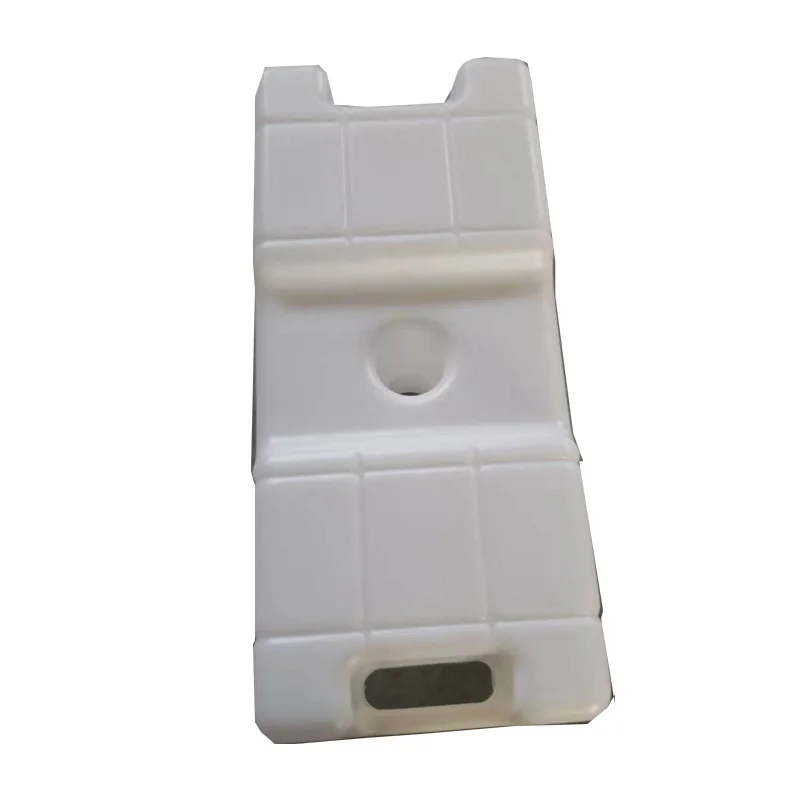

Shandong haoke бетонная прокладка пластиковая пресс-форма для подвесная платформа балансировочный груз из двух предметов
- Категория: Work Platforms >>>
- Поставщик: Shandong,Haoke,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.93 $* | 0.20 $* |
| Aug-17-2025 | 0.4 $* | 0.26 $* |
| Jul-17-2025 | 0.3 $* | 0.74 $* |
| Jun-17-2025 | 0.69 $* | 0.10 $* |
| May-17-2025 | 0.74 $* | 0.44 $* |
| Apr-17-2025 | 0.61 $* | 0.31 $* |
| Mar-17-2025 | 0.38 $* | 0.81 $* |
| Feb-17-2025 | 0.5 $* | 0.89 $* |
| Jan-17-2025 | 0.91 $* | 0.55 $* |
Характеристики
Product Description
Parameter:
Property Model No. | ZLP630 | ZLP800 | ZLP1000 | |
Rated load(kg) | 630 | 800 | 1000 | |
Lifting speed(m/min) | 9~11 | 8~10 | 8~10 | |
Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
Brake torque(Km) | 16 | 16 | 16 | |
Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | |
Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | |
Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | |
Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack |
| Nr.Of platform | 3 | 3 | 3 |
| L×W×H(mm) | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 |
| Weight(kg) | 375 Kg | 410 Kg | 455kg |
Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
Counterweight(kg) optional | 25×36pcs | 25×40pcs | 25×44pcs | |
Diameter of steel rope(mm) | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
Max Lifting height(m) | 300 | 300 | 300 | |
Motor rotation speed(r/min) | 1420 | 1420 | 1420 | |
Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
The Height of the platform can be adjusted within 1150-1800mm with arm which can be stretched out and drawn back.It can be widely used parapet and complicated building in different height.And we can also supply customized platform to meet different requirement from the customers .
Advantage:
Company Information
Shandong Haoke Machinery Equipment Co., Ltd. is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspensed working platform and other various kinds of construction equipments. We are located in Shandong Gaotang county of China that is a famous hometown of painting and calligraphy, which with very convenient transportation and logistics between South and North of China . Our main products include ZLP series of temporarily installed suspended access equipment as well as the supporting facility such as hoist, safety lock, switch box, suspension mechanism, working platform and other components.
Haoke brand suspensed working platform with advanced design, excellent material, precise production, leading quality which can be used widely instead of the traditional scaffold for exterior wall construction, decoration, cleaning and maintaince of high-rise buildings. It also used in install and maintaince for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding and maintaince, as well as the inspection and maintaince of large tanks, chimney stalk, reservoir dam, bridge and so on. Haoke make the most comprehensive models and specifications of suspensed working platforms which with most wide range of applications in China.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year warranty
* Any questions contact with me i'm always here to help you. Adding me Whatsapp:+86 15206649412.
Packaging & Shipping
Container or Iron pallet. Also as your request.
Advantages
1. Professional quality: we have 9 years experience of making suspended working platforms in China.
2. Competitive price: we can do you a favor based on our factory status especially for big quantity.
3. Fast delivery: our monthly stock more than 1000 sets.
4. Considerate service: our excellent sales team keep the whole day email contact and 24 hours TradeManager online. Engineers keep prompt reply
for any questions.
5. We can customized the platform including parts according to your requirements.
FAQ
1).Q: Can I buy only 1 set?
A: Yes, MOQ is 1 set.More quantity, more discount.
2).Q: How to pay?
A: T/T, West Union, Paypal is availible.30% for deposit,70% for balance.
3.Q: How to delivery?
A: By sea, by air or by express also as your request.
4).Q: How long is the delivery time?
A: About 7 days on receipt of your payment.
5).Q: I have some design, can you make it for me?
A: Customized service is available, including length, shape, color, design, depends on your idea.
Any questions contact with me i'm always here to help you. Adding me Whatsapp:+86 15206649412
