Best Price Nova NovaStar LED Screen All-in-One Controller Video

Описание и отзывы

Трекер стоимости

Характеристики

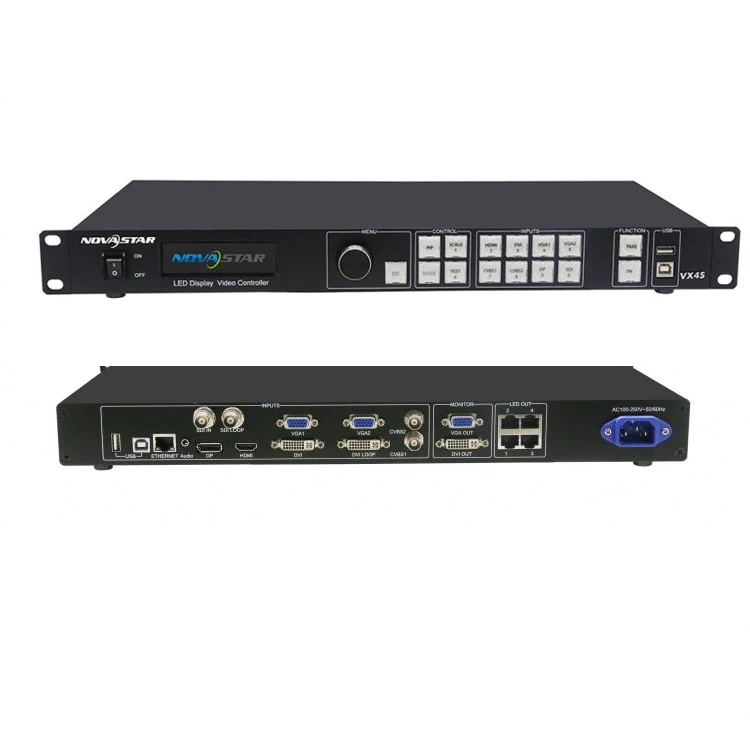

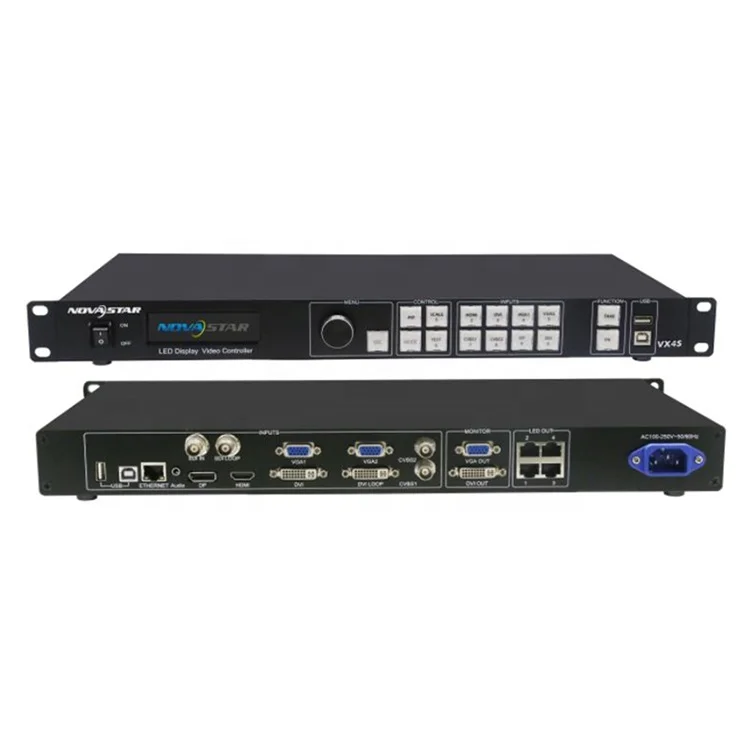

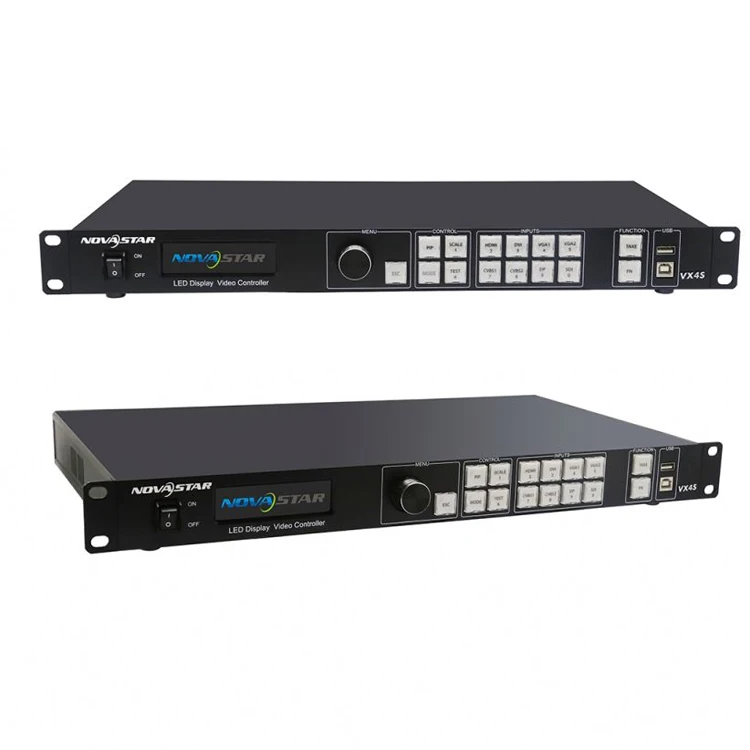

The VX4S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX4S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX4S.

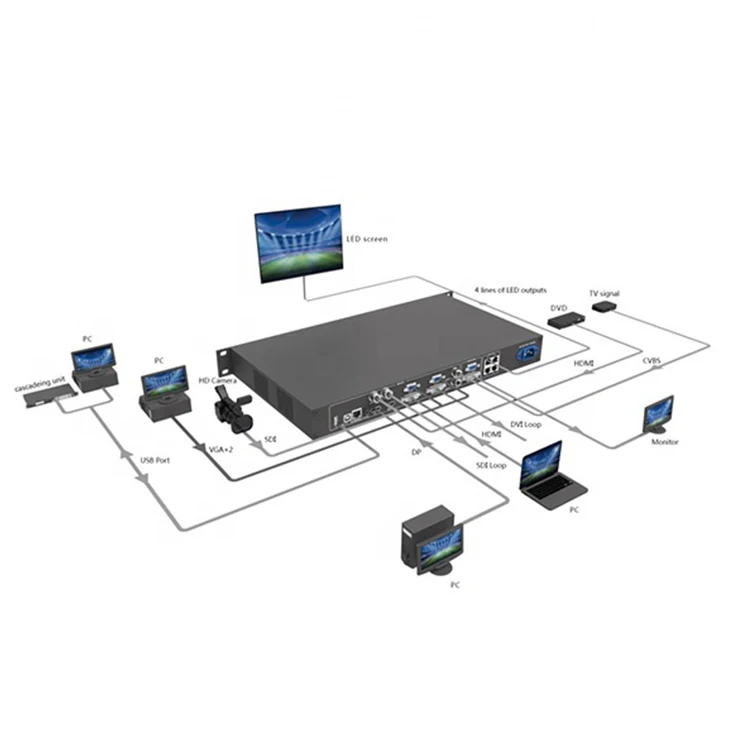

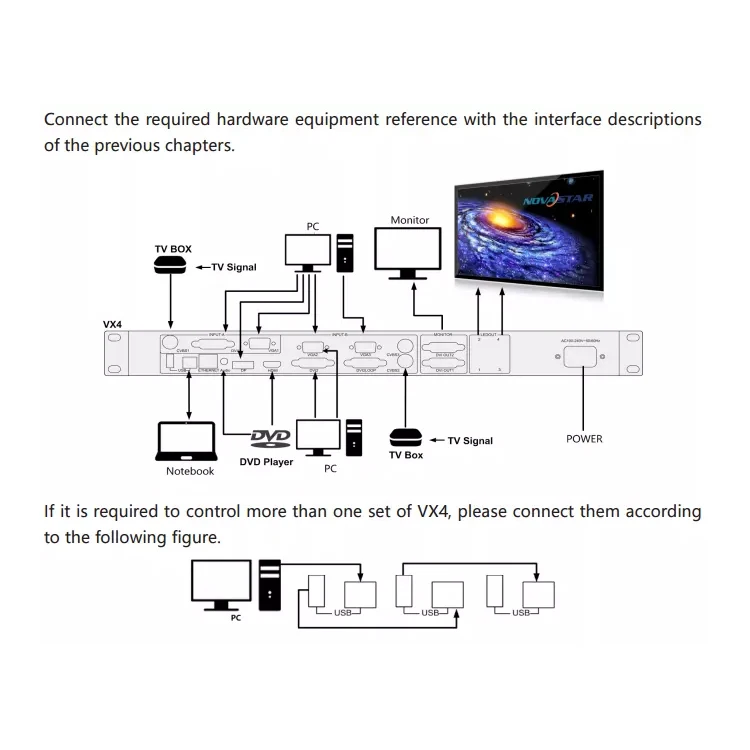

Input Index
Port	Number	Resolution Specification
CVBS	2	PAL/NTSC
VGA	2	VESA Standard, support max. 1920×1200@60Hz input
DVI	1	VESA Standard (support 1080i input), support HDCP
SDI	1	480i,576i,720P,1080i/P
HDMI	1	EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP
DP	1	VESA Standard

Output Index
Port	Number	Resolution Specification
DVI LOOP	1	Consistent with DVI input
VGA	1	Monitoring output connector Up to 1920×1200@60Hz output resolution
DVI	1
SDI LOOP	1	Consistent with SDI input
LED OUT	4	4 Gigabit Ethernet outputs. Only Ethernet port 1 supports audio output. When the multifunction card is connected for audio decoding, the multifunction card must be connected to the Ethernet port 1.

Specification of complete machine
Input Power	AC100~240VAC,50/60Hz
Overall Power Consumption	25W
Operating Temperature	-20~60℃

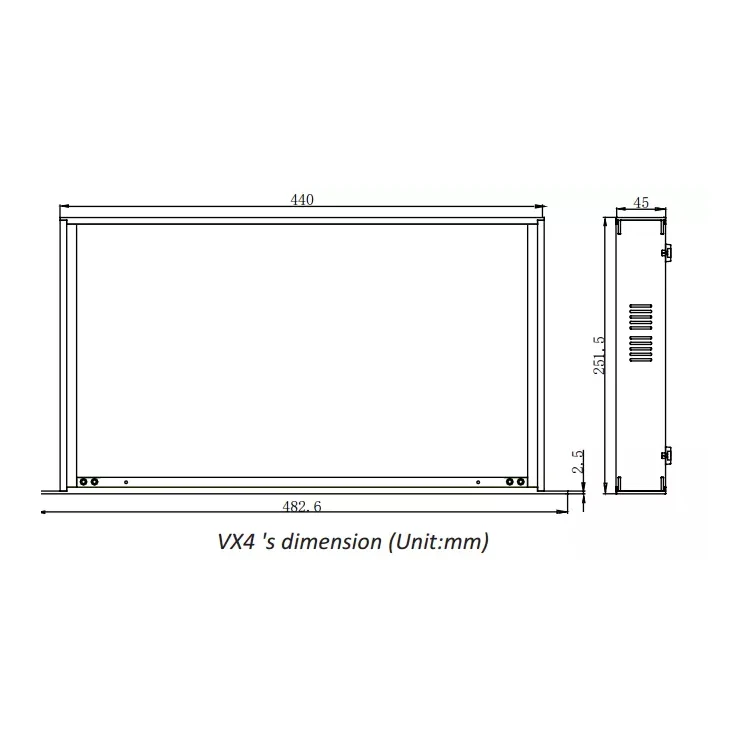

Size	482.6×251.5×45(mm)
Weight	2.55 Kg









Q1:Wonder if you accept small orders?
A1:Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2:Can you send products to my country?
A2:Sure,we can.If you do not have your own ship forwarder, we can help you.



Q3:Can you do OEM for me?
A3: We accept all OEM orders, just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms?
A4: By T/T,LC AT SIGHT,30% deposit in advance,b alance 70% before shipment.



Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.



Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
