500л 1000л 1500л 2000л полимерная заготовка устройство растворителя химическая дозирующая
- Категория: Water Treatment Machinery >>>
- Поставщик: Wuxi,Dajiang,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1785.5 $* | 1874.98 $* |
| Aug-17-2025 | 1770.75 $* | 1859.45 $* |
| Jul-17-2025 | 1485.5 $* | 1559.93 $* |
| Jun-17-2025 | 1740.38 $* | 1827.79 $* |
| May-17-2025 | 1515.22 $* | 1591.94 $* |
| Apr-17-2025 | 1710.97 $* | 1796.34 $* |
| Mar-17-2025 | 1695.69 $* | 1780.64 $* |
| Feb-17-2025 | 1680.90 $* | 1764.64 $* |
| Jan-17-2025 | 1665.80 $* | 1748.3 $* |
Характеристики
SUS304 SUS316 Polymer Preparation Unit Electrochemical Coagulant Dosing Pam Make Up Systems Flooding

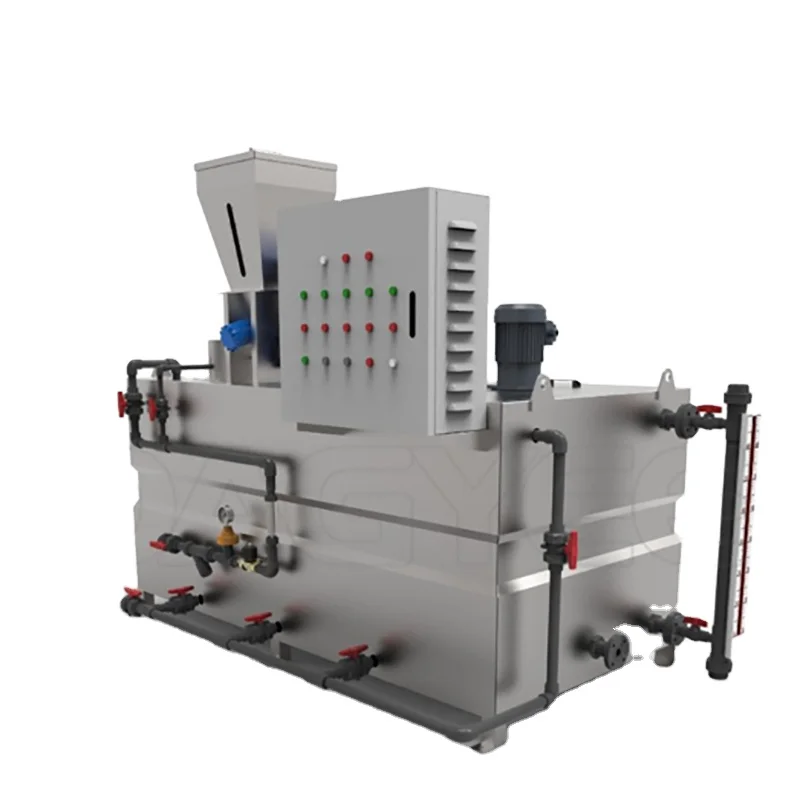

DAGYEE all in one polymer preparation system is used for the dosing of liquid powder flocculants. It can be widely used in water treatment applications in wastewater, papermaking, chemical, petrochemical and mineral processing industries.
Three chamber continuous flow system with control panel, powder feeder, diaphragm metering pump, mixer and agitator are all integrated in one solution.
Dissolution chamber, maturation chamber and storage room are designed for heavy-duty water treatment environments and are made entirely of polypropylene with stainless steel dosing screws for excellent corrosion resistance.
Intuitive controls allow users to easily calibrate powder dosing units and concentrate pumps, and manage ingredient adjustments with precise speed regulators. At the same time, the conductivity level probe warns the operator of high, low, and critical low levels through emergency warning lights.
Feature
Each chamber is equipped with secure inspection cover and emptying valve
User guided solvent concentration entry
Minimal product carryover
Programmable logic PLC controller
Control cabinet for automatic control of the entire system
Optional automatic control panel version to add polymer in proportion
Version with junction box available on request
Specification
Extraction rate up to 10,000 l / h
Liquid polymer concentration: 0.05 – 1%
Powder polymer concentration: 0.05-0.5%
| AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS | |||||||||||||
| PT Model | Capacities (L/h) | Tank volume (L) | Influent volume | Aging Time | Piping Connections() | Physical Dimensions(mm) | Weight (Kg) | Power | |||||
| (m3/h) | (h) | Inlet | Dosing | Vent | Overflow | L/L1 | W/W1 | H | (KW) | ||||
| PT300 | 300 | 350 | 0.12-0.6 | 1.0-1.5 | DN20 | DN20 | DN20 | DN32 | 940/860 | 470/520 | 1450 | 250 | 0.54 |
| PT500 | 500 | 750 | 0.3-1.5 | 1.0-1.5 | DN25 | DN25 | DN25 | DN32 | 1370/1290 | 680/730 | 1450 | 350 | 0.92 |
| PT1000 | 1000 | 1580 | 0.6-3 | 1.0-1.5 | DN25 | DN25 | DN25 | DN40 | 1800/1720 | 900/950 | 1620 | 480 | 1.3 |
| PT1500 | 1500 | 2200 | 0.8-4 | 1.0-1.5 | DN32 | DN32 | DN25 | DN40 | 2130/2050 | 1070/1120 | 1620 | 560 | 1.7 |
| PT2500 | 2500 | 4050 | 1.6-8 | 1.0-1.5 | DN40 | DN40 | DN40 | DN50 | 2450/2370 | 1220/1270 | 2000 | 790 | 2.4 |
PT4000 | 4000 | 6170 | 2.4-12 | 1.0-1.5 | DN40 | DN40 | DN40 | DN65 | 2780/2700 | 1390/1440 | 2250 | 1050 | 3.2 |
| PT6500 | 6500 | 9610 | 4.2-20 | 1.0-1.5 | DN50 | DN50 | DN40 | DN65 | 3100/3020 | 1550/1600 | 2650 | 1200 | 4.8 |
| PT10000 | 10000 | 15780 | 6-30 | 1.0-1.5 | DN65 | DN65 | DN50 | DN80 | 3970/3890 | 1990/2040 | 2650 | 1450 | 6.4 |
contact us
