Камни/губки/конусы/ударные/молотковые/карьерные/горные работы/минеральные дробилки для асфальта/гранита/булыжника/известняка/руды/золота дробильная
- Категория: Crusher >>>
- Поставщик: Hangzhou,Dongkun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.95 $* | 0.21 $* |
| Aug-16-2025 | 0.56 $* | 0.41 $* |
| Jul-16-2025 | 0.99 $* | 0.22 $* |
| Jun-16-2025 | 0.50 $* | 0.77 $* |
| May-16-2025 | 0.37 $* | 0.54 $* |
| Apr-16-2025 | 0.72 $* | 0.58 $* |
| Mar-16-2025 | 0.75 $* | 0.54 $* |
| Feb-16-2025 | 0.9 $* | 0.28 $* |
| Jan-16-2025 | 0.88 $* | 0.66 $* |
Характеристики
Related Products
Products Description

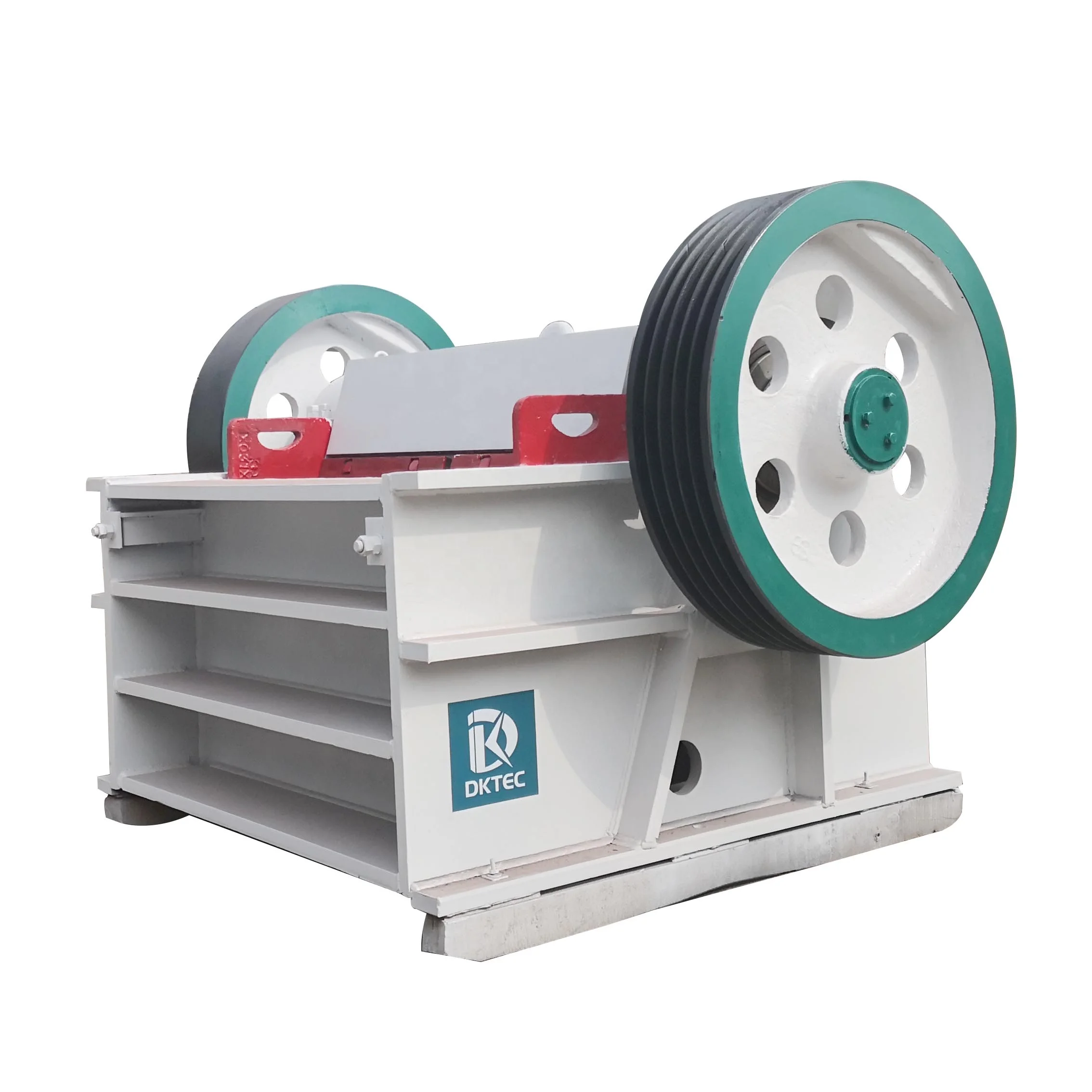

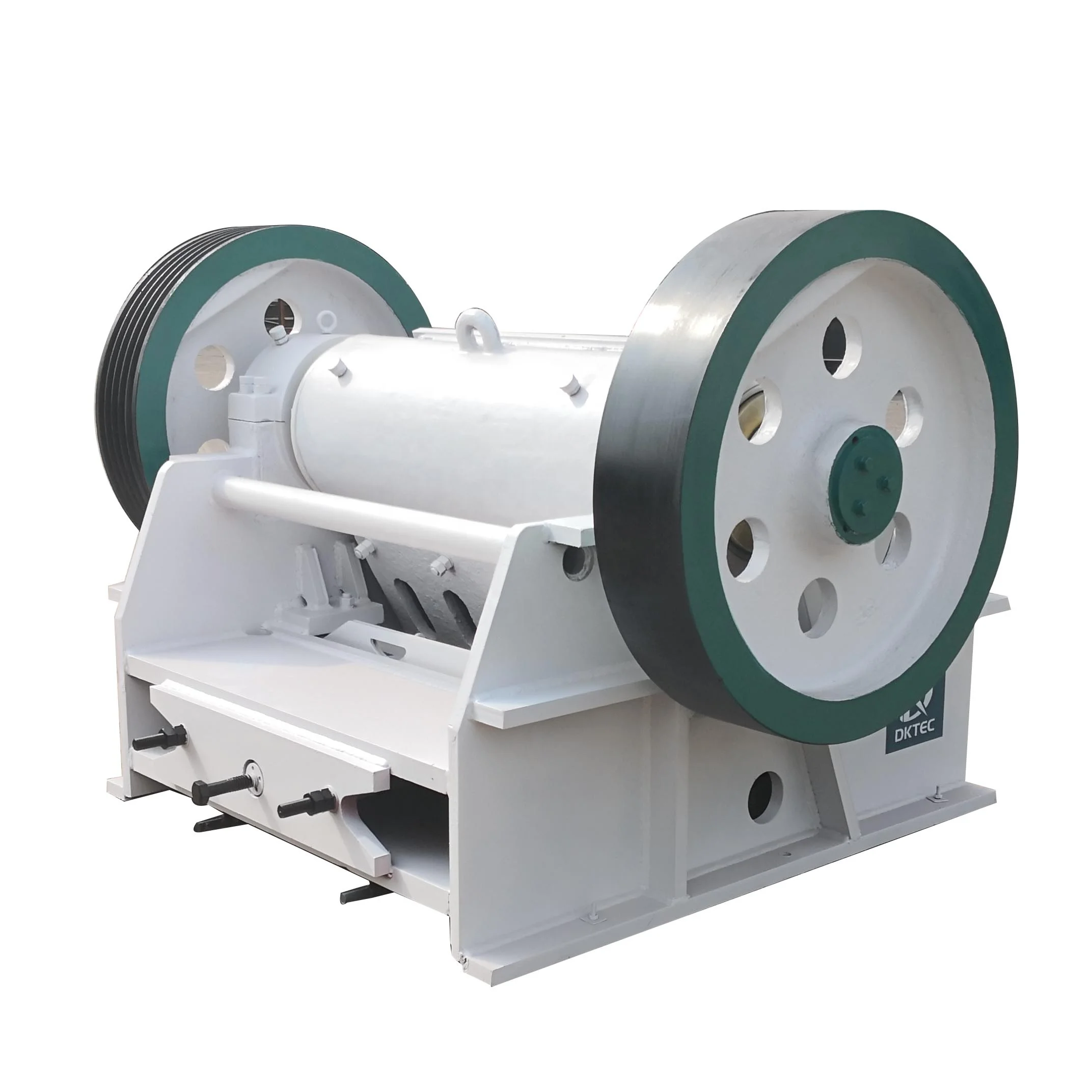

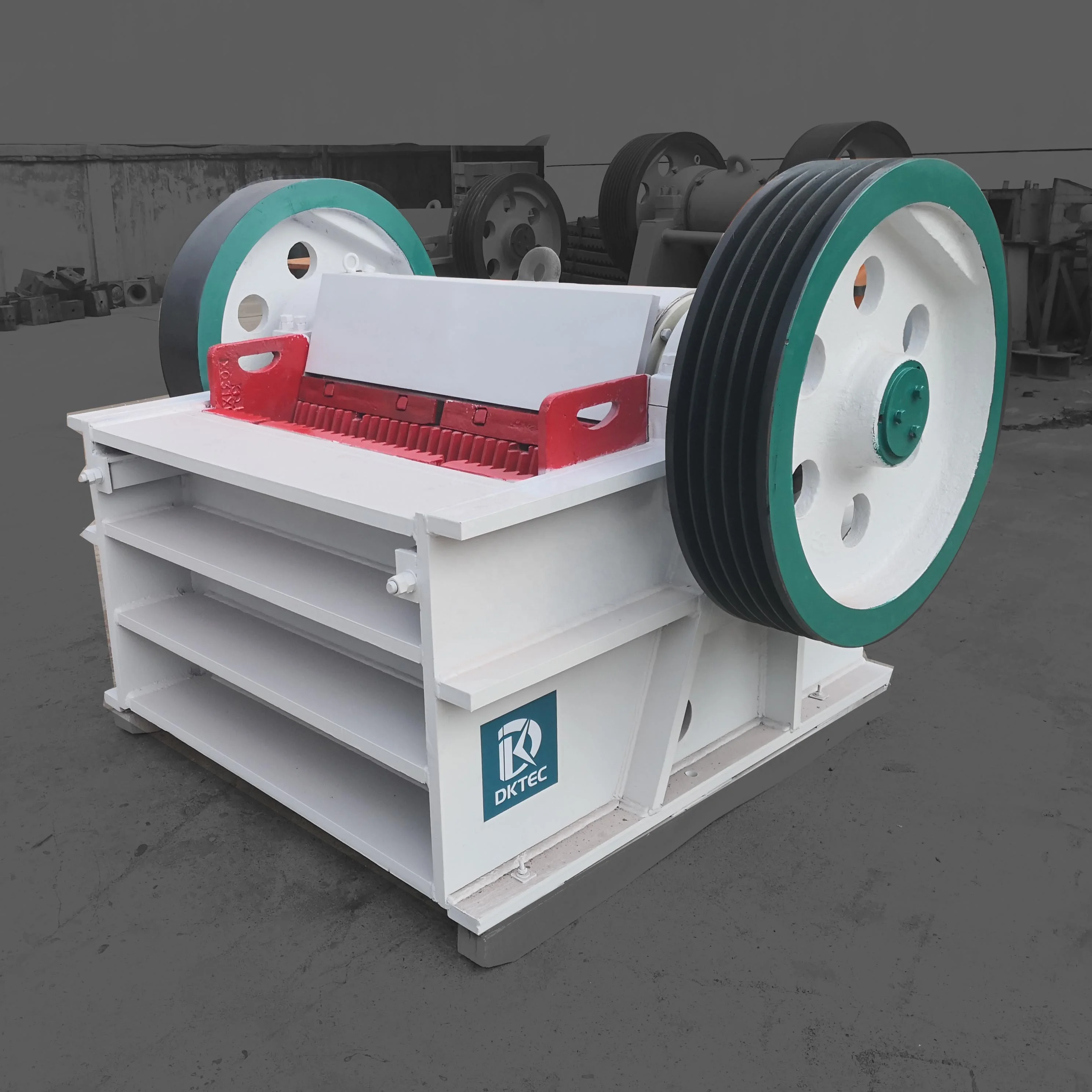

Jaw crushers are heavy duty machines and hence need to be robustly constructed. The outer frame is generally made of cast iron or steel. The jaws themselves are usually constructed from cast steel. They are fitted with replaceable liners which are made of manganese steel, or Ni-hard (a Ni-Cr alloyed cast iron). Jaw crushers are usually constructed in sections to ease the process transportation if they are to be taken underground for carrying out the operations.
Model | Max Opening Dimension (mm) | Max.Feeding Size (mm) | Output Range (mm) | Capacity(t/h) | Power(kw) | Weight(t) | Overall Dimensions(mm) |
PE-150*250Z | 150*250 | 125 | 10-40 | 0.96-4.8 | 5.5 | 0.81 | 950*760*890 |
PE-250*400H(Z) | 250*400 | 210 | 20-80 | 5_21 | 15 | 2.8 | 1400*1315*1380 |
PE-400*600H(Z) | 400*600 | 340 | 40-100 | 16-64 | 30 | 6.5 | 1650*1732*1700 |
PE-500*750 | 500*750 | 425 | 50-100 | 45.6-100 | 55 | 10.3 | 2250*1900*2150 |
PE-600*900 | 600*900 | 500 | 65-100 | 48-120 | 55/75 | 15.5 | 2520*1840*2400 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 51-208 | 110 | 25.1 | 2800*2450*3050 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 288-384 | 110 | 28.7 | 2920*2450*3050 |
PE-900*1200 | 900*1200 | 750 | 100-200 | 144-304 | 160 | 43.3 | 3875*3000*3200 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-342 | 160 | 50.6 | 3980*3000*3200 |
PE-1200*1500 | 1200*1500 | 1000 | 150-350 | 300-800 | 220 | 78.14 | 4800*3200*4200 |
PEX-250*750H(Z) | 250*750 | 210 | 26-60 | 12.8-35.2 | 22 | 4.9 | 1650*1680*1450 |
PEX-250*1000H(Z) | 250*1000 | 210 | 25-60 | 16-51.2 | 37/30 | 6.5 | 1600*1992*1480 |
PEX-250*1200H(Z) | 250*1200 | 210 | 25-60 | 20-60 | 37 | 7.7 | 1700*2190*1550 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-104 | 75 | 11 | 2150*2320*1820 |
1. Frame 2. Fixing Jaw Plate 3. Moving Jaw Plate 4. Protection Plate
5. Swing Jaw 6. Toggle Plate 7. Adjustment Part 8. Fly Wheel
9. Eccentric Shaft 10. Motor
5. Swing Jaw 6. Toggle Plate 7. Adjustment Part 8. Fly Wheel
9. Eccentric Shaft 10. Motor
Detailed images
Packing & Delivery
Factory & Production Process
Our Service
* Inquiry and consulting support.
* Technical information provide.
* Price offer with detail configuration.
* Price offer with detail configuration.
* Training how to install / use the machine.
* Good and fast arrangement for the shipment
* Engineers available to service machinery overseas.
♦ Strong logistics
Not only take care of your products,but also get fastest shipment to reach lead time
♦ Wholehearted service
Not only complete order process,but also provide professional consultation
About us
Hangzhou Dongkun Technology Co.,Ltd( DKTEC) supply concrete mixing plant, asphalt mixing plant, crusher plant relevant equipment.We have advantage in providing complete spare parts & accessory solution for all above plant. We have our own brand DKTEC &COMACO.We aim to be your plant guardian.
