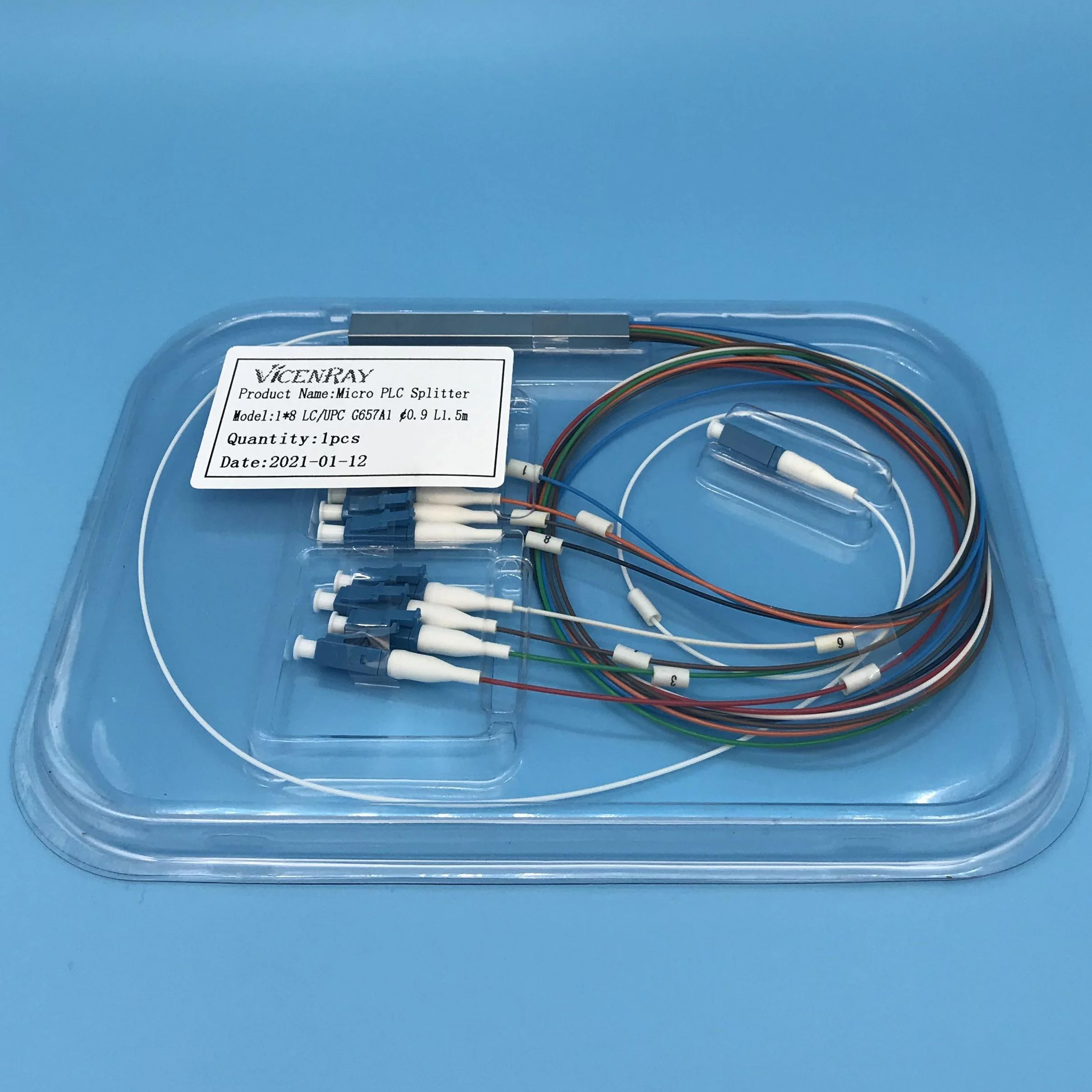

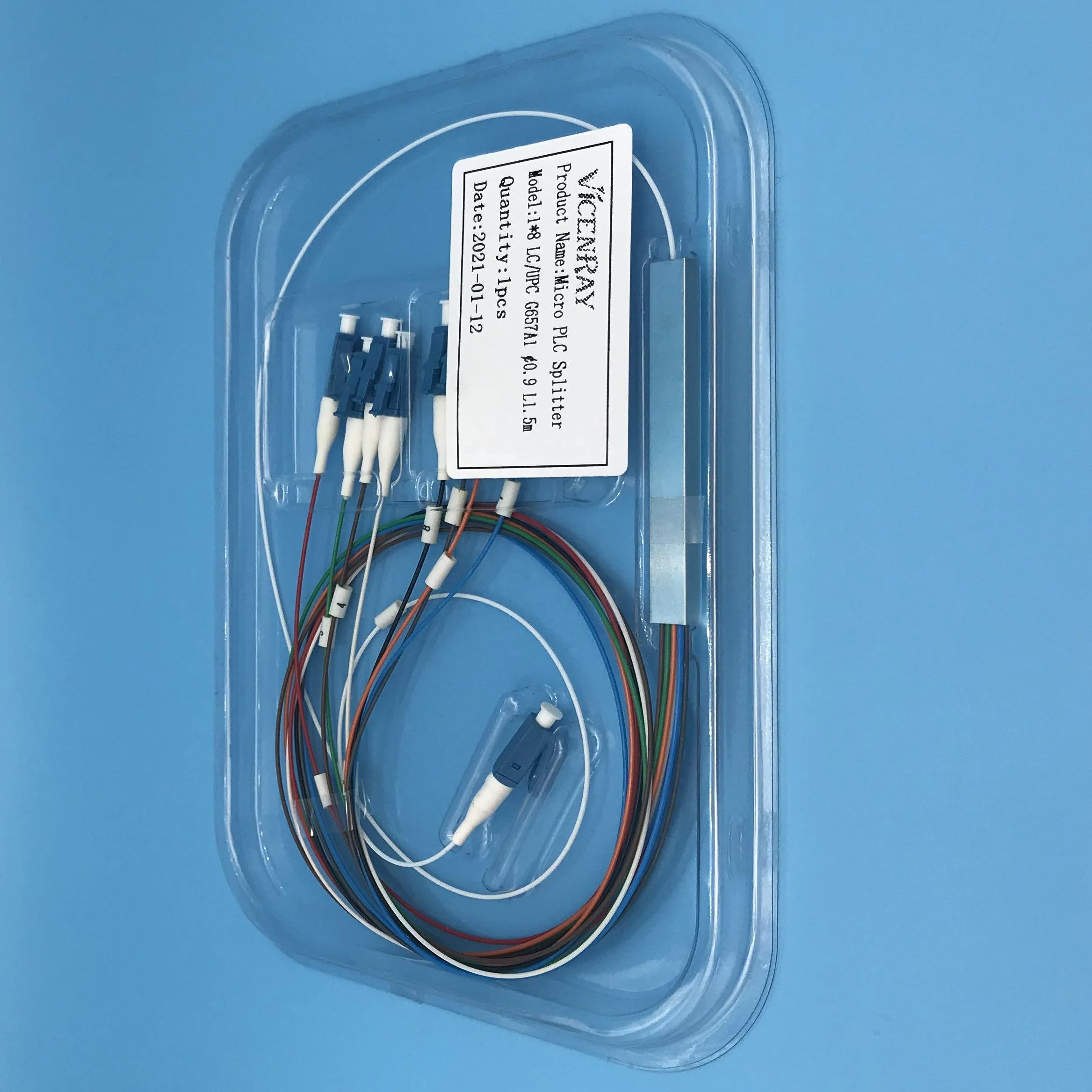

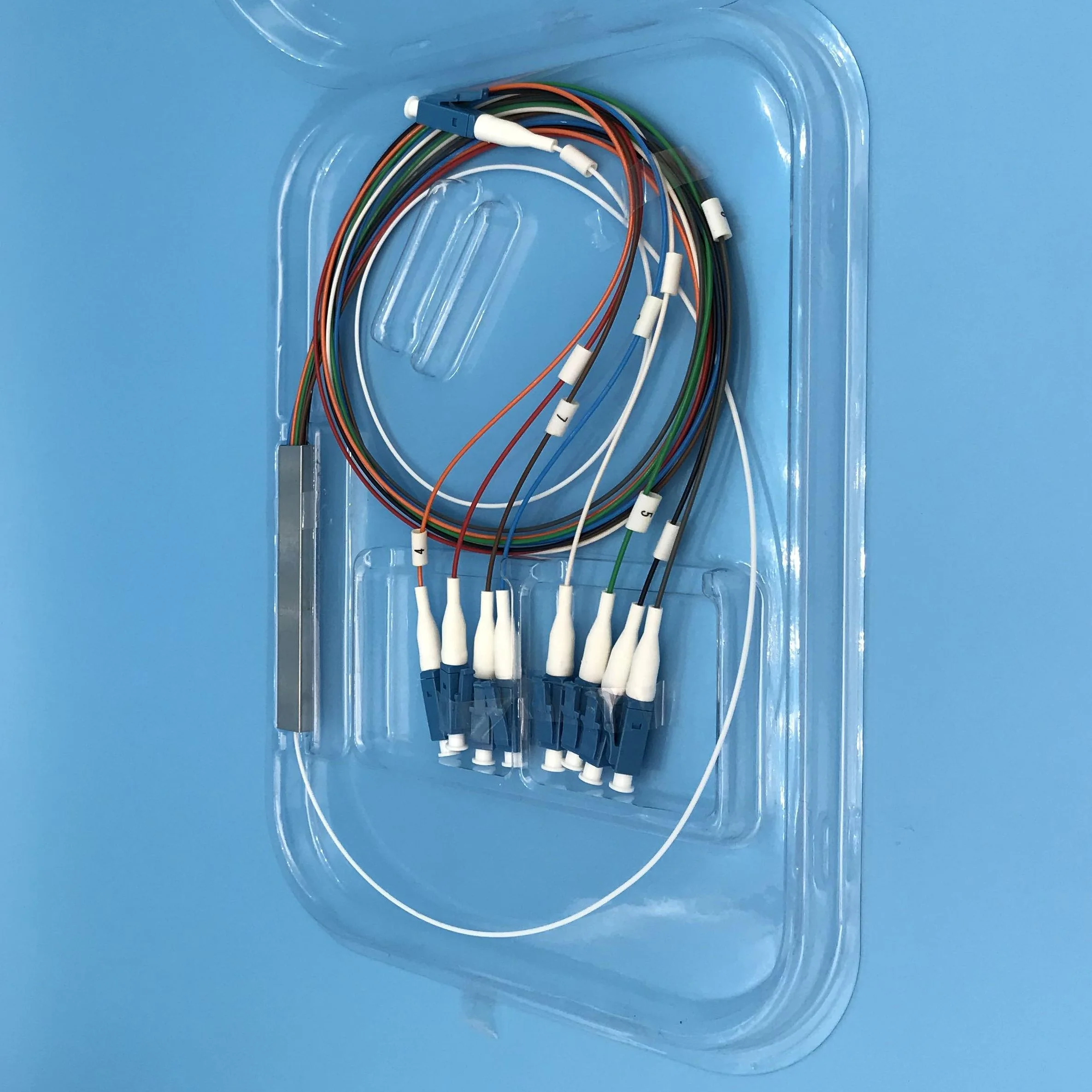

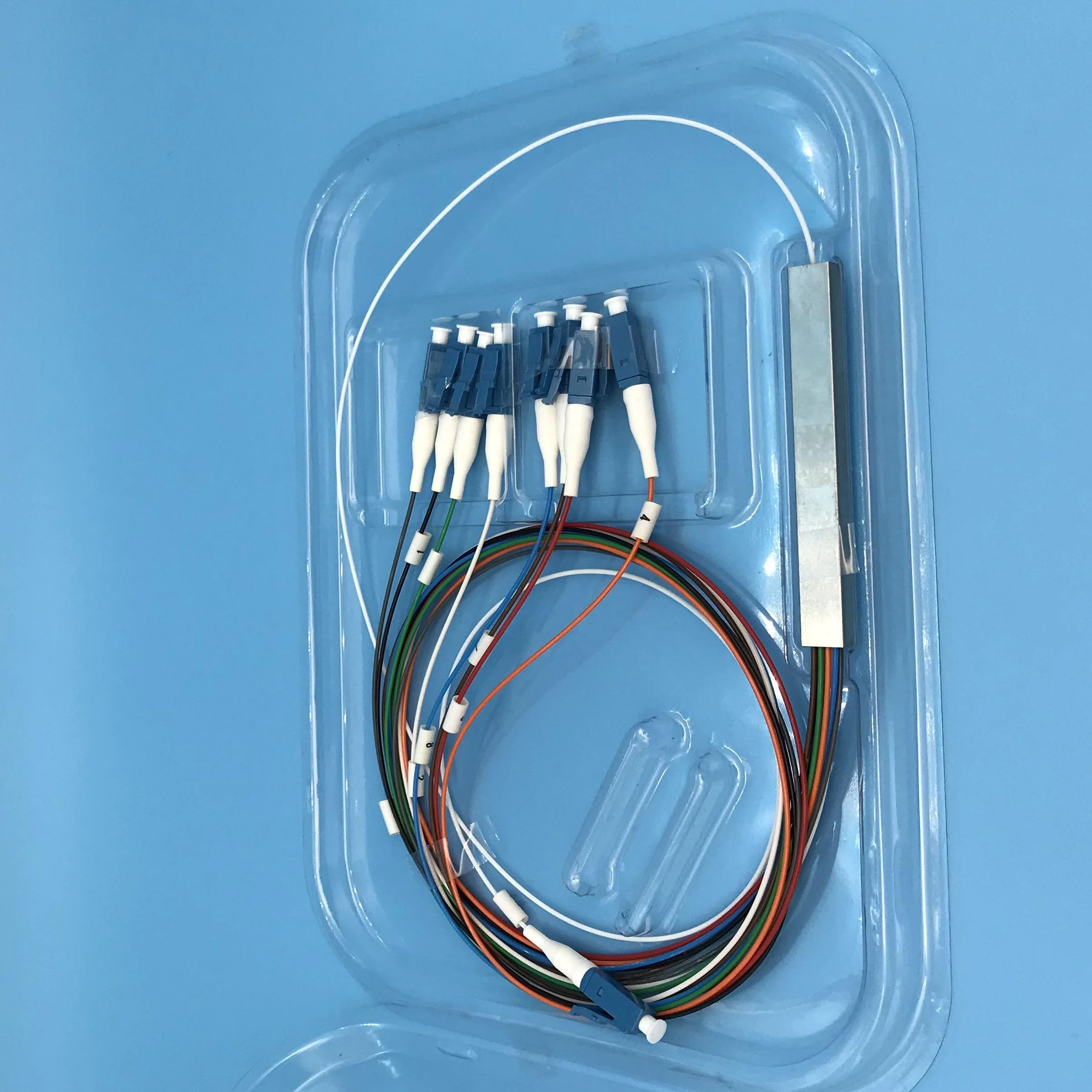

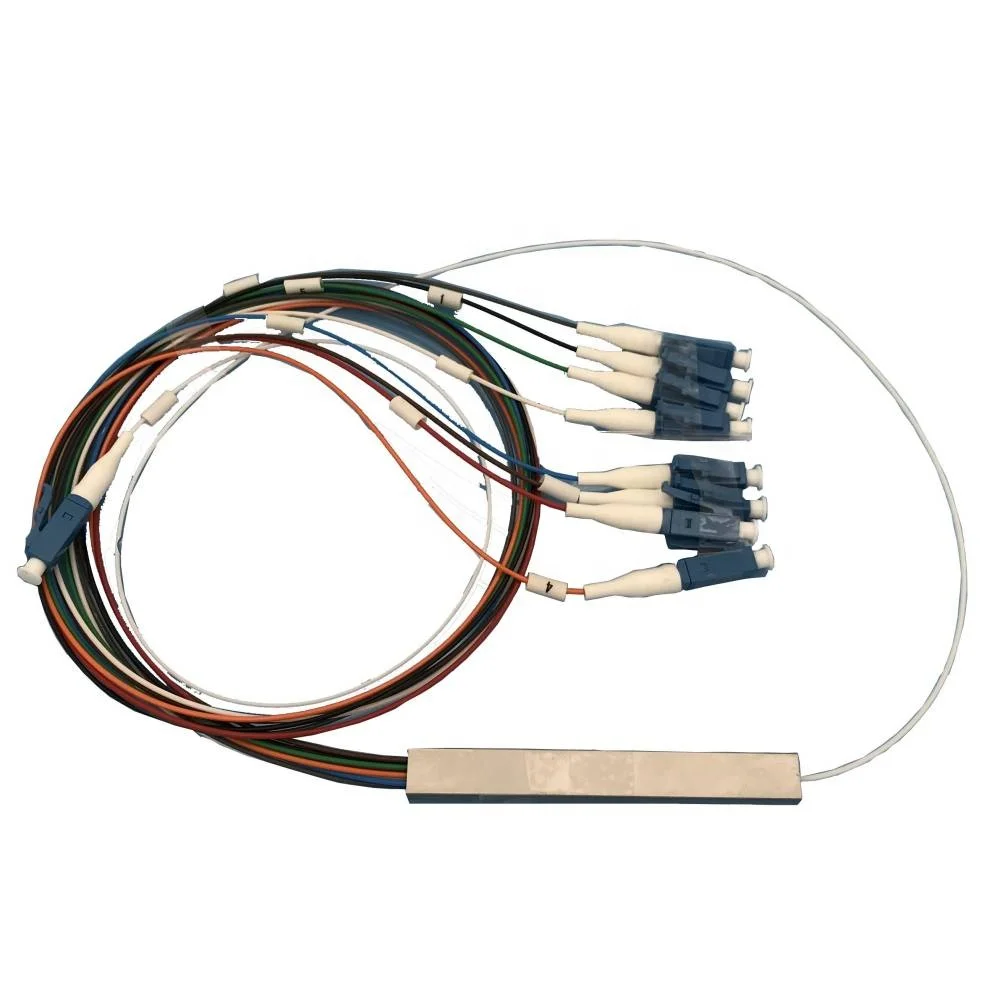

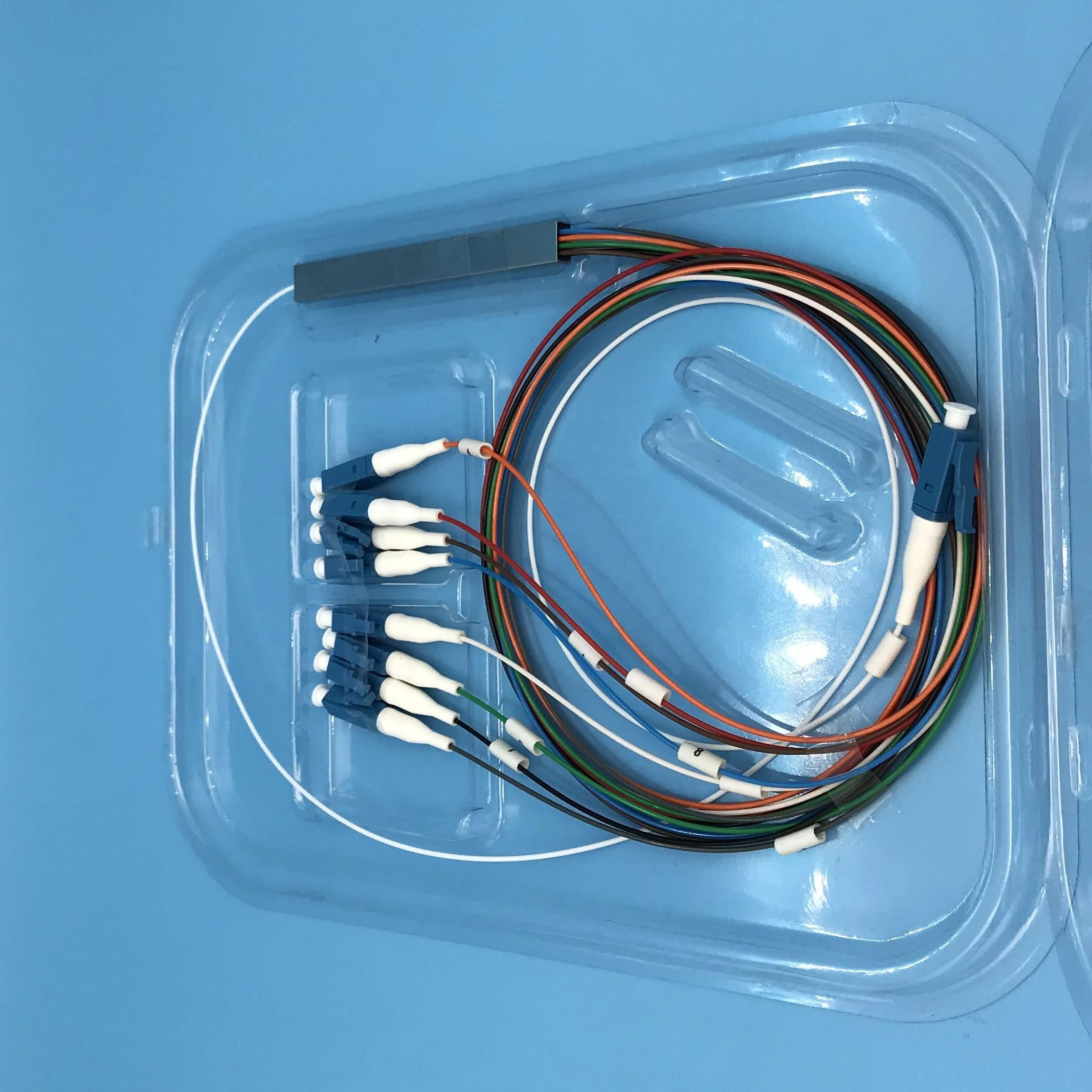

Factory Price Ftth steel tube FTTH 1x2 1x4 1x8 1x16 Fiber Optic PLC Splitter with LC/UPC
- Категория: Оптоволоконное оборудование >>>
- Поставщик: Shenzhen,Baixunhui,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.40 $* | 0.32 $* |
| Aug-20-2025 | 0.63 $* | 0.88 $* |
| Jul-20-2025 | 0.80 $* | 0.18 $* |
| Jun-20-2025 | 0.89 $* | 0.85 $* |
| May-20-2025 | 0.82 $* | 0.93 $* |
| Apr-20-2025 | 0.13 $* | 0.4 $* |
| Mar-20-2025 | 0.30 $* | 0.56 $* |
| Feb-20-2025 | 0.37 $* | 0.96 $* |
| Jan-20-2025 | 0.93 $* | 0.41 $* |
Характеристики
Product Features:
* Good uniformity and low insertion loss
* Low Polarization Dependent Loss
* Excellent Environmental Stability
* Excellent Mechanical
* Stability Telcordia GR-1221 and GR-1209
Application:
* Fiber to The Home (FTTH)
* Passive optical networks (PON)
* Local Area Networks (LAN)
* Cable Television (CATV)
* Test Equipment
* Low Polarization Dependent Loss
* Excellent Environmental Stability
* Excellent Mechanical
* Stability Telcordia GR-1221 and GR-1209
Application:
* Fiber to The Home (FTTH)
* Passive optical networks (PON)
* Local Area Networks (LAN)
* Cable Television (CATV)
* Test Equipment
Parameter | Specification | ||||||||||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 | ||||||||
Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 | ||||||||
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 | ||||||||
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 | ||||||||
Directivity (dB) Min * | 55 | ||||||||||||||||
Return Loss (dB) Min * | 55(50) | ||||||||||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||||||||||
Fiber length | 1m or custom length | ||||||||||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||||||||||
Connector Type | Custom specified | ||||||||||||||||
Power Handling (mW) | 300 | ||||||||||||||||
Company Profile
Advantage
Packing&Shipping
FAQ
