12 дюймов встроенный компьютер сенсорный экран панель pc четыре ядра J1900 ПК панели промышленный код
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Shenzhen,Geshem,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 505.24 $* | 530.63 $* |
| Aug-15-2025 | 500.97 $* | 525.44 $* |
| Jul-15-2025 | 420.7 $* | 441.91 $* |
| Jun-15-2025 | 492.78 $* | 517.31 $* |
| May-15-2025 | 428.27 $* | 449.96 $* |
| Apr-15-2025 | 483.58 $* | 507.76 $* |
| Mar-15-2025 | 479.82 $* | 503.71 $* |
| Feb-15-2025 | 475.5 $* | 499.97 $* |
| Jan-15-2025 | 471.19 $* | 495.77 $* |
Характеристики
Product Description
Products Specification
Display | ||
Screen | 12.1" LCD | |
Resolution | 1024*768 | |
Brightness | 350 cd/m2 | |
Contrast Ratio | 800:1 | |
Touch Screen | five-wire resistive touch screen | |
Performance | ||
Chipset | Intel Celeron J1900/3865U/3855U/Core i3/i5/i7 | |
Memory | 2GB DDR3, up to 8GB; Intel3865U/3855U 2GB DDR4 up to 8GB; Core 2GB DDR4 up to 16GB | |
Storage | 64GB SSD, up to 512GB Msata MLC SSD | |
Hardware Monitor | Monitors voltage, CPU, TEMP | |
Watchdog | 0-255 sec by software | |
OS | Windows 10 and linux OS (J1900 also support windows 7) | |
Power Supply | 9-24V DC IN or 9-36V DC IN optional; 12V5A power adapter is standard | |
I/O | ||
USB | J1900: 3*USB2.0+1*USB3.0; Core/3865U/3855U: 4*USB3.0 | |
COM | 4*RS232 (1 or 2*RS485/RS422 optional) | |
Ethernet | 2*RJ45 GbE 1000M | |
Audio | 1*Line out+1*Mic | |
Display | 1*VGA+1*HDMI | |
Mini PCIe | 1*MiniPCIe for WiFI/BT/3G/4G option | |
GPIO | 1*4in/4out | |
Environmental | ||
Anti-Vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration | |
Anti-shock | 10g acceleration, 11ms duration | |
IP level | Front panel IP65(optional) | |
Reliability | MTBF≥5000h; MTTR≤0.5h | |
Working Temp.: | -10℃--50℃ with air flow | |
Strage Temp.: | -20℃ --60℃ | |
Working Humidity | 95% @40℃, non-condensing | |
Mechanical | ||
Dimension | 317(L)*246(W)*65.7(H)mm | |
Installation | VESA mounting: 100*100mm; Embedded mounting: 309*193mm | |
Material | Fanless High-strength and elegant Al-alloy panel | |
Weight | 4.1kg/5.5kg(NET/Gross) | |
Color | Silver | |
Certificate | CE/FCC/RoHs certificate | |
Warranty | 1 year warranty; extended warranty is available too. | |
Order Information
Support customization, contact customer service for details
Product Name | Model Number | LCD | CPU | Ram | Rom |
12" Industrial Panel PC Industrial Panel PC Panel PC Industrial Industrial Touch Panel PC Touch Screen Panel PC Panel PC All in One Panel PC All in One Touch PC | PPC-GS1251TA | 12" TFT LCD | J1900 | 2GB | 64GB |
PPC-GS1271TA | 12" TFT LCD | 3855U | 2GB | 64GB | |
PPC-GS1272TA | 12" TFT LCD | 3865U | 2GB | 64GB | |
PPC-GS1273TA | 12" TFT LCD | 6th /7th i3 | 2GB | 64GB | |
PPC-GS1275TA | 12" TFT LCD | 6th/7th i5 | 2GB | 64GB | |
PPC-GS1277TA | 12" TFT LCD | 6th /7th i7 | 2GB | 64GB |
Product Application

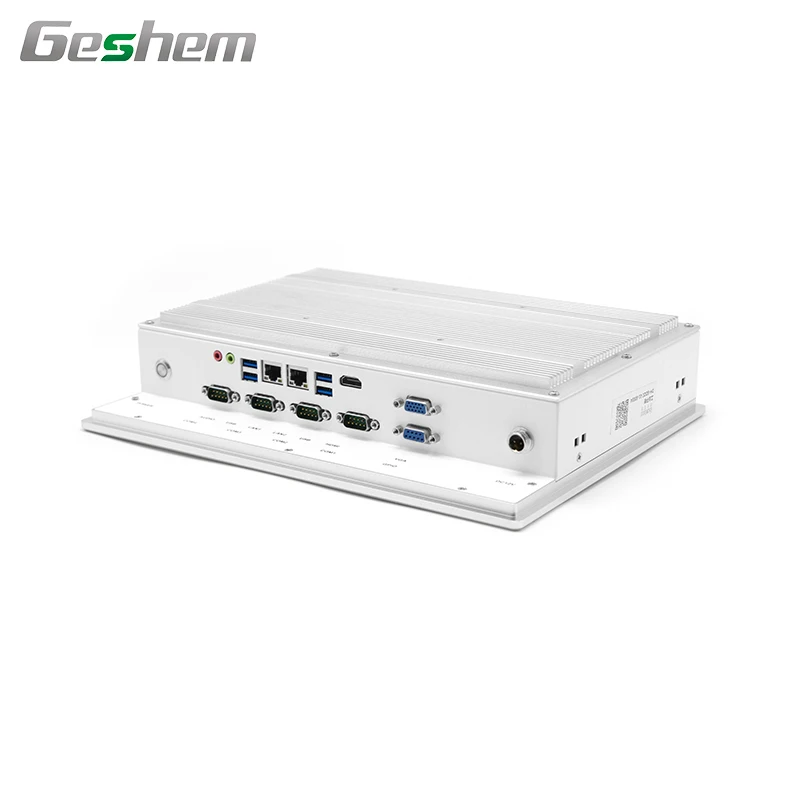

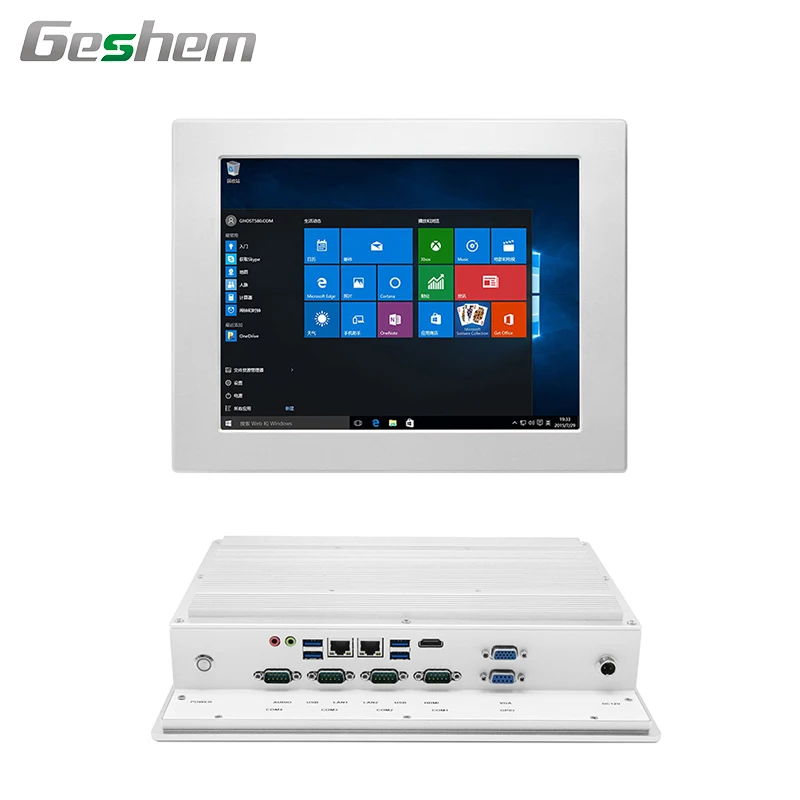

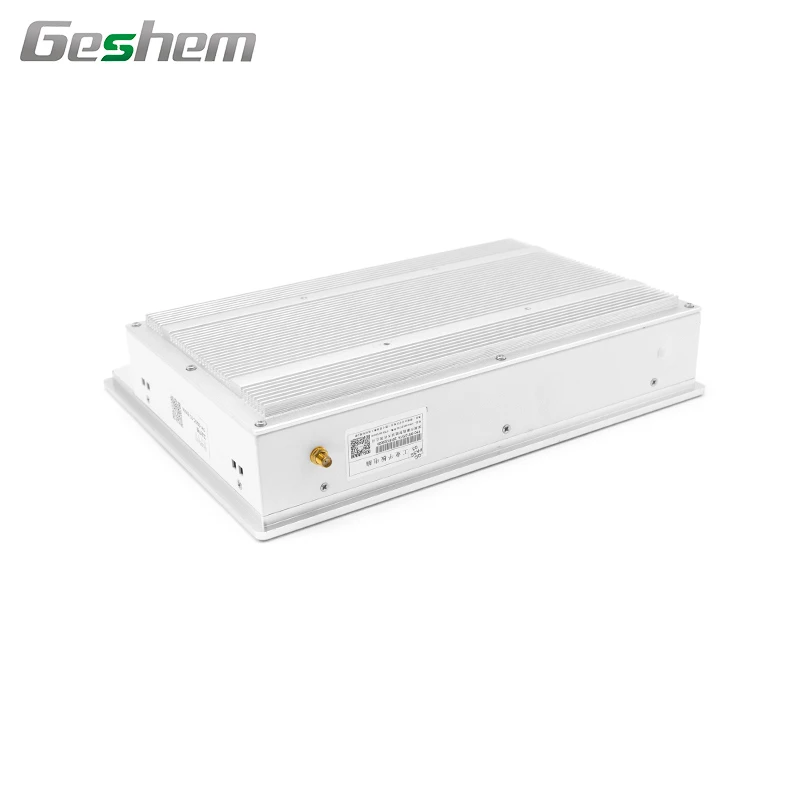

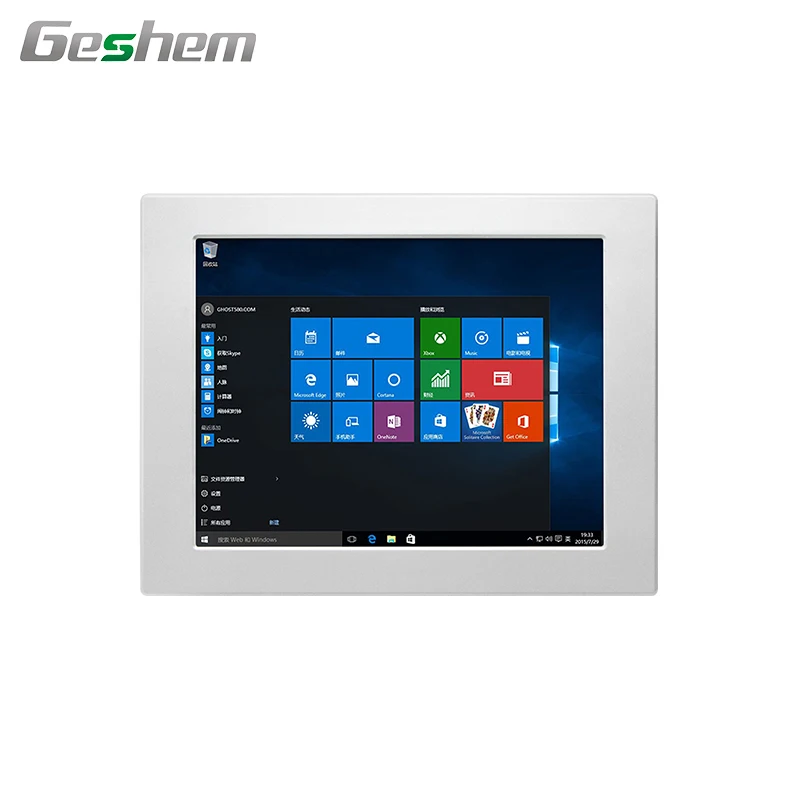

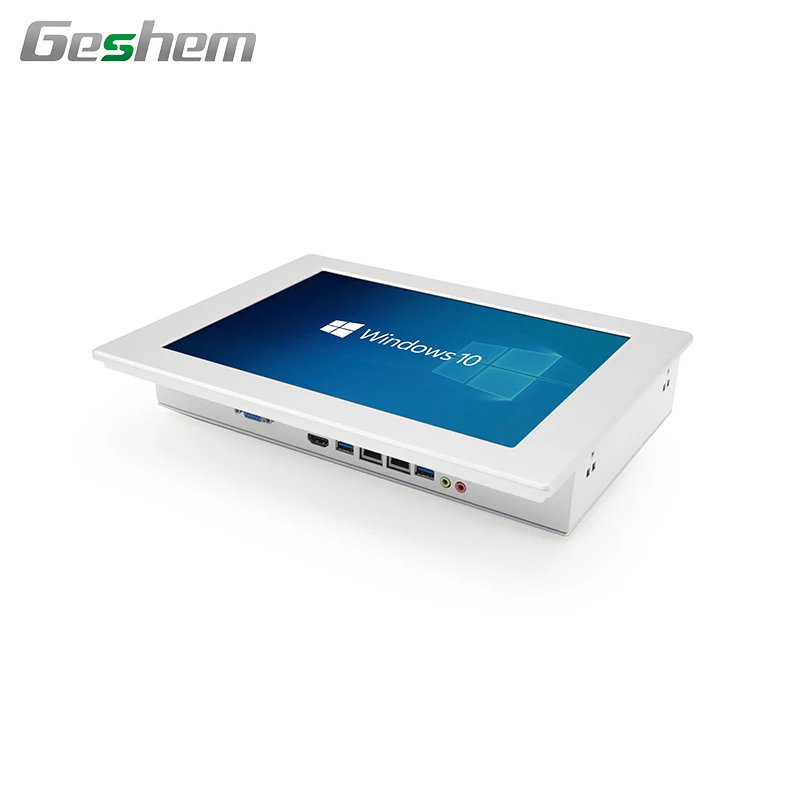

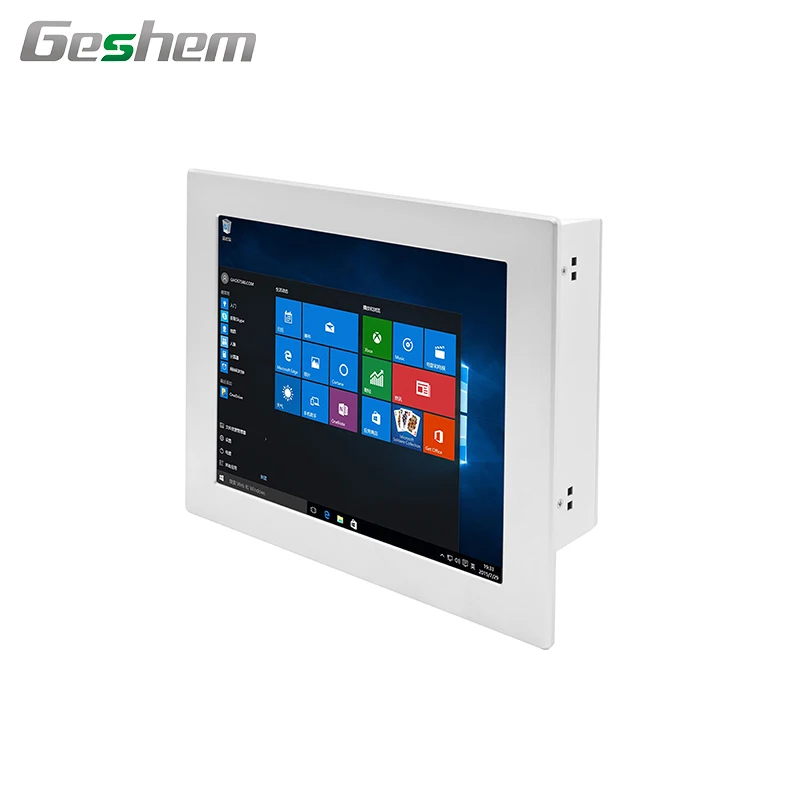

Product photo
