3212 led

Категория: Светодиод SMD >>>
Поставщик: Shenzhen,Xinminghong,Electronic,Co.,Limited

Цена:1,51 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	1.1 $*	1.32 $*
Jul-17-2025	1.87 $*	1.74 $*
Jun-17-2025	1.93 $*	1.81 $*
May-17-2025	1.56 $*	1.11 $*
Apr-17-2025	1.37 $*	1.36 $*
Mar-17-2025	1.98 $*	1.16 $*
Feb-17-2025	1.86 $*	1.53 $*
Jan-17-2025	1.15 $*	1.79 $*

Характеристики

Product Description

Outline dimension:

3212 size.JPG

Feature:

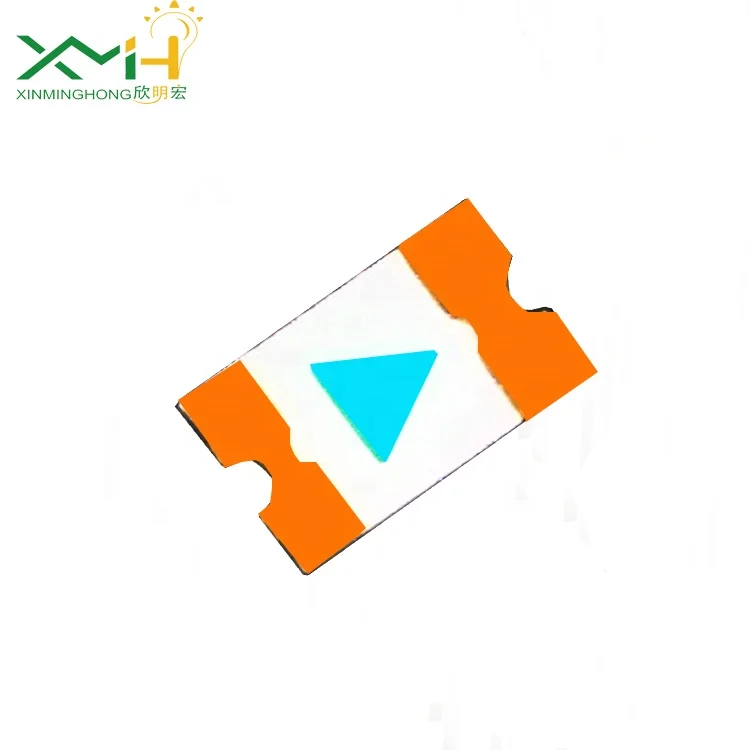

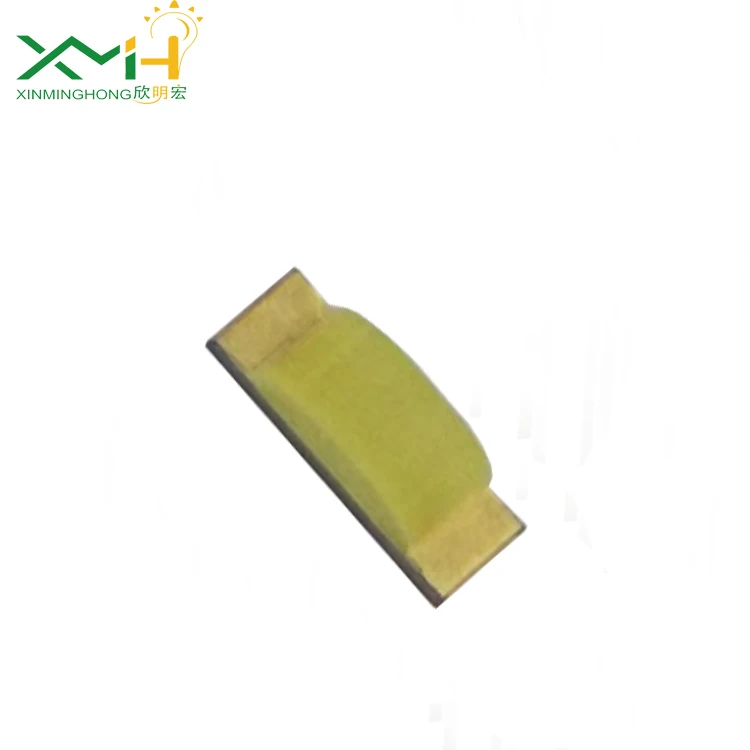

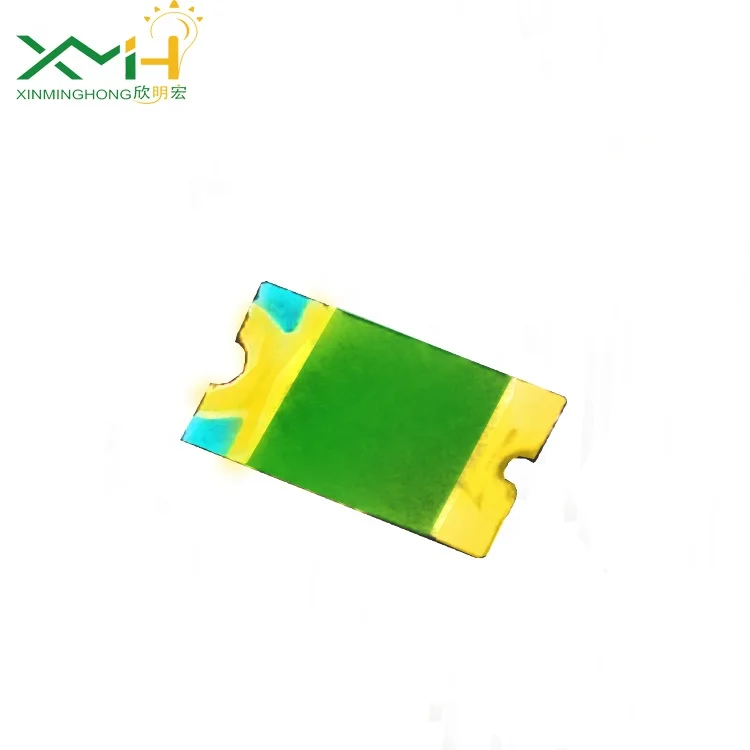

3.2mmx1.25mm SMD LED,1,1mm thickness

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Wide view angle

Long lifespan

Package:3000pcs/reel

ROHS Compliant

Application:

Ideal for backlight and indicator

Various colors and lens types available

Absolute Maximum rating:(Ta=25°C)

Parameter	Symbol	Value	Unit
Forward current	If	70	mA
Reverse Voltage	Vr	5	V
Power dissipation	Pd	200	mW
Operationg temperature	Top	-40∼+85	°C
ESD(Human-body mode	--	2	KV
Storage temperature	Tstg	-40∼+85	°C
Peak pulsing current(1/8 duty f=1kHz	lfP	125	mA

Electrical characteristics:(Ta=25°C)

Parameter	Test condition	Symbol	Value			Unit
Parameter	Test condition	Symbol	Min	Typ	Max	Unit
CIE coordinates	If=60mA	X	0.294	---	0.3334	nm
CIE coordinates	If=60mA	Y	0.254	---	0.376
Forward voltage	If=60mA	Vf	2.8	3.2	3.6	v
Luminous intensity	If=60mA	Iv	320	500	800	mcd
Viewing angle at 50% lv	If=60mA	2θ1/2		140		Deg
Resverse current	Vr=5v	Ir			10	mA

Packaging & Shipping

3000pcs/reel Reel+Anti-static bag+carton

All items will be shipped by DHL UPS EMS SF airmail with tracking number in order to speed up the delivery

Our Services

Any demand will be answered within 24 hours

Company Information


Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce

various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of

LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the

high quality demand and competitive price in LED industry.

MH provides excellent sales service and strong technical supports to our

customers.

FAQ

Why choose us?

1,Your inquiry for our products or prices will be replied in 24 hours

2,Protection of your sales area,ideas of design and all your private in formation.

3,We guarantee both quality and service regardless of your order qty.

4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.

5,If there is LED failure, how can you support?

A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

6,Would you offer free samples?

A:Yes, We would offer free samples

7,What about the lead time?

A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
