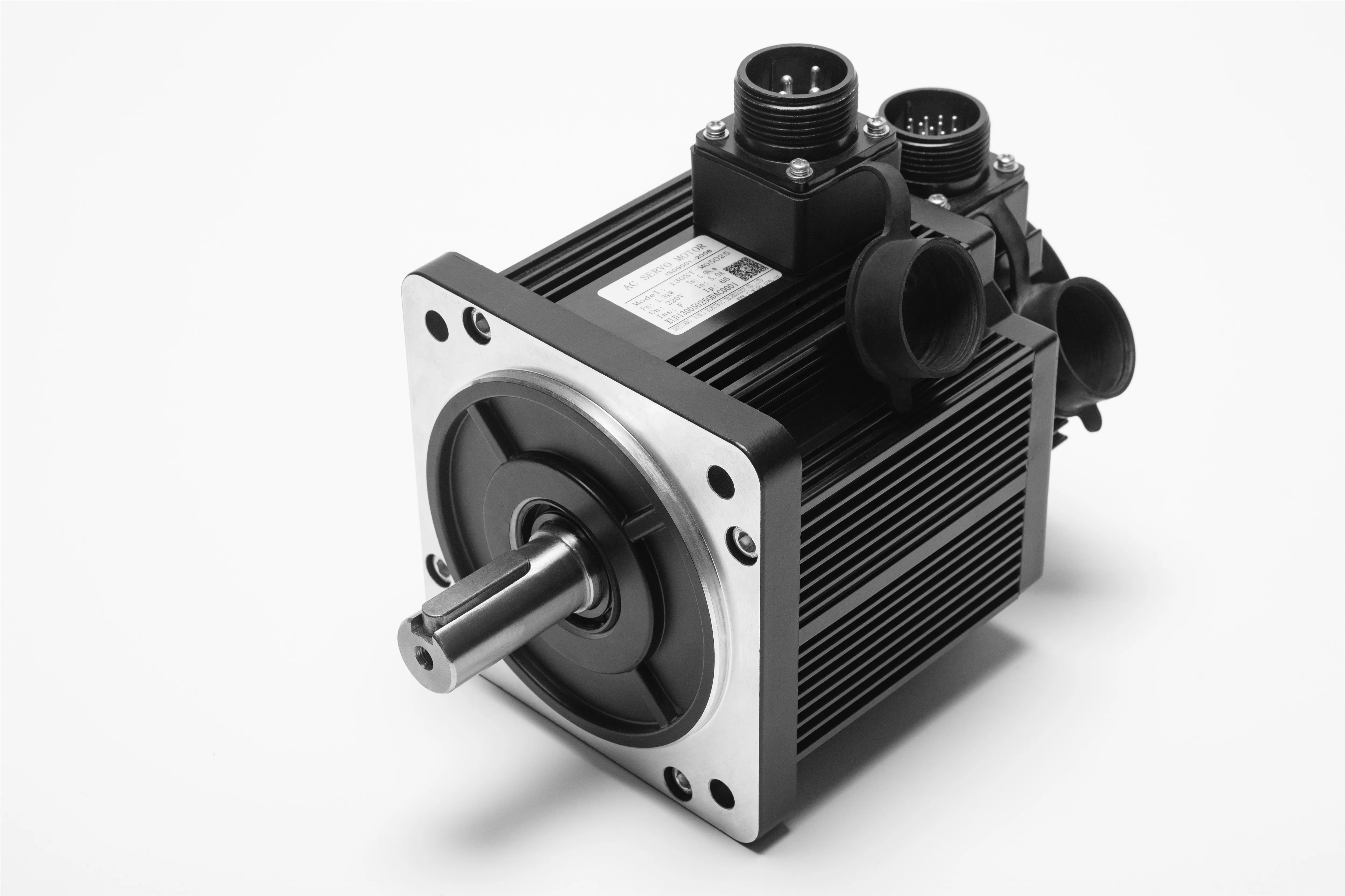

AC Серводвигатель 130ST-M05025 220V 1.3KW 5Nm 2500RPM Замена
- Категория: AC Motor >>>
- Поставщик: Zhejiang,Xinli,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 131.86 $* | 138.10 $* |
| Aug-18-2025 | 130.45 $* | 137.94 $* |
| Jul-18-2025 | 109.95 $* | 114.72 $* |
| Jun-18-2025 | 128.91 $* | 134.88 $* |
| May-18-2025 | 111.13 $* | 117.84 $* |
| Apr-18-2025 | 125.42 $* | 131.14 $* |
| Mar-18-2025 | 124.93 $* | 130.61 $* |
| Feb-18-2025 | 123.16 $* | 129.97 $* |
| Jan-18-2025 | 122.12 $* | 128.40 $* |
Характеристики
Product Overview
Permanent Magnet AC Servo Motor:
60 series, 80 series, 90 series, 110 series, 130 series, 150 series,180 series, currently covers torque from 0.2 Nm to 48 Nm and power from
200 W to 7.5 kw.
200 W to 7.5 kw.
FEATURES AT A GLANCE
Applications
1. numerical control machine tools
2. textile machinery
3. packaging machines
4. printing machines
5. cuttingmachine
6. marking machines
7. industrial robots
8. many other industrial automation fields.
2. textile machinery
3. packaging machines
4. printing machines
5. cuttingmachine
6. marking machines
7. industrial robots
8. many other industrial automation fields.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Rated Voltage(V) | 220 |
2 | Rated Power(KW) | 1.3 |
3 | Rated Torque （N.m） | 5 |
4 | Peak Torque（N.m） | 15 |
5 | Rated Current（A） | 5 |
6 | Rated Speed (rpm) | 2500 |
7 | Rotor Inertia（kg.m²） | 1.06*10-3 |
8 | Line-line Resistance（Ω） | 1.84 |
9 | Line-line Inductance （mH） | 4.9 |
PRODUCT CONFIGURATION
FAQ
1. Q: Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
5.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
6.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
7.Certicification:
We are ISO9001, ISO14001, CE certified.
8.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
5.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
6.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
7.Certicification:
We are ISO9001, ISO14001, CE certified.
8.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
