UPS backup for notebook ups 3kva online 110v

MODEL

3KVA(L) plus

PHASE

Single phase with ground

CAPACITY

3000VA/2400W

INPUT

Nominal Voltage

110Vac

Voltage Range

60-138VAC ±5% at 50% load

80-138VAC ±5% at 100% load

Frequency Range

40Hz-70Hz(46-54Hz default 50Hz;56-64Hz default 60Hz)

Power Factor

≥0.99@nominal voltage(100% load)

THDi%

≤10%

OUTPUT

Output Voltage

100/110/120/127 VAC)

AC Voltage Regulation

±2%

FrequencyRange

(Synchronized Range)

47-53 Hz or 57-63 Hz

Frequency Range(Batt.Mode)

50 Hz±0.1 Hz or 60 Hz±0.1 Hz

Current Crest Ratio

3:1

Harmonic Distortion

THD (Linear Load)≤4%,THD (Non-linear Load)≤7%

Transfer

Time

AC to DC

zero

Inverter

to Bypass

4ms (Typical)

ECO to Battery Mode

8ms (Typical),10 ms (max)

Waveform

Pure Sinewave

EFFICIENCY

Line Mode

≥89%@battery full charged

≥91%@battery full charged

ECO Mode

≥96%@battery full charged

Battery Mode

≥86%

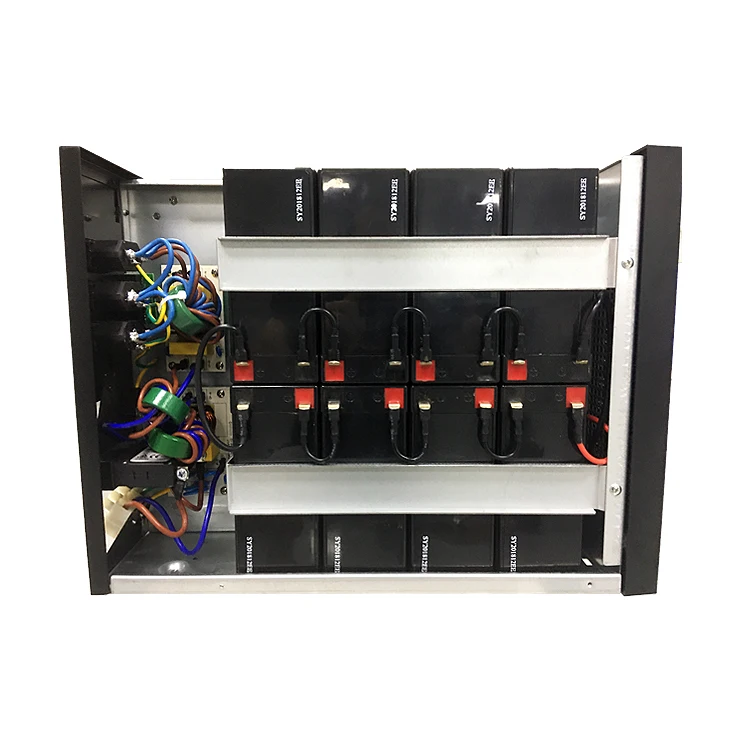

BATTERY

Battery Type

12V/7AH

Numbers

8

Typical Recharge Time

5hours recover to 95% capacity for internal battery

Charging Current

1-3KVA   1A

1-3KL   4.5A

Charging Voltage

110VDC±1%

INDICATORS

LCD Panel

Load level,Battery level, AC mode,Battery mode,Bypass mode,and Fault indicator

ALARM

Battery Mode

beeps every 5 seconds

Low Battery

beeps every 2 seconds

Overload

Beeps every seconds

Fault

Continuously beeps

PHYSICAL

Dimension,D*W*H(mm)

425*190*328

Net Weight(long backup )(kgs)

12

Net weight

(w/built-in batteries)(kgs)

28

ENVIRONMENT

Humidity

20-95%RH@0-40℃(non-condensing)

Noise Level

Less than 50dBA @ 1 Meter

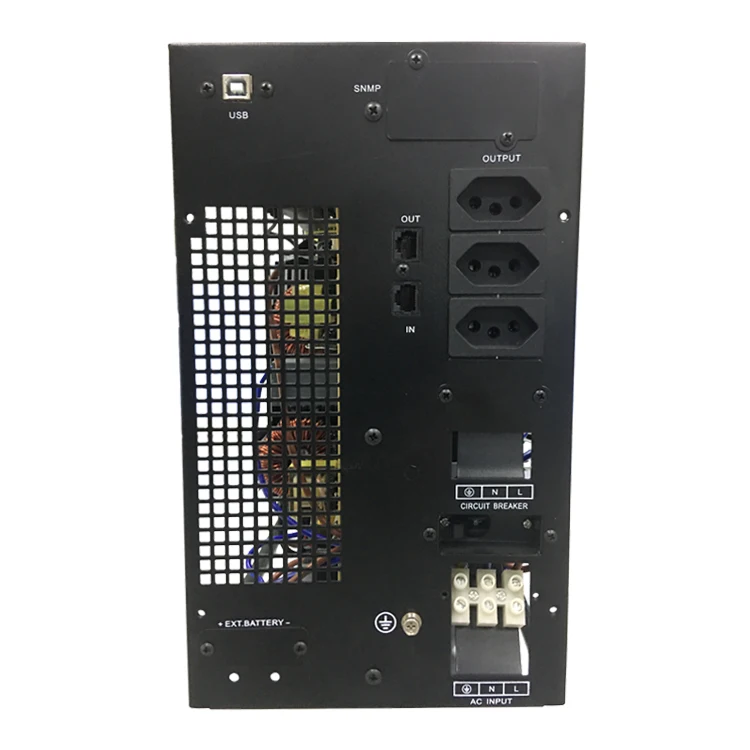

MANAGEMENT

Smart RS-232 or USB

Support

Optional SNMP

Power management from SNMP manager and web browser

STANDARD

EMC/Safety

EMC EN62040-2 C2 for CE models
