Характеристики
Product Description
Summary

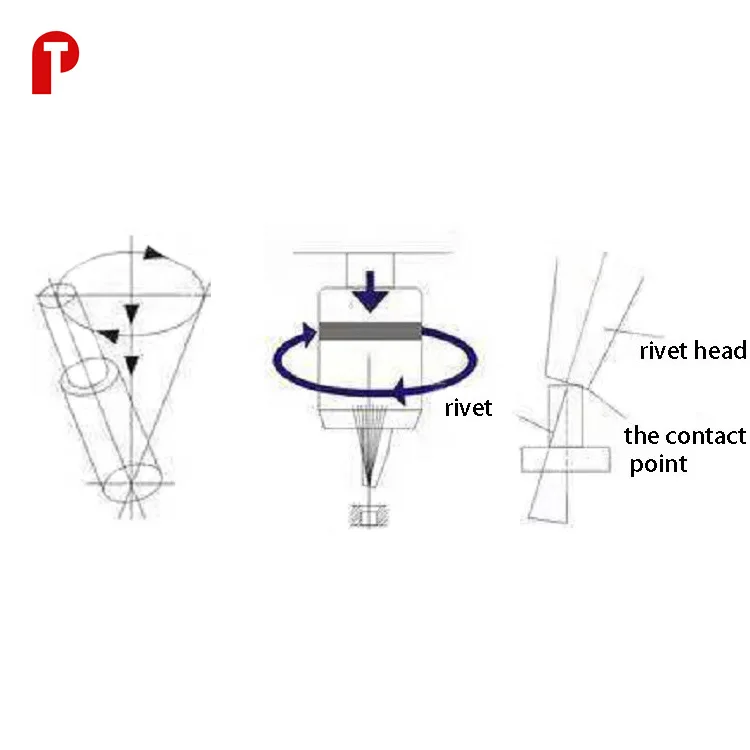

The motor transfers power to the spindle through a coupling, and the hydraulic system drives the pistons down the spindle. When the riveting head contacts the rivet, the riveting head rotates around the center line of the rivet. At the same time, the riveting head rotates under the action of tangential force.
The eccentric riveting method makes the deformation of the rivet conform to the natural deformation law of the metal. After riveting, the rivet almost has no bending, thick and other phenomena, and the parts connected with the rivet also has no deformation.
The eccentric riveting method makes the deformation of the rivet conform to the natural deformation law of the metal. After riveting, the rivet almost has no bending, thick and other phenomena, and the parts connected with the rivet also has no deformation.
Advantages
1.1 The machine is cast iron body, not easy to deform, solid structure, center of gravity bottom, table can be adjusted up and down.
1.2 When t he machine works long hours, oil pressure is not easy to rise and the pressure will not decay.
1.3 Strong riveting ability, special machine body can be customized.
1.2 When t he machine works long hours, oil pressure is not easy to rise and the pressure will not decay.
1.3 Strong riveting ability, special machine body can be customized.
Specification
No. | Description | Parameter |
1 | Motor | 380 V |
2 | Spindle stroke | 40 mm |
3 | Rivet | Solid：3-12， Hollow：3-25 |
4 | Table size | 150*240 mm |
5 | Time to adjust | 0-10 s |
6 | Pressure of using | 20-70kg/cm² |
7 | Maximum pressure | 800-2800 kg/cm² |
8 | Maximum rivet length | 230 mm |
9 | Weight | 350 kg |
10 | The motor speed | 1400 HZ RPM |
11 | Throat deepth | 195mm |
Packing & shipping
packing | |
size | 600x600x1100mm |
weight | 150kg |
Packing Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
