Спирометрия для больниц Ручной Электронный спирометр тестер легких портативный

Спирометрия для больниц Ручной Электронный спирометр тестер легких портативный

Категория: Спирометр >>>
Поставщик: GUANGZHOU,LETY,MEDICAL,LIMITED

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.58 $*	0.55 $*
Aug-18-2025	0.21 $*	0.9 $*
Jul-18-2025	0.28 $*	0.64 $*
Jun-18-2025	0.87 $*	0.75 $*
May-18-2025	0.25 $*	0.86 $*
Apr-18-2025	0.5 $*	0.75 $*
Mar-18-2025	0.49 $*	0.33 $*
Feb-18-2025	0.39 $*	0.21 $*
Jan-18-2025	0.97 $*	0.40 $*

Характеристики

Product Description

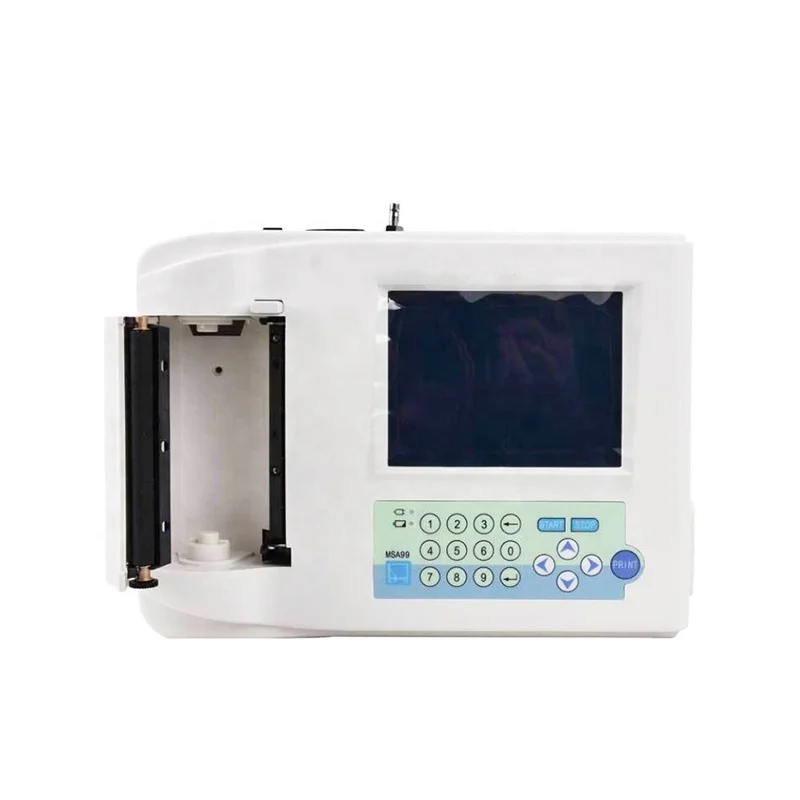

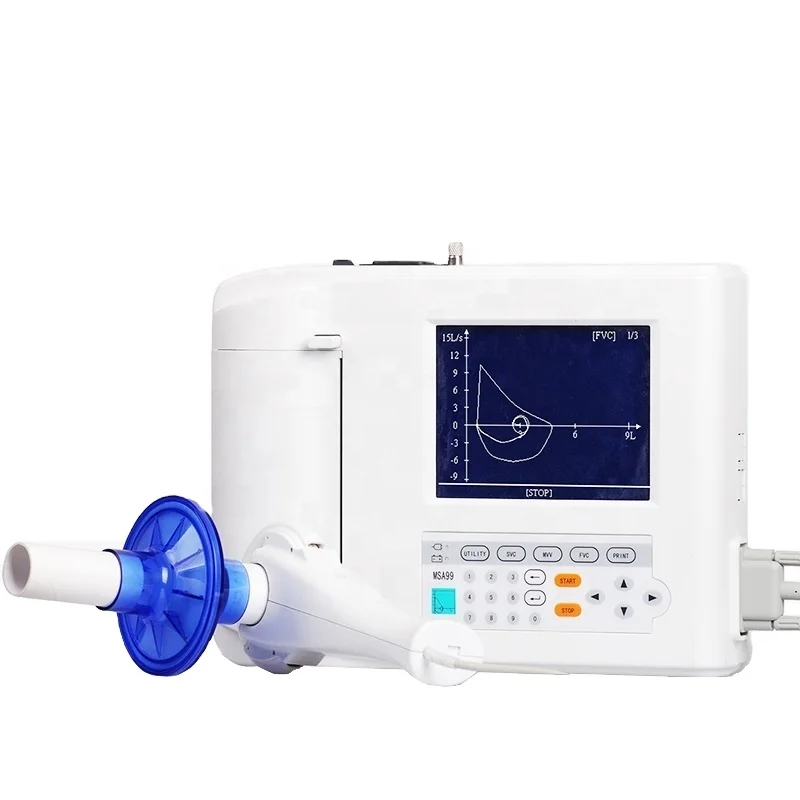

Hospital clinic Spirometer

Model: LTM-MS99

This Portable Pulmonary Function Test (PFT) Equipment can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilation Volume (MVV).

Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS) Adopting pressure-flow sensor, sensitive, precise, easy to launder, clean and durable

All parameters can be displayed on the oversized screen(320x240), built-in memory can store maximum 300 cases of patient measurement results

The instrument can calibrate automatically, all English operation, more convenient to operate

110mm thermal printer built-in, can print out a clear clinical report, predicted value, measured value

Measurement of breathing time: VC time 50 seconds, FVC measuring time 25 seconds, MVV time 12 seconds, in favor of the coordination between patients and the device Compact and flexible

Items	Technique specification
Display Screen	Diagonal line 5.7inches
	Monochrome LCD
	Resolution 320*240
Control	Standard: UTILITY KEY,SVC KEY,FVC KEY,MVV KEY,PRINT KEY,10WORDS KEY, START KEY,STOP KEY
Control	Light alarm

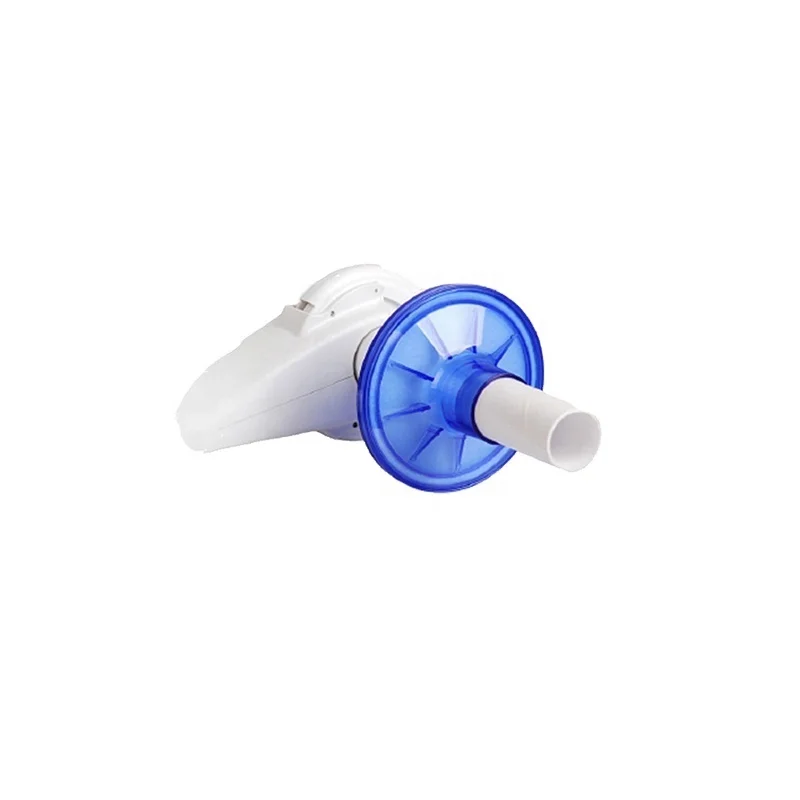

Measurement means	Flow velocity detection: pressure gradient pneumatic flow sensor
Measurement means	Capacity detection: flow velocity integral
measuring range	Capacity range: 0L ~ 9L
measuring range	Flow velocity range: 0 ~ 14L / s
measurement accuracy	Capacity:
	0L ~ 1.6L (± 50ml)
	6L ~ 9L (± 3%)
	Flow rate: 5% or 0.2L / s
	Respiratory rate:
	4 / 20 ~ / min (± 1 / min)
	20 / 60 / min (error: ± 5%)
measuring time limit and degree	Vital capacity: every 50s, measuring 3
	FVC: per second, 25s, measuring 3
	The maximum ventilation volume: every 12 seconds, measuring 3
Paper Recorder	Method: dot matrix
	Level Resolution Ration: 8 d/mmspeed 25mm/s
	Uprightness Resolution Ration: 8 d/mm
	Wave Channels: 1
	Paper Width: 110mm1.97inches
	Paper Length: 15m100inches
	Formfeed Speed: 12.5,25 and 50mm/s±2
Power supply	AC: 100V~240V
Power supply	DC: rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour
Fuse	100V~240V ACF2A250V,5×20mm
Safety classification	IEC60601-1 class I, type CF
